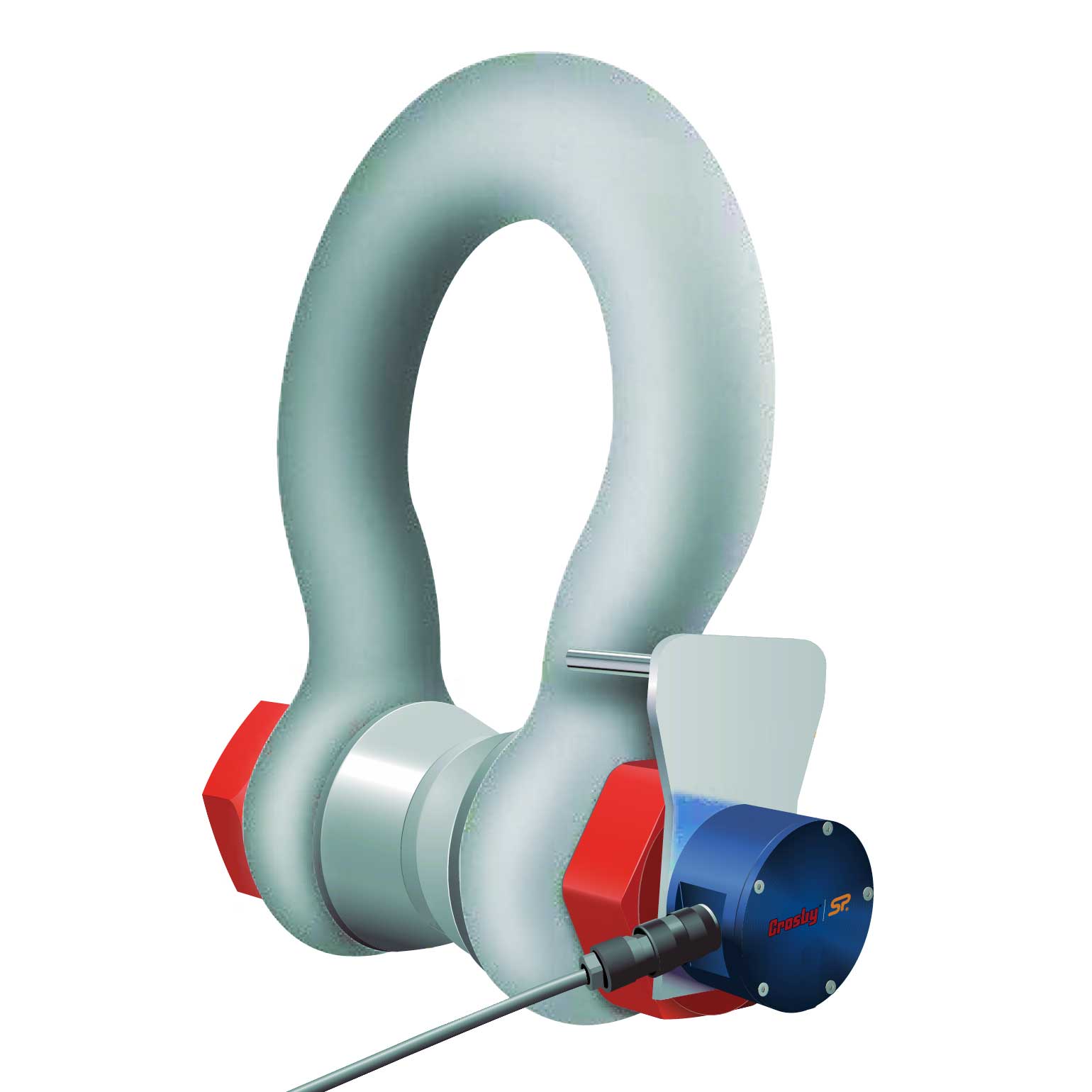

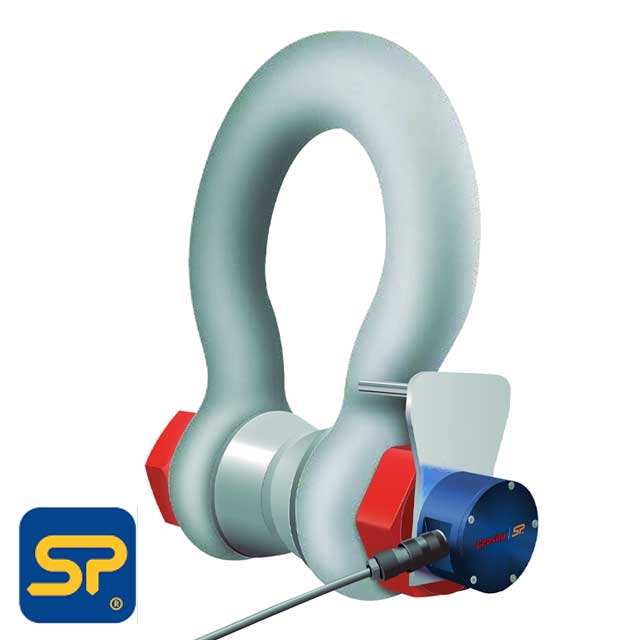

Straightpoint® 25 T Loadshackle - SLB25T

  • Straightpoint® 25 T Loadshackle - SLB25T
  • Straightpoint® 25 T Loadshackle - SLB25T
  • Straightpoint® 25 T Loadshackle - SLB25T
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
SKU: SLB-25-T

$5,925.00
Free Shipping
Call/Chat for exact lead times
Standard Lead Time 14-21 business days.

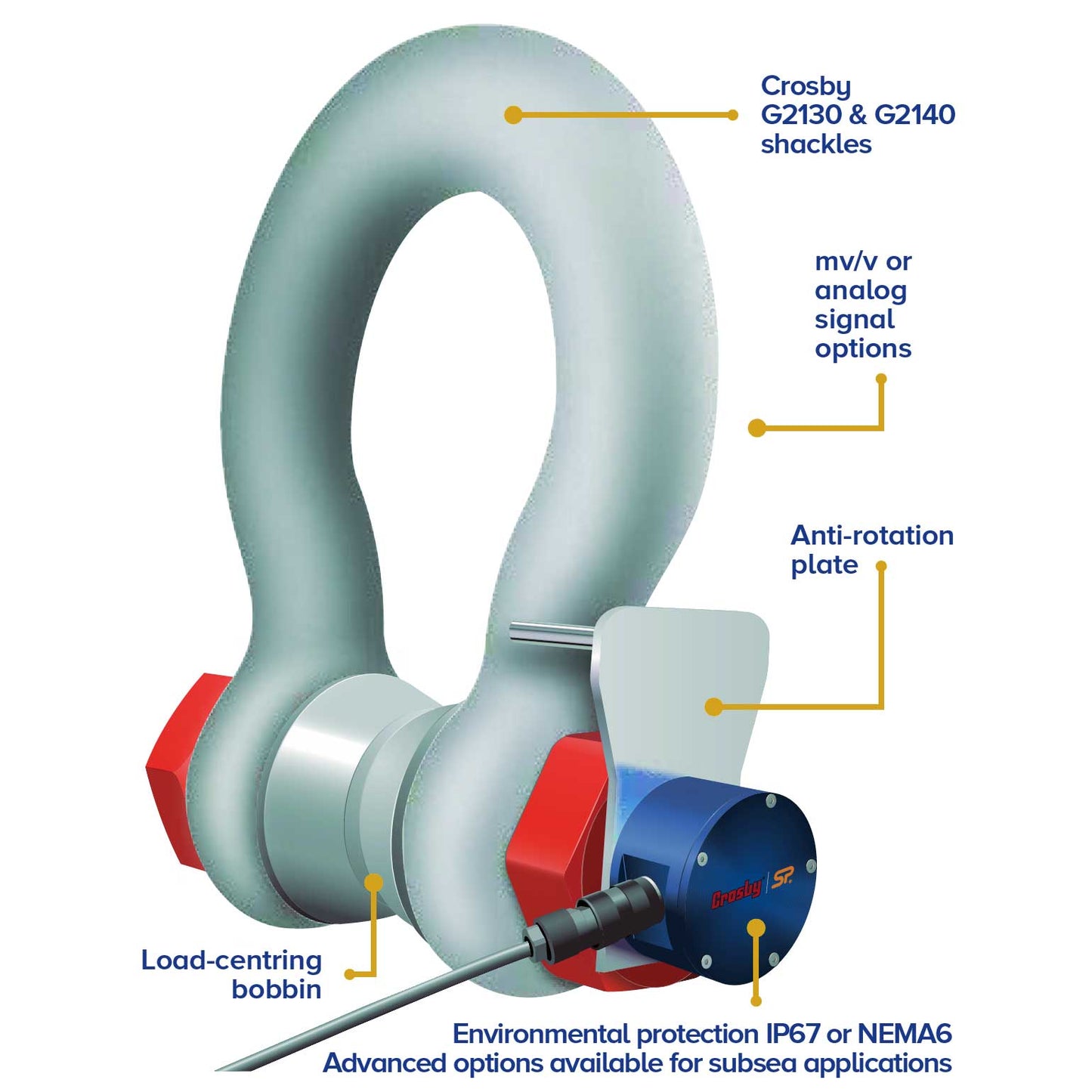

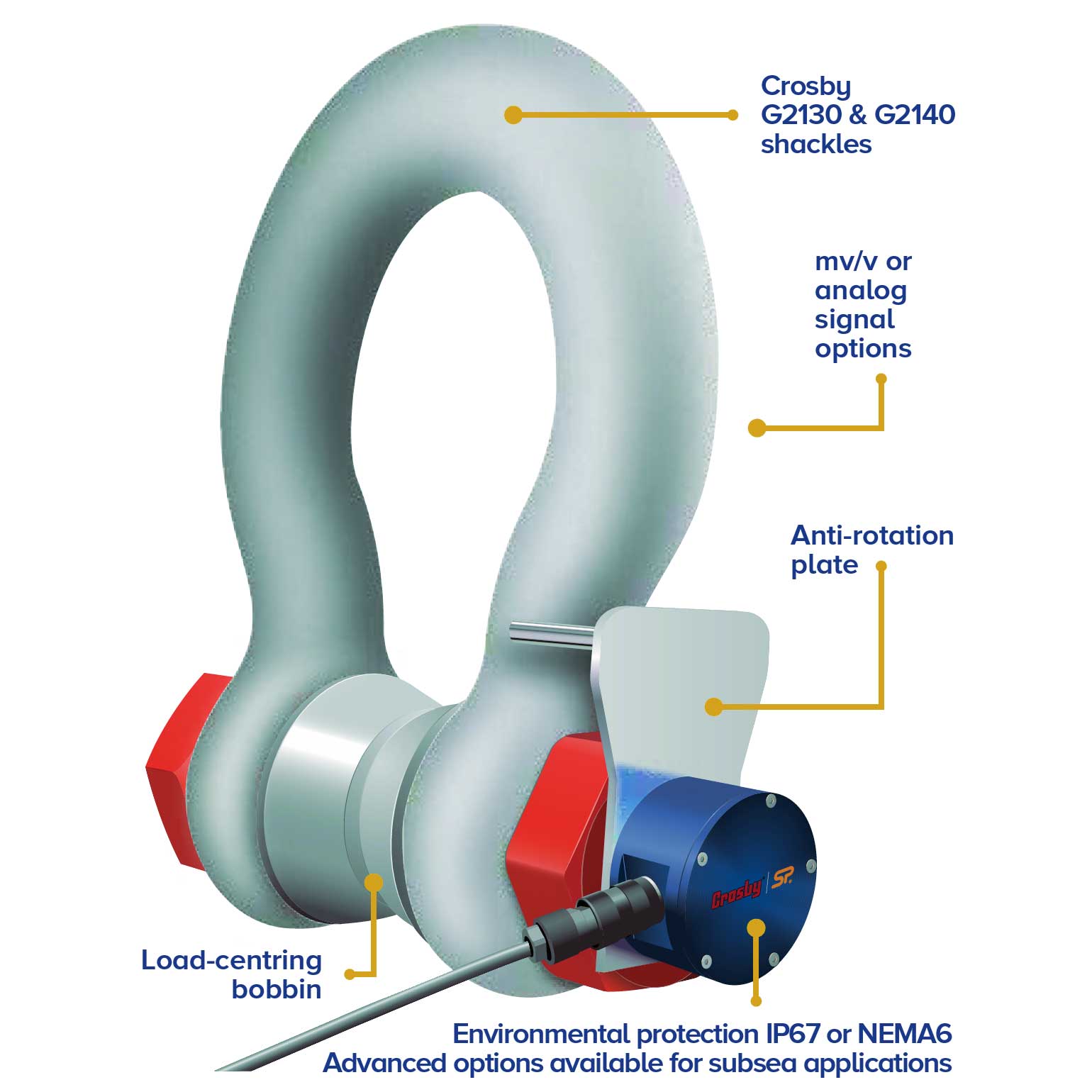

This cabled loadshackle from Straightpoint offers reduced overall weight and headroom, making it ideal for low headroom applications. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. This 25-ton cabled load cell shackle (Straightpoint model #SLB25T & Crosby model #2789105) is designed for use with digital external displays including the Straightpoint HHP Handheld Plus, PLCs, data acquisition systems (DAQ), etc. and configured with a vast array of output formats. Whether used in heavy lifting, mooring anchor placement, or sub-sea applications, Straightpoint's cabled Loadshackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price. Straightpoint cabled Loadshackles are also environmentally sealed to IP67 and, as an option, sealed for permanent submersion for sub-sea use. All Straightpoint Loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless loadshackle today. We also offer a wireless load shackle that is designed for use with Straightpoint's SW-HHP handheld device readout device or INSIGHT computer software, as well as a Bluetooth-only wireless loadshackle option.
This cabled loadshackle from Straightpoint offers reduced overall weight and headroom, making it ideal for low headroom applications. Straightpoint Lo...

Read More

This cabled loadshackle from Straightpoint offers reduced overall weight and headroom, making it ideal for low headroom applications. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. This 25-ton cabled load cell shackle (Straightpoint model #SLB25T & Crosby model #2789105) is designed for use with digital external displays including the Straightpoint HHP Handheld Plus, PLCs, data acquisition systems (DAQ), etc. and configured with a vast array of output formats. Whether used in heavy lifting, mooring anchor placement, or sub-sea applications, Straightpoint's cabled Loadshackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price. Straightpoint cabled Loadshackles are also environmentally sealed to IP67 and, as an option, sealed for permanent submersion for sub-sea use. All Straightpoint Loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless loadshackle today. We also offer a wireless load shackle that is designed for use with Straightpoint's SW-HHP handheld device readout device or INSIGHT computer software, as well as a Bluetooth-only wireless loadshackle option.

Show Less

Product Weight:
40

Load Capacity:
55,000 lbs.

Safety Factor:
5:1 when used with bobbin

Resolution:
50 lbs.

Protection:
IP67

Operating Temperature:
-10° to +50°C | 14° to 122° F

Accuracy:
+/- 1% of Full Scale

Product Guide:

Read More

Show Less
