Straightpoint® 2 T Loadblock Plus - LBP2T

  • Straightpoint® 2 T Loadblock Plus - LBP2T
  • Straightpoint® 2 T Loadblock Plus - LBP2T
  • Straightpoint® 2 T Loadblock Plus - LBP2T
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
SKU: LBP-2-T

$3,470.00
Free Shipping
Call/Chat for exact lead times
Standard Lead Time 14-21 business days.

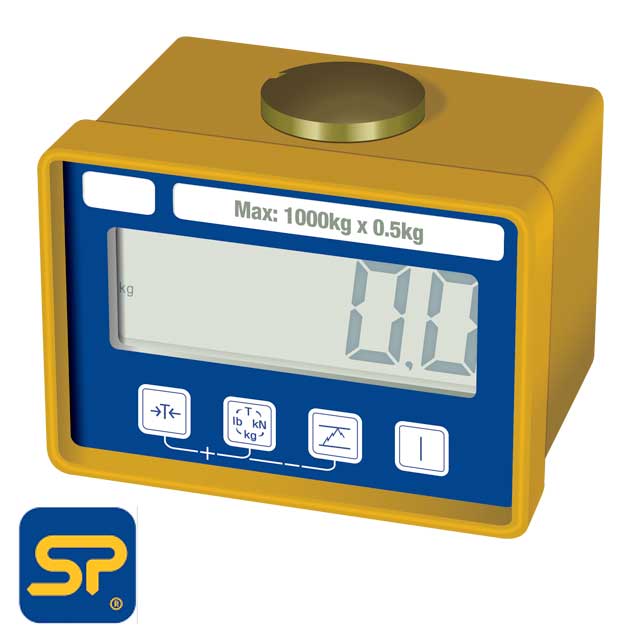

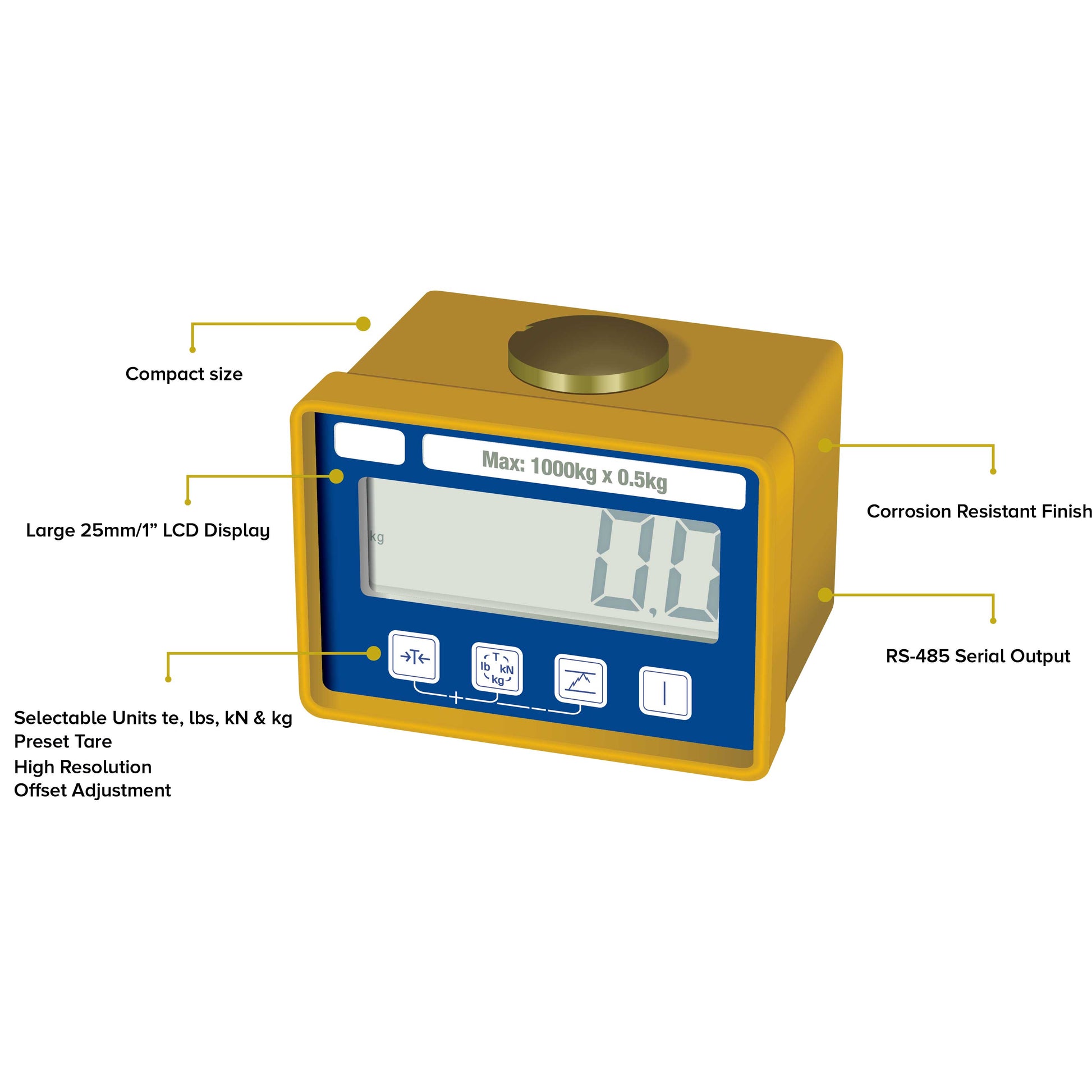

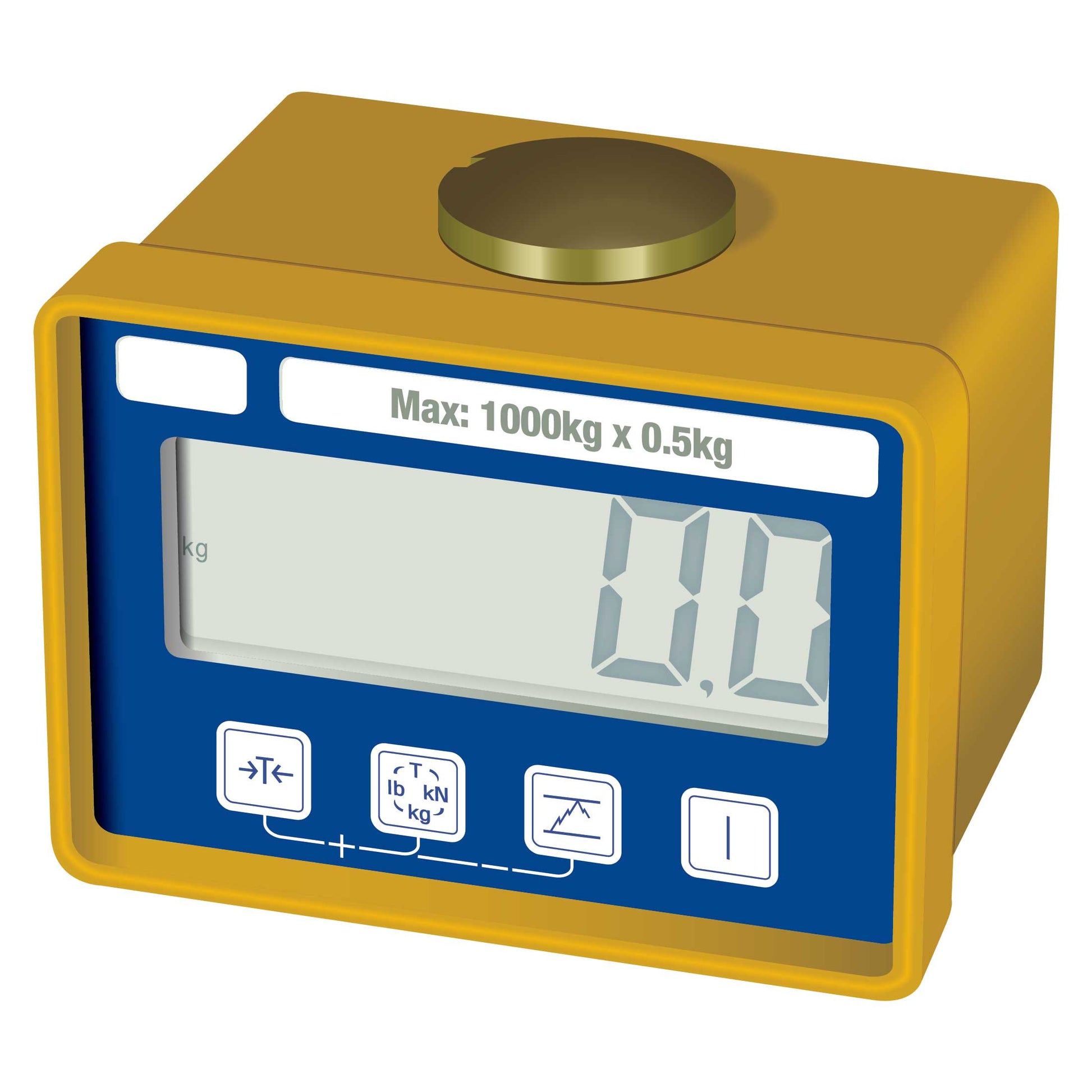

Loadblock Plus is a compact compression loadcell. The Loadblock Plus features an integral display which eliminates the need for a separate wireless display or analog cable. However, this corrosion resistant low-profile load cell does feature a RS-485 serial output port that provides the option for remote viewing with the handheld Plus Digital Display Controller. Loadblock Plus is commonly used to measure loads associated with the testing of hydraulic presses, cylinders, or jacks. The built-in 1-inch LCD screen features full function push button controls for tare, units of measures (lbs, kg, kN, and tons), peak hold, pre-set tare, audible set-point alarm, and an overload counter. This particular model (Straightpoint model #LBP2T & Crosby model #2789036) is a 2-ton compression load cell that features the highest standard resolution of any self-indicating compression load cell on the market today. Don't risk overloading ever again, get your hands on the Loadblock Plus load cell today and enjoy peace of mind on every job.
Loadblock Plus is a compact compression loadcell. The Loadblock Plus features an integral display which eliminates the need for a separate wireless di...

Read More

Loadblock Plus is a compact compression loadcell. The Loadblock Plus features an integral display which eliminates the need for a separate wireless display or analog cable. However, this corrosion resistant low-profile load cell does feature a RS-485 serial output port that provides the option for remote viewing with the handheld Plus Digital Display Controller. Loadblock Plus is commonly used to measure loads associated with the testing of hydraulic presses, cylinders, or jacks. The built-in 1-inch LCD screen features full function push button controls for tare, units of measures (lbs, kg, kN, and tons), peak hold, pre-set tare, audible set-point alarm, and an overload counter. This particular model (Straightpoint model #LBP2T & Crosby model #2789036) is a 2-ton compression load cell that features the highest standard resolution of any self-indicating compression load cell on the market today. Don't risk overloading ever again, get your hands on the Loadblock Plus load cell today and enjoy peace of mind on every job.

Show Less

Product Weight:
3.3

Load Capacity:
4,400 lbs.

Safety Factor:
5:1

Resolution:
2 lbs.

Protection:
IP65

Battery Type:
9v PP3

Operating Temperature:
-10° to +50°C | 14° to 122° F

Accuracy:
+/- 0.1% of Full Scale

Battery Life:
80 hours continuous

Display Type:
6 digit 1" LCD

Product Guide:

Read More

Show Less
