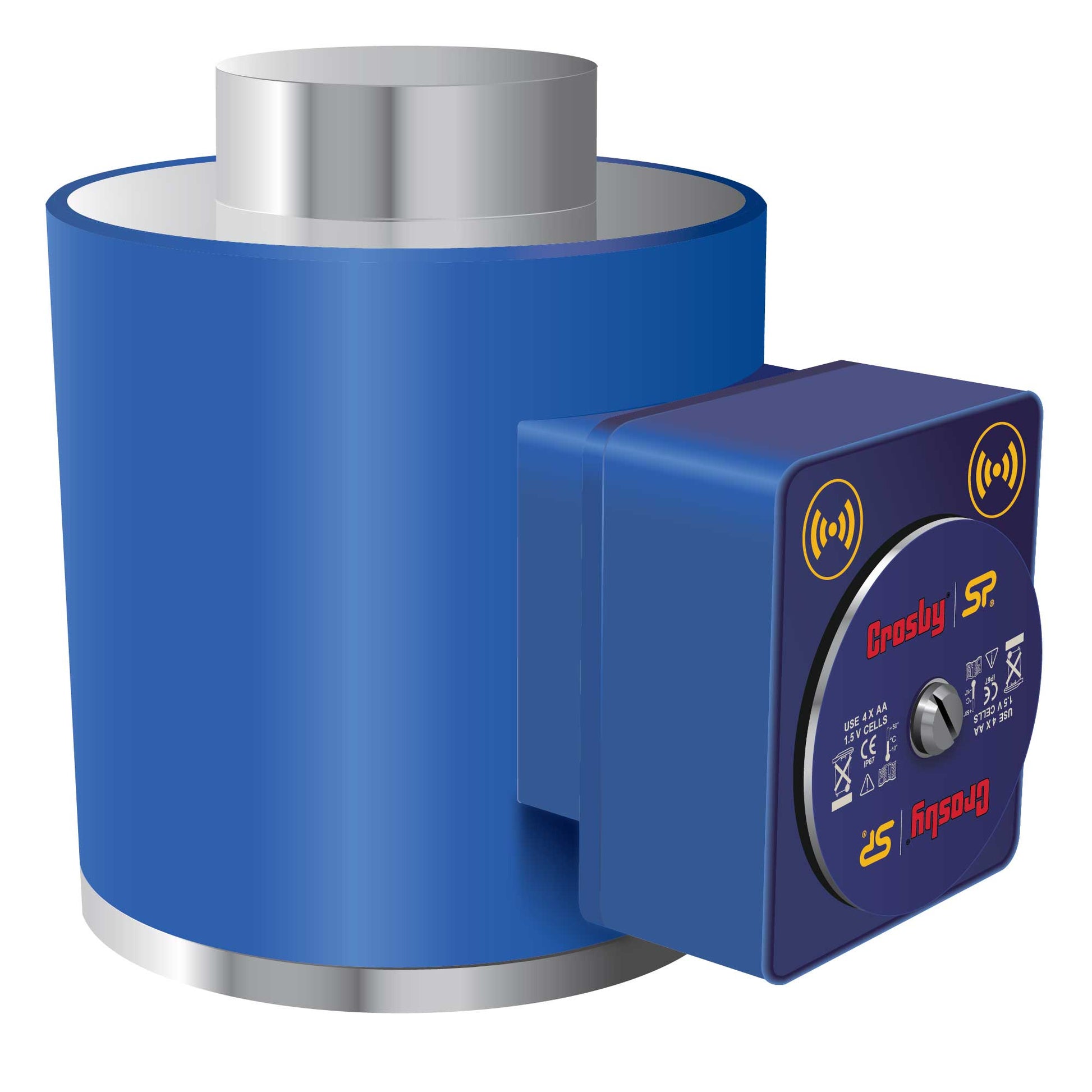

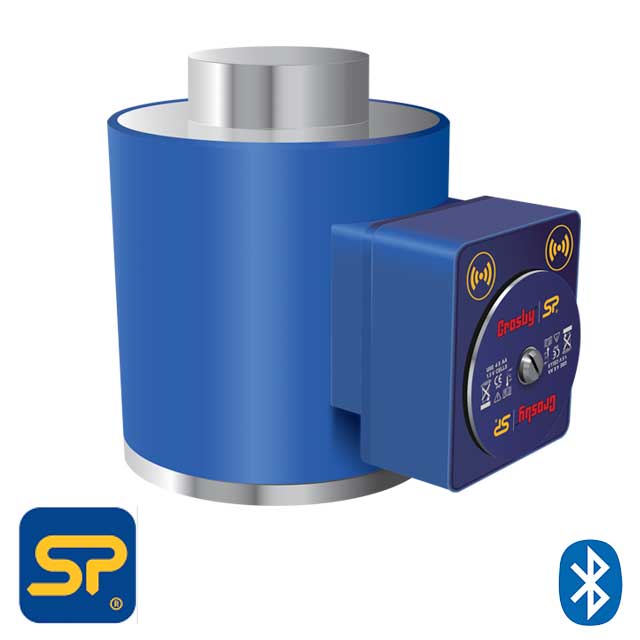

Straightpoint® 1000 T LoadSafe Compression Load Cell - Bluetooth Enabled - WNI1000TC-BLE
Output:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Safety Factor: 3:1
Load Capacity: 2,200,000 lbs.
Output: Bluetooth
Power Source: 4 x AA Alkaline Batteries
Accuracy: +/- 0.1% of Full Scale
Resolution: 1,000 lbs.
Range: 328'
Data Rate: 3Hz - Configurable to 200Hz
Operating Temperature: -10° to +50°C | 14° to 122° F
Battery Life: 500 hours continuous
Product Weight: 379 lbs.
Standards: IP67
Manufacturer Name: Crosby Straightpoint
Brand Part Number: WNI1000TC-BLE / 2789142
Shipping and Returns: This item ships LTL; learn more.
Description

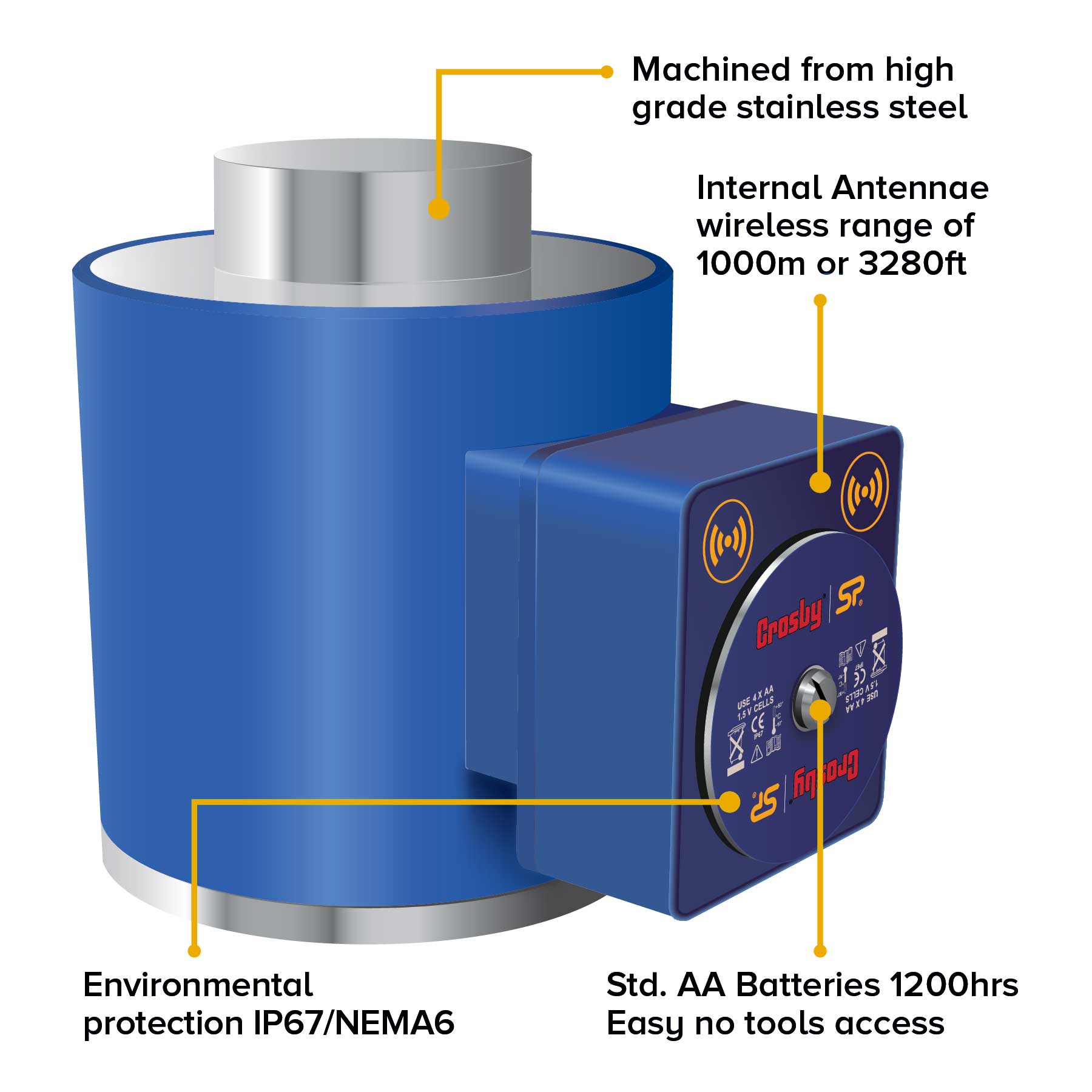

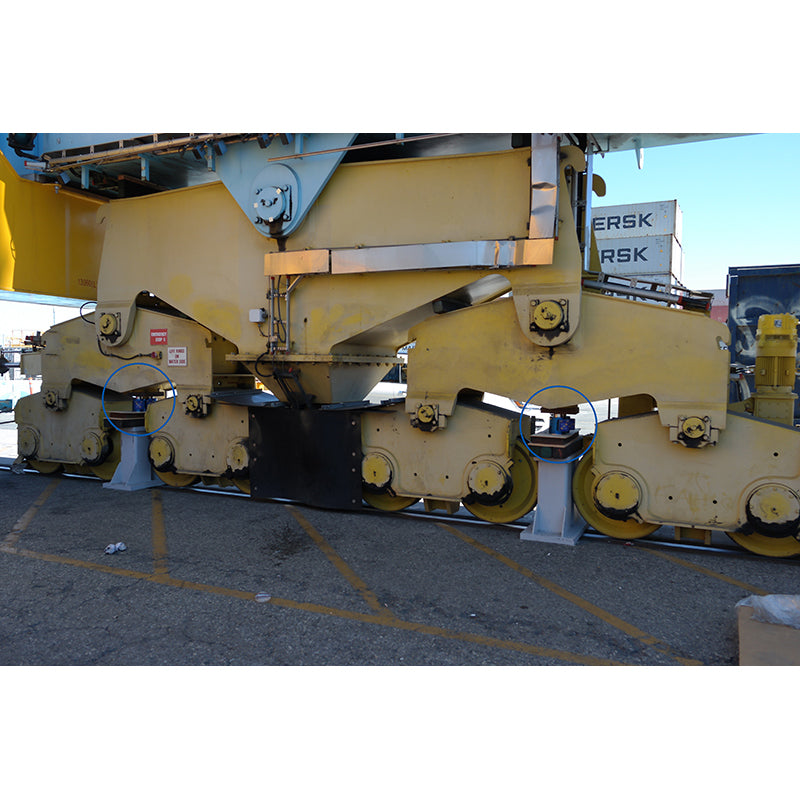

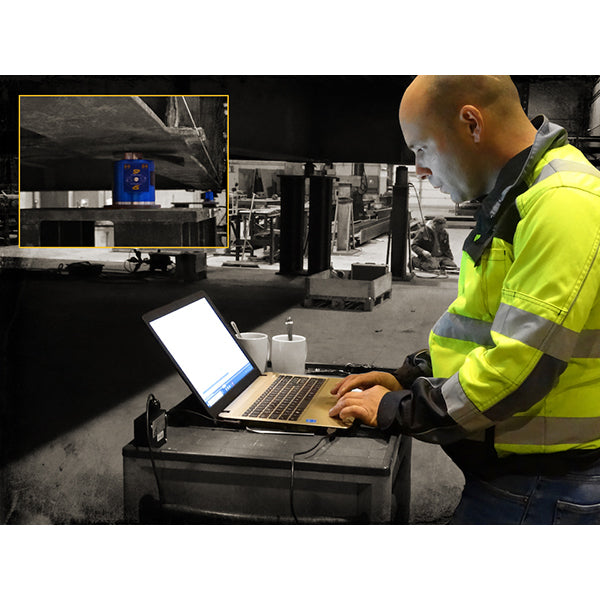

Straightpoint's LoadSafe compression load cell with Bluetooth output saves time and money by accurately measuring your load. Compression load cells are used in a variety of industries to weigh and verify center of gravity of large and heavy objects which may not be evenly proportioned. This particular model (Straightpoint part #WNI1000TC-BLE and Crosby part #2789142) is a 1,000-ton compression load cell that's machined from high-grade stainless steel. Instead of cables, this modern compression load cell with digital readout transmit readings via Bluetooth connection using the free Straightpoint HHP App that's available for Android and iOS devices. This allows you to quickly receive accurate load cell readings using any Bluetooth-enabled device, all at a safe range of up to 328 feet away. The LoadSafe runs on AA alkaline batteries that are easy to replace and provide 1,200 hours of wireless use. Because of its compact size, some may consider this a miniature load cell or low-profile load cell. Still, this compression load cell is environmentally sealed to IP67/NEMA 6 standards and ready to handle the toughest of jobs in the harshest of environments. If you prefer a standard, radio frequency transmission over Bluetooth, check out our Loadsafe compression loadcell. Don't risk a major accident, get peace of mind and modern convenience with this LoadSafe compression type load cell.
