Straightpoint® 100 T LoadSafe Compression Load Cell - WNI100TC

Straightpoint® 100 T LoadSafe Compression Load Cell - WNI100TC!

Regular price $8,642.00
Sale price $8,642.00 Regular price
0% off
Ships FREE in 14-21 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Load capacity: 220,000 lbs.
  • Safety factor: 3:1
  • Manufacturer name: Crosby Straightpoint
  • Brand part number: WNI100TC / 2789190
  • Output: Handheld
  • Resolution: 100 lbs.
  • Standards: IP67
  • Battery type: 4 x AA Alkaline Batteries
  • Operating temperature: -10° to +50°C | 14° to 122° F
  • Accuracy: +/- 0.1% of Full Scale
  • Battery life: 1,200 hours continuous
  • Range: 3,280'
  • Data rate: 3Hz - Configurable to 200Hz
  • Product weight: 34 lbs.

Description

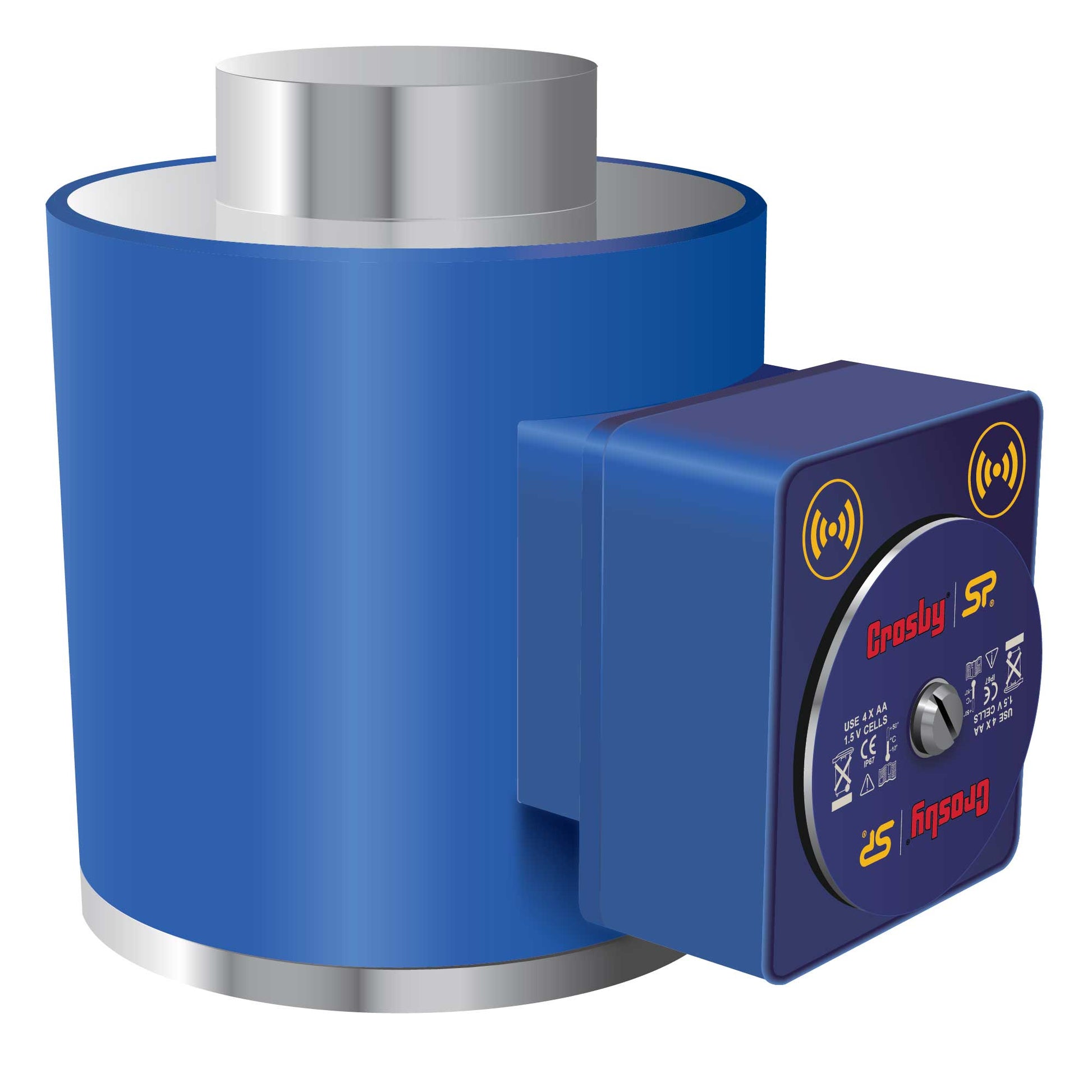

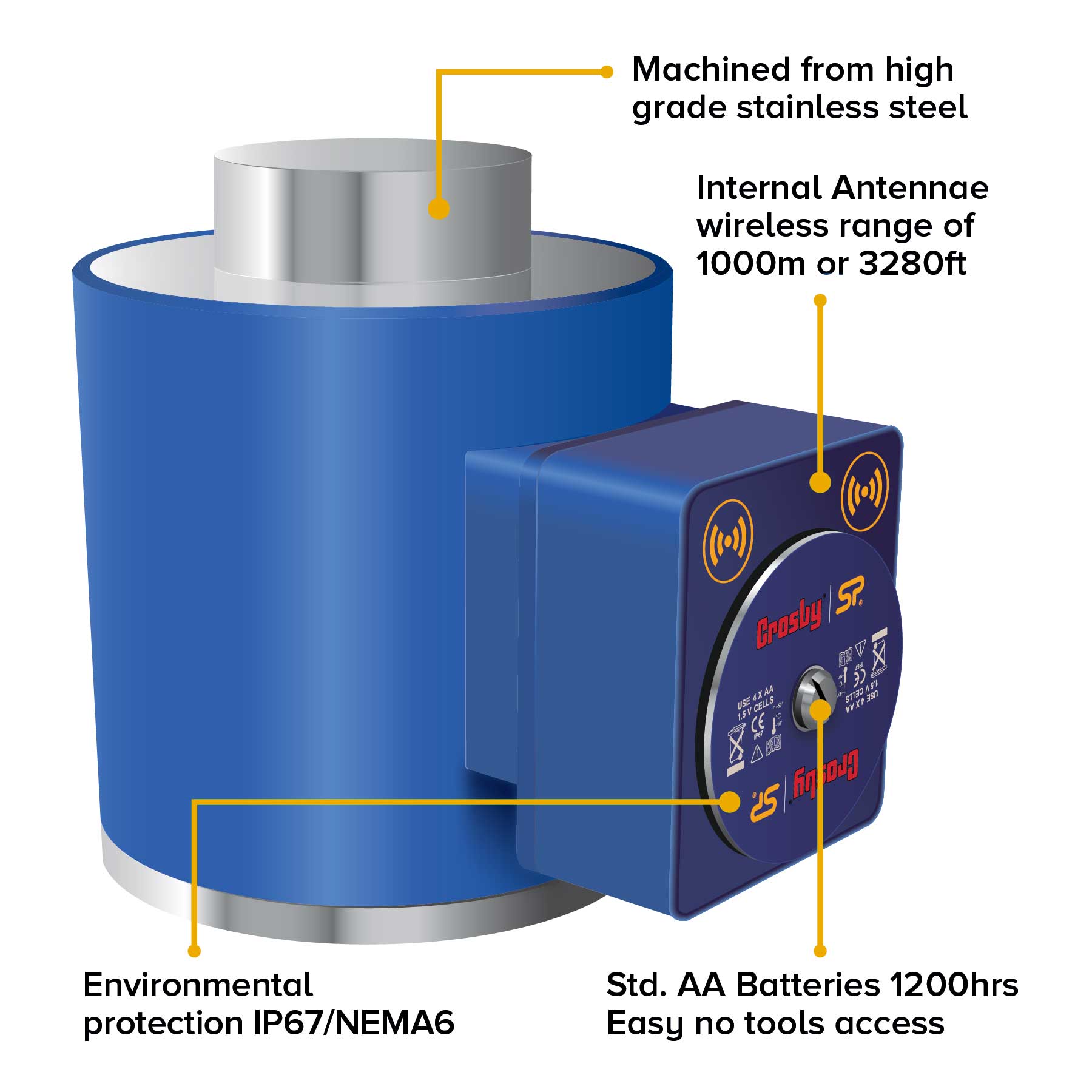

LoadSafe is a wireless compression load cell from Straightpoint that saves time and money by accurately measuring your load. Compression load cells are used in a variety of industries to weigh and verify center of gravity of large and heavy objects which may not be evenly proportioned. This particular model (Straightpoint part #WNI100TC and Crosby part #2789190) is a 100-ton compression load cell that's machined from high-grade stainless steel. Instead of cables, this modern compression load cell with digital readout uses an internal antenna to transmit load cell readings at a max range of 3,280 feet. LoadSafe is designed to be used with the SW-HHP handheld device or Straightpoint's INSIGHT computer software. LoadSafe runs on AA alkaline batteries that are easy to replace and provide 1,200 hours of wireless use. Because of its compact size, some may consider this a miniature load cell or low-profile load cell. Still, this compression load cell is environmentally sealed to IP67/NEMA 6 standards and ready to handle the toughest of jobs in the harshest of environments. Don't risk a major accident, get peace of mind and modern convenience with this LoadSafe compression type load cell.
