SKU: LBAHK15K72
Standard Adjustable Lifting Beam w/ Swivel Hooks - 15,000 Lb. Capacity - 4' to 6' Spread
Standard Adjustable Lifting Beam w/ Swivel Hooks - 15,000 Lb. Capacity - 4' to 6' Spread!
Continue Browsing
Adjustable Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
SKU: LBAHK15K72
$4,194.39
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options

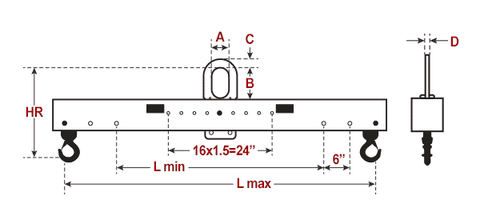

Specifications
Working load limit: 7.5 tons
Bail Dimensions: Inside Width: 4"
Inside Length: 7"
Top Thickness: 2"
Thickness: 1"
Inside Length: 7"
Top Thickness: 2"
Thickness: 1"
Brand part number: 16420
End fitting: Bottom Swivel Latch Hooks Included
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 4' - 6'
Product weight: 315 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: WLL (lbs.): 15,000
Headroom: 22.1"
Bail Adjustment Length: 24"
Bail Adjustment Increments: 3"
Spread Increments: 6"
Headroom: 22.1"
Bail Adjustment Length: 24"
Bail Adjustment Increments: 3"
Spread Increments: 6"
Description

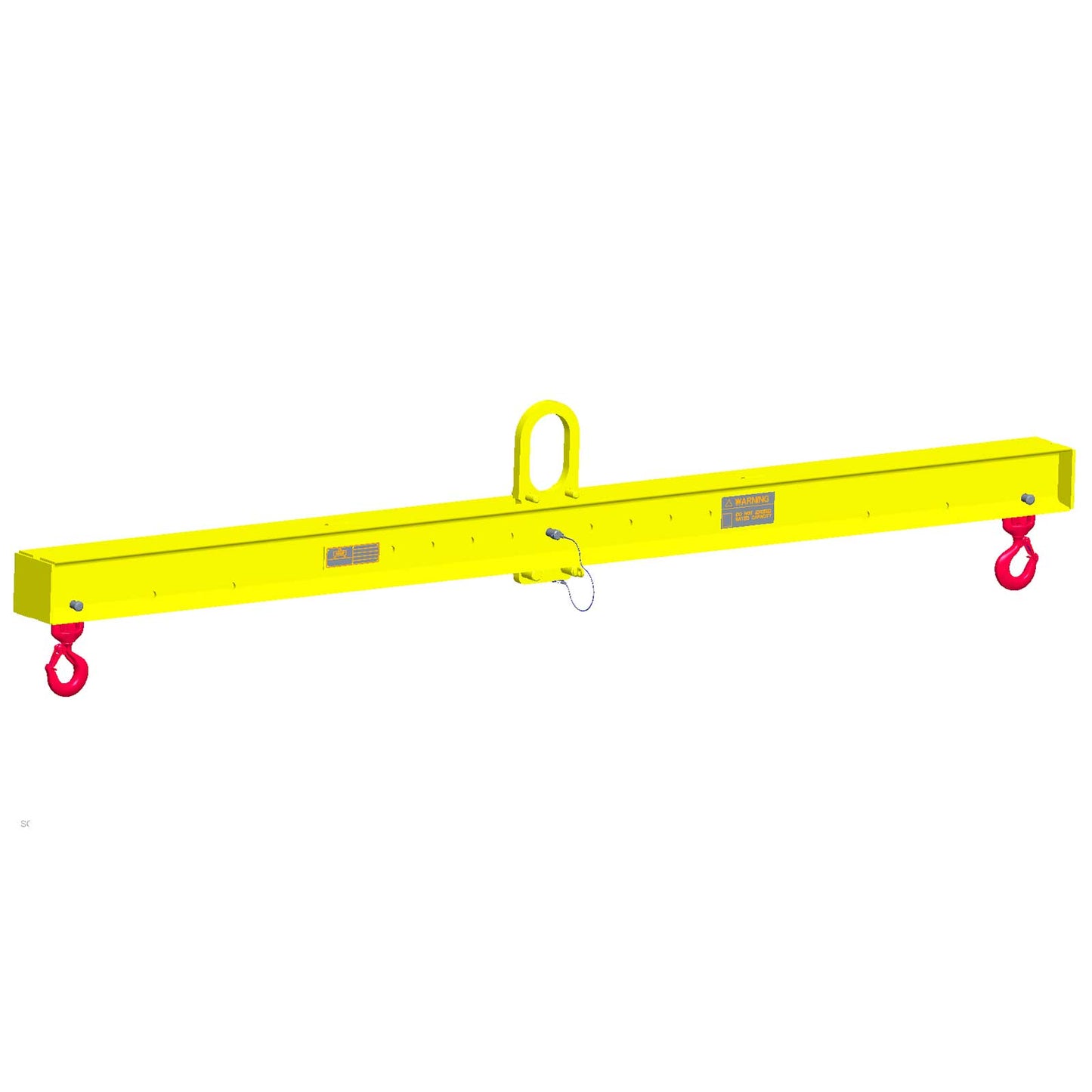

M&W 16420 Adjustable Lifting Beam with Swivel Hooks - Standard
The Adjustable Length Lifting Beam with Swivel Hooks is designed for use in job sites and warehouses, making load adjustments quick and easy. The adjustable lifting beam’s adjustable length and swivel hook bottom design provides secure attachment points for various lifting needs. Built for low-headroom applications, this beam maximizes efficiency in confined spaces. The high-visibility yellow powder coat finish enhances safety on the job, while its durable construction ensures long-term reliability in demanding environments.
Looking for other adjustable lifting beam options? Check out our full adjustable lifting beam catalog.
4' to 6' Adjustable Lifting Beam with Swivel Hooks
- Made in the USA: Providing premium machined and welded quality that you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
