SKU: LBAHA6K144
Standard Adjustable Lifting Beam w/ Shackles - 6,000 Lb. Capacity - 6' to 12' Spread
$3,964.59
Spread:
Load Limit:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options
Specifications
Safety Factor: 3:1
Working Load Limit: 3 tons
Bail Dimensions: Inside Width: 3"
Inside Length: 5"
Top Thickness: 1.5"
Thickness: 0.63"
Inside Length: 5"
Top Thickness: 1.5"
Thickness: 0.63"
Brand Part Number: 14661

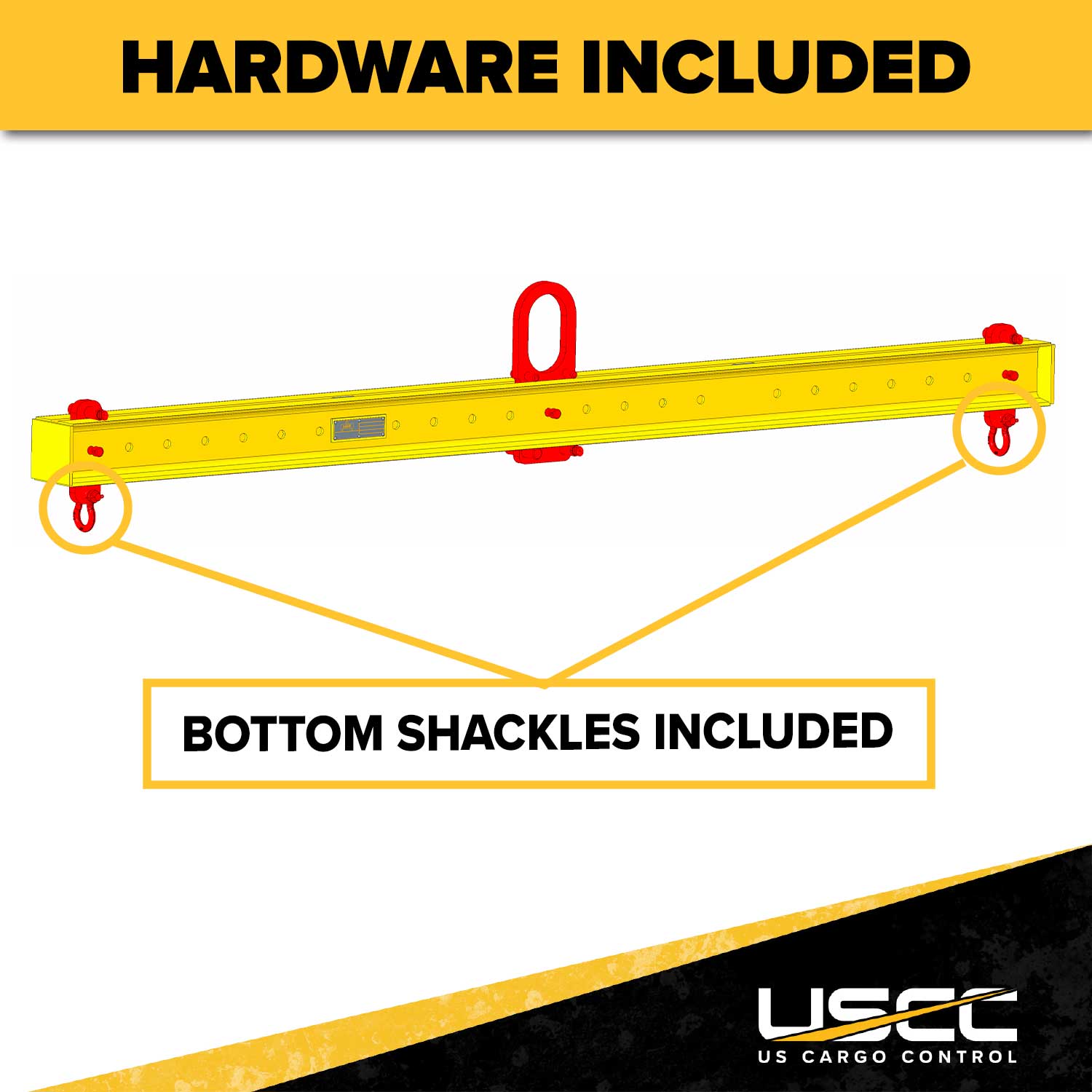

End Fitting: Bottom Shackles Included
Finish: High visibility yellow powder coated paint
Manufacturer Name: M&W
Material: Steel
Spread: 6' - 12'
Product Weight: 535 lbs.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Rated for Overhead Lifting: Yes
Shipping and Returns: This item ships LTL; learn more. It ships complete with proof testing certificate and cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (lbs.): 6,000

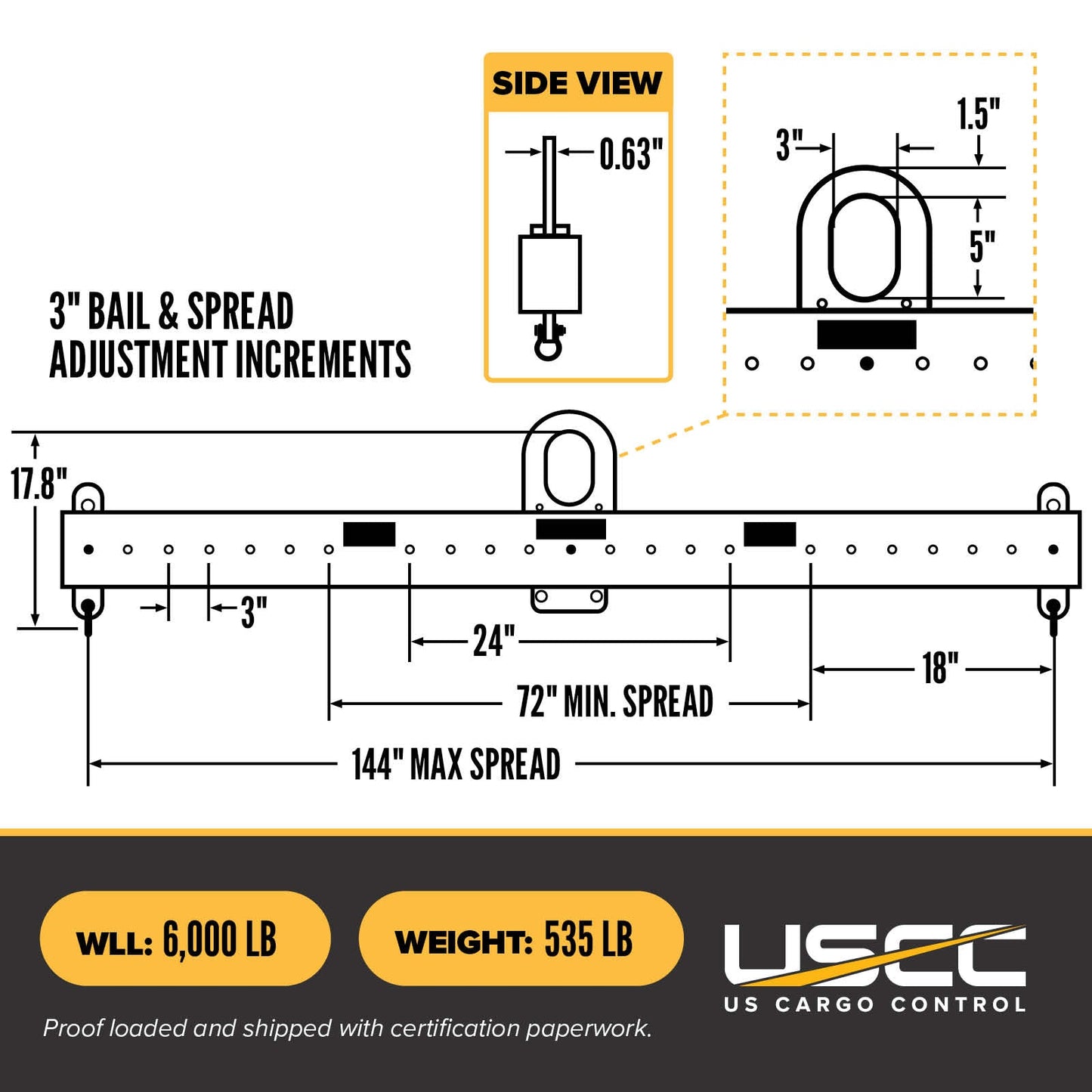

Headroom: 17.8"
Bail Adjustment Length: 24"
Bail Adjustment Increments: 3"
Spread Increments: 3"
Headroom: 17.8"
Bail Adjustment Length: 24"
Bail Adjustment Increments: 3"
Spread Increments: 3"
Description

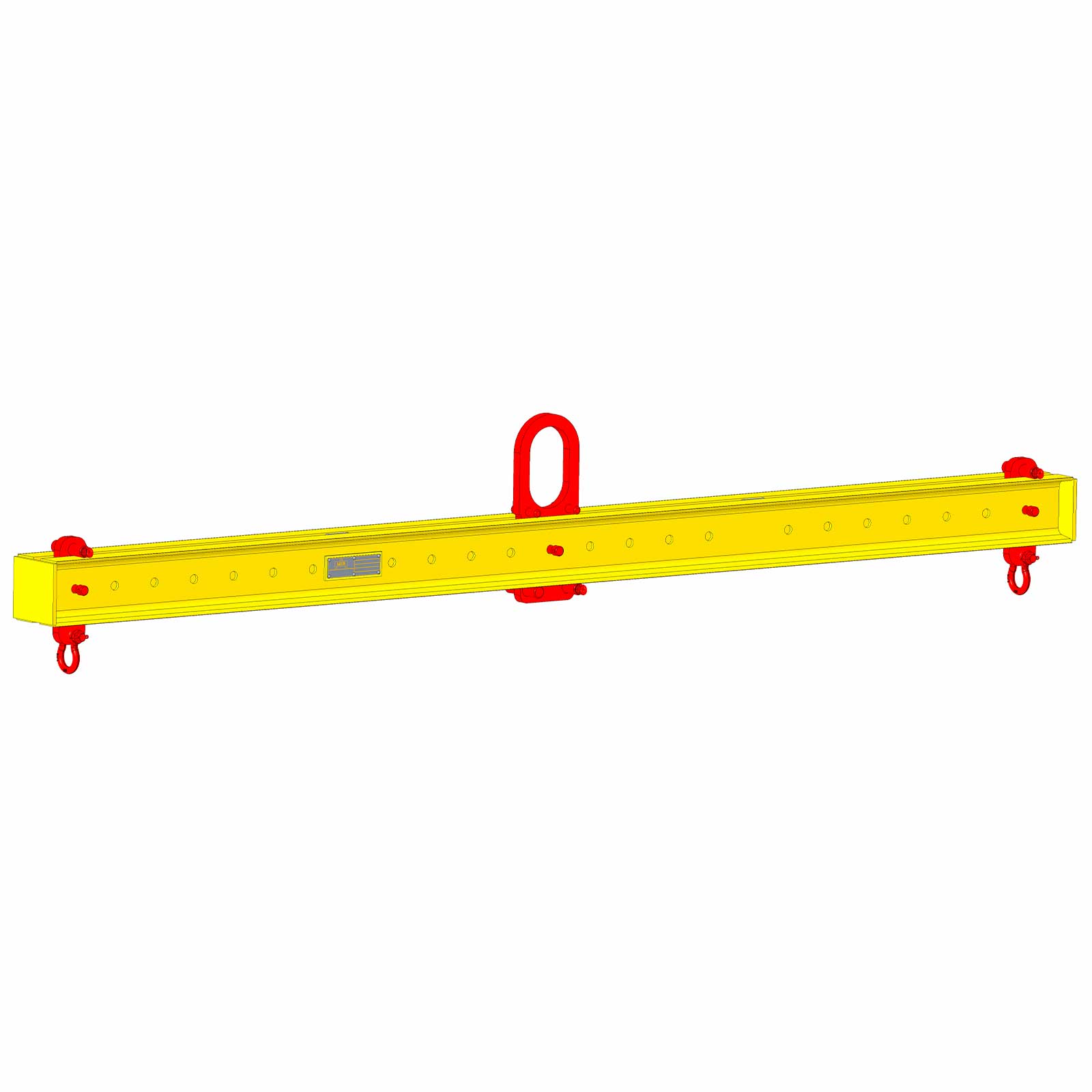

M&W 14661 Adjustable Lifting Beam with Shackles - Standard
The Adjustable Length Lifting Beam with Shackles is designed for use in job sites and warehouses, making load adjustments quick and easy. The adjustable lifting beam’s adjustable length and shackle bottom design provides secure attachment points for various lifting needs. Built for low-headroom applications, this beam maximizes efficiency in confined spaces. The high-visibility yellow powder coat finish enhances safety on the job, while its durable construction ensures long-term reliability in demanding environments.
Looking for other adjustable lifting beam options? Check out our full adjustable lifting beam catalog.
Lifting Beams vs. Spreader Bars
When compared with spreader bars, lifting beams often use a singular center top lifting point that bears most of the load through bending forces and utilizes multiple attachment points underneath. Lifting beams often require less headroom to operate making them better suited for confined spaces.
6' to 12' Adjustable Lifting Beam with Shackles
- Made in the USA: Providing premium machined and welded quality that you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
