Specifications

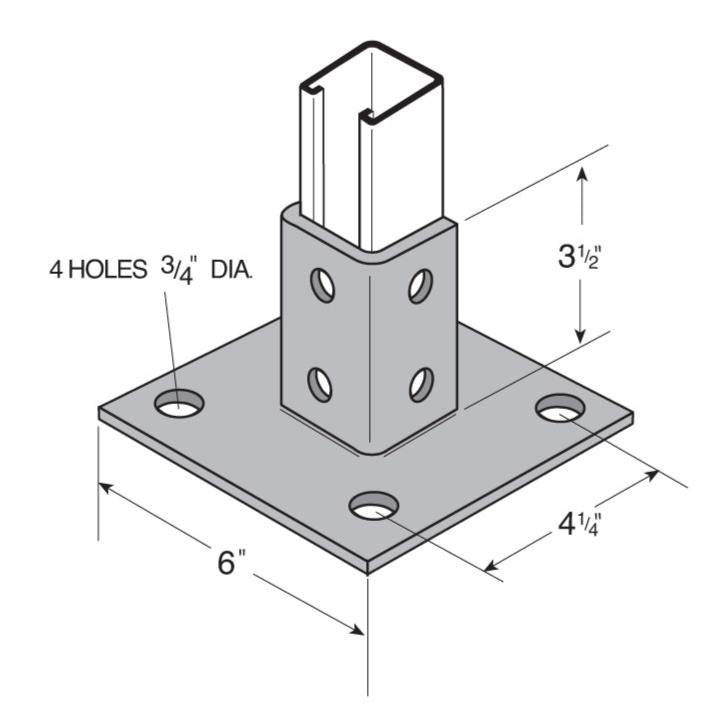

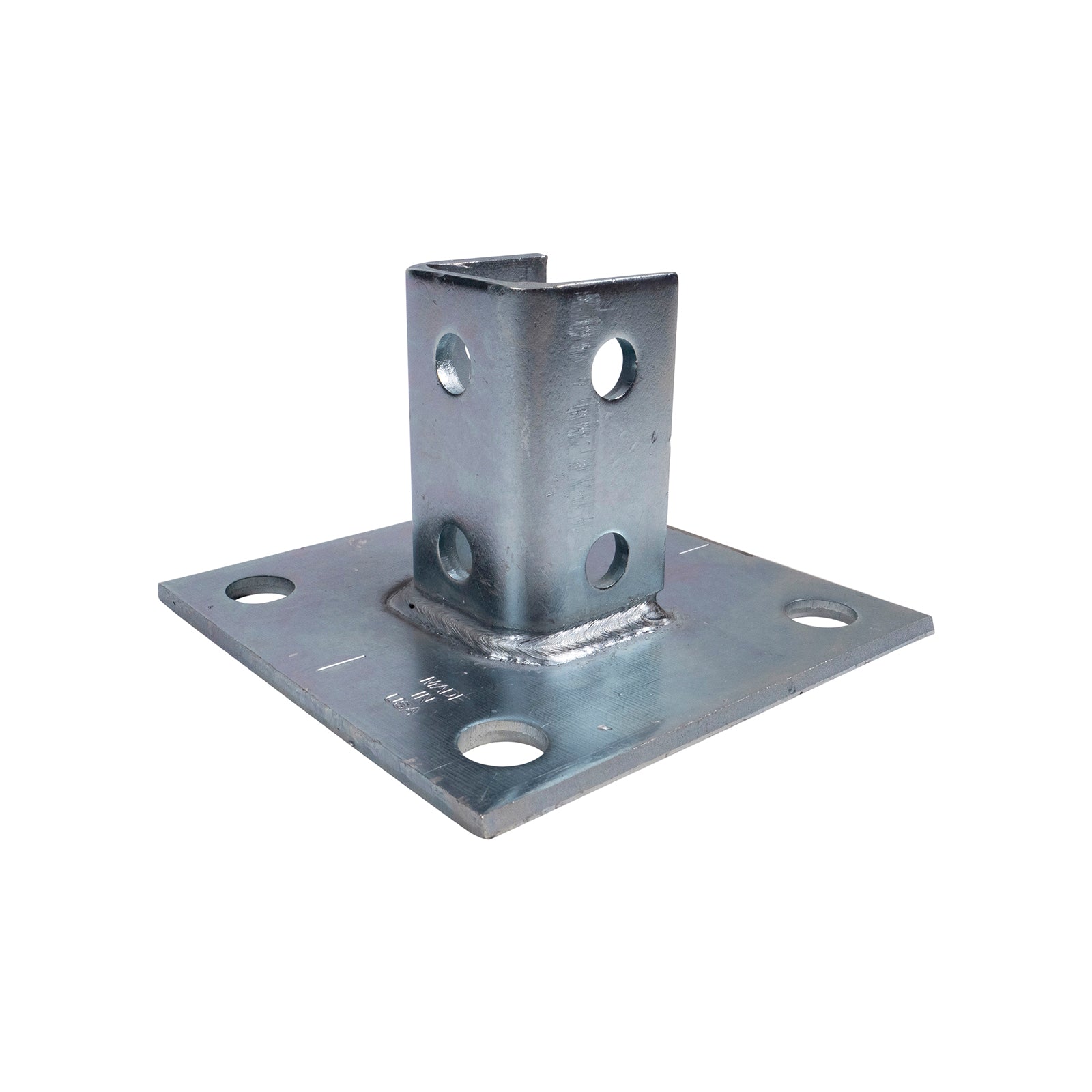

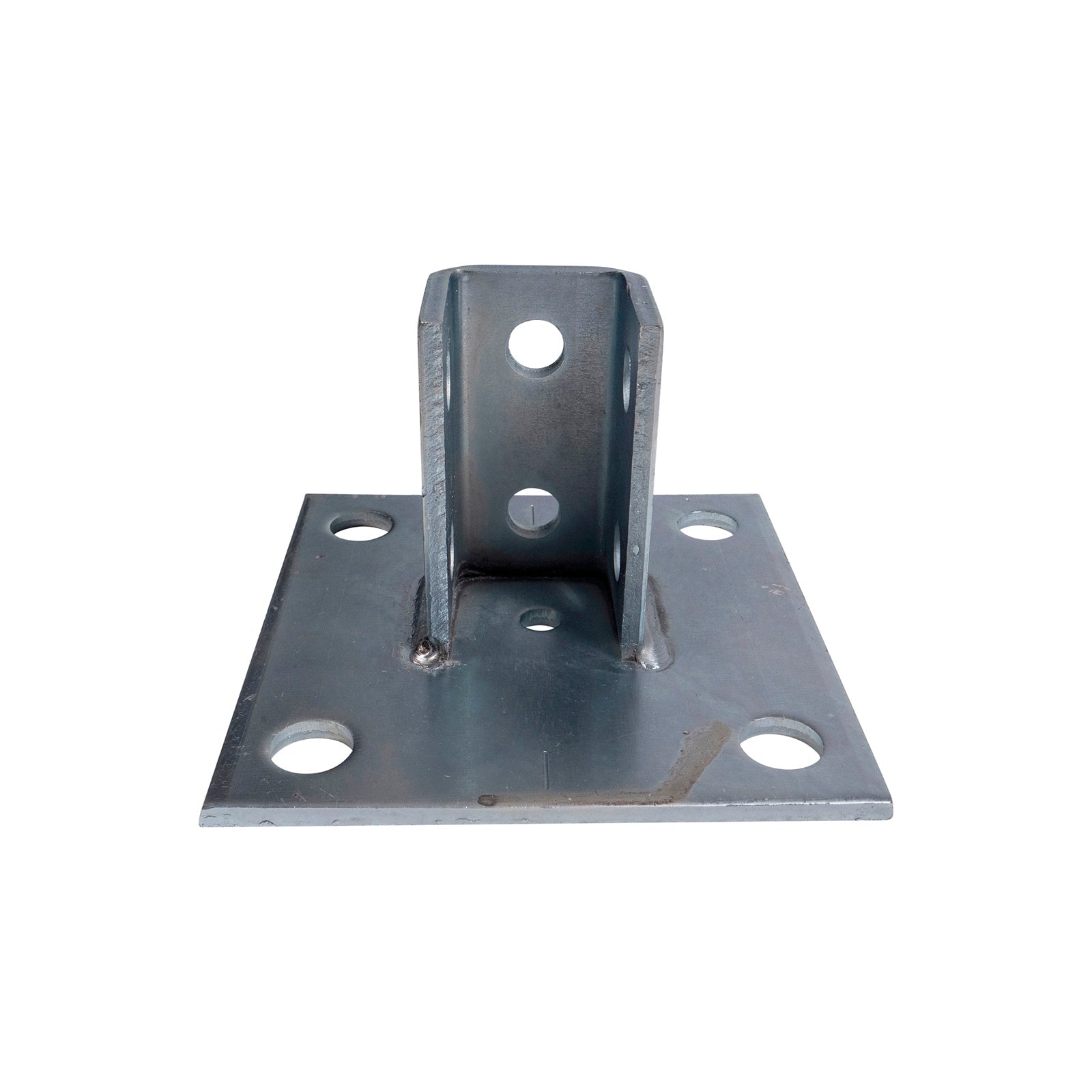

Square Single Channel 2-Hole Post Base - Electro-Galvanized Steel
This square single channel post base is built to create a dependable connection between strut channel and the floor. Its base plate is designed to accept anchor bolts, allowing the channel to be secured firmly to the mounting surface for added rigidity. The electro-galvanized steel finish provides a clean look with added protection for indoor and light-duty environments.
Electro-Galvanized Strut Channel Floor Post Base
Designed for permanent or semi-permanent channel layouts, this post base helps stabilize vertical strut structures used in mechanical, storage, and facility builds.
Key Features
- Floor anchoring capability: Allows strut channel to be fastened directly to concrete or similar substrates using anchors.
- Two mounting holes: Offers balanced anchoring points to help reduce rotation and movement.
- Single channel seating: Sized to properly support square strut channel at the base.
- Electro-galvanized finish: Provides corrosion resistance suitable for indoor and controlled environments.
Common Applications
- Interior strut channel framing systems
- HVAC and mechanical support structures
- Floor-mounted shelving and racking builds
- Utility and maintenance room installations
- General-purpose channel supports in warehouses or shops
Installation Tips
- Use anchors rated for your floor material and anticipated load requirements.
- Ensure the base plate sits flat and aligned before tightening anchors.
- Secure the post base fully before attaching strut channel or mounted equipment.
