5/16" x 4" Stainless Steel Type 316 Shoulder Eye Bolt
5/16" x 4" Stainless Steel Type 316 Shoulder Eye Bolt!

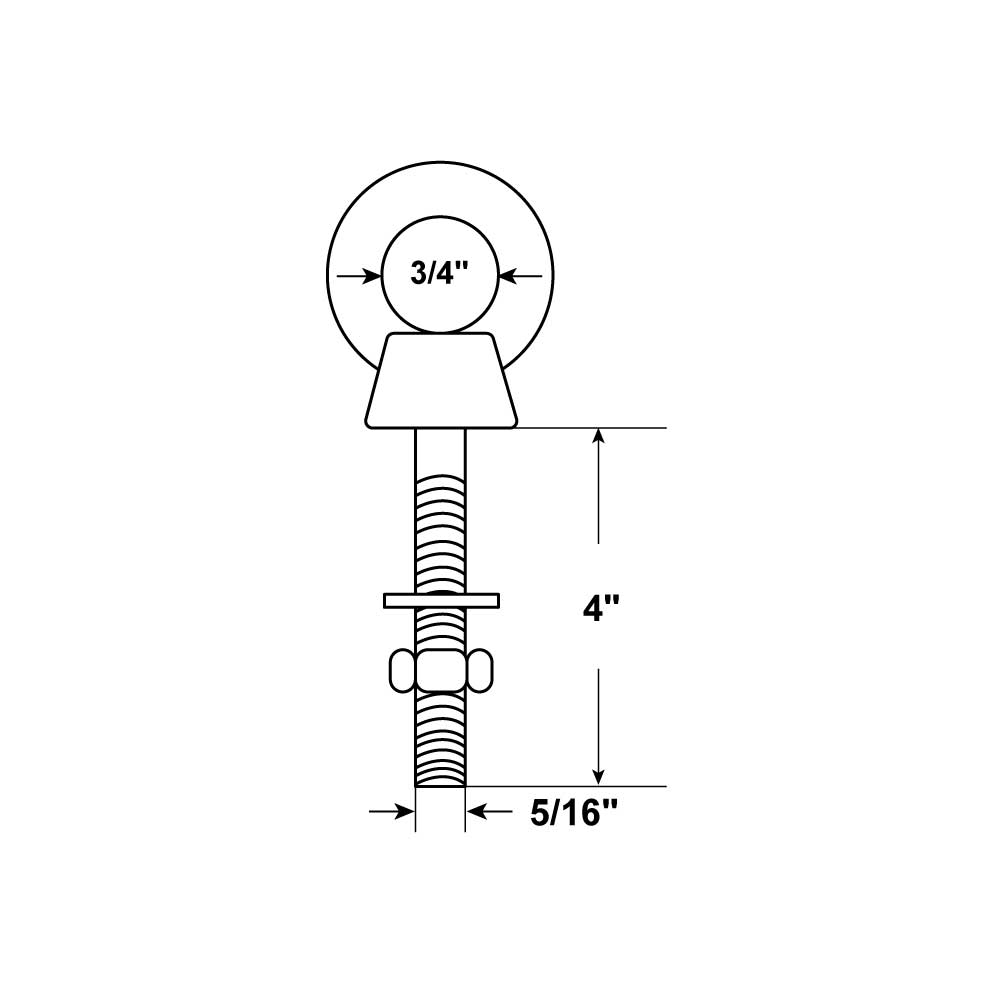

- Overall length: 5.49"
- Shank length: 4"
- Working load limit: 800 lbs.
- Assembly break strength: 3,200 lbs.
- Diameter: 5/16"
- Material: Steel
- Product weight: .15 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
- Additional info: Overall width: 1.26"

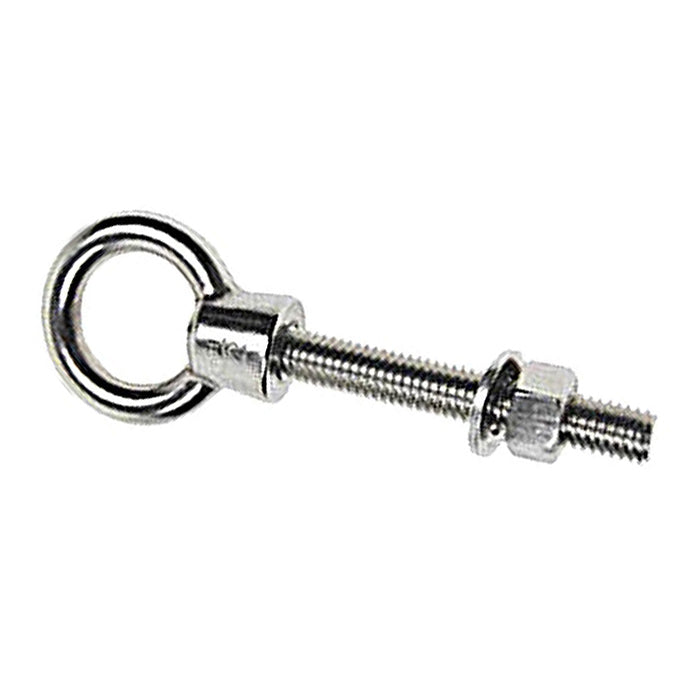

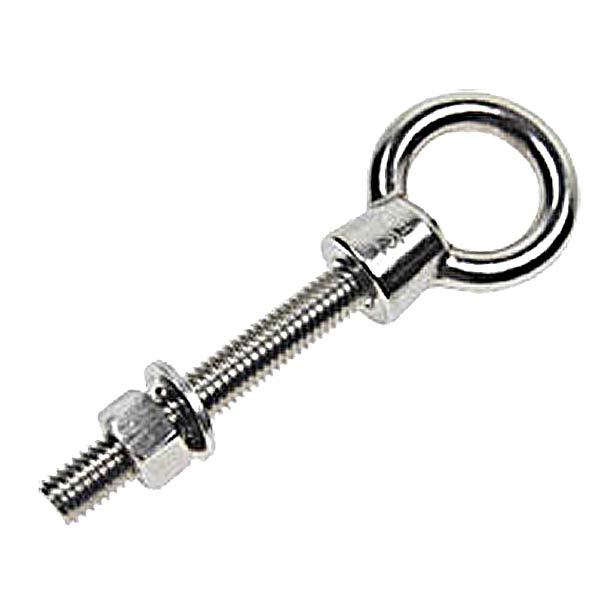

Made of type 316 stainless steel to offer superior resistance to corrosion and oxidation, particularly in extreme or marine environments. The low maintenance and high luster of stainless steel also makes it popular for architectural applications. The eye can accommodate wire rope, shackles and other rigging equipment. Shoulder eyebolts can be used for either straight line or angular pulls, since the shoulder helps support the load as it pulls at an angle. Includes eye bolt, nut and washer.
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.
California Residents: WARNING
Reviews + Q&A
Reviews + Q&A
I make clamps for wood carvers to hold their project while they are working on it. The problem is that the eye bolts I was using when tightened up on a heavy project would open the eye up and straighten out under pressure.
These Stainless Steel eyes are made with closed eyes that do not open!
Great idea guys!
