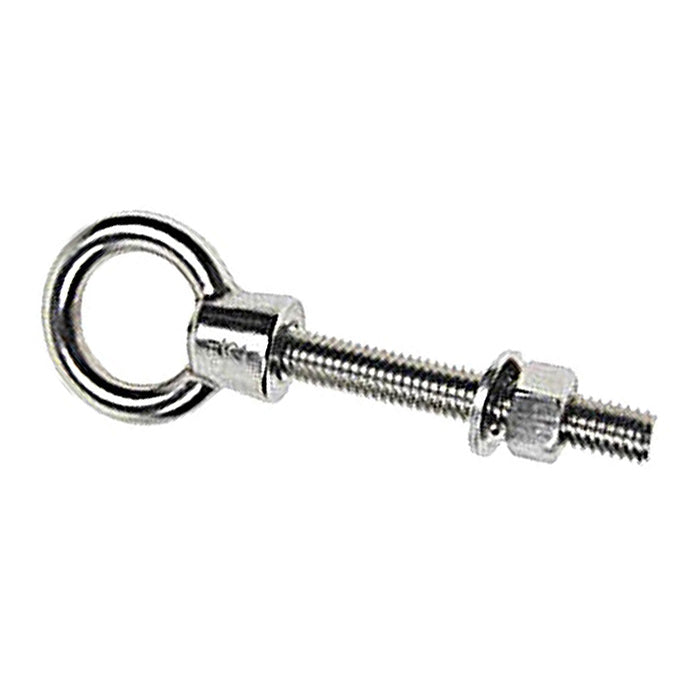

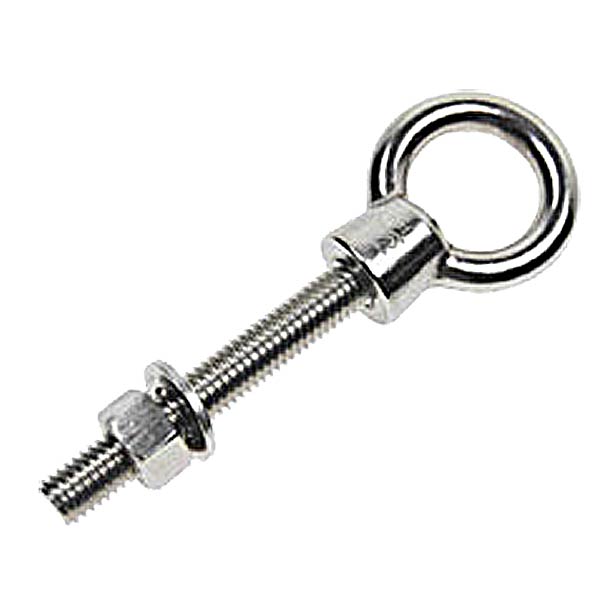

1/4" x 1-9/16" Stainless Steel Type 316 Shoulder Eye Bolt

  • 1/4
  • 1/4
  • 1/4
  • 1/4
SKU: SSSEB14X1-916
Quantity
Unit Price
Save
1 - 9
$6.09
-
10 - 49
$5.91
3%
50 - 99
$5.72
6%
100 +
$5.48
10%

$6.09
In stock

Made of type 316 stainless steel to offer superior resistance to corrosion and oxidation, particularly in extreme or marine environments. The low maintenance and high luster of stainless steel also makes it popular for architectural applications. The eye can accommodate wire rope, shackles and other rigging equipment. Shoulder eyebolts can be used for either straight line or angular lifts, since the shoulder helps support the load as it pulls at an angle. Includes eye bolt, nut and washer.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.



California Residents: WARNING

Made of type 316 stainless steel to offer superior resistance to corrosion and oxidation, particularly in extreme or marine environments. The low m...

Read More

Made of type 316 stainless steel to offer superior resistance to corrosion and oxidation, particularly in extreme or marine environments. The low maintenance and high luster of stainless steel also makes it popular for architectural applications. The eye can accommodate wire rope, shackles and other rigging equipment. Shoulder eyebolts can be used for either straight line or angular lifts, since the shoulder helps support the load as it pulls at an angle. Includes eye bolt, nut and washer.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.



California Residents: WARNING

Show Less

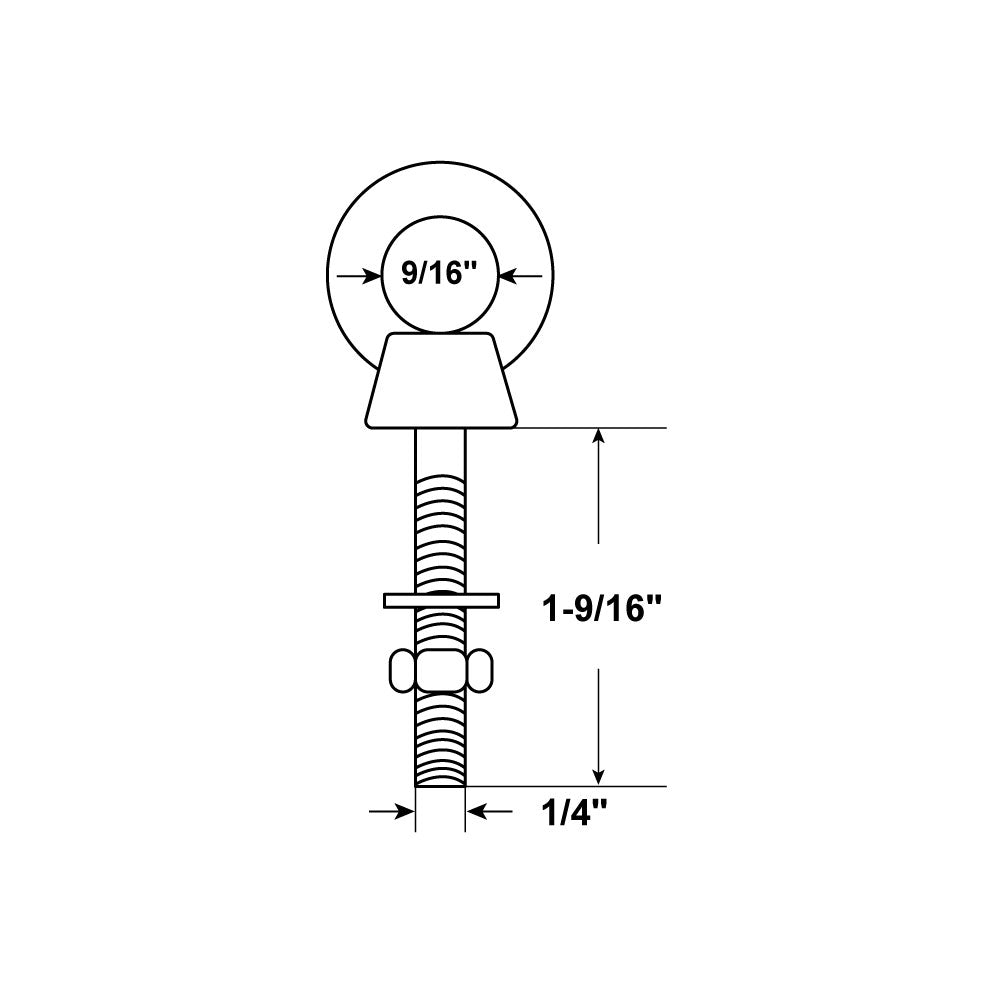

Overall Length:
2.81"

Overall Width:
1.01"

Working Load Limit:
400 lbs.

Assembly Break Strength:
1,600 lbs.

Product Weight (lbs.):
.03

Shank Length:
1-9/16"

Material:
Steel

Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.

Diameter:
1/4"
