SKU: FSSSEB38-16X4-12

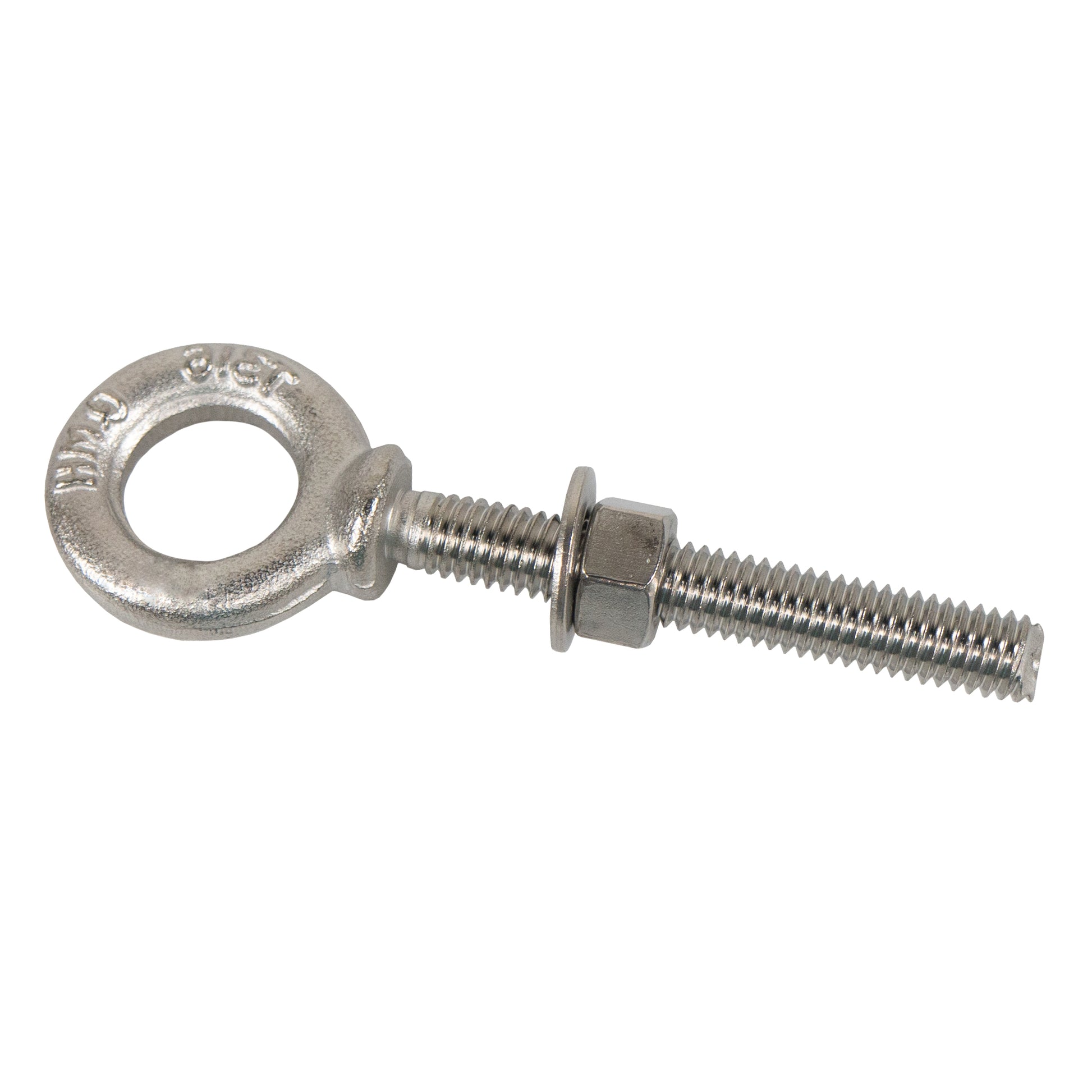

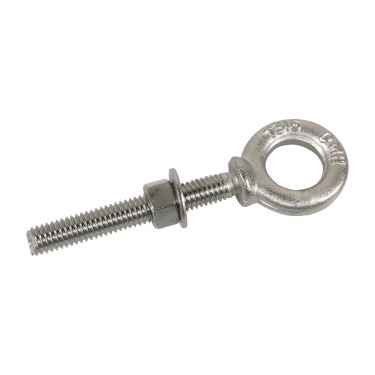

Forged Shoulder Eye Bolts - 316 Stainless Steel - 3/8"-16 x 4-1/2"L
Forged Shoulder Eye Bolts - 316 Stainless Steel - 3/8"-16 x 4-1/2"L!
SKU: FSSSEB38-16X4-12
$32.08
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 4,800 lbs.
Diameter: 3/8"
Grade: 316 Stainless Steel
Working load limit: 1,200 lbs.
Brand part number: 277S-10115
Material: Steel
Product weight: .25 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description
Our stainless steel forged shoulder eye bolts are drop forged for added strength and durability. Type 316 stainless steel is the best choice for marine applications and industrial applications where corrosive chemicals or materials may be used. Eye bolts with shoulders should always be used for angular lifts.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
