description

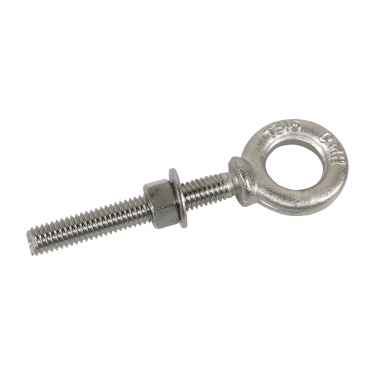

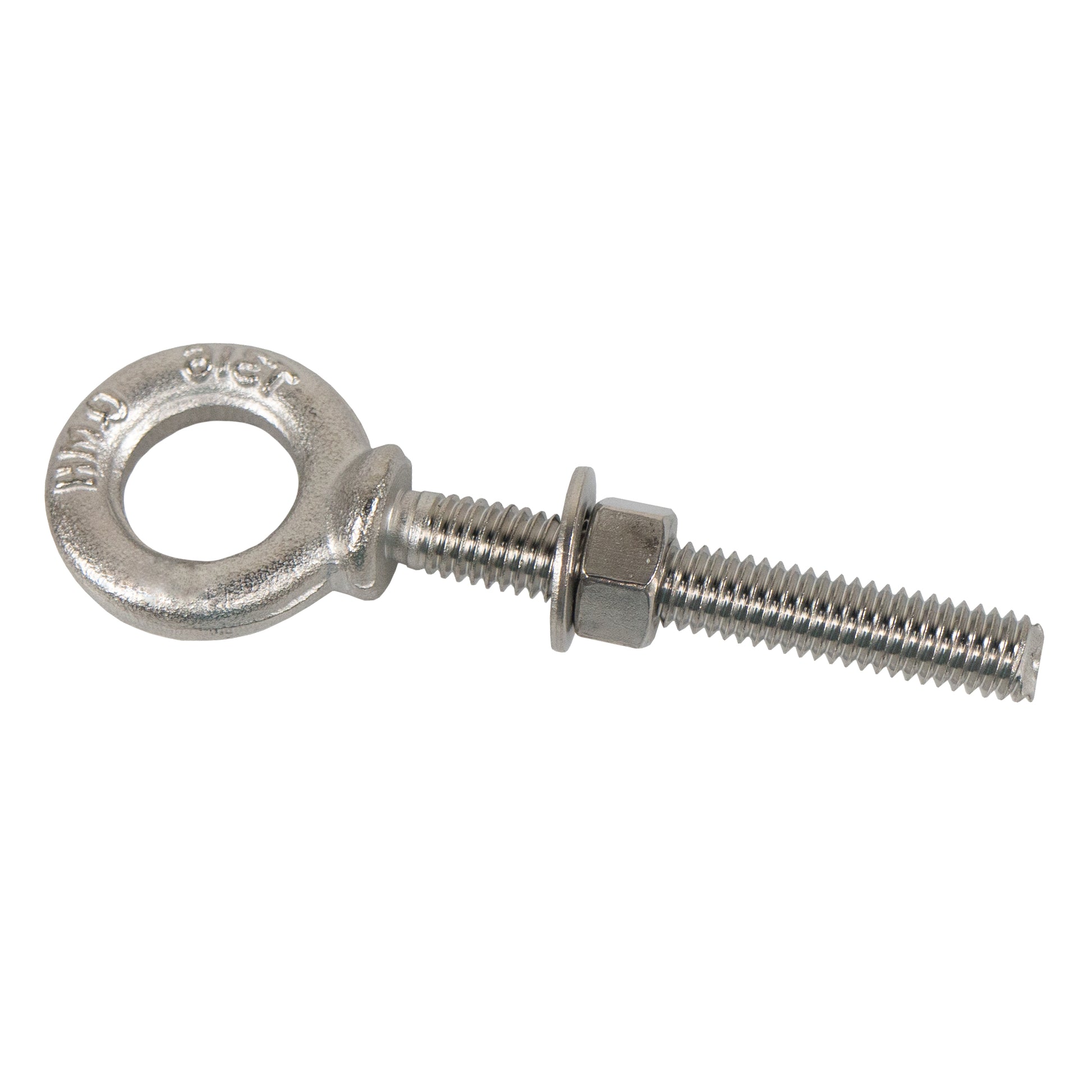

Our stainless steel forged shoulder eye bolts are drop forged for added strength and durability. Type 316 stainless steel is the best choice for marine applications and industrial applications where corrosive chemicals or materials may be used. Eye bolts with shoulders should always be used for angular lifts.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
Our stainless steel forged shoulder eye bolts are drop forged for added strength and durability. Type 316 stainless steel is the best choice f...
Our stainless steel forged shoulder eye bolts are drop forged for added strength and durability. Type 316 stainless steel is the best choice for marine applications and industrial applications where corrosive chemicals or materials may be used. Eye bolts with shoulders should always be used for angular lifts.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
specifications
Working Load Limit:
9,380 lbs.
Assembly Break Strength:
37,520 lbs.
Product Weight (lbs.):
.95
Shank Length:
9"
Material:
Steel
Brand Part Number:
277S-25225
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Diameter:
1"
