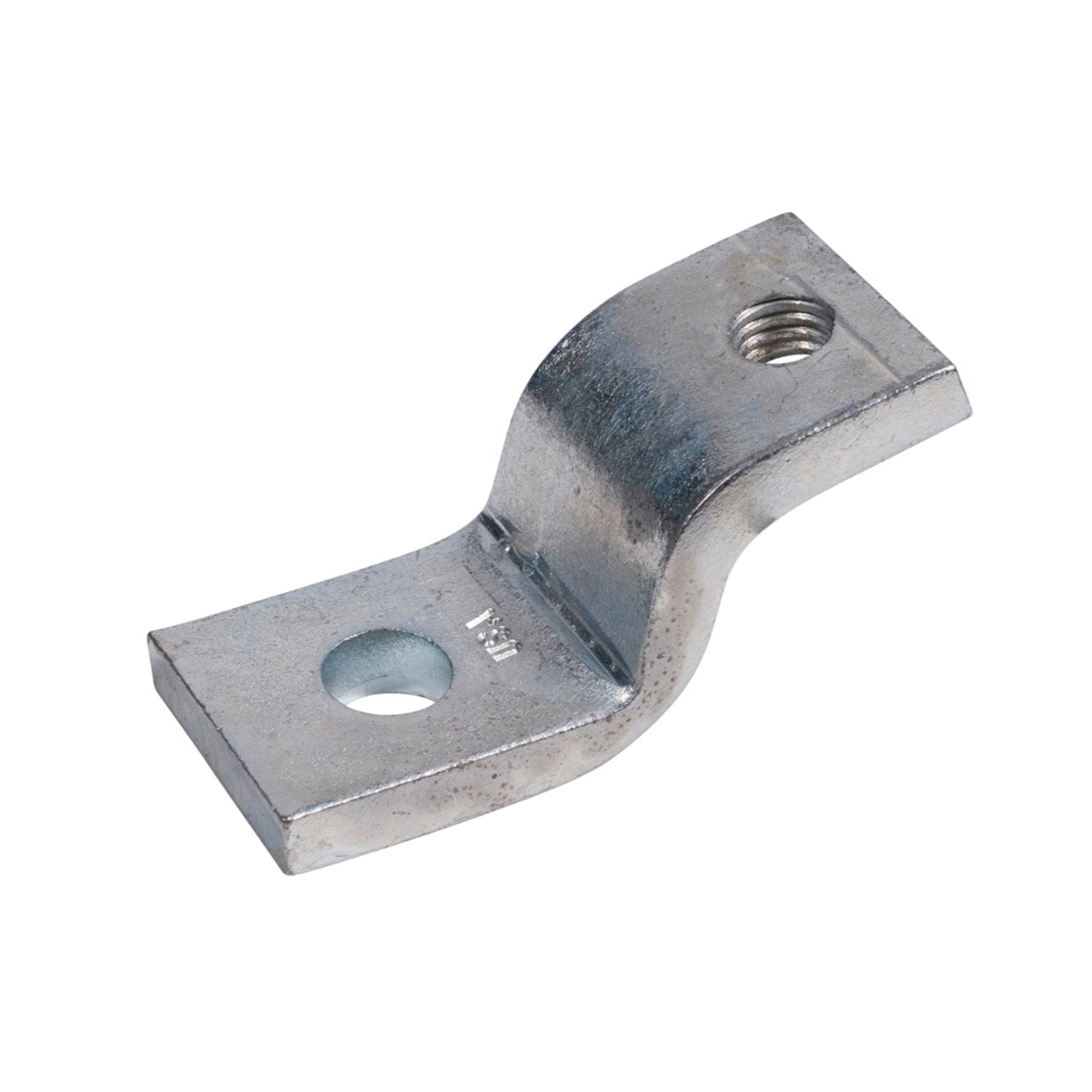

Flange Beam Clamp with Set Screw - Electro-Galvanized
The Flange Beam Clamp with Set Screw - Electro-Galvanized is designed to support strut channel assemblies from both sides of a structural beam. Its centered mounting design provides balanced support while the integrated set screw secures the clamp firmly to the beam. A reliable solution for interior framing where stable beam-to-channel connections are required.
Electro-Galvanized Flange Beam Clamp for Strut Channel Support

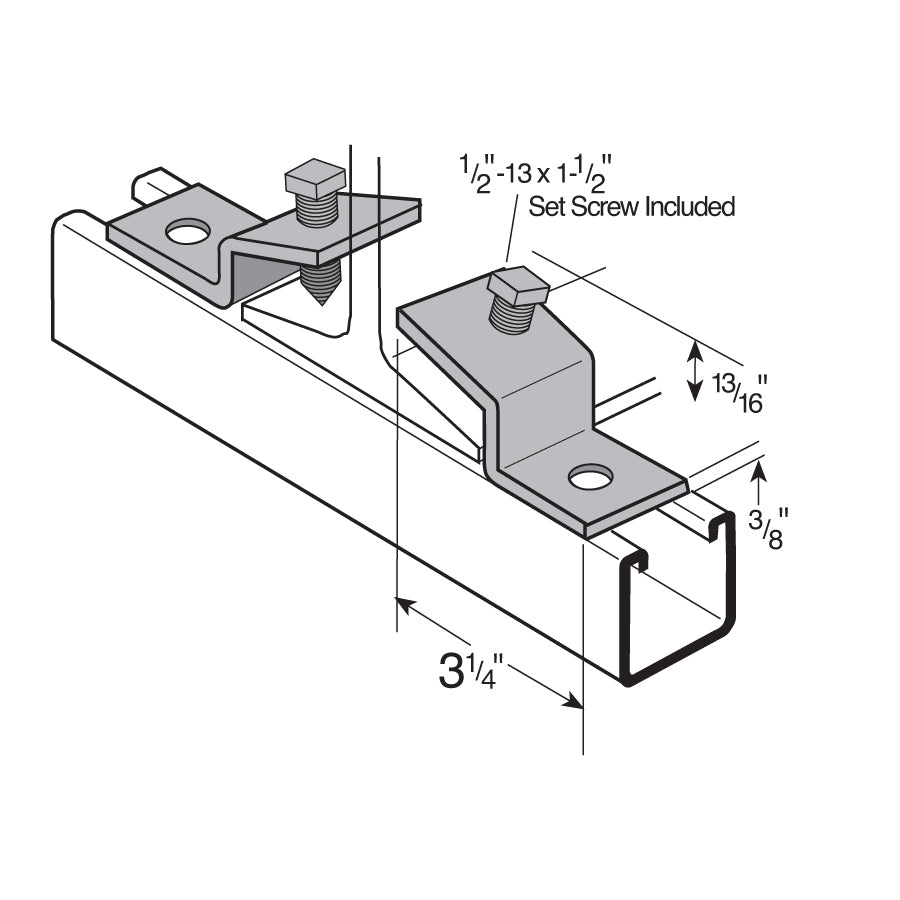

This flange clamp connects through the center of the strut channel using bolts, allowing the channel to be supported evenly on each side of the beam. The included set screw provides a positive attachment point, making it well suited for dry, low-humidity indoor environments.
Key Features
- Dual-Side Beam Support: Supports strut channel evenly from both sides of the beam.
- Set Screw Attachment: Includes a set screw to secure the clamp directly to the beam.
- Center Channel Mounting: Bolts through the middle of the strut for balanced load distribution.
- Electro-Galvanized Steel: Intended for interior applications with minimal moisture exposure.
Common Applications
- Beam-mounted strut channel framing
- Mechanical and utility support systems
- HVAC equipment installations
- Electrical infrastructure assemblies
- Commercial interior construction
Installation Tips
- Position the clamp evenly on the beam before tightening the set screw.
- Secure the strut channel through the center using compatible bolts.
- Check alignment before fully tightening all hardware.
