SKU: 7508

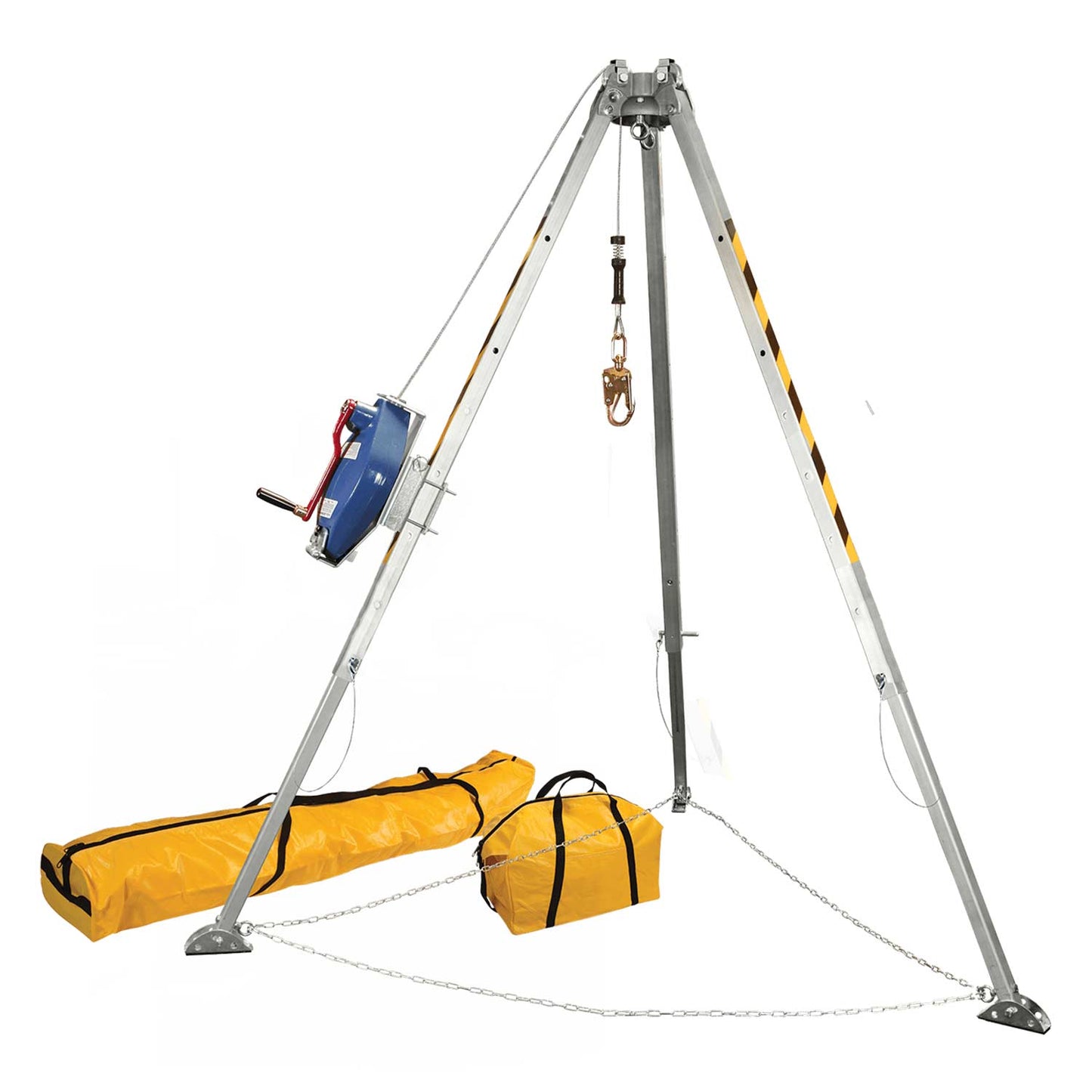

FallTech 8' Confined Space Tripod Kit with 3-Way SRL-R | 7508
FallTech 8' Confined Space Tripod Kit with 3-Way SRL-R | 7508!
Related Articles
$3,415.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Brand: FallTech
Brand part number: 7508
Manufacturer name: FallTech
Material: Tripod: Extruded aluminum
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
SRL-R Housing / Drum: Machined aluminum alloy
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
SRL-R Housing / Drum: Machined aluminum alloy
Product weight: 91 lbs.
Shipping and returns: Shipping & Returns message: This item cannot be returned due to safety risks associated with used items.
Standards: Tripod: OSHA 1926.502 and 1910.66 | SLR-R: ANSI Z359.14-2014
Additional Info: Tensile Strength: 5,000 lbs.
ANSI Personnel Capacity: 130-310 lbs.
OSHA User Capacity: 130-310 lbs.
Material Capacity: 620 lbs.
ANSI Personnel Capacity: 130-310 lbs.
OSHA User Capacity: 130-310 lbs.
Material Capacity: 620 lbs.
Description
Explore the Versatile Confined Space Tripod System
When it comes to ensuring safety in confined space and rescue scenarios, the confined space tripod system stands out as an indispensable tool. Crafted to offer secure entry and exit solutions, these systems combine portability, lightweight design, and durability. They make maneuvering within constrained environments much easier.
Sturdy 7276 Rescue Tripod
The aluminum confined space tripod is engineered to seamlessly fit various openings. Featuring 2-stage telescoping legs, this tripod offers adjustable heights ranging from 5 to 8 feet, with 6-inch increments for precise positioning. This results in an internal working height that spans between 55 to 81 inches.
Designed to accommodate uneven terrains, the tripod's auto-leveling feet are equipped with both rubber pads and spiked edges, catering to hard and soft surfaces alike. The inclusion of dual pulleys ensures seamless cable payout and retraction, each pulley equipped with a protective cover to secure the cable. Moreover, the head assembly integrates two auxiliary eyebolts, enabling the addition of supplementary devices.
ANSI SRL Class B SRL-R
Engineered with a focus on durability, the 7281 SRL-R boasts a corrosion-resistant housing and a robust 3/16" galvanized steel cable. Offering a versatile 3-way operation, this self-retracting lifeline doubles as a retrieval winch. Equipped with a load-indicating swivel snap hook and a mounting bracket, tripod installation and use is simple. The integrated inertial braking system adds an extra layer of security to your operations.
Specifications for the Self-Retracting Lifeline for Rescue:
- Static Strength: 3,000 lb minimum
- Average Arrest Force: 1,125 lb
- Maximum Arrest Force: 1,800 lb
- Maximum Arrest Distance: 54"
Components of the Confined Space Tripod System:
- 60-foot self-retracting lifeline for rescue and retrieval winch
- Leg bracket assembly
- Leg safety chain
- 70-inch tripod bag
- 20-inch weather-resistant device bag
Also available with a personnel winch or with both an SRL-R and winch.
