Specifications
Specifications
- Manufacturer name: FallTech
- Brand: FallTech
- Brand part number: 6050228W
- Standards: Davit System: OSHA 1926.502 and 1910.66 | Personnel Winch: ANSI Z359.4-2013
- Material: Davit System Material: Powder coated 6061 aluminum and plated steel
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Personnel Winch Drive / Drum Gears: Plated alloy steel - Product weight: 155 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used items.
- Additional info: Entry/Egress Capacity: 1 user, 310 lb max.
Rescue User Capacity: 2 users, 310 lb max. for each person
Rescue Static Strength: 5,000 lb min.
Entry/Egress Static Strength: 1,800 lb min.
Description
Description

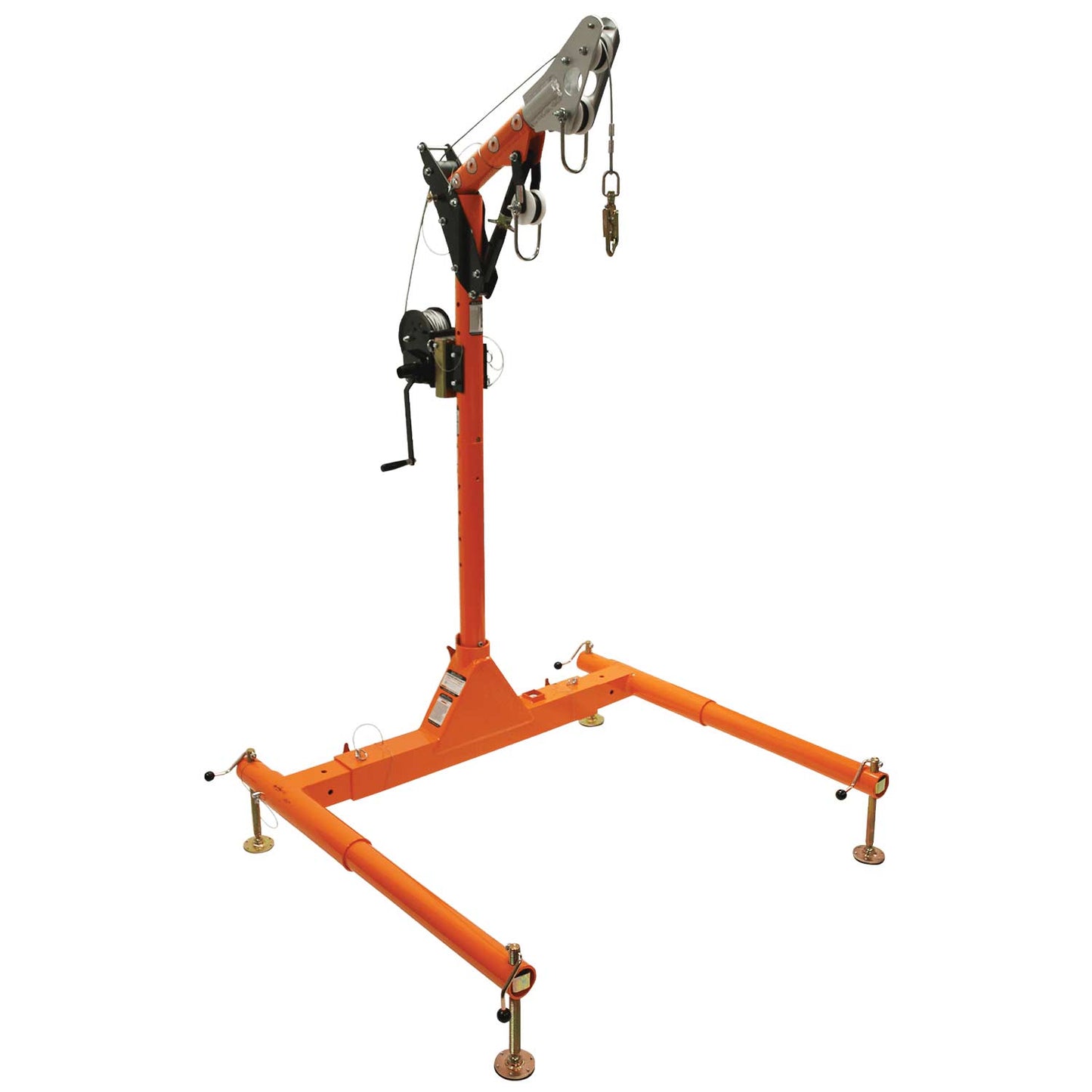

Davit Arm System with Winch
If your crew works in confined spaces, a Davit system is a must. These spaces come with unique challenges that standard fall protection equipment is not designed to handle. A Davit arm system can not only simplify entry and exit, but also assist in rescue operations.
Made to fit a wide range of openings, this Davit arm system has an adjustable base and arm. The base width ranges from 38" and 65", while the arm offers an offset reach of between 12" and 29". The flexibility of these two features lets you easily keep lifelines centered over access locations.
Because adaptability is key, the base comes with a bullseye level that lets you quickly gauge the horizontal positioning. You can also adjust the height without any tools! Additional features include a device receiver bracket for quick winch installation and a powder-coat finish for superior durability.
Davit Winch System Components
- 3-piece base
- Offset arm with dual pulleys and secondary 5,000 lb. anchor point
- 33" lower mast extension - works well within spaces with overhead clearance restrictions
- Personnel winch with 60' 3/16" galvanized cable and 20" weather-resistant storage bag
7297 Winch Details
This mechanical winch is engineered for personnel confined space entry and exit (not material handling). It has a redundant secondary braking system for peace of mind, and it offers a 5:1 gear mechanical advantage. The steel cable lifeline comes with an alloy steel swivel snap hook.
Key Specifications for the Personnel Winch:
- Hassle-free mounting bracket
- Handle operation force: Max 30 lbs.
- Average lifting speed: 12 feet per minute
- Folding handle design for efficient storage
