FallTech 5-Piece Confined Space Davit System | 60' Winch & 60' SRL-R | 6050428WR
FallTech 5-Piece Confined Space Davit System | 60' Winch & 60' SRL-R | 6050428WR!
- Manufacturer name: FallTech
- Brand: FallTech
- Brand part number: 6050428WR
- Standards: Davit System: OSHA 1926.502 and 1910.66 | Personnel Winch: ANSI Z359.4-2013 | SRL-R: ANSI Z359.14-2014
- Material: Davit System Material: Powder coated 6061 aluminum and plated steel
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Personnel Winch Drive / Drum Gears: Plated alloy steel
SRL-R Housing / Drum: Machined aluminum alloy
- Product weight: 215
- Shipping & Returns: Shipping & Returns message: This item cannot be returned due to safety risks associated with used items.
- Additional info: Entry/Egress Capacity: 1 user, 310 lb max.
Rescue User Capacity: 2 users, 310 lb max. for each person
Rescue Static Strength: 5,000 lb min.
Entry/Egress Static Strength: 1,800 lb min.

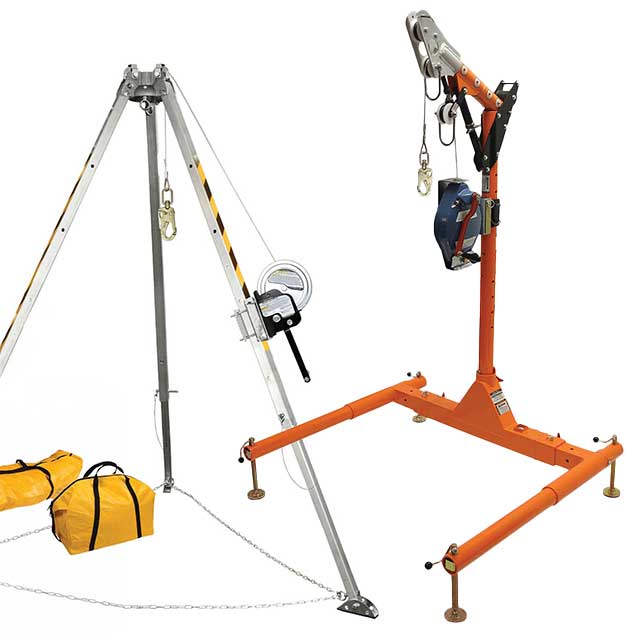

Premium Davit Arm System with Winch and SRL-R
When it comes to confined spaces, a reliable Davit system is non-negotiable. These environments introduce unique challenges that standard fall protection equipment can't effectively address. The versatile Davit arm system not only simplifies entry and exit but also plays a crucial role in rescue operations.
Engineered to accommodate a diverse range of openings, this Davit arm system features an adjustable base and arm design. With a base width that spans from 38" to 65" and an offset arm reach of between 12" and 29", you have the flexibility to align lifelines precisely over access points.
Adaptability takes center stage with a bullseye level on the base, allowing swift assessment of horizontal positioning. Height adjustment requires no tools, and additional features include two device receiver brackets for quick winch and SRL-R installation, along with a resilient powder-coat finish for superior durability.
Key Components of the Davit Arm System:
- 3-piece adjustable base
- Offset arm with dual pulleys and an additional 5,000 lb. anchor point
- 33" lower mast extension - optimized for spaces with overhead clearance restrictions
- Personnel winch with 60' 3/16" galvanized cable and a weather-resistant 20" storage bag
- SRL-R with 60' 3/16" galvanized cable and a weather-resistant 20" storage bag
Explore the 7297 Winch Details
This mechanical winch is meticulously engineered for confined space personnel entry and exit (not intended for material handling). It incorporates a redundant secondary braking system for enhanced safety, coupled with a 5:1 gear mechanical advantage. The steel cable lifeline comes complete with an alloy steel swivel snap hook for secure connections.
Key Specifications for the Personnel Winch:
- Hassle-free mounting bracket
- Handle operation force: Max 30 lbs.
- Average lifting speed: 12 feet per minute
- Folding handle design for efficient storage
Dependable 3-Way Operation with the 7281 SRL-R
Engineered with unwavering reliability in mind, the 7281 SRL-R features a corrosion-resistant housing and a robust galvanized steel cable. Classified as ANSI SRL Class B, this self-retracting lifeline serves a dual role as a retrieval winch for rescue operations. Equipped with a load-indicating swivel snap hook and an easily mountable bracket, integrating it with your Davit arm system is straightforward. The integrated inertial braking system provides an added layer of security for your operations.
Specifications for the Self-Retracting Lifeline for Rescue:
- Static Strength: Minimum 3,000 lb
- Average Arrest Force: 1,125 lb
- Maximum Arrest Force: 1,800 lb
- Maximum Arrest Distance: 54"
