SKU: 6050328R

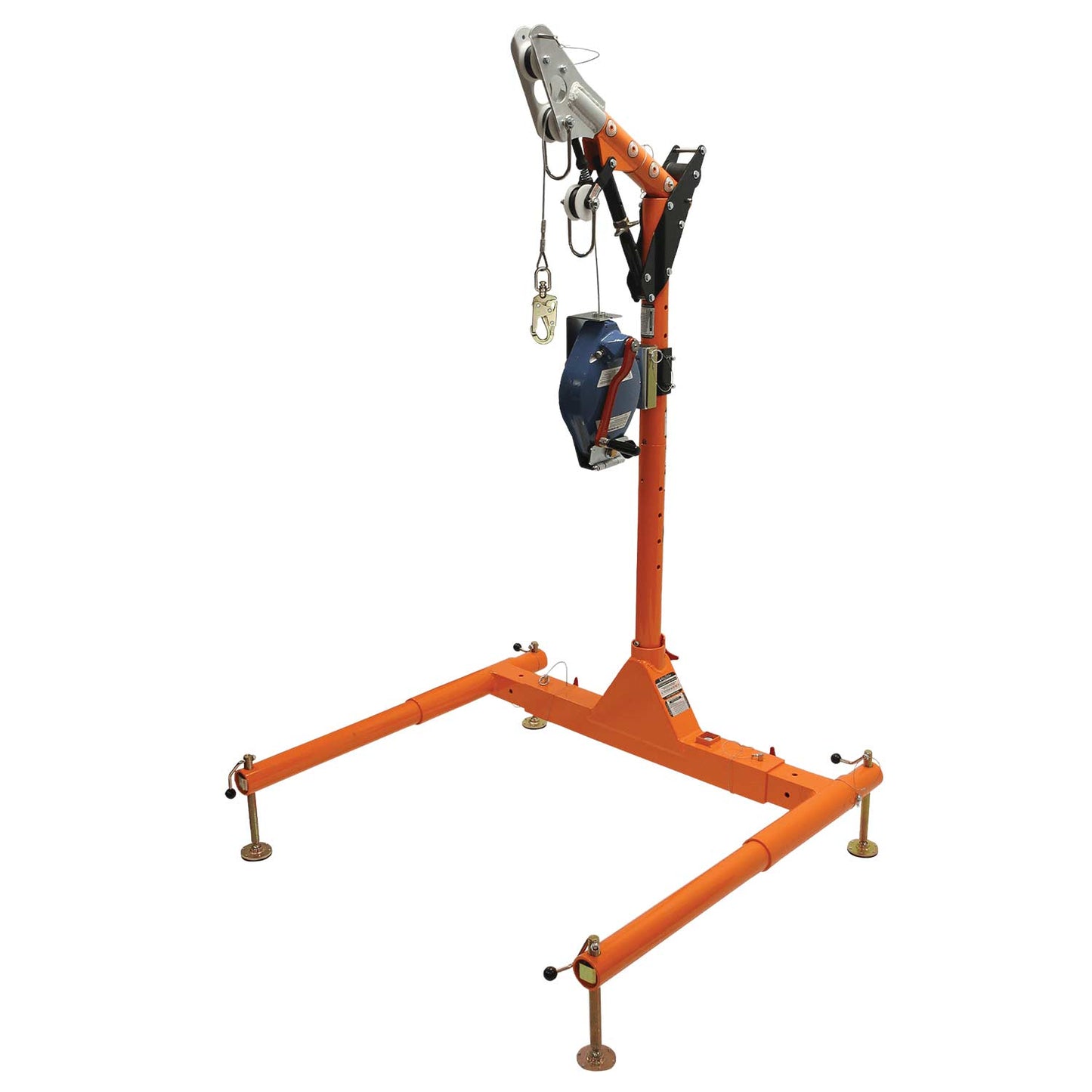

FallTech 5-Piece Confined Space Davit System | 60' SRL-R | 6050328R

FallTech 5-Piece Confined Space Davit System | 60' SRL-R | 6050328R!


Regular price $7,565.50
Sale price $7,565.50 Regular price
0% off
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Manufacturer name: FallTech
  • Brand: FallTech
  • Brand part number: 6050328R
  • Standards: Davit System: OSHA 1926.502 and 1910.66 | SRL-R: ANSI Z359.14-2014
  • Material: Davit System Material: Powder coated 6061 aluminum and plated steel
    Cable: 3/16" galvanized steel; 3,400 lb min. static strength
    Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
    SRL-R Housing / Drum: Machined aluminum alloy
  • Product weight: 175 lbs.
  • Shipping & Returns: Shipping & Returns message: This item cannot be returned due to safety risks associated with used items.
  • Additional info: Entry/Egress Capacity: 1 user, 310 lb max.
    Rescue User Capacity: 2 users, 310 lb max. for each person
    Rescue Static Strength: 5,000 lb min.
    Entry/Egress Static Strength: 1,800 lb min.

Description

Efficient Davit Arm System with Included Self-Retracting Lifeline for Rescue

If your team operates within confined spaces, a dependable Davit system is indispensable. These environments pose unique challenges that standard fall protection gear can't adequately address. The versatile Davit arm system not only simplifies entry and exit but also lends crucial support to rescue operations.

Built to accommodate a wide range of openings, this Davit arm system boasts an adjustable base and arm configuration. The base width ranges between 38" and 65", while the arm offers an offset reach spanning from 12" to 29". The inherent flexibility of these components allows for alignment of lifelines over access points.

Emphasizing adaptability, the base includes a bullseye level for swift horizontal positioning assessment. You can also conveniently adjust the height without the need for any tools. Other features include a device receiver bracket for seamless SRL-R installation and a robust powder-coat finish for unmatched durability.

Key Components of the Davit Arm System

  • 3-piece adjustable base
  • Offset arm with dual pulleys and an additional 5,000 lb. anchor point
  • 33" lower mast extension - designed for spaces with overhead clearance constraints
  • SLR-R featuring a 60' 3/16" galvanized cable and a weather-resistant 20" storage bag

Reliable 3-Way Operation with the 7281 SRL-R

Engineered for utmost reliability, the 7281 SRL-R boasts a corrosion-resistant housing and a robust galvanized steel cable. Classified as ANSI SRL Class B, this self-retracting lifeline serves a dual purpose as a retrieval winch for rescue operations. Equipped with a load-indicating swivel snap hook and an easily mountable bracket, integrating it with your Davit arm system is effortless. The integrated inertial braking system enhances operational safety.

Specifications for the Self-Retracting Lifeline for Rescue:

  • Static Strength: Minimum 3,000 lb
  • Average Arrest Force: 1,125 lb
  • Maximum Arrest Force: 1,800 lb
  • Maximum Arrest Distance: 54"
Shipping and returns: Shipping & Returns message: This item cannot be returned due to safety risks associated with used items.
