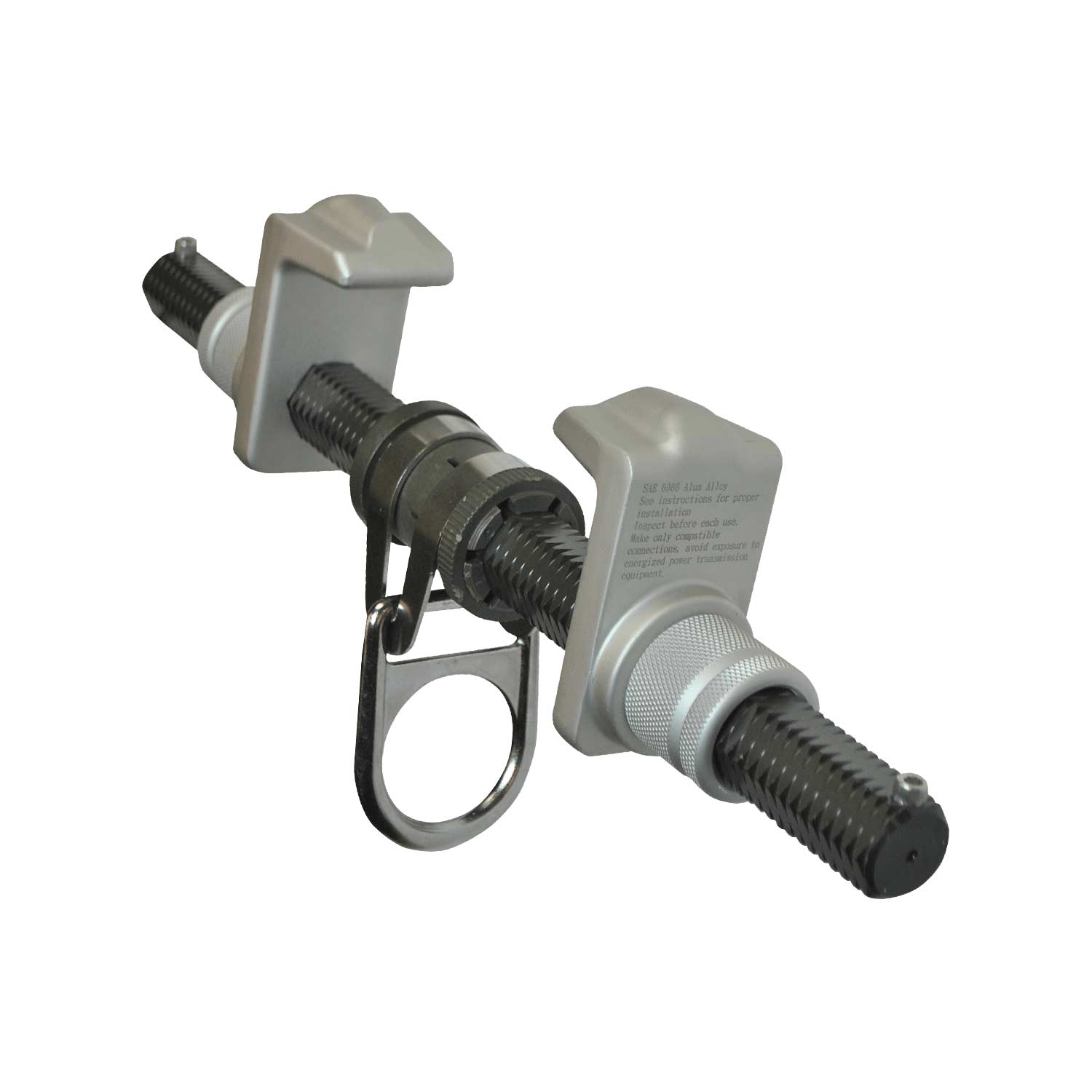

FallTech 12-1/4" Trailing Beam Clamp Anchor | Dual Clamp Adjustment | 7533
FallTech 12-1/4" Trailing Beam Clamp Anchor | Dual Clamp Adjustment | 7533!
Related Articles
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Brand: FallTech
Brand part number: 7533
End fitting: D Ring
Manufacturer name: FallTech
Material: D-ring: plated alloy steel
Crossbar: aluminum alloy
Clamp jaws: aluminum alloy
Crossbar: aluminum alloy
Clamp jaws: aluminum alloy
Product weight: 5.8 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used items.
Standards: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
Type: Dual-jaw adjustment
Width: 12.25"
Additional Info: Fits I-Beam flanges from 3" - 12-1/4" wide up to 1" thick
User Weight Capacity: 310 lbs. ANSI / 425 lbs. OSHA
Static Strength: 5,000 lb min.
User Weight Capacity: 310 lbs. ANSI / 425 lbs. OSHA
Static Strength: 5,000 lb min.
Description
Fall Protection Beam Clamp with Dual Adjustment
Get the flexibility you need to move around while working at height with this trailing beam clamp anchor. Design includes a threaded aluminum crossbar. The clamping jaws have knurled rings, allowing for fine adjustment, and the recessed under-jaw ball bearings make it easier to move.
The adjusting jaw has a concealed locking latch to prevent accidental depression.
Temporary I-Beam Clamp Features
- For use on horizontal I-beams
- D-ring slides along with the jaw adjustment for maximum versatility
- User Capacity: 136 - 310 lbs. ANSI / 130 - 425 lbs. OSHA
