SKU: CSB6000-2

Caldwell 3 Tons x 2' Spreader Beam | Dura-Lite 430-3-2

$2,878.79

Request Bulk Pricing

Call/Chat for ship date

Fill out the form below or give our sales consultants a call at 866-444-9990.

Spread:

2' 3' 4' 6' 8' 12' 14' 16' 18' 20' 10'

Load Limit:

0.25 tons 0.5 tons 1 ton 2 tons 3 tons

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Custom Configuration Options

Connect with an Expert

Payment Options

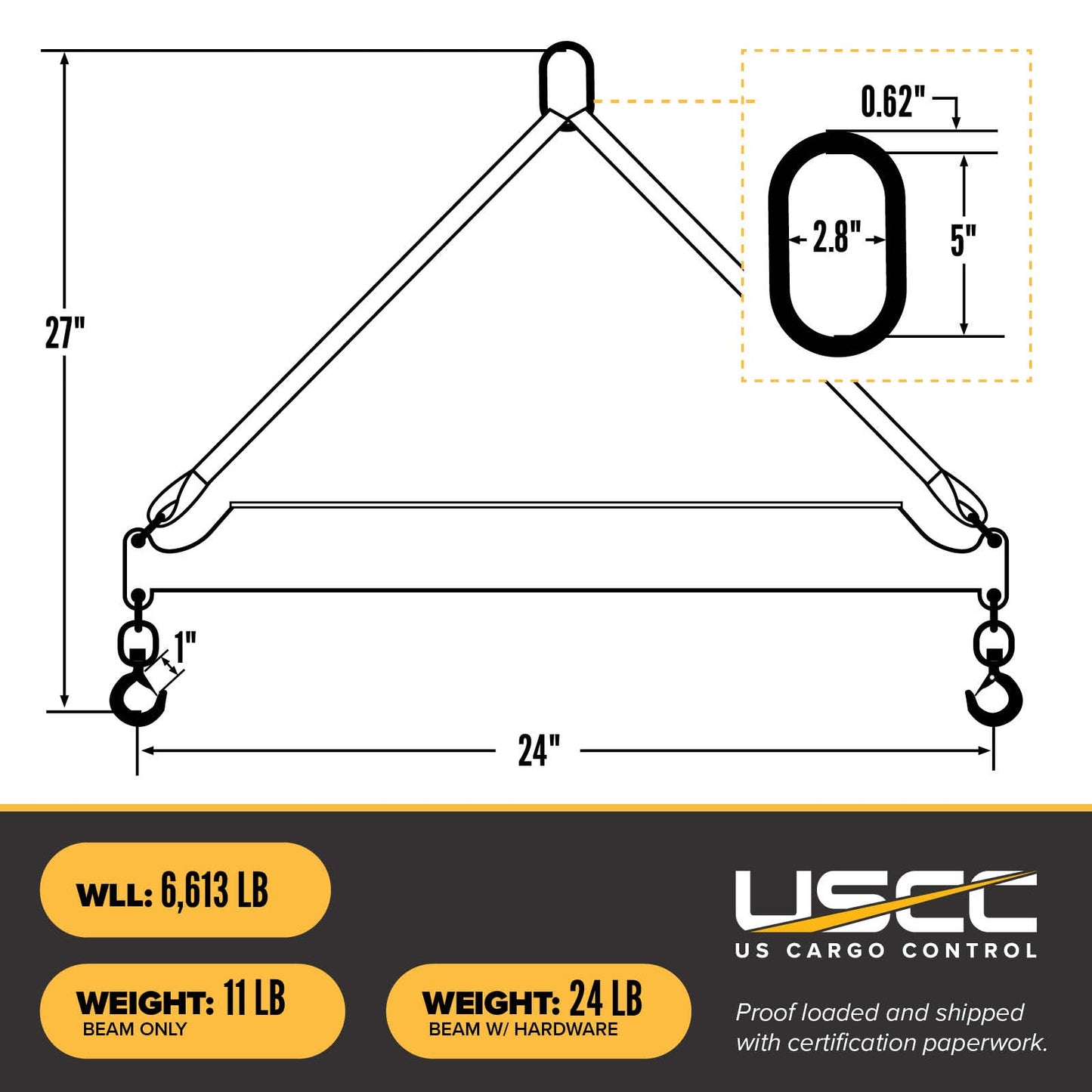

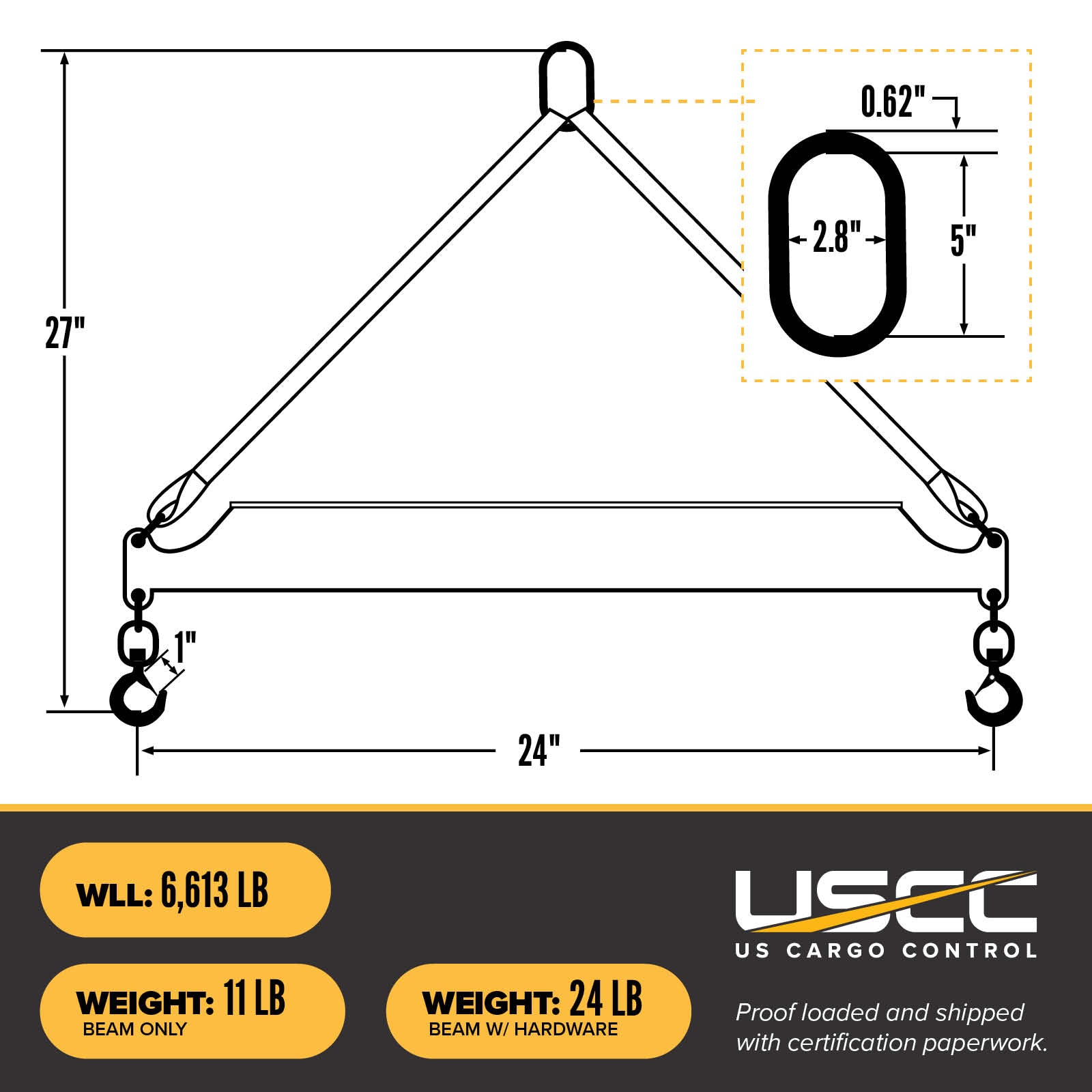

Specifications

Working load limit: 3 tons

Bail Dimensions: Inside Width: 2.8"
Inside Length: 5"
Diameter: 0.62"

Brand part number: 430-3-2

End fitting: Bottom Swivel Latch Hooks & Top Rigging Included

Finish: Acrylic Polyurethane

Manufacturer name: Caldwell

Material: Fiber-Reinforced Polymer Composite

Spread: 2'

Product weight: 24 lbs.

Rated for Overhead Lifting: Yes

Safety factor: 3:1

Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.

Standards: Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.

Throat opening: 1"

Additional Info: WLL (lbs.): 6,613
Headroom: 27"

Description

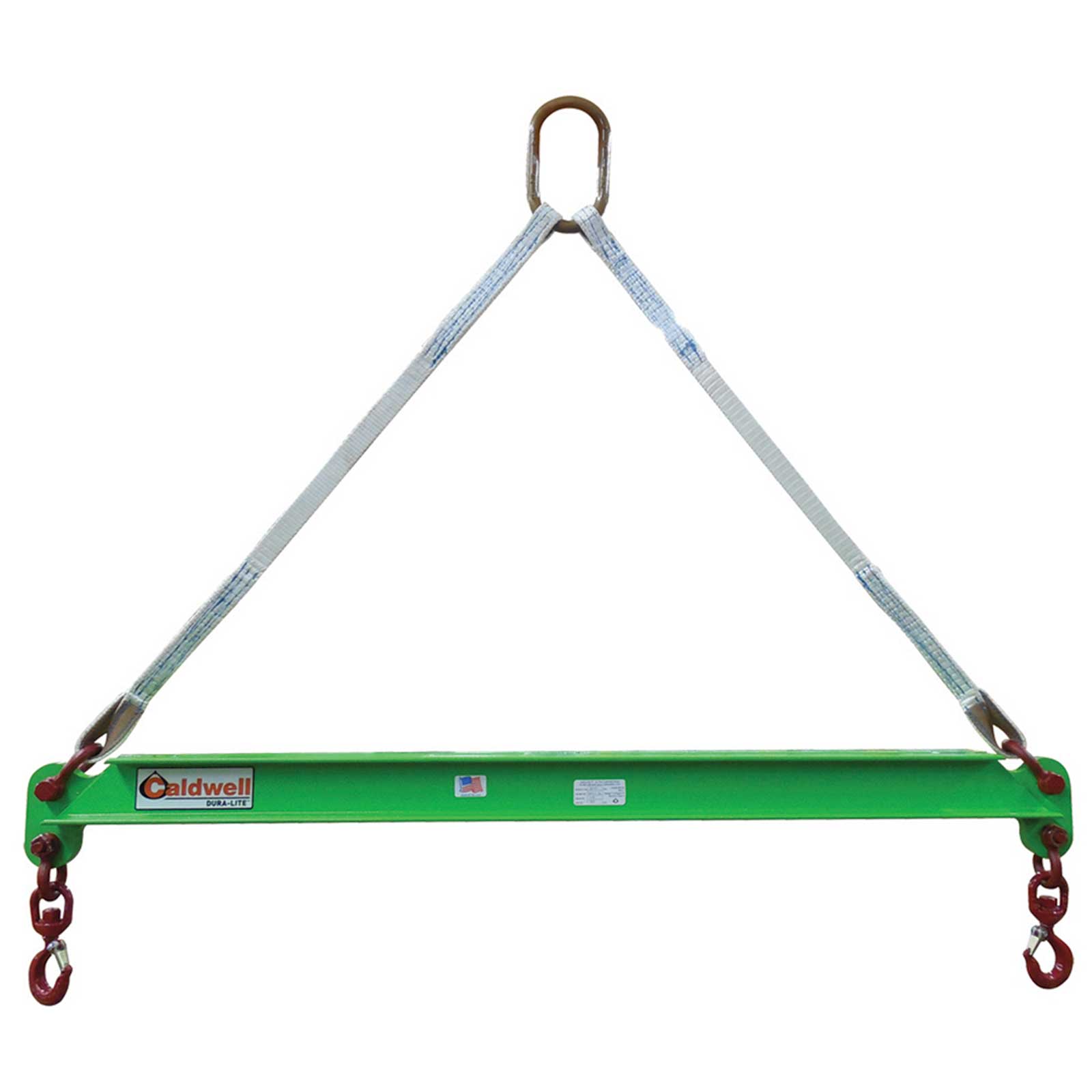

Caldwell Dura-Lite 430-3-2 Composite Spreader Bar

Composite spreader beams from Dura-Light are a great choice for a wide range of applications. With superior strength and impact-resistance, these lightweight below-the-hook lifting devices let you lift more without putting extra strain on your riggers.They are also non-corrosive - perfect for marine applications - and non-conductive - so they can be used on jobsites where sparks are a concern.

Caldwell Spreader Beam Construction

Constructed using a fiber-reinforced polymer composite, this Dura-Lite hoisting beam is built to last. The lug attachment holes have steel bushings for wear-resistance, and the long-lasting acrylic polyurethane finish adds UV-protection. When used correctly, it's designed to handle 2 million cycles at capacity!

Lifting Beams vs. Spreader Bars

Compared to lifting beams, spreader beams are very effective at distributing a load's weight and are ideally suited for adding stability to critical lifts. However, they require top rigging to connect to the crane or other lifting machine, increasing the amount of headroom required.

2' Spreader Beam Features:

Made in the USA: The beam is domestically-made for quality you can trust. Hardwire will be either Crosby or Green Pin - if you need a specific brand, call us!
Superior Chemical Resistance: Won't be harmed by alcohols, motor oils, diesel fuel, saltware, gasoline, water, or glycols.
Proof-Tested to 200% of Rated Capacity: Shipped with certification paperwork.

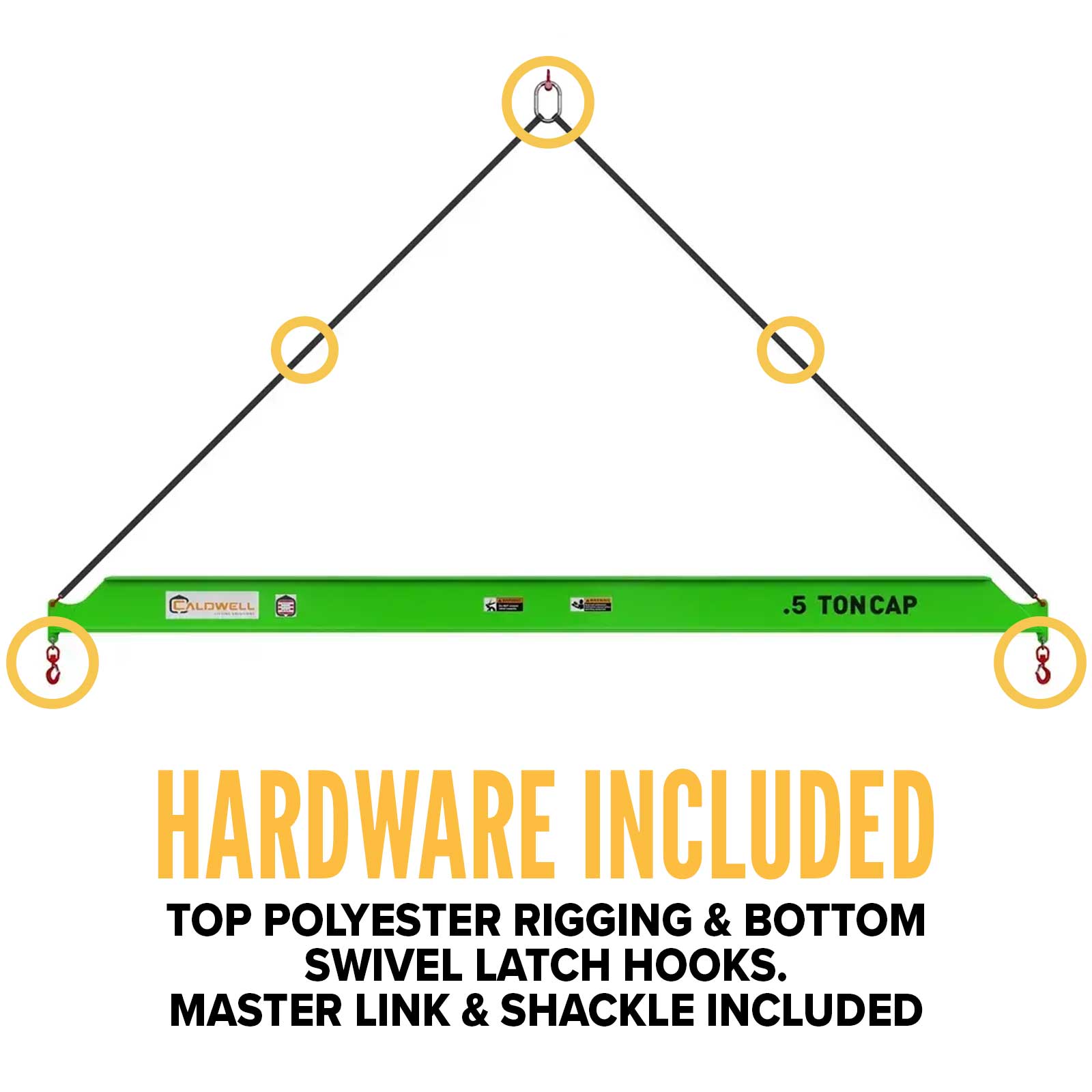

Top polyester rigging and bottom swivel latch hooks included: Including master link and shackles.
Industry-Compliant: Conforms to ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.
2-year limited manufacturer's warranty.

Custom Below-The-Hook Lifting Devices

Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
