SKU: CASLB500-8
Caldwell 1/4 Ton x 6 - 8' Adjustable Lifting Beam | Dura-Lite 416-1/4-8
$2,726.29
Spread:
Load Limit:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options

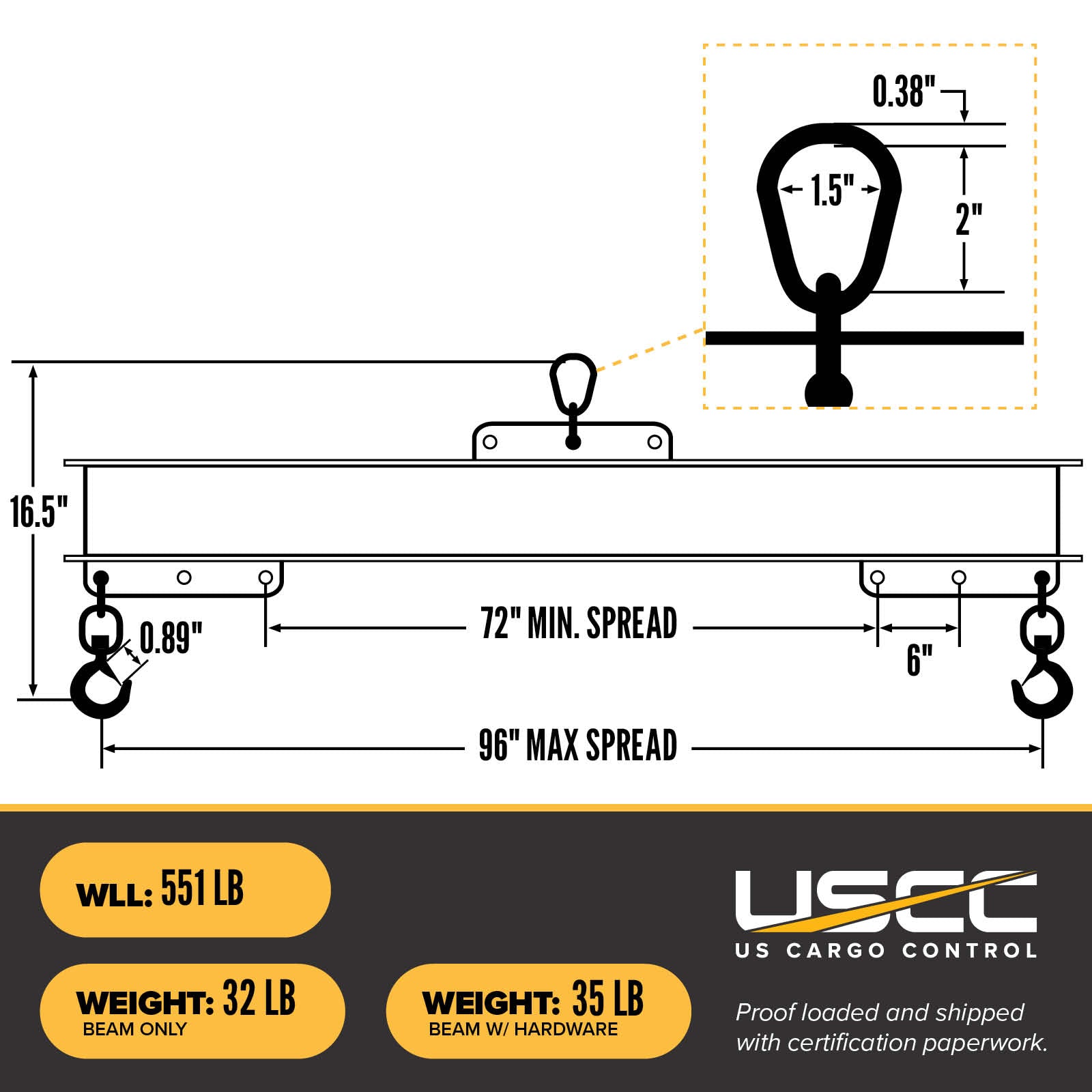

Specifications
Working load limit: 0.25 tons
Bail Dimensions: Inside Width: 1.5"
Inside Length: 2"
Diameter: 0.38"
Inside Length: 2"
Diameter: 0.38"
Brand part number: 416-1/4-8
End fitting: Bottom Swivel Latch Hooks & Top Link Included
Finish: Acrylic Polyurethane
Manufacturer name: Caldwell
Material: Fiber-Reinforced Polymer Composite
Spread: 6' - 8'
Product weight: 35 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.
Throat opening: 0.89"
Additional Info: WLL (lbs.): 551
Headroom: 16.5"
Bail Adjustment Length: 12"
Bail Adjustment Increments: 6"
Headroom: 16.5"
Bail Adjustment Length: 12"
Bail Adjustment Increments: 6"
Description

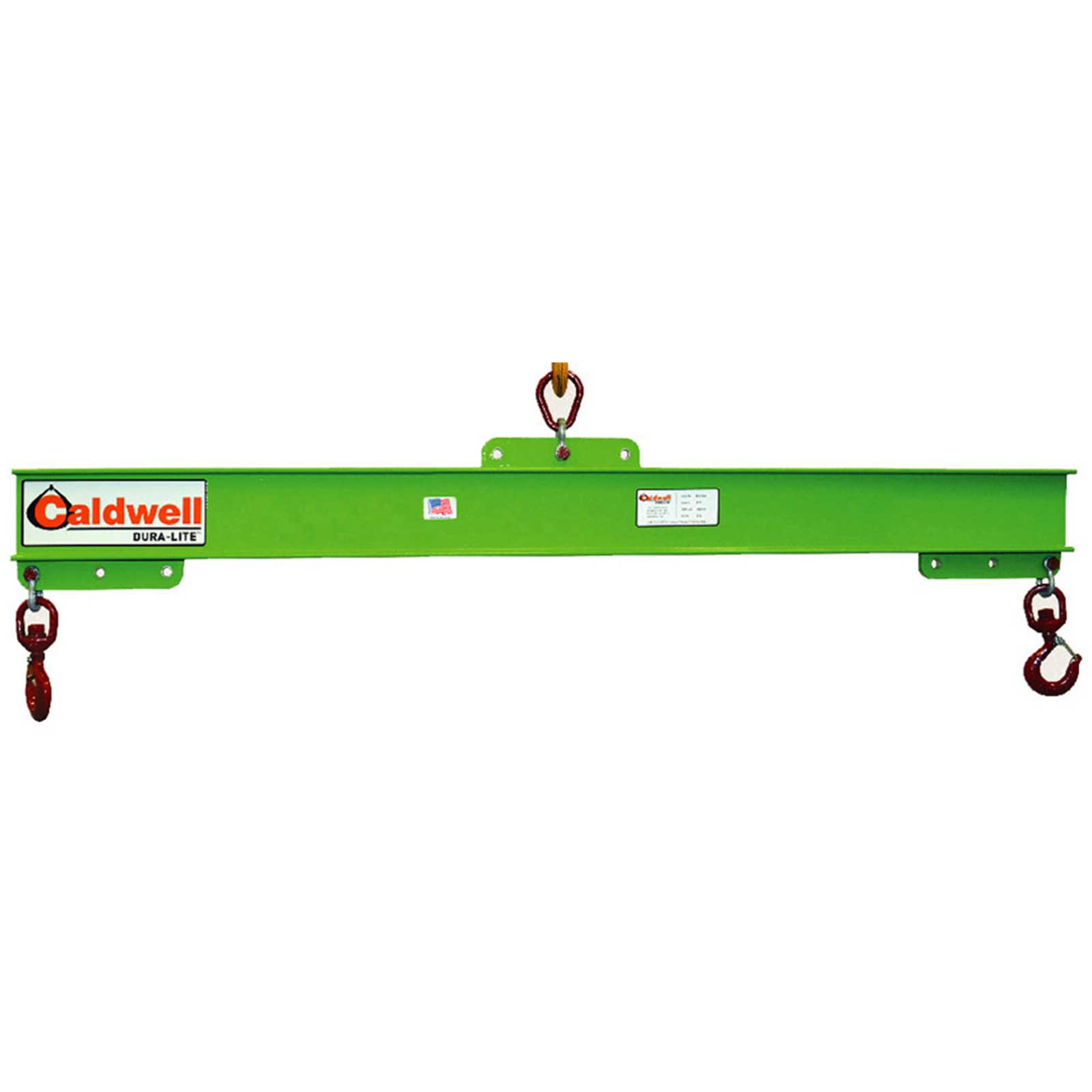

Caldwell Dura-Lite 416-1/4-8 Adjustable Composite Lifting Beam
Adjustable lifting beams from Dura-Light are well-suited for a wide range of applications. With superior strength and impact-resistance, these lightweight below-the-hook lifting devices let you lift more without putting extra strain on your riggers. They are also non-corrosive - perfect for marine applications - and non-conductive - so they can be used on jobsites where sparks are a concern.
The adjustability makes it perfect for jobs where you're lifting a variety of loads, as well as off-center loads - you can adjust for any center-of-gravity issues.
Caldwell Adjustable Lifting Beam Construction
Constructed using a fiber-reinforced polymer composite, this Dura-Lite hoisting beam is built to last. The lug attachment holes have steel bushings for wear-resistance, and the long-lasting acrylic polyurethane finish adds UV-protection. When used correctly, it's designed to handle 2 million cycles at capacity!
Lifting Beams vs. Spreader Bars
Compared to spreader beams, these lifting beams will connect directly to the crane or other lifting machine without the need for top rigging, reducing the amount of headroom needed. However, this design doesn't distribute a load's weight as effectively, which means they are less advantageous for wide or extremely heavy loads.
6 - 8' Spread Lifting Beam Features:
- Made in the USA: The beam is domestically-made for quality you can trust. Hardwire will be either Crosby or Green Pin - if you need a specific brand, call us!
- Superior Chemical Resistance: Won't be harmed by alcohols, motor oils, diesel fuel, saltware, gasoline, water, or glycols.
- Proof-Tested to 200% of Rated Capacity: Shipped with certification paperwork.

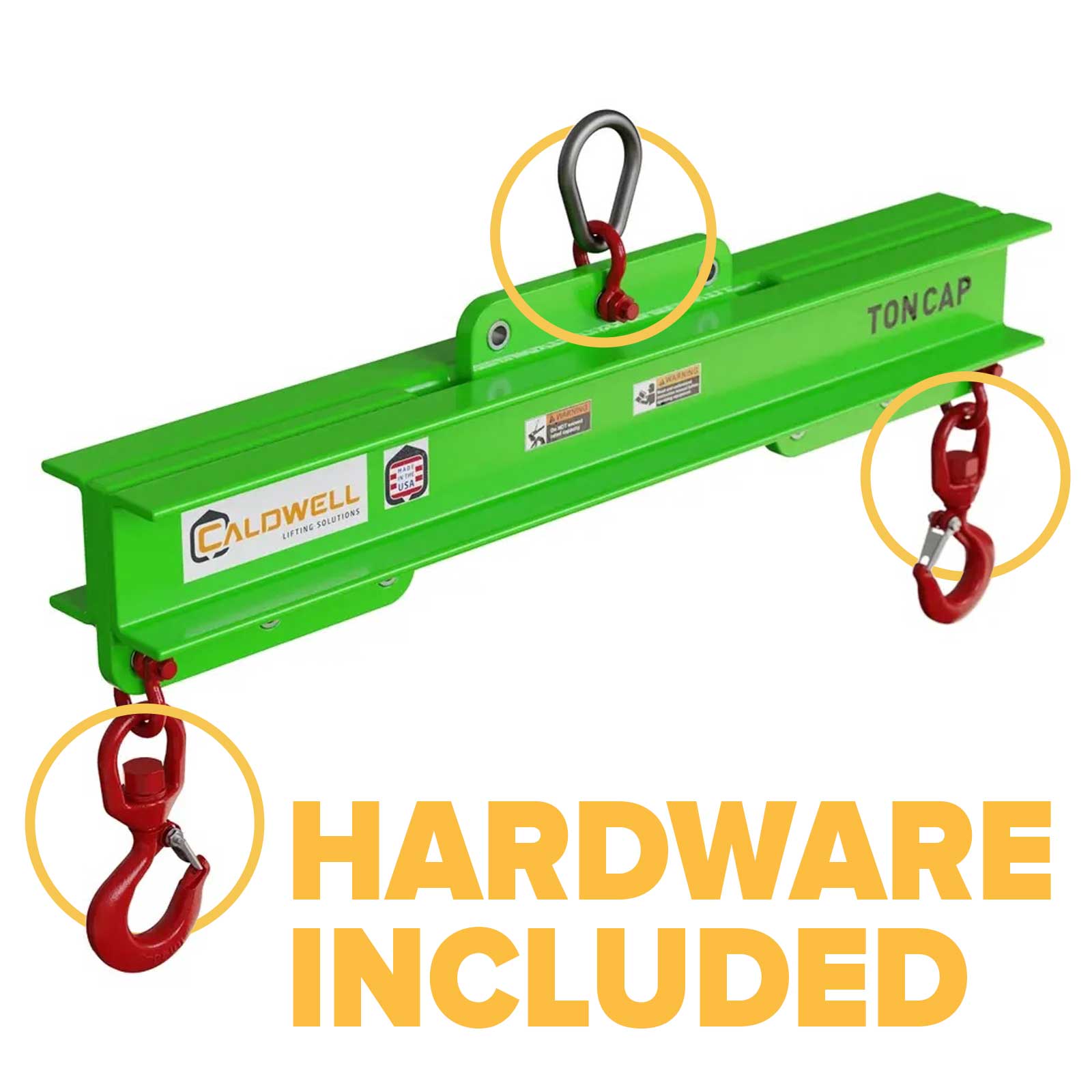

- Top link and bottom swivel latch hooks included.
- Industry-Compliant: Conforms to ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.
- 2-year limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including spreader bars, shackles, and outrigger pads.
