Specifications
Pull Force: 1500 lbs.
Bolthold SP10-38 Asphalt Anchor - Zinc Plated
The Bolthold SP10-38 asphalt anchor is a heavy-duty anchoring solution engineered specifically for asphalt installations. This 6" anchor is ideal for mounting bike racks, signage, machinery, and similar fixtures directly into asphalt surfaces. Each anchor is pre-installed with a 1" hex bolt and 1" diameter washer, installs flush with the surface, and allows mounted items to be removed cleanly without leaving protrusions.
Notice: Do not install anchors with tile grout. Bolthold anchors must be installed using the specified EPX2 or EPX3 specialty grout only.
SP10-38 Asphalt Anchor - Flush-Mount Anchoring for Asphalt Surfaces

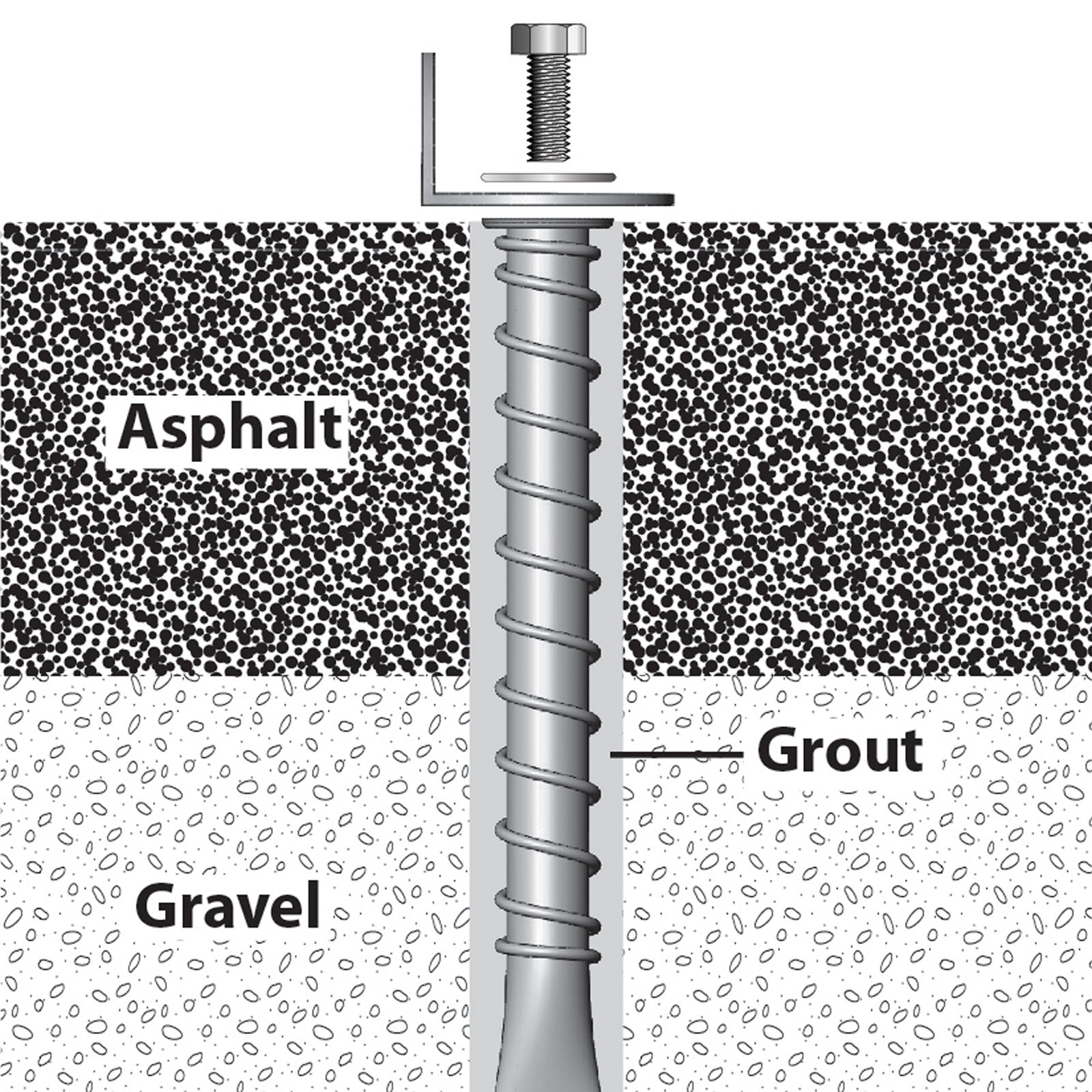

Designed for strength and serviceability, the SP10-38 anchor requires a 7/8" diameter hole drilled 6" deep and the use of compatible grout to achieve proper holding power. A wide top header prevents pull-through while keeping the anchor flush with the asphalt, making it ideal for both permanent and removable installations.
Key Features
- Flush-Mount Design: Installs level with the asphalt surface for a clean, trip-free finish.
- Oversized Top Header: 1.4" header prevents anchors from dropping below the surface or pulling into the mounting plate.

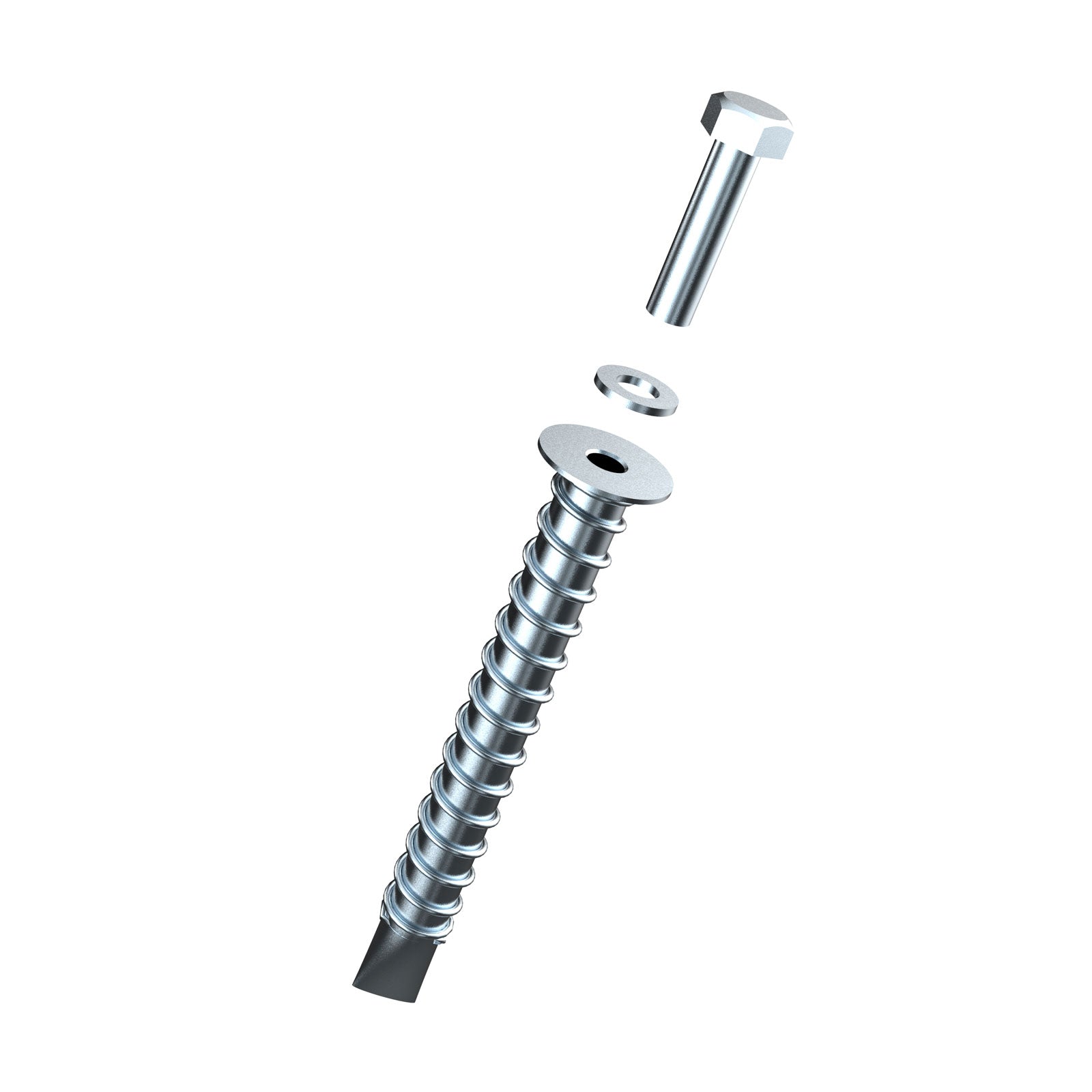

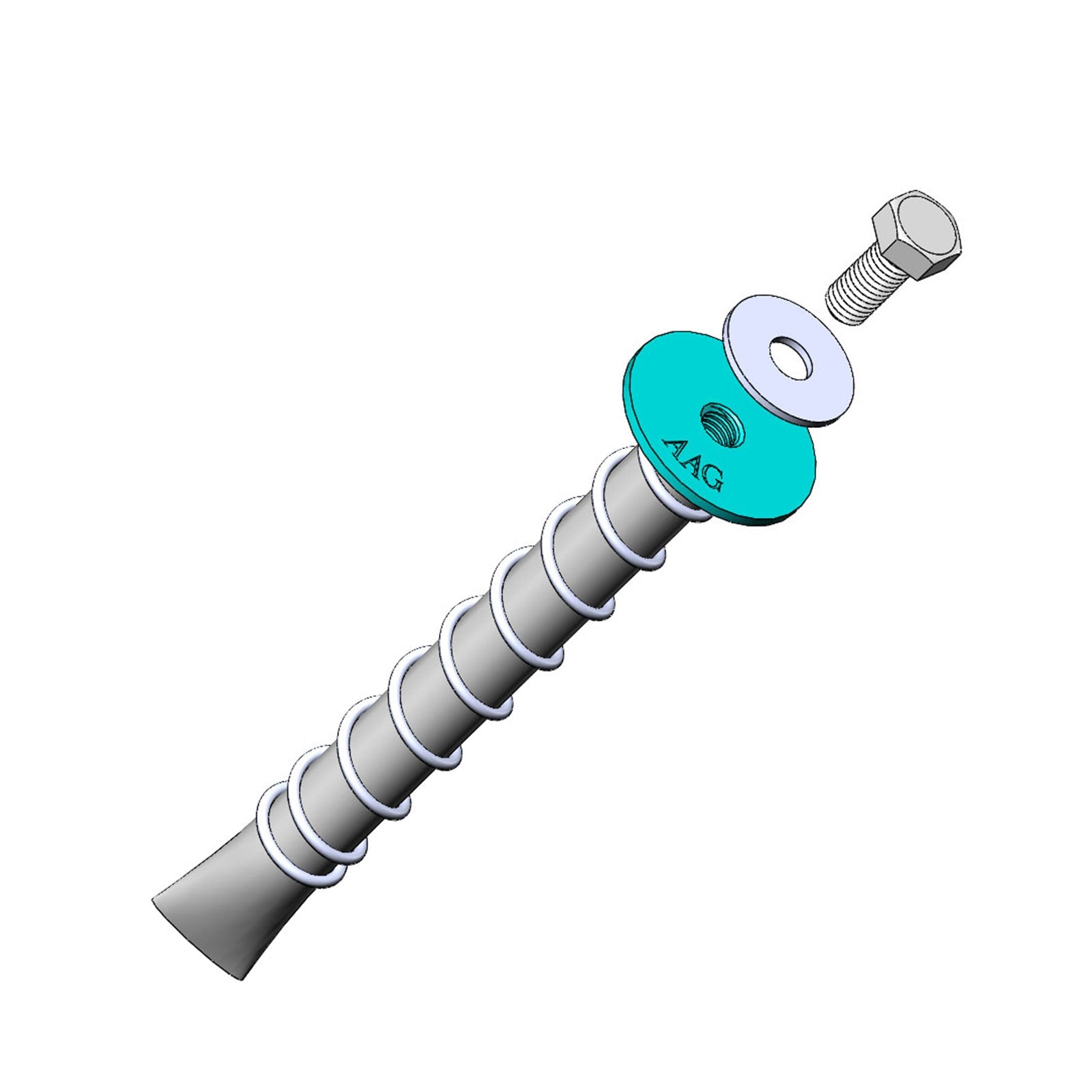

- Pre-Assembled Hardware: Includes a 1" hex bolt and 1" diameter washer.
- Removable Installations: Mounted objects can be removed without leaving surface obstructions.
Common Applications

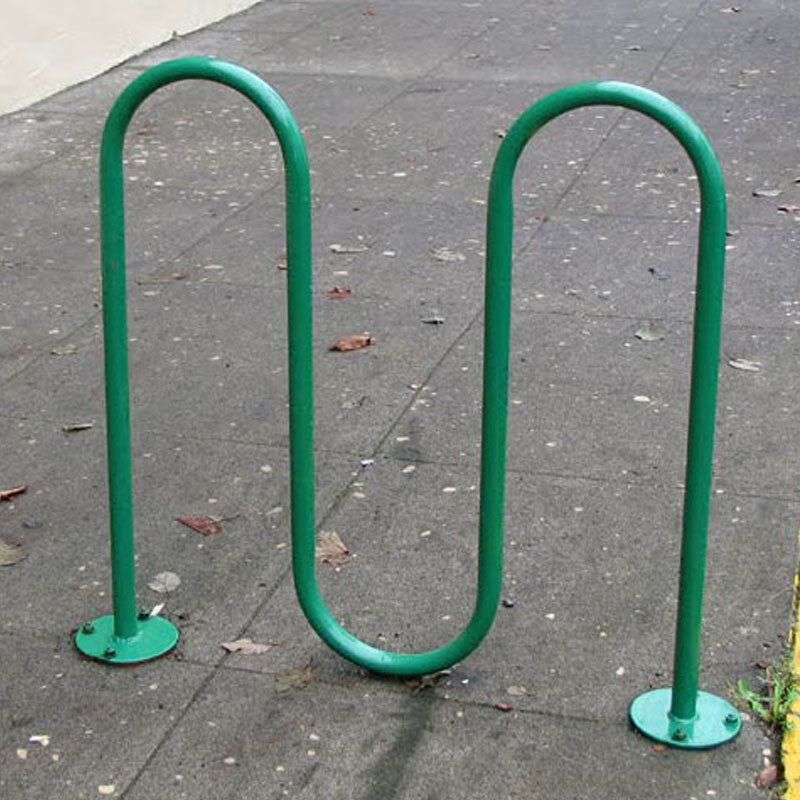

- Bike racks and bicycle infrastructure
- Parking, traffic, and wayfinding signage
- Machinery and equipment mounting
- Bollards and site furnishings
- Temporary or removable asphalt installations
Installation Tips
- Drill a 7/8" diameter hole to a depth of 6" for proper anchor embedment.
- Ensure the bolt length inside the anchor does not exceed 3".
Required Grout:
Listed below are the approximate amounts of grout required to install one six-pack of SP10-38 asphalt anchors.
- One six-pack of EPX2 grout. (12 oz. bags) - Each Bag Of EPX2 grout installs (4-5) SP10-38 Anchors.
- One EPX2 tub of grout. (10 lb. tub) - Each Tub Of EPX2 grout installs (50-60) SP10-38 Anchors.
- Two EPX3 cartridges of grout. (10 oz. tube) - Each Tube Of EPX3 grout installs (4-5) SP10-38 Anchors.
