SKU: LBE10K1248
Adjustable Length Economy Lifting Beam - 10,000 Lb. Capacity - 8' Max Spread
Adjustable Length Economy Lifting Beam - 10,000 Lb. Capacity - 8' Max Spread!
Continue Browsing
Adjustable Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$3,174.49
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options
Specifications
Working load limit: 5 tons (US) / 10,000 lbs.
Brand part number: 14159

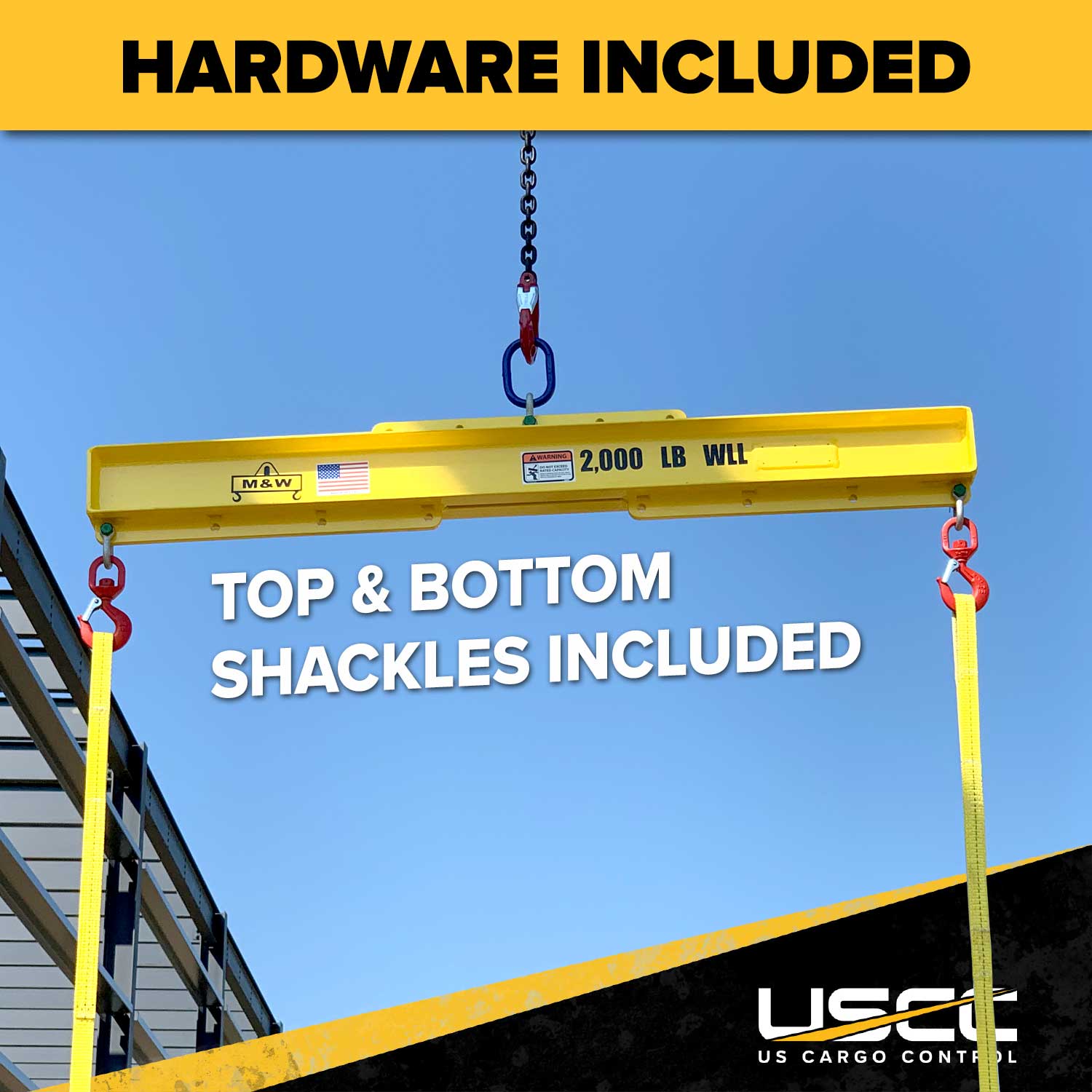

End fitting: Top & Bottom Shackles Included
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 3' - 8'
Product weight: 365 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shackle size: Top shackle(s): 3/4”
Bottom shackle(s): 5/8”
Bottom shackle(s): 5/8”
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.

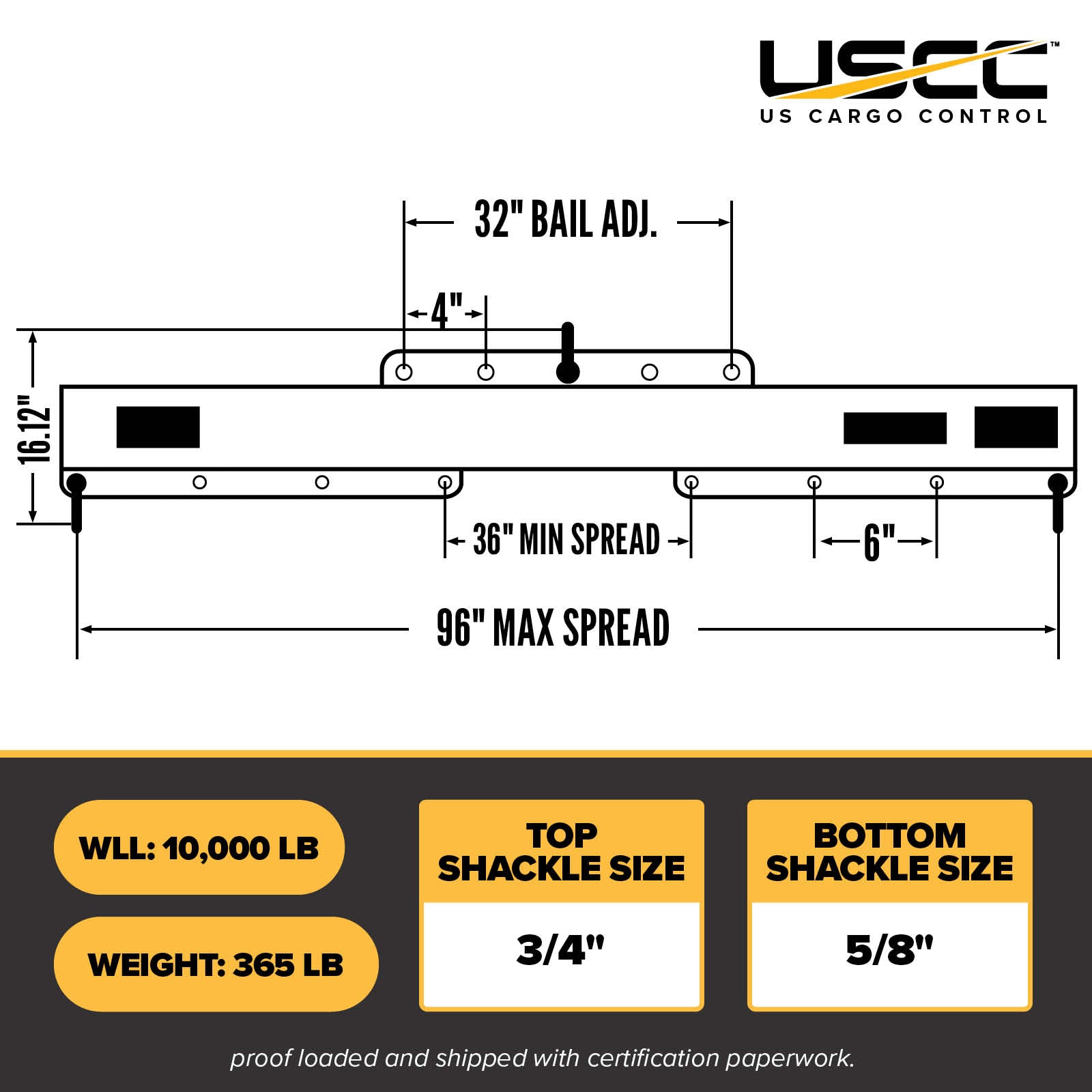

Additional Info: Headroom: 16.12"
Bail Adjustment Length: 32"
Bail Adjustment Increments: 4"
Bail Adjustment Length: 32"
Bail Adjustment Increments: 4"
Description

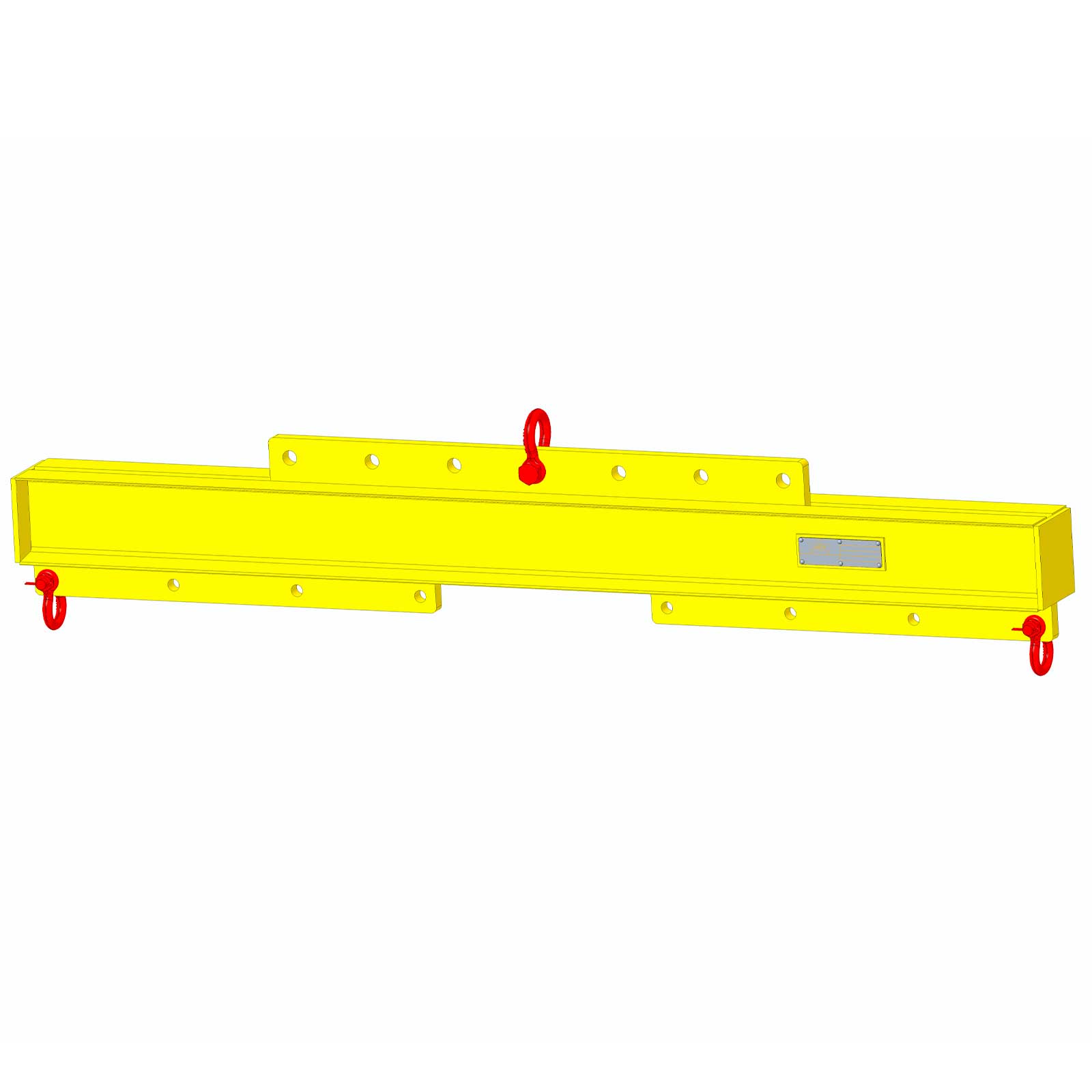

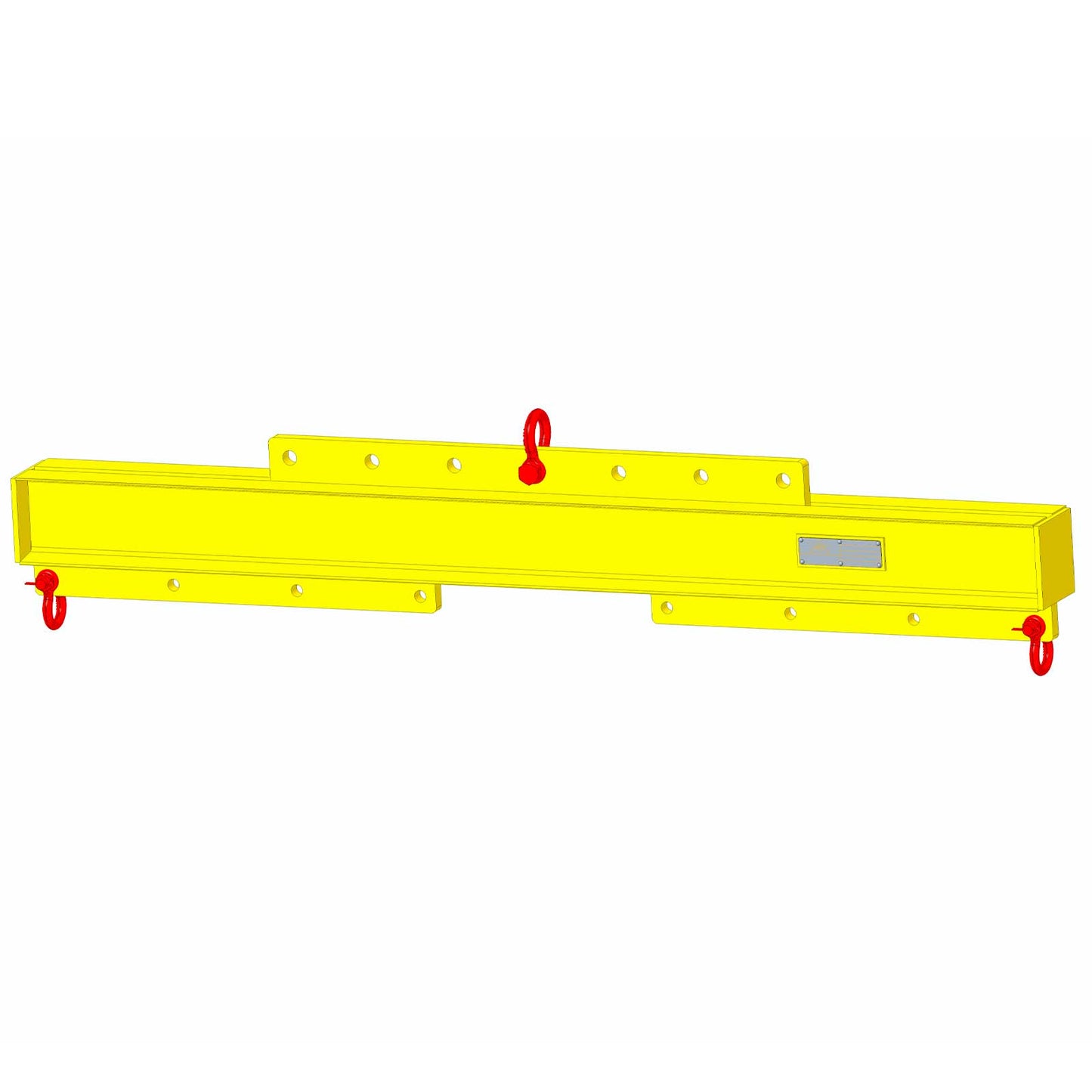

M&W 14159 Adjustable Length Economy Lifting Beam
The M&W Adjustable Length Economy Lifting Beam is designed for efficiency on the job site or in the warehouse. It allows for quick load adjustments and accommodates different load sizes with adjustable lifting points. The adjustable lifting bail helps center unbalanced loads for better stability. Built for low-headroom applications, this beam maximizes lifting capacity in confined spaces. Its durable steel construction and high-visibility yellow paint ensure reliability and safety. Shackles are included. Custom hardware or configurations are available upon request.
Looking for other adjustable lifting beam options? Check out our full adjustable lifting beam catalog
Lifting Beams vs. Spreader Bars
When compared with spreader bars, lifting beams often use a singular center top lifting point that bears most of the load through bending forces and utilizes multiple attachment points underneath. Lifting beams often require less headroom to operate making them better suited for confined spaces.
8' Max Spread Adjustable Length Economy Lifting Beam
- Made in the USA: Providing premium machined and welded quality that you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
