Specifications
5-Hole Splice Plate - Electro-Galvanized

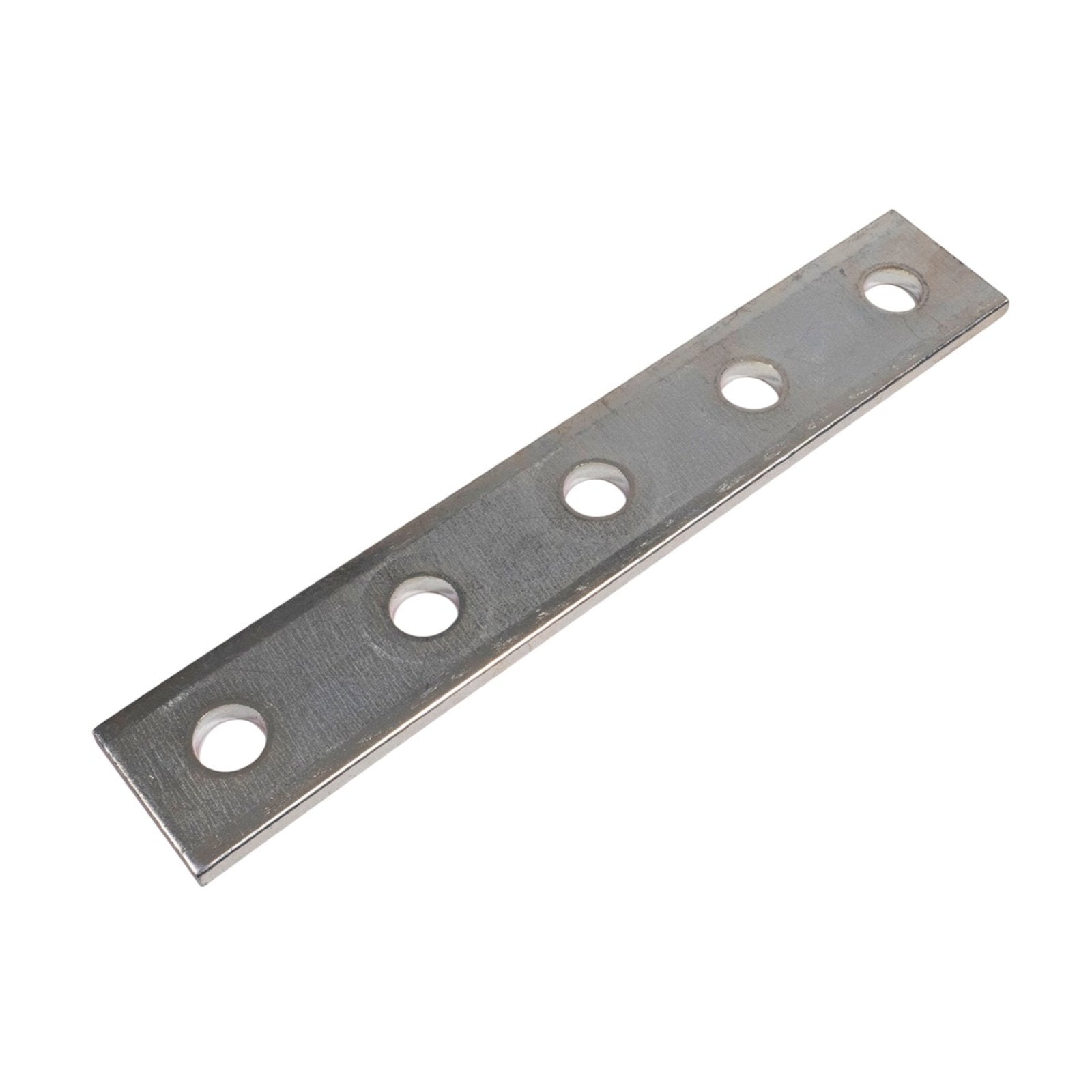

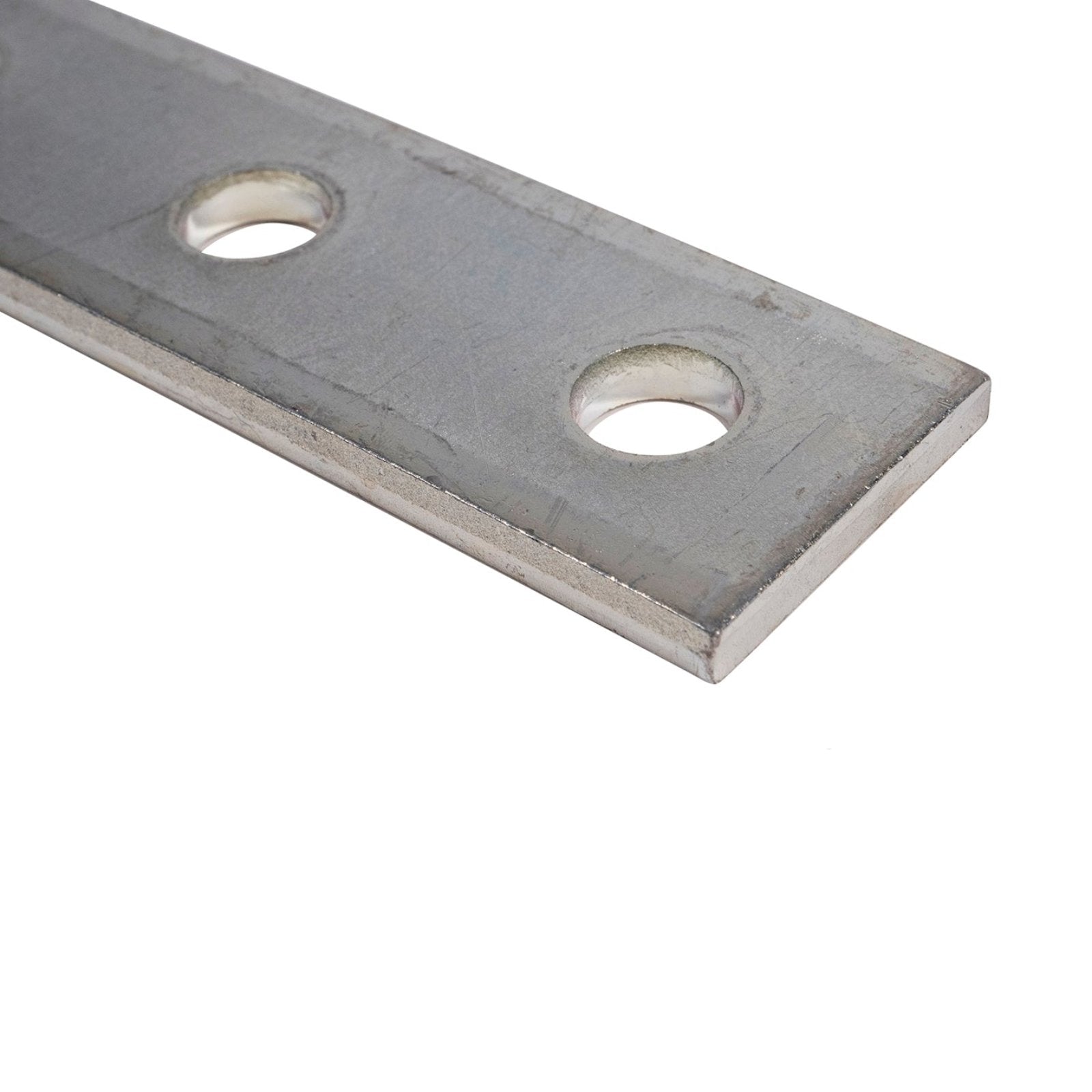

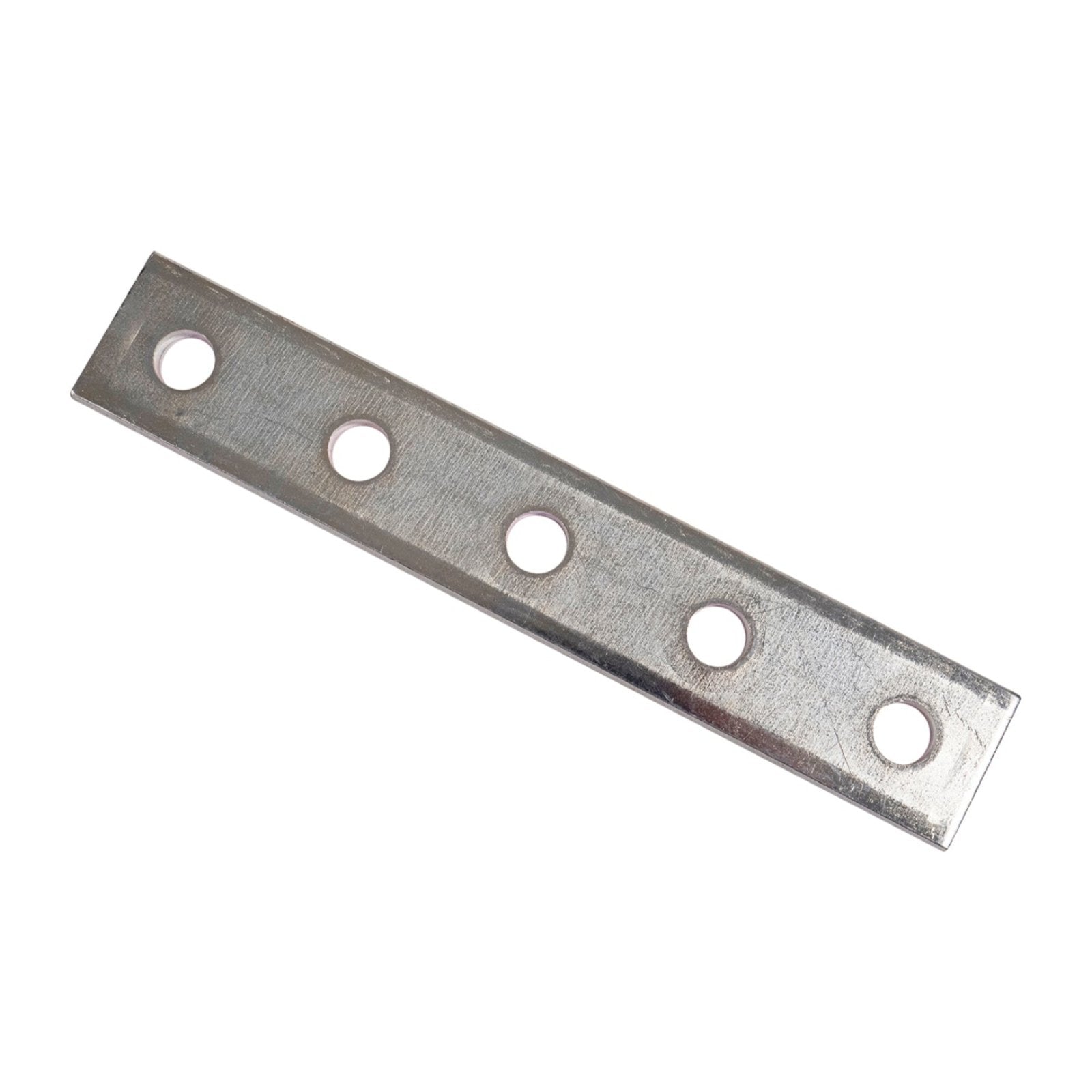

The 5-Hole Splice Plate - Electro-Galvanized is designed to join two strut channel sections into a straight, continuous run. Its flat profile sits cleanly on top of the channel, helping maintain alignment while reinforcing the connection point. A reliable fitting for interior framing systems that require added connection strength.
Electro-Galvanized 5-Hole Flat Splice Plate for Strut Channel

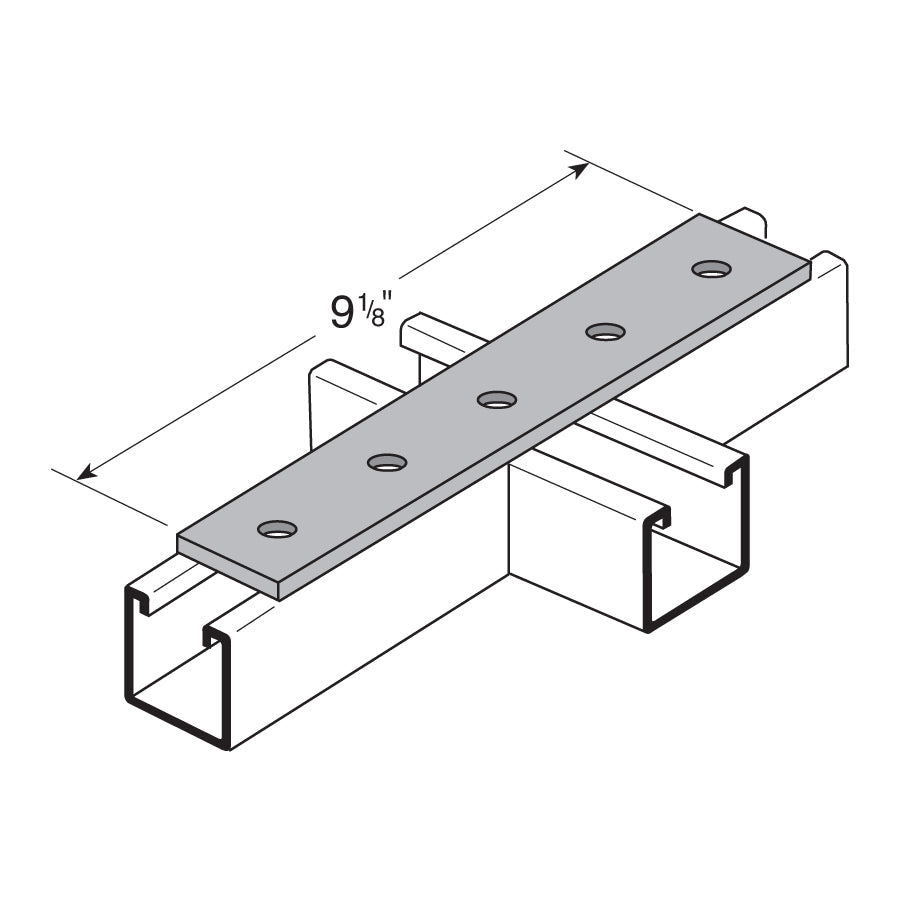

This flat splice plate connects strut channel end to end using channel nuts and bolts. With five fastening points, it provides increased stability while keeping the fitting flush with the channel surface in dry, low-humidity environments.
Key Features
- Straight Channel Connection: Joins two strut channel sections in a continuous line.
- Five-Hole Layout: Provides additional fastening points for improved joint strength.
- Flush-Mount Design: Sits flat on top of the channel for clean installations.
- Structural-Grade Steel: Manufactured to ASTM A575 or ASTM A1011 Grade 33 specifications.
Common Applications
- Extended strut channel framing
- Electrical and conduit support systems
- HVAC structural assemblies
- Mechanical and utility frameworks
- Commercial interior construction
Installation Tips
- Align channel ends evenly before positioning the splice plate.
- Secure using channel nuts and bolts compatible with the fitting.
- Verify the channel run is straight before fully tightening hardware.
