SKU: 8530DR-Y

4" x 30' Ratchet Strap with D Rings | Yellow

4" x 30' Ratchet Strap with D Rings | Yellow!

Skip to product information
1 of 7
$63.59
Get 10+
$61.69/ea
Get 25+
$59.78/ea
Get 50+
$57.87/ea
Request Bulk Pricing
Made to Order
Ships in 1-2 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 30'
Working load limit: 5,400 lbs.
End fitting: D Ring
Fixed End Length: 1'
Material: Polyester webbing
Product weight: 14.2 lbs.
Ratchet handle: Standard Long, Wide Handle
Shipping and returns: This item cannot be returned due to being made to order.
Webbing break strength: 20,000 lbs.
Width: 4"
Additional Info: Design Factor: 3:1
Description

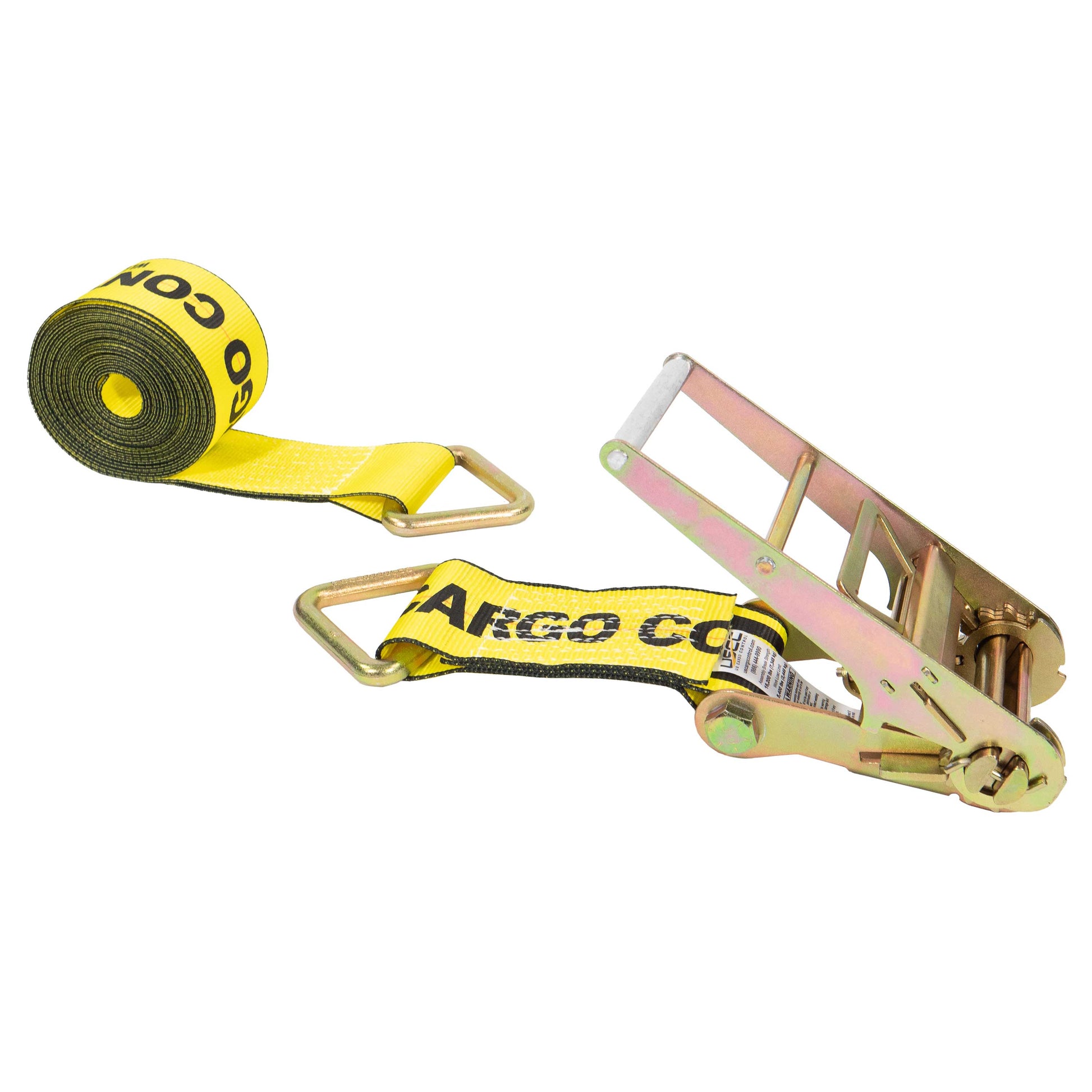

4" x 30' Yellow Heavy Duty Tie Down Strap with D Ring

Ratchet straps are a staple in the transportation industry - the polyester straps are rugged yet soft to protect your cargo, and the ratcheting mechanism makes it simple to achieve a tight, secure hold. The 4" polyester webbing offers superior strength with very little give and, unlike cam straps, ratchets don't rely solely on operator strength, so you can add the perfect amount of tension to the strap.

HD Ratchet Strap Features

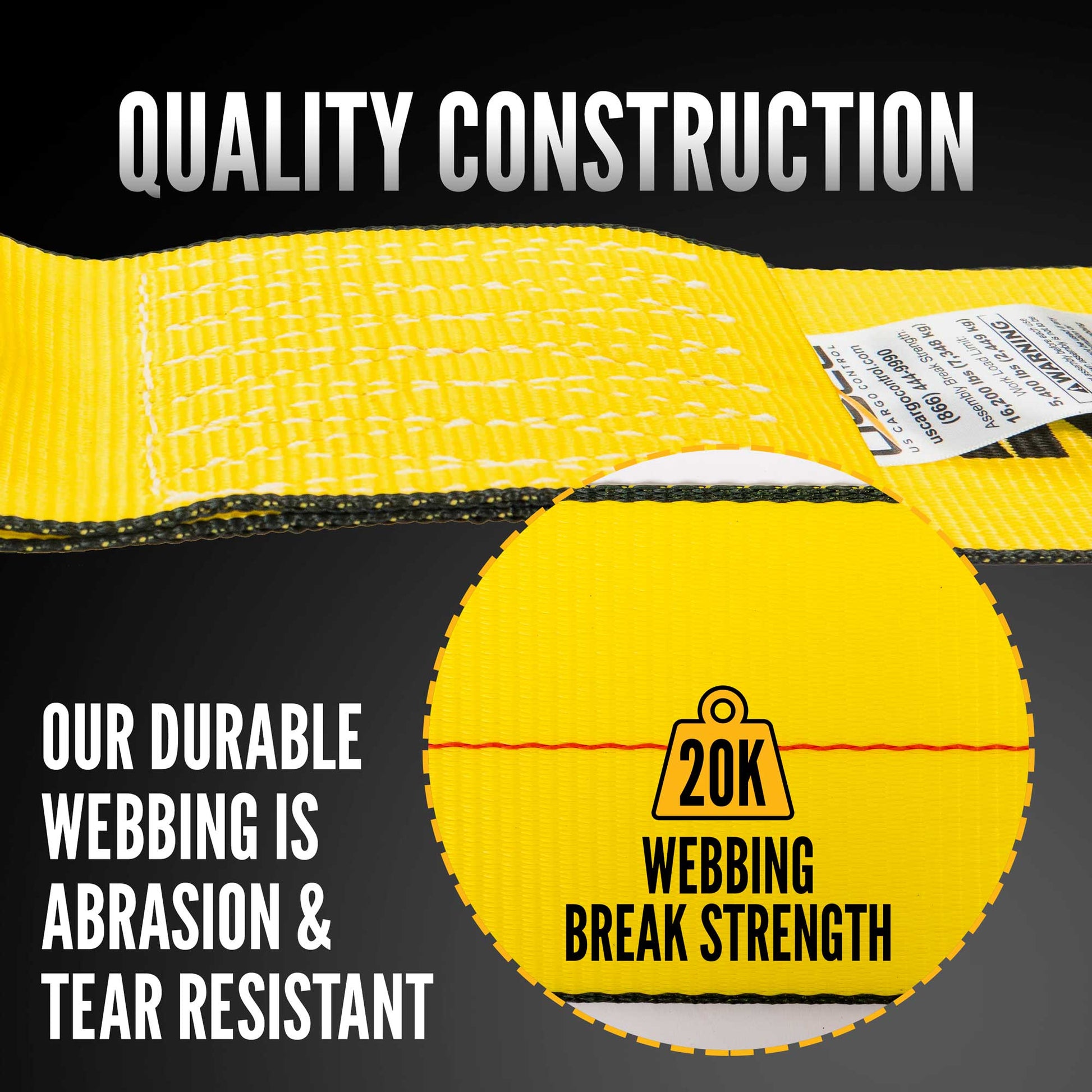

The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your ratchet straps will last longer.

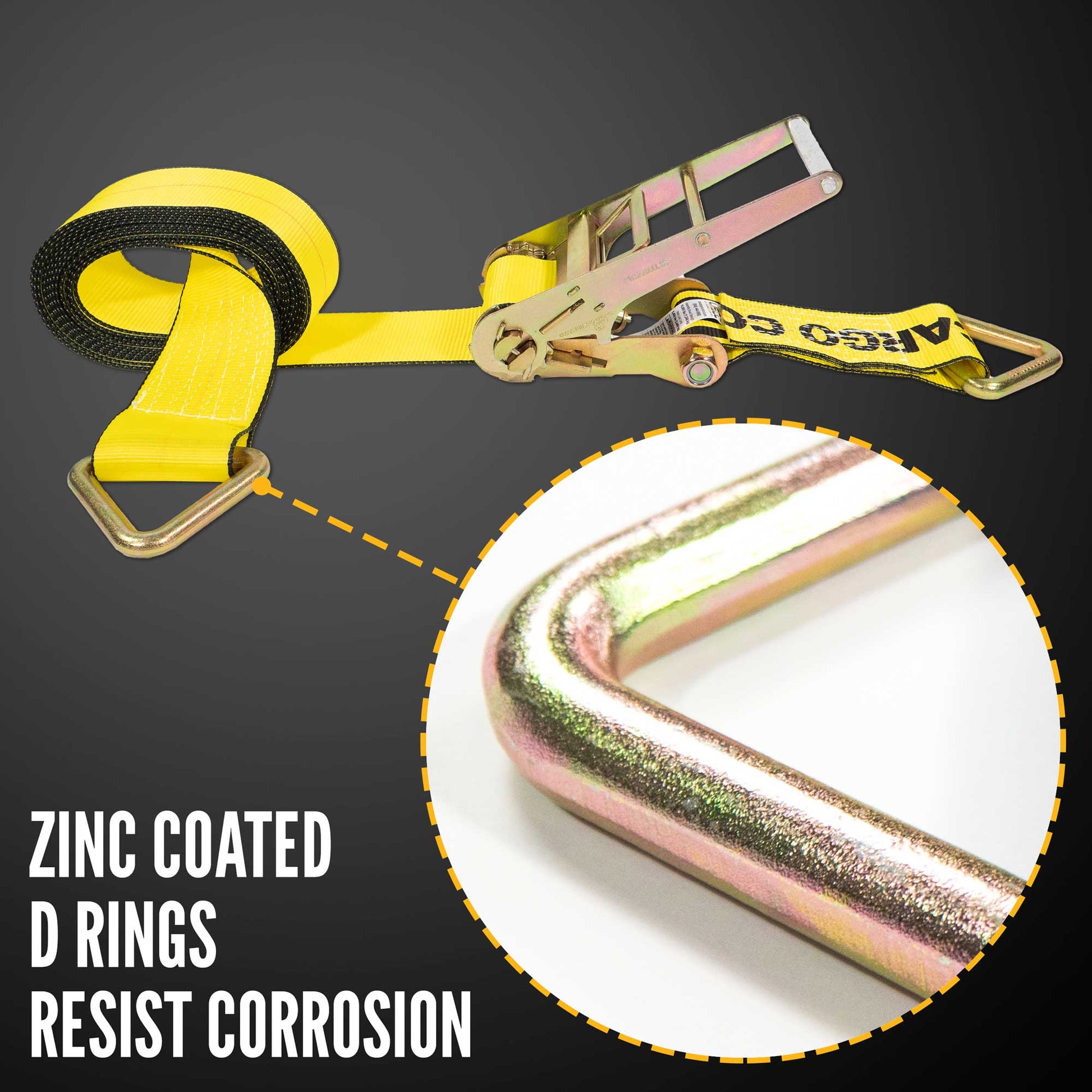

The high-quality ratchet and rings all have a zinc coating to protect against weathering and prolong the life of the strap. The ratchet also comes with a long, wide handle to make tensioning easier.

Compliant with Industry Standards

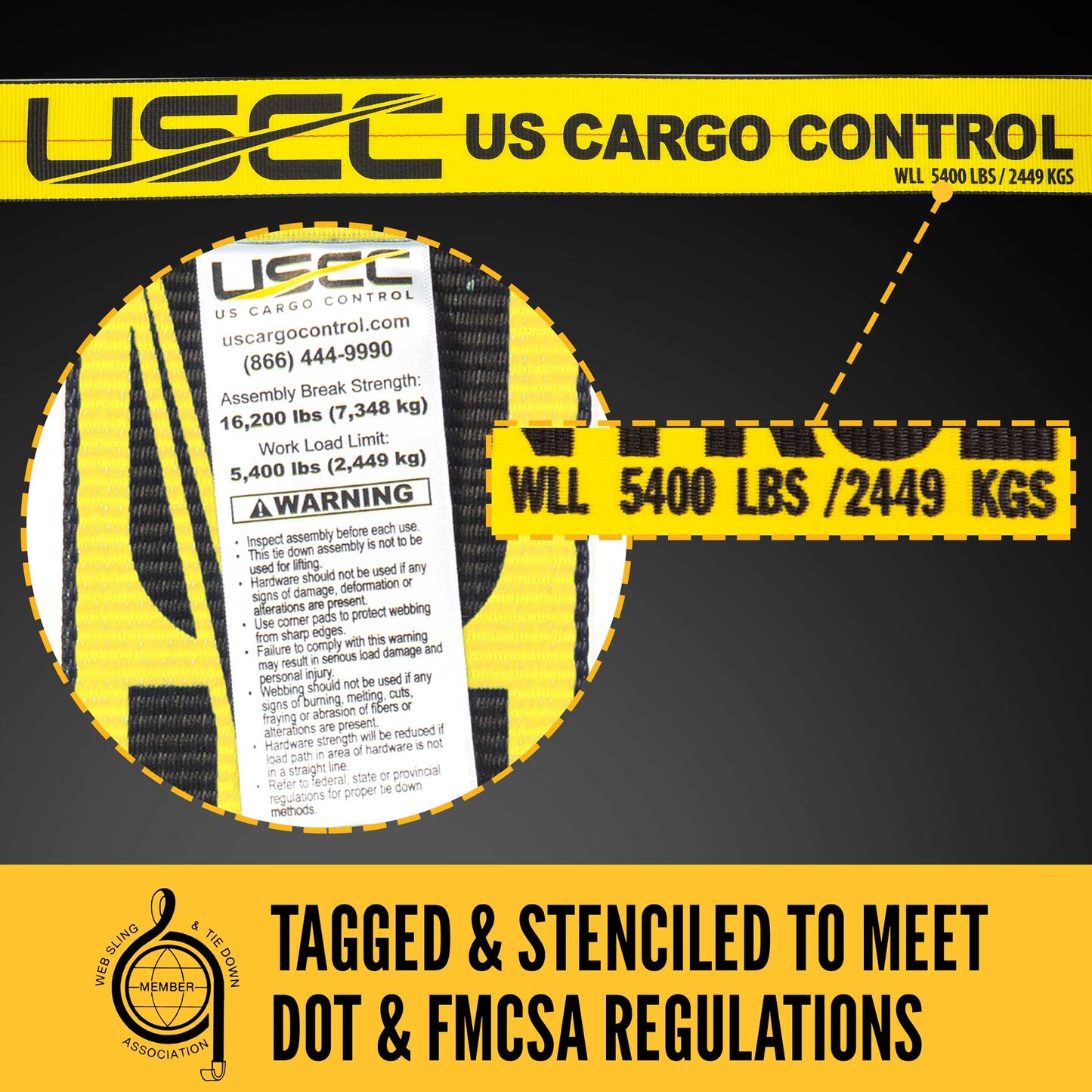

All of our ratchet straps are tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.

Learn more about proper load handling and securement in the WSTDA safety bulletins.

Why Choose D Ring End Hardware?

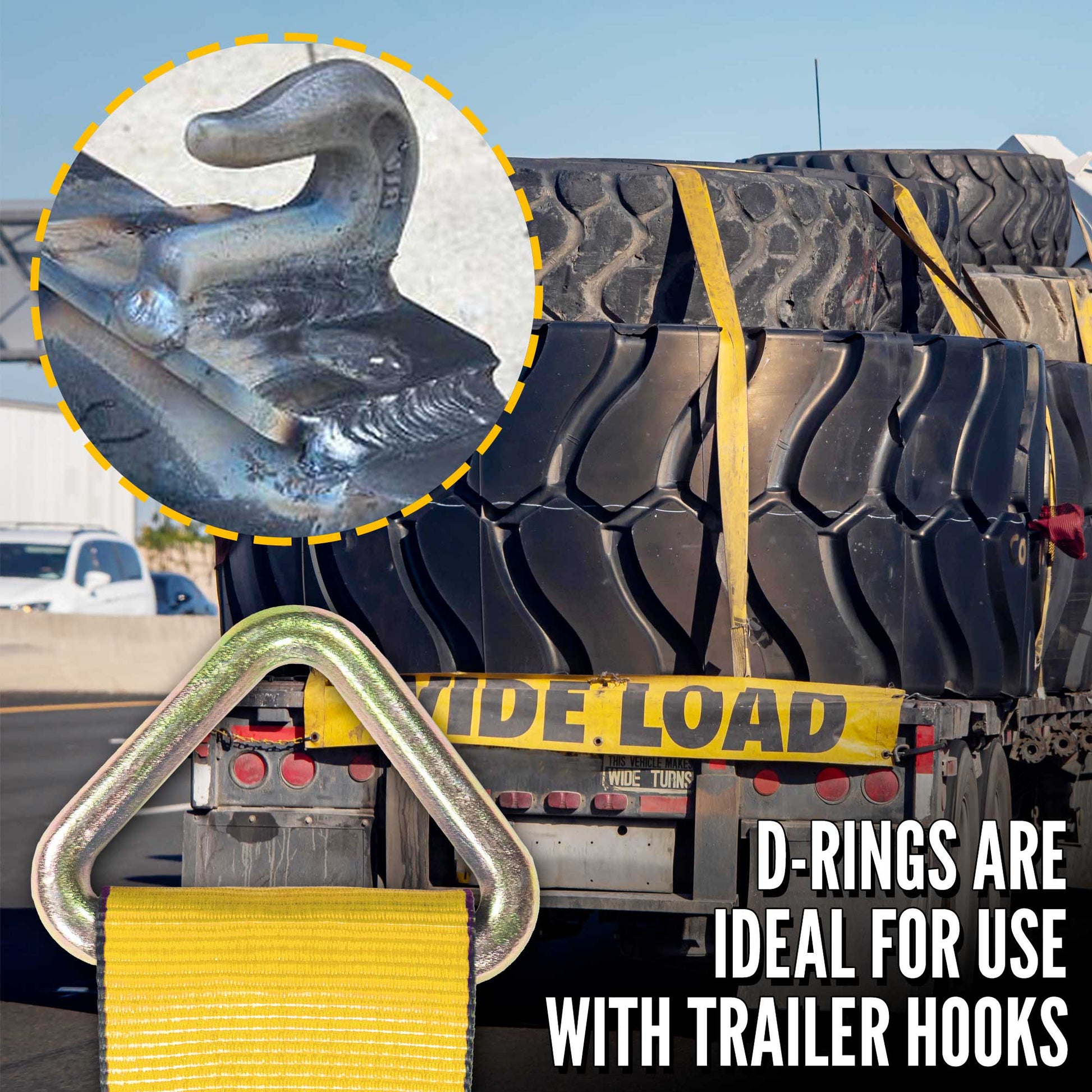

The 4" forged triangle D-rings are compatible with nearly all hook options, giving you flexibility when it comes to making connections.

Custom Ratchet Straps Available

Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!

Ratchet Use Guidelines

According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."

What is Design Factor?

Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.

Comprehensive Cargo Securement Supplies

Complete your tie down system with strap protection, D-rings, corner protectors, and more. We also offer transport chains and binders as an alternative tie-down solution.

California Residents: WARNING

How to Thread a Ratchet Strap | How to Release a Ratchet Strap

View full details
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
