SKU: 402CEBL
4" x 11" Replacement Ratchet Strap Fixed End - Chain Extension / Bolt Loop | No Ratchet
4" x 11" Replacement Ratchet Strap Fixed End - Chain Extension / Bolt Loop | No Ratchet!
SKU: 402CEBL
4" x 11" Replacement Ratchet Strap Fixed End - Chain Extension / Bolt Loop | No Ratchet
$29.69
Get 10+
$28.80/ea
Get 25+
$27.91/ea
Get 50+
$27.32/ea
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Strap Solutions
Build Your Tie DownPayment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 11"
Working load limit: 5,400 lbs.
End fitting: Chain Extension
Material: Polyester webbing
Product weight: 3.95 lbs.
Standards: AWRF Accredited: learn more.
Webbing break strength: 20,000 lbs.
Width: 4"
Additional Info: Design Factor: 3:1
Description

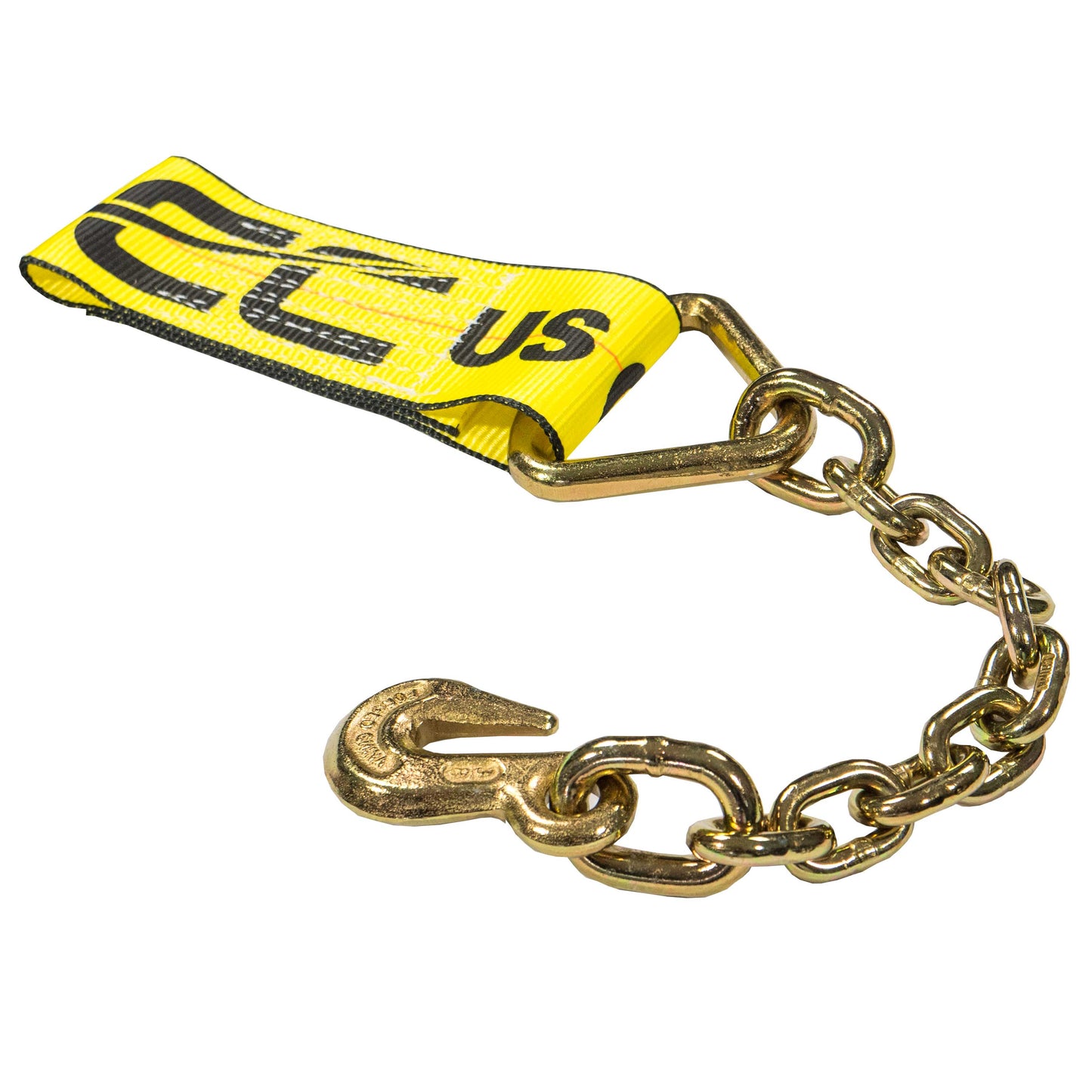

4" x 11" Yellow Heavy Duty Tie Down Strap with Chain Extension & Bolt Loop

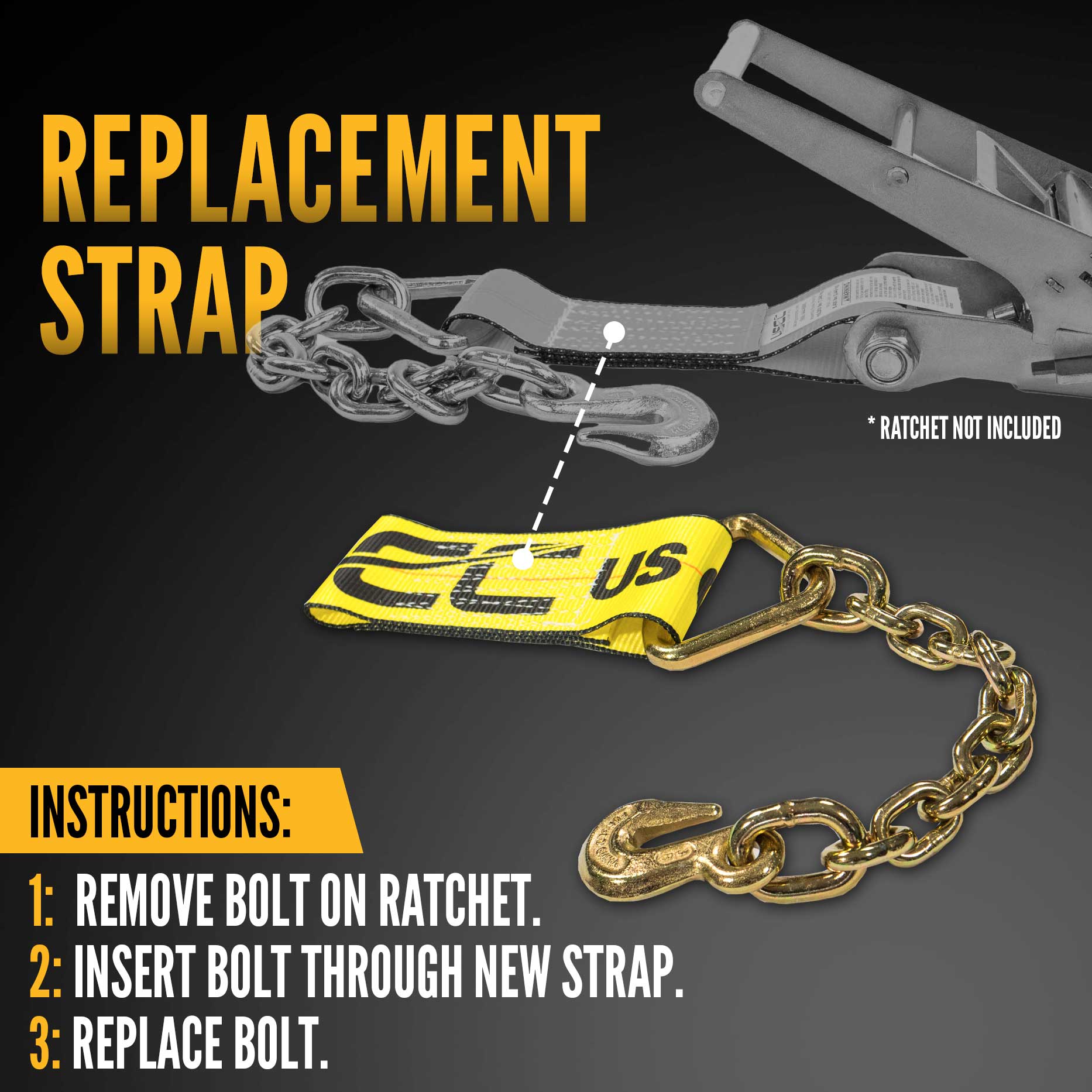

Replace your fixed end without needing to buy an entire ratchet tie down with this heavy-duty 4" replacement strap. It's also great for use in a truck winch! Made from durable yellow polyester webbing, it has a chain extension on one end and a sewn bolt loop on the other to connect to your ratchet. The extension has zinc plating for added protection from the elements.
HD Ratchet Strap Features:
-

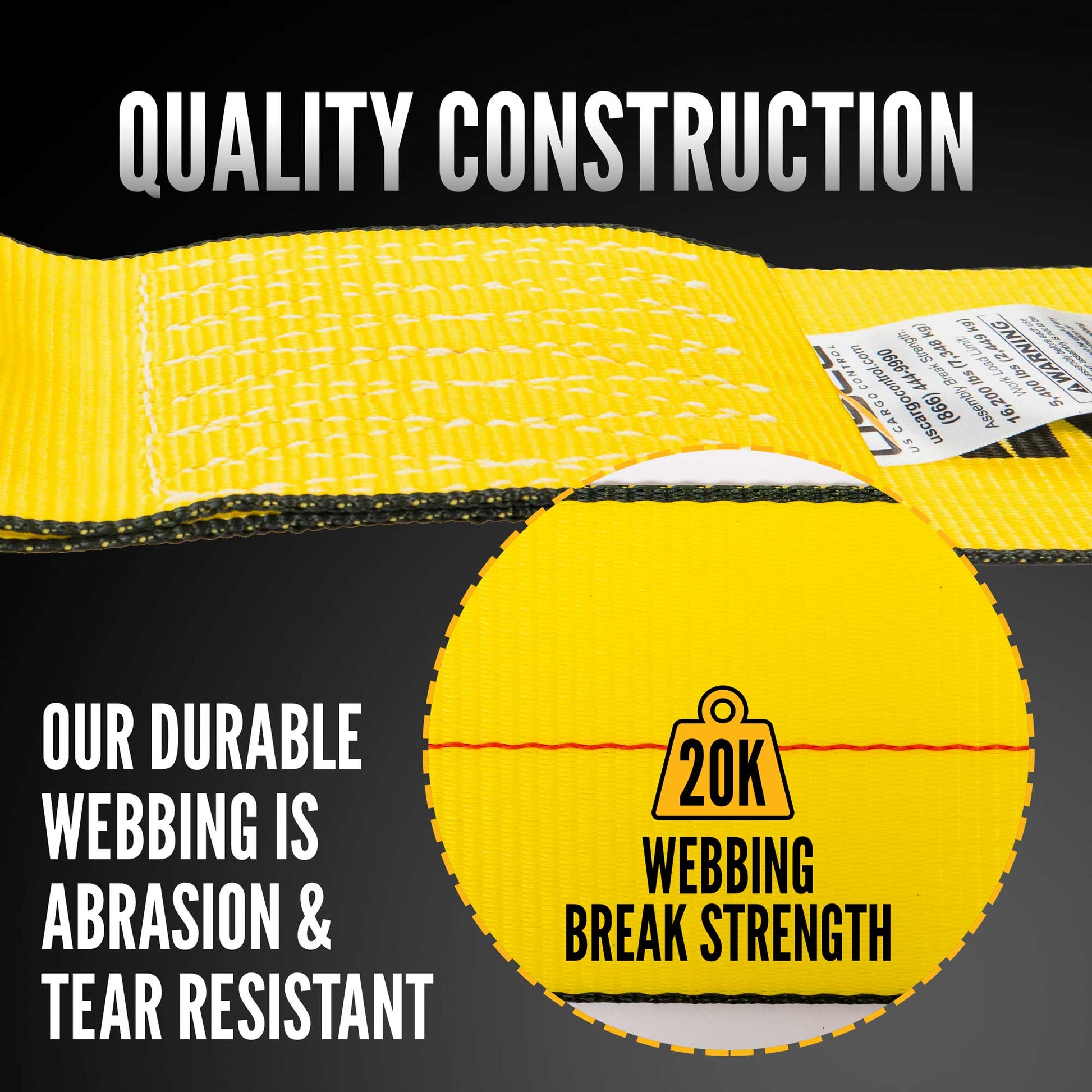

Industrial-Grade Webbing: Webbing is thicker than most competitors, with more picks per inch.
- Superior Abrasion-Resistance: Heat-sealed ends provide better resistance to abrasion, tearing, and cutting.

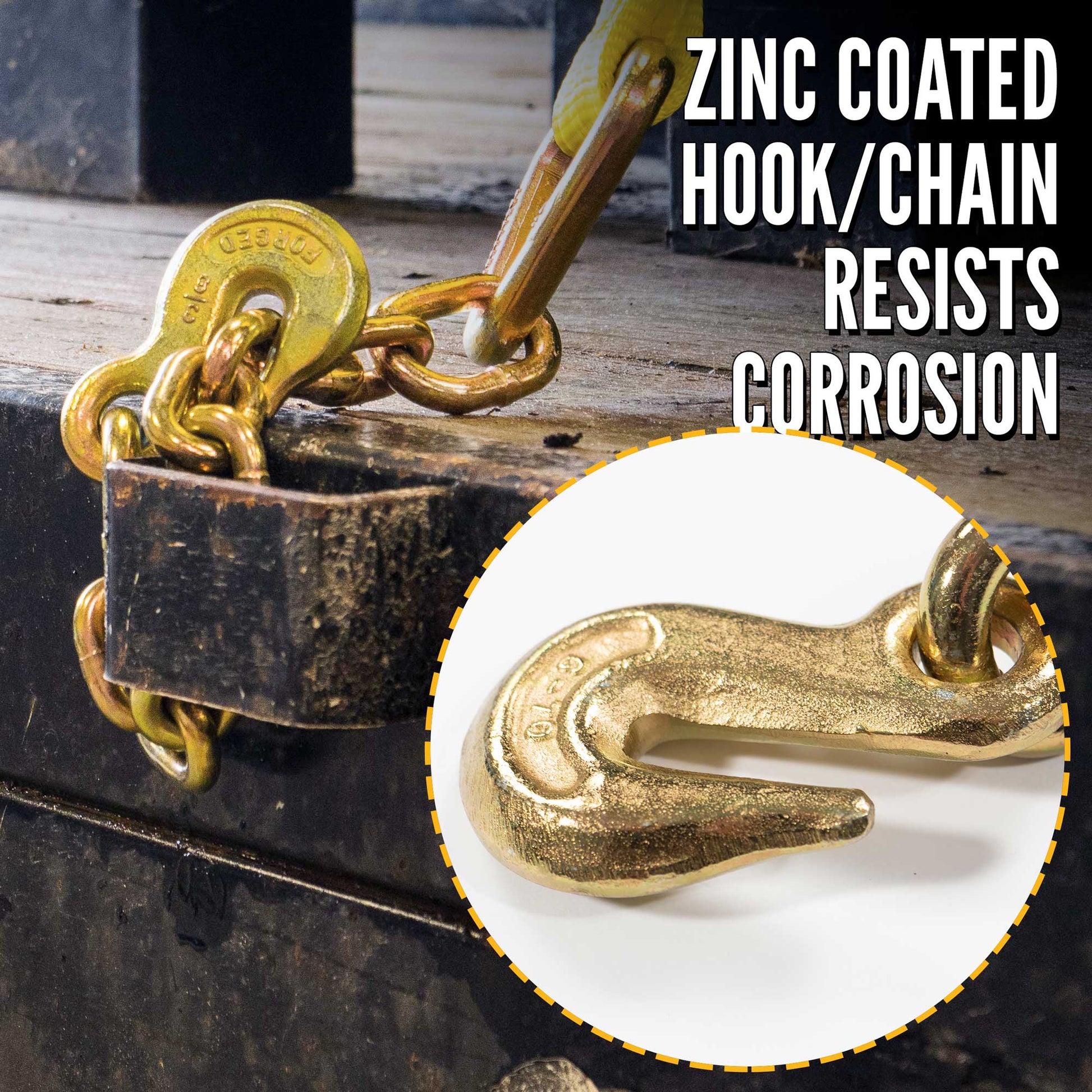

- Corrosion-Resistant Hardware: Zinc-plated chain extensions for long-lasting performance.
- Industry-Compliant: This 4 inch replacement strap is tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards. Learn more about proper load handling and securement in the WSTDA safety bulletins.
Why Choose 3/8" Chain Extension End Hardware?

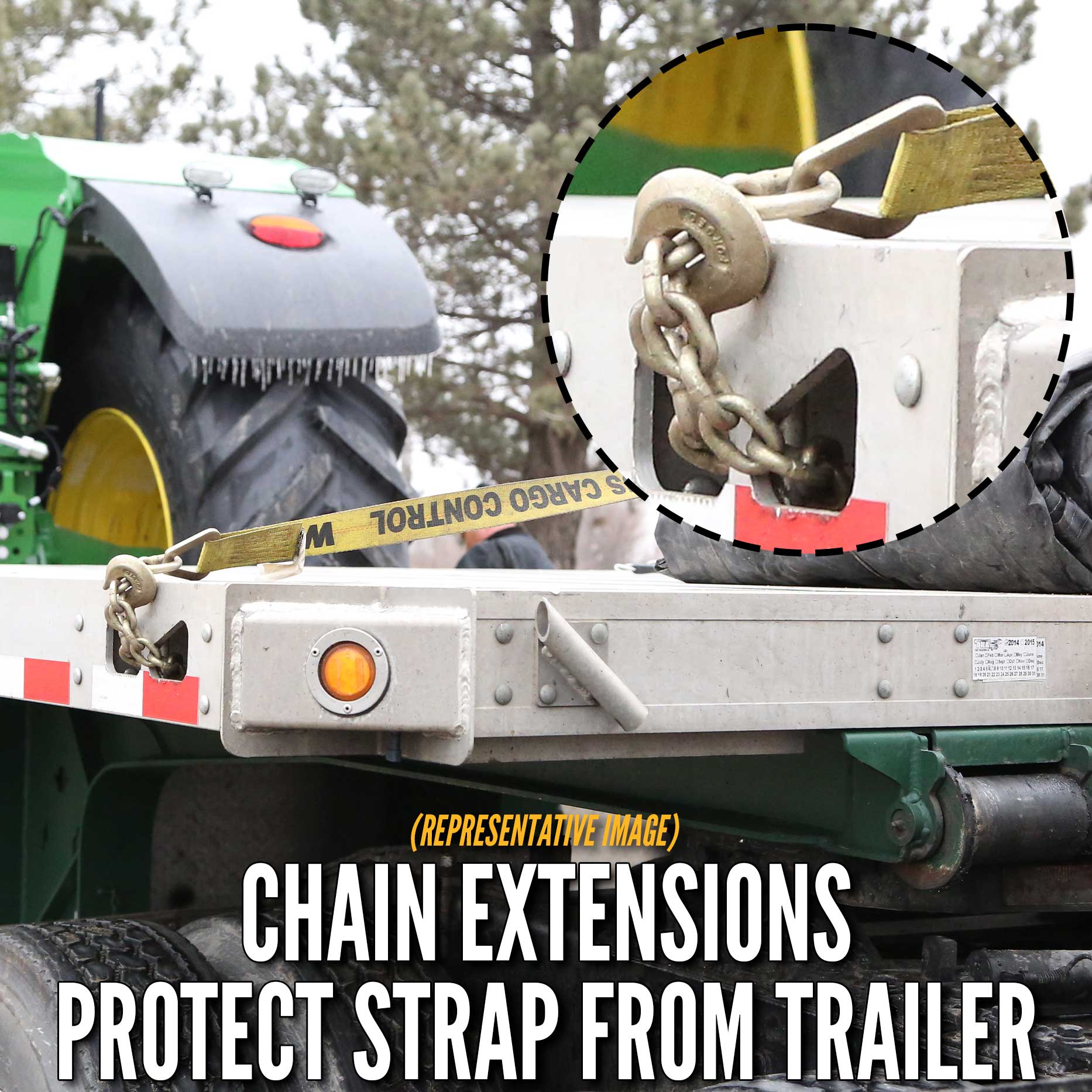

Chain extensions allow you to combine the strength of grade 70 transport chain with the softness of polyester webbing. You can use the rub rails or stake pockets on your truck or trailer to tie down your cargo without risking damage to the webbing part of the strap. The extensions are 18" long with a 4" D-ring and clevis grab hook for quick and secure connections.
Custom Ratchet Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
WSTDA Ratchet Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
Additionally, they define design factor as the "ratio of the breaking strength to the working load limit." The design factor is 3:1 for these tie down straps to build in a level of redundancy, accounting for unknown factors to keep you, your crew, and those around you safe.
Comprehensive Cargo Securement Supplies
Complete your tie down system with strap protection, D-rings, corner protectors, and more. We also offer transport chains and binders as an alternative tie-down solution.
