SKU: 8502FEFH
4" x 11" Replacement Ratchet Strap Fixed End - Ratchet / Flat Hook | Yellow
4" x 11" Replacement Ratchet Strap Fixed End - Ratchet / Flat Hook | Yellow!
$57.19
Get 10+
$55.48/ea
Get 25+
$53.76/ea
Get 50+
$52.05/ea
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Strap Solutions
Build Your Tie DownPayment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 11"
Working load limit: 5,400 lbs.
End fitting: Flat Hook
Material: Polyester webbing
Product weight: 9.15 lbs.
Ratchet handle: Standard Long, Wide Handle
Webbing break strength: 20,000 lbs.
Width: 4"
Additional Info: Design Factor: 3:1
Description

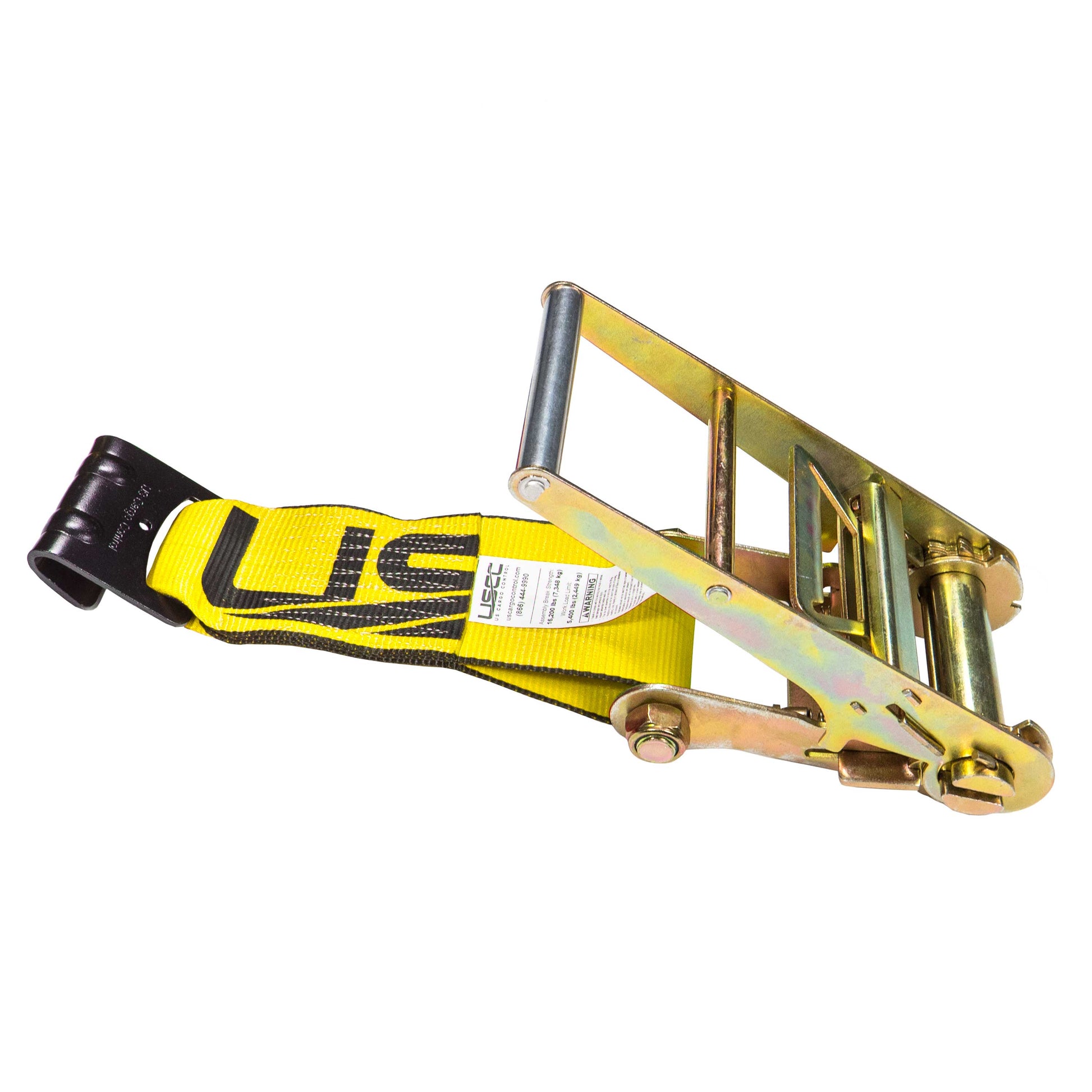

4" x 11" Yellow Heavy Duty Tie Down Strap with Flat Hook

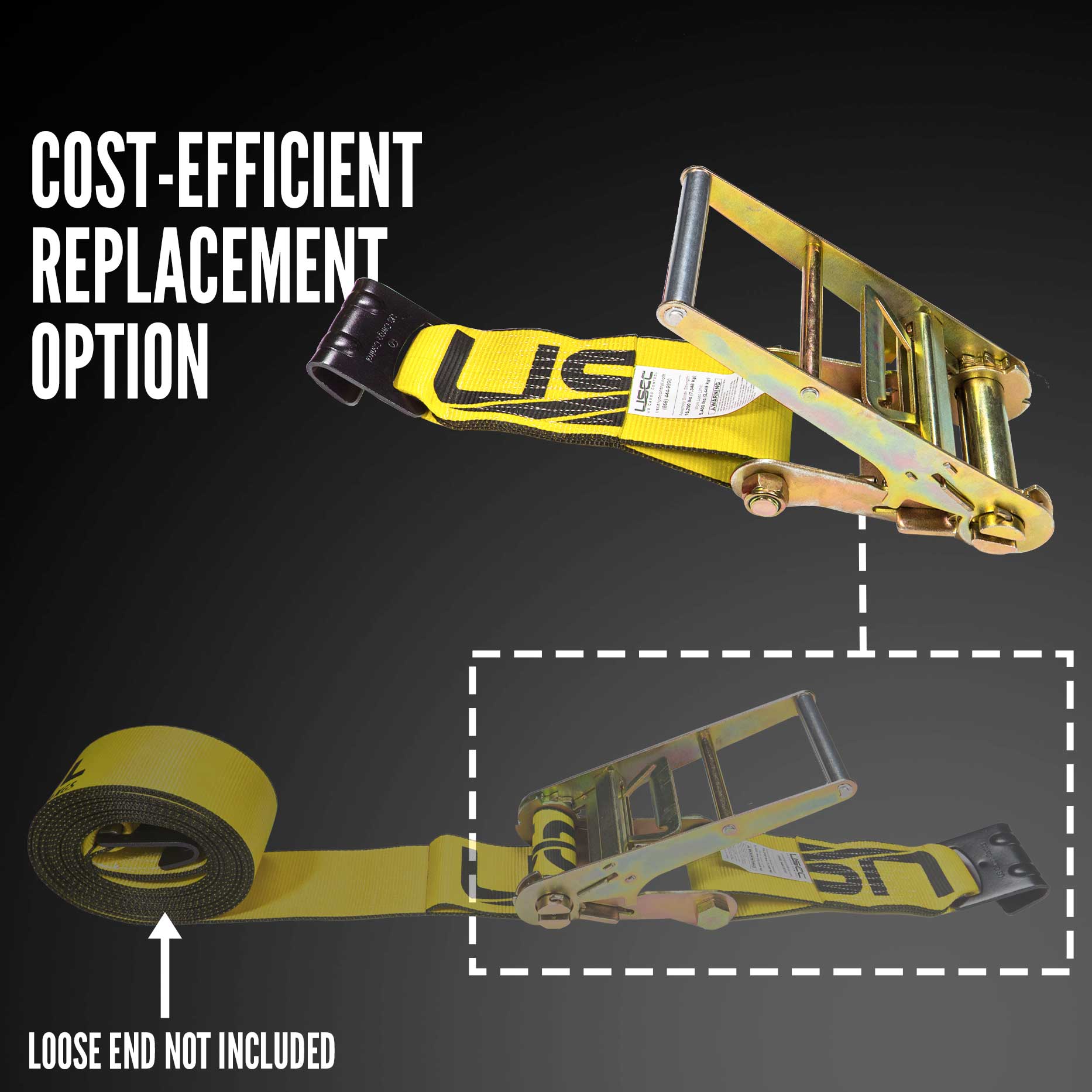

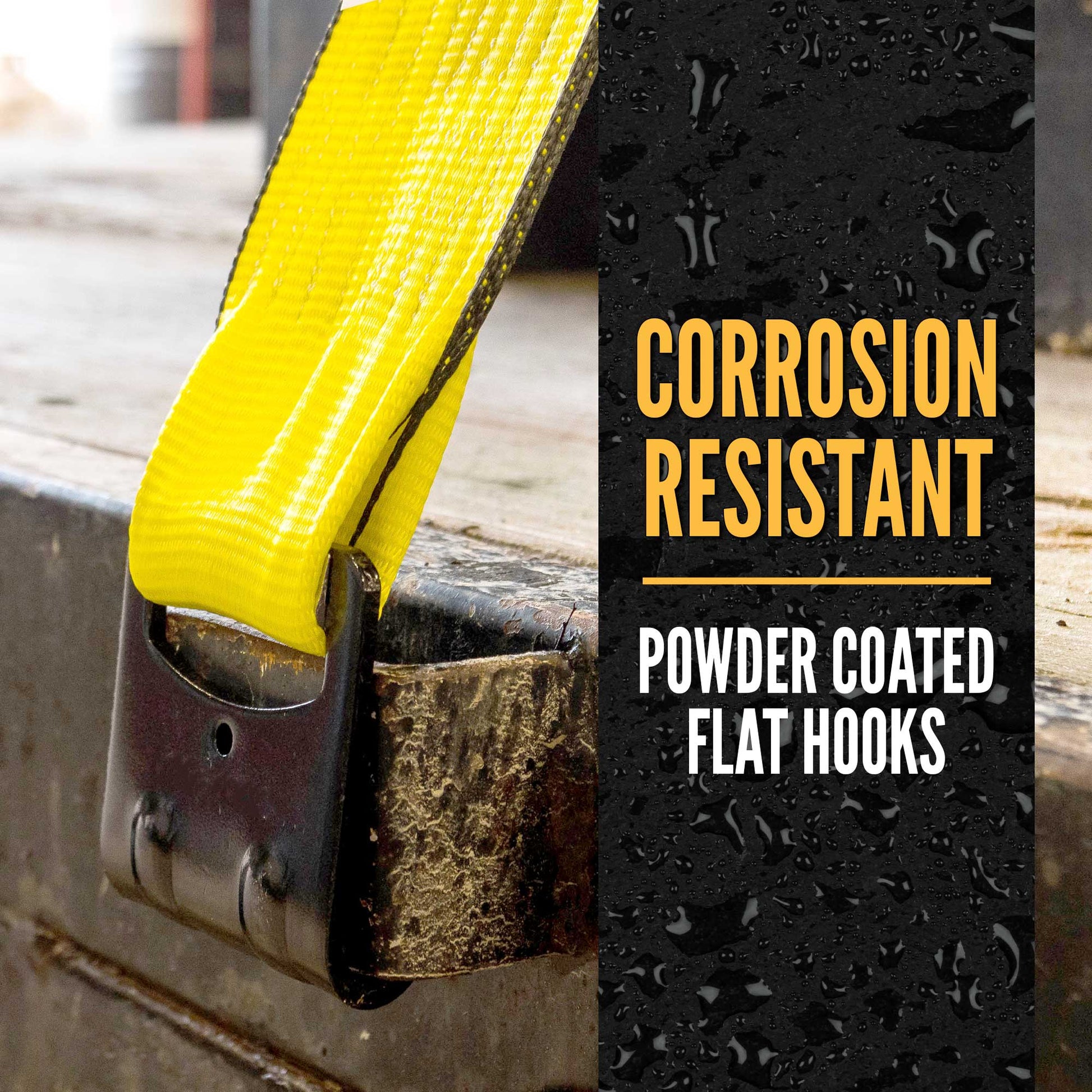

Replace your fixed end without needing to buy an entire ratchet tie down with this heavy-duty 4" replacement strap. Made from durable yellow polyester webbing, it has a flat hook on one end and a ratchet on the other. Both the flat hook end and the ratchet assembly have a coating that looks sharp and adds protection from the elements.
HD Replacement Strap Features

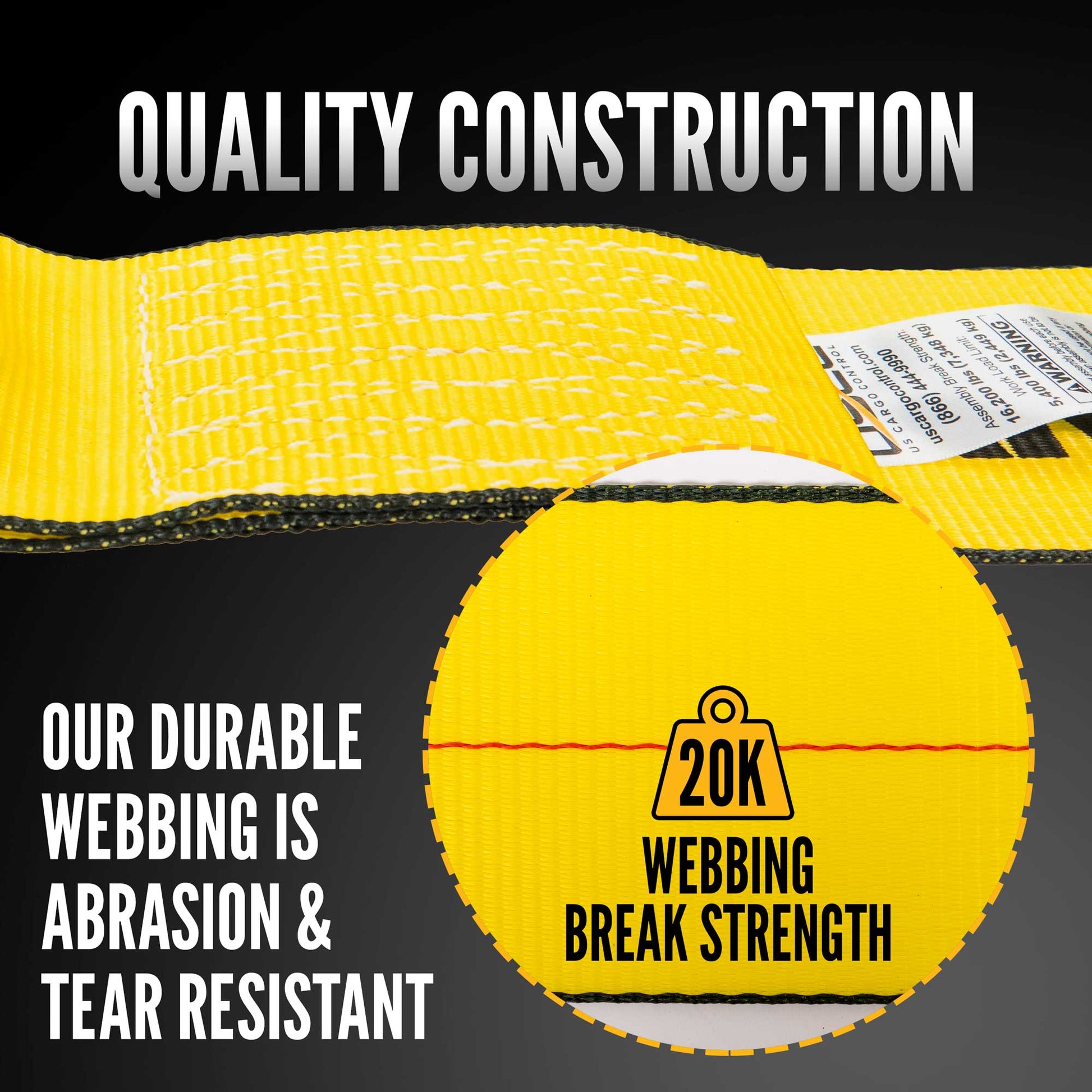

The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your ratchet straps will last longer.
Compliant with Industry Standards

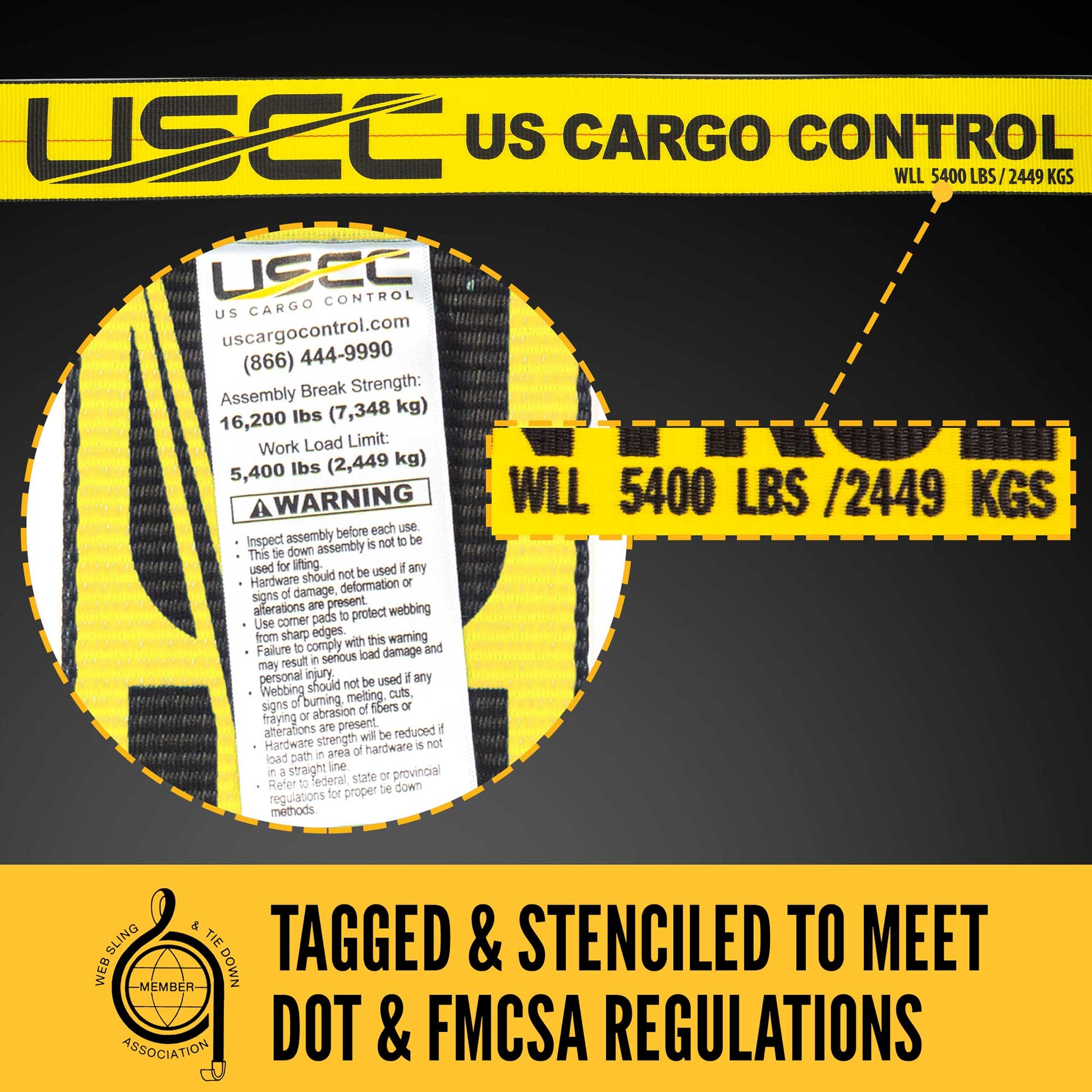

All of our ratchet straps are tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.
Why Choose Flat Hook End Hardware?
Flat hooks have a wide contact area to better distribute tie down force, making them a reliable choice for most loads. They also include a built-in defender to prevent webbing wear and tear and prolong the life of your strap. If you don't have a railing to clamp onto or your anchor point space is limited, flat hooks might not be the best choice.
Custom Ratchet Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
Ratchet Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
What is Design Factor?
Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Comprehensive Cargo Securement Supplies
Complete your tie down system with strap protection, D-rings, corner protectors, and more. We also offer transport chains and binders as an alternative tie-down solution.
California Residents: WARNING
How to Thread a Ratchet Strap | How to Release a Ratchet Strap
-
Extend the Life of Your Straps

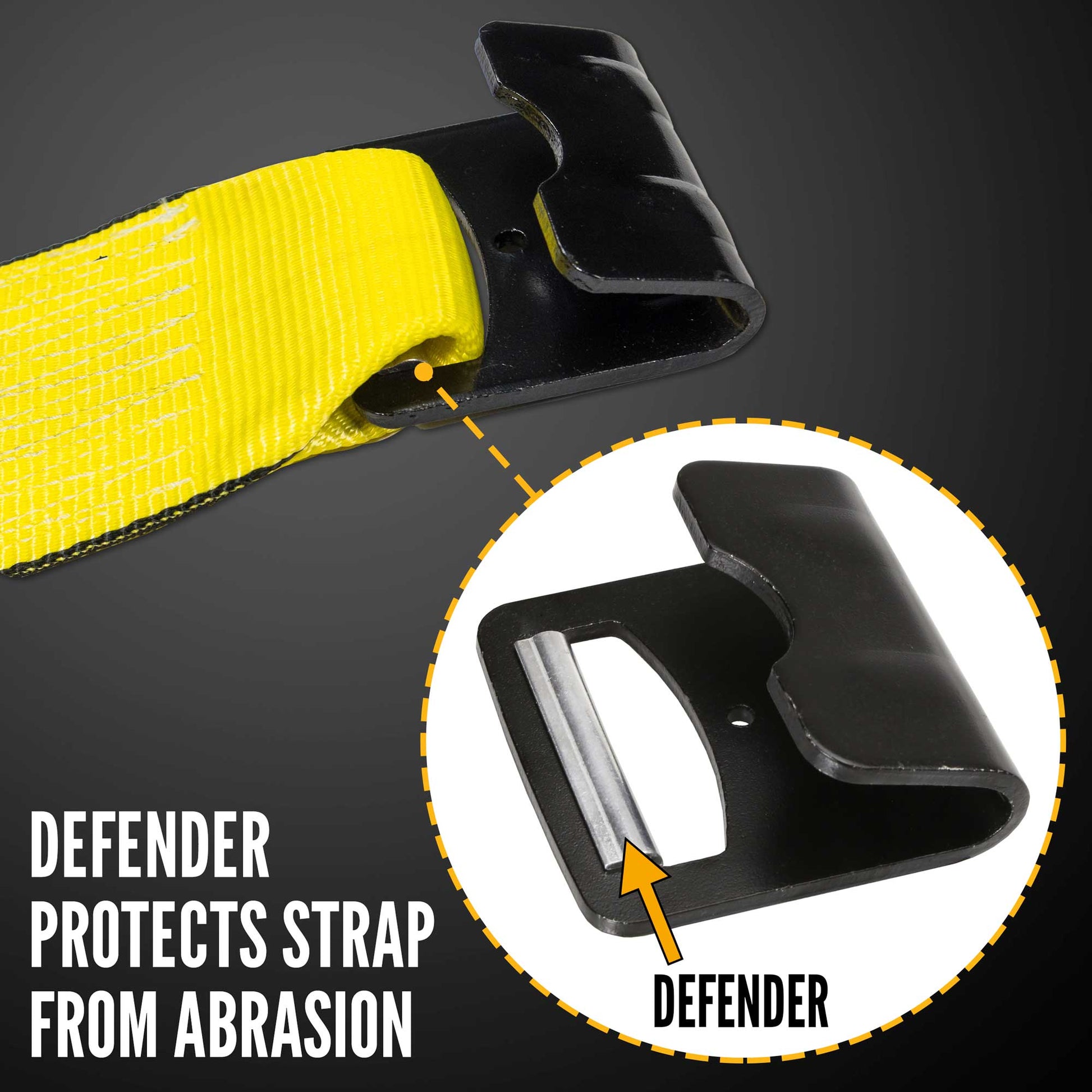

The included flat hook "defender" protects your strap from abrasion that can be caused by the flat hook's sharp edges. This allows for a more prolonged strap life.
-
Durable Black Edging
Our black-edged webbing is designed to give our durable 3" and 4" straps a sharp, clean, and sleek look. Upgrade to a strap that’s as tough as it is refined.
-
Tested for the Highest Quality
All our tie-down straps are rigorously tested to meet or exceed industry standards, ensuring the highest quality and long-lasting performance. Our industrial-grade webbing features heat-sealed ends and is manufactured with thicker yarn and more picks per inch than competitors. Additionally, our hardware is made from thicker metal, guaranteeing a more durable, heavy-duty strap that lasts.
-
