36" Channel Bracket - Electro-Galvanized

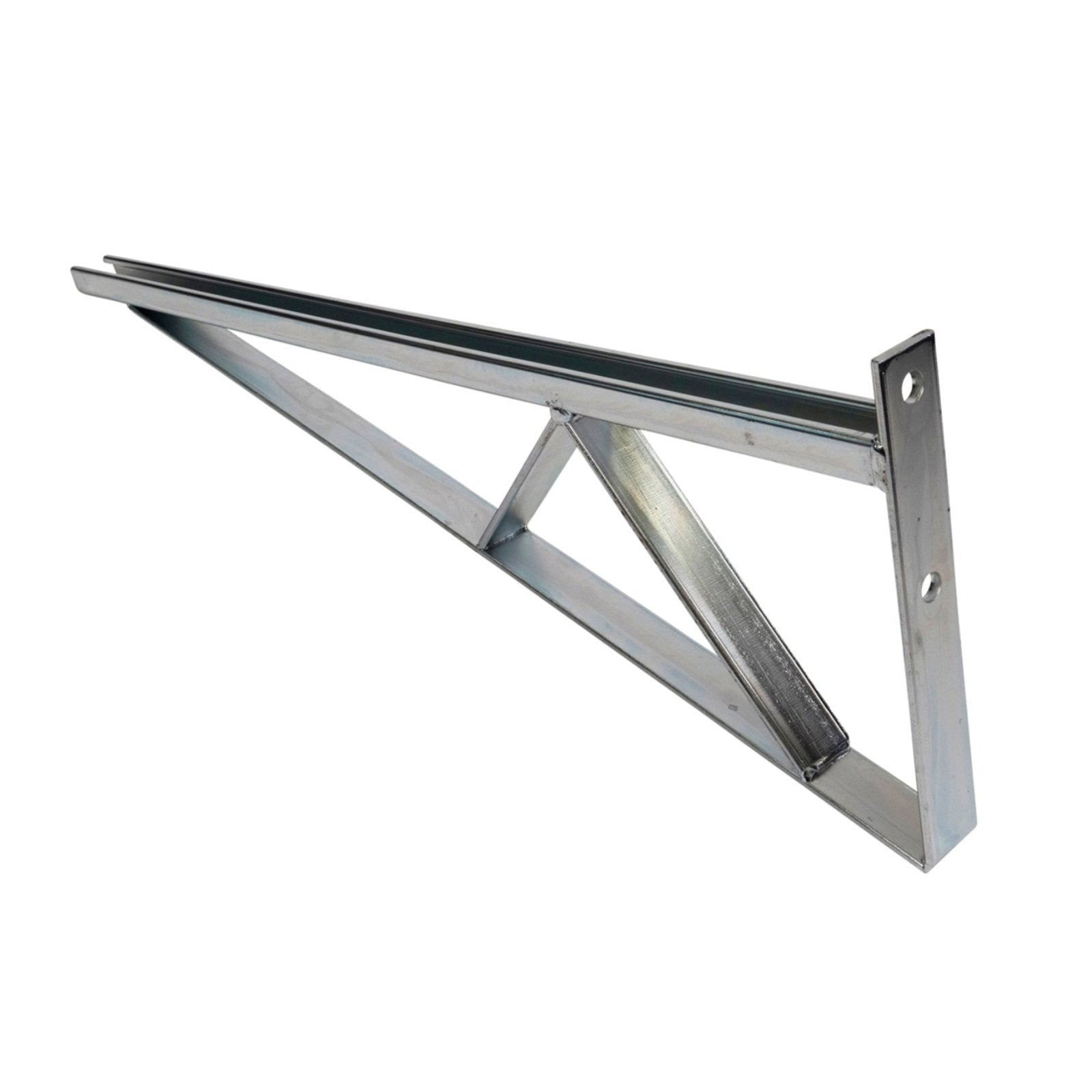

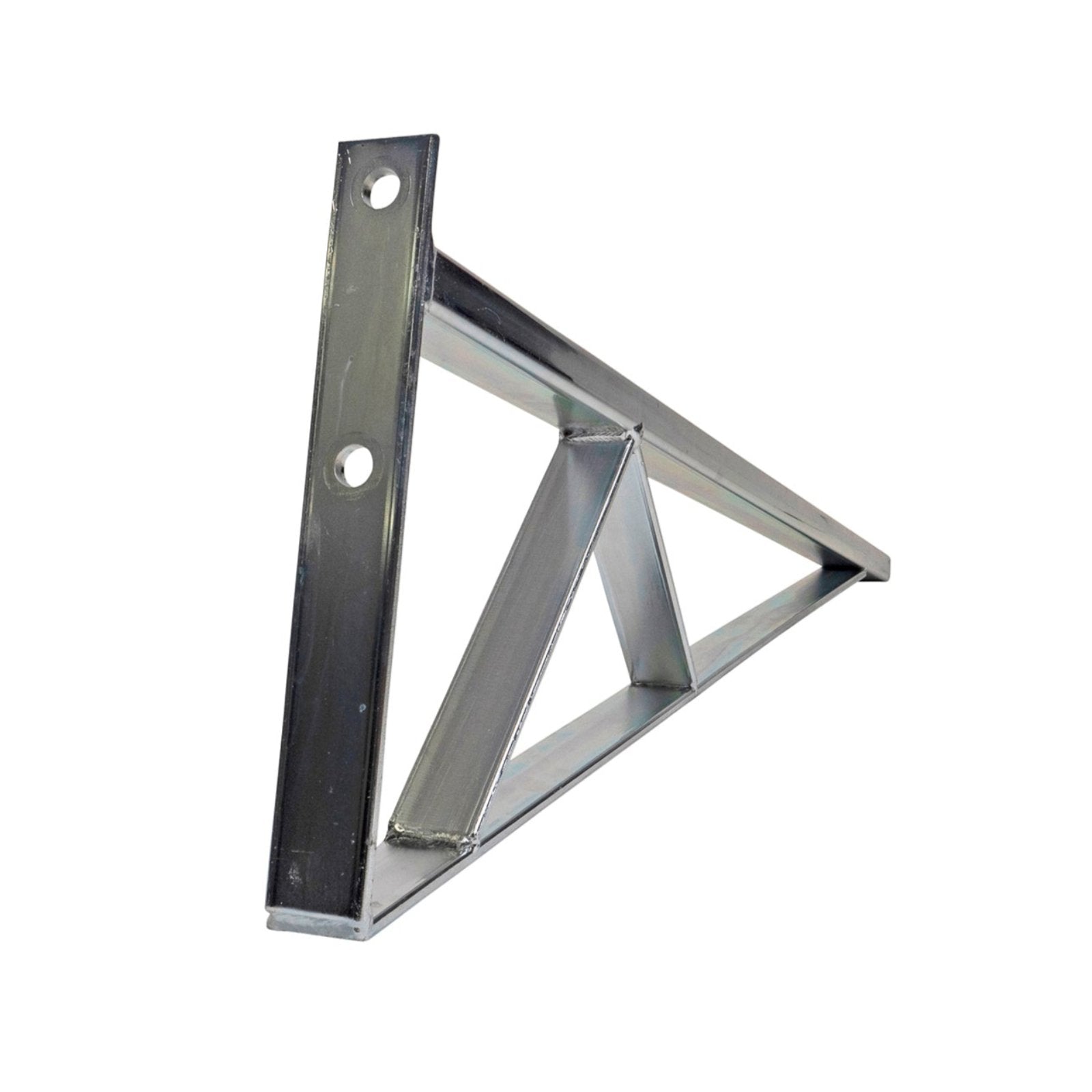

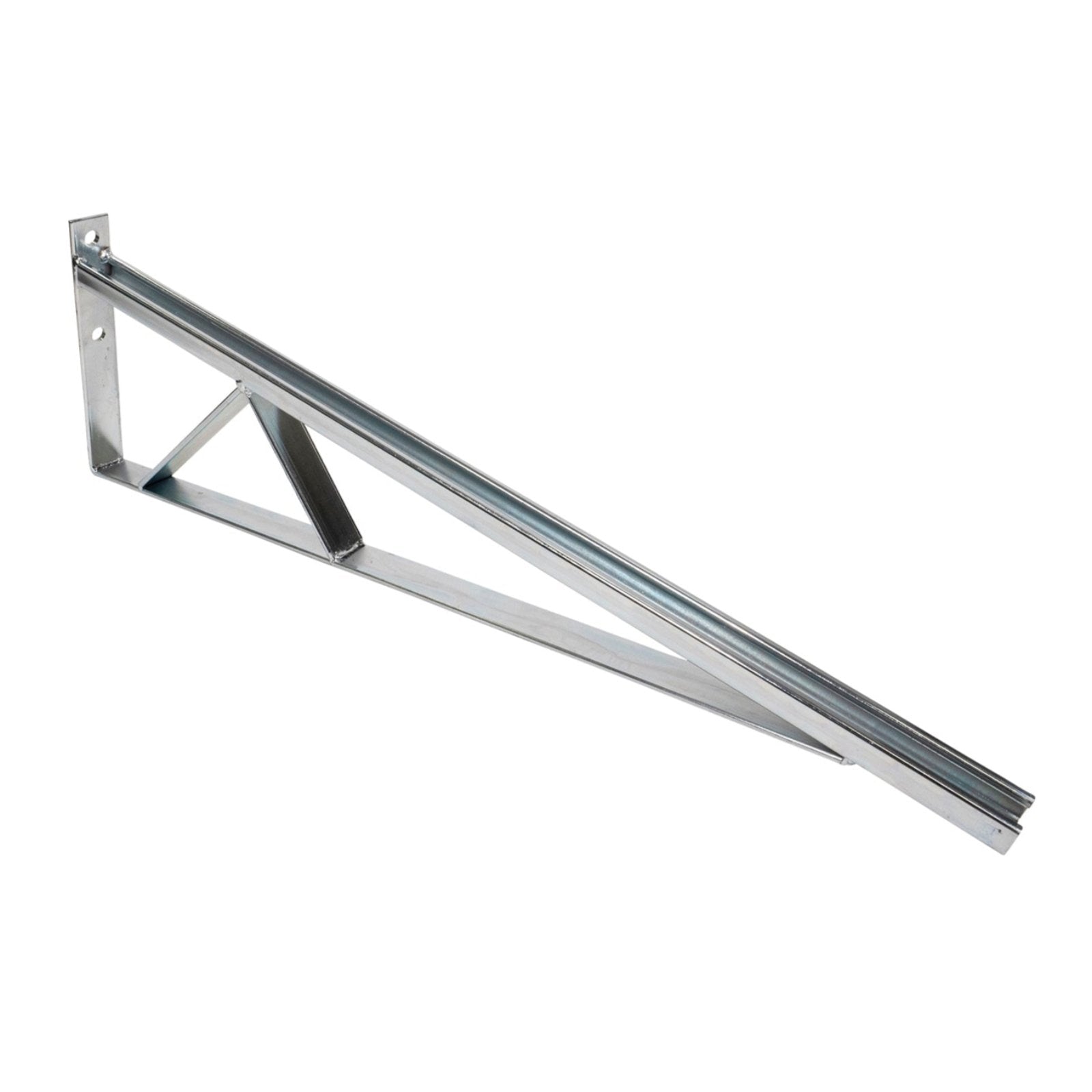

This 36-inch channel bracket is designed to create a strong, reliable horizontal support point when mounted to vertical strut channel. Its reinforced lower bracing provides added strength compared to standard channel brackets, helping distribute loads more evenly. Built for clean interior installations, it supports top-mounted connections with a straightforward layout.
Electro-Galvanized 36-Inch Channel Bracket for Vertical Strut Support
Use this bracket in electrical, mechanical, and structural frameworks where dependable load support is needed from a vertical channel. When installed with the slotted face oriented upward, it allows components to be mounted directly on top of the bracket.
Key Features
- Reinforced Support Design: Additional bottom bracing delivers more strength than traditional flat channel brackets.
- Electro-Galvanized Finish: Coated per ASTM B-633 Type III SC1 with a 0.2 mil zinc layer for corrosion resistance in dry interiors.
- Carbon Steel Construction: Built for dependable structural performance in framed support systems.
- Standard Strut Width: 1-5/8" width integrates easily with common strut channel systems.
Common Applications
- Vertical Channel Mounting: Creates horizontal support points off vertical strut.
- Electrical Installations: Used for conduit racks and equipment support.
- Mechanical Systems: Supports piping, HVAC components, and accessories.
- Interior Frameworks: Ideal for dry, low-humidity environments.
- Facility Maintenance Projects: Adds strength where traditional brackets fall short.
Installation Tips
- Orient Slots Up: Install with slots facing upward to allow top-side connections.
- Use Compatible Hardware: Secure with channel nuts, bolts, and washers sized for 9/16" holes.
- Tighten Evenly: Draw fasteners down uniformly to maintain proper load distribution.
