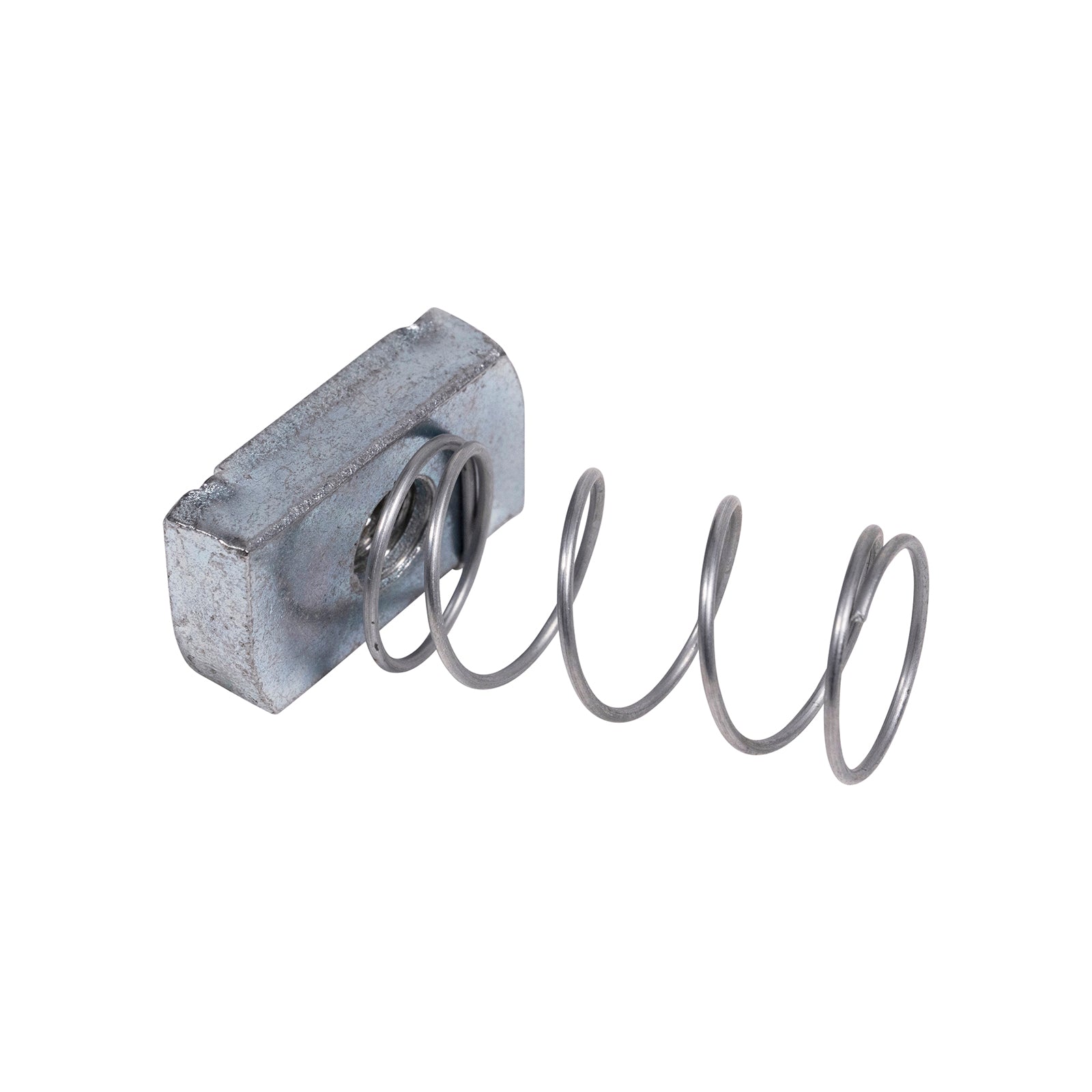

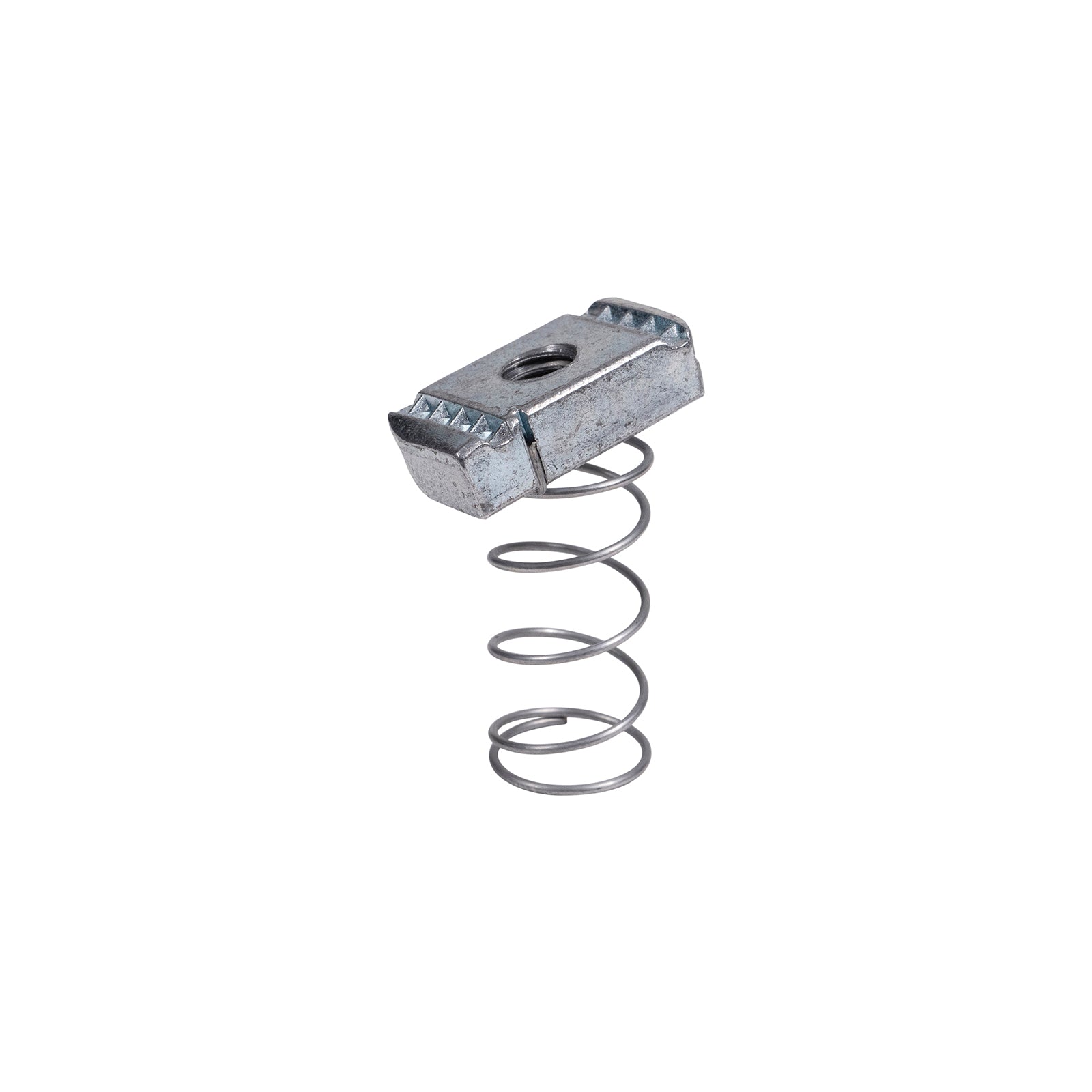

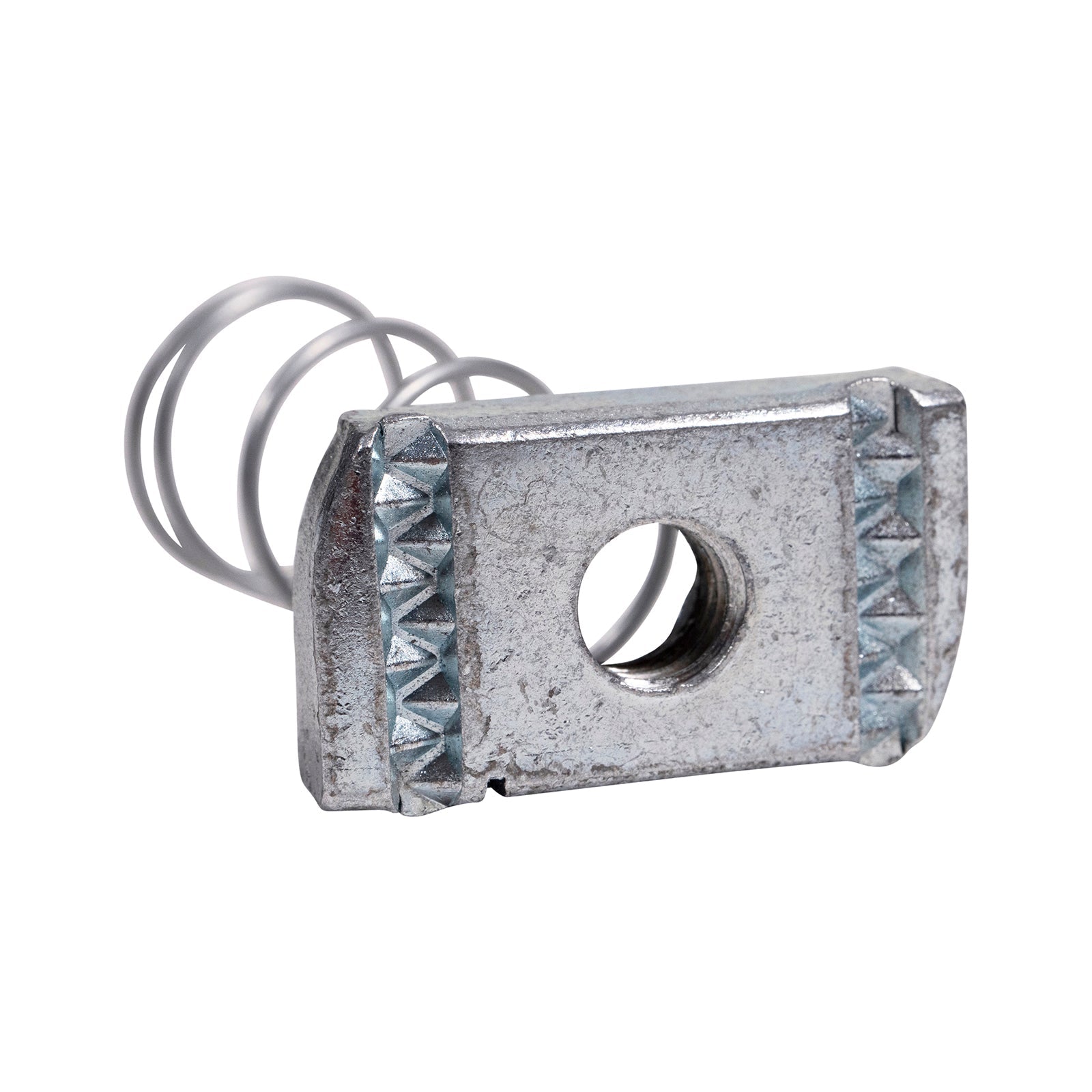

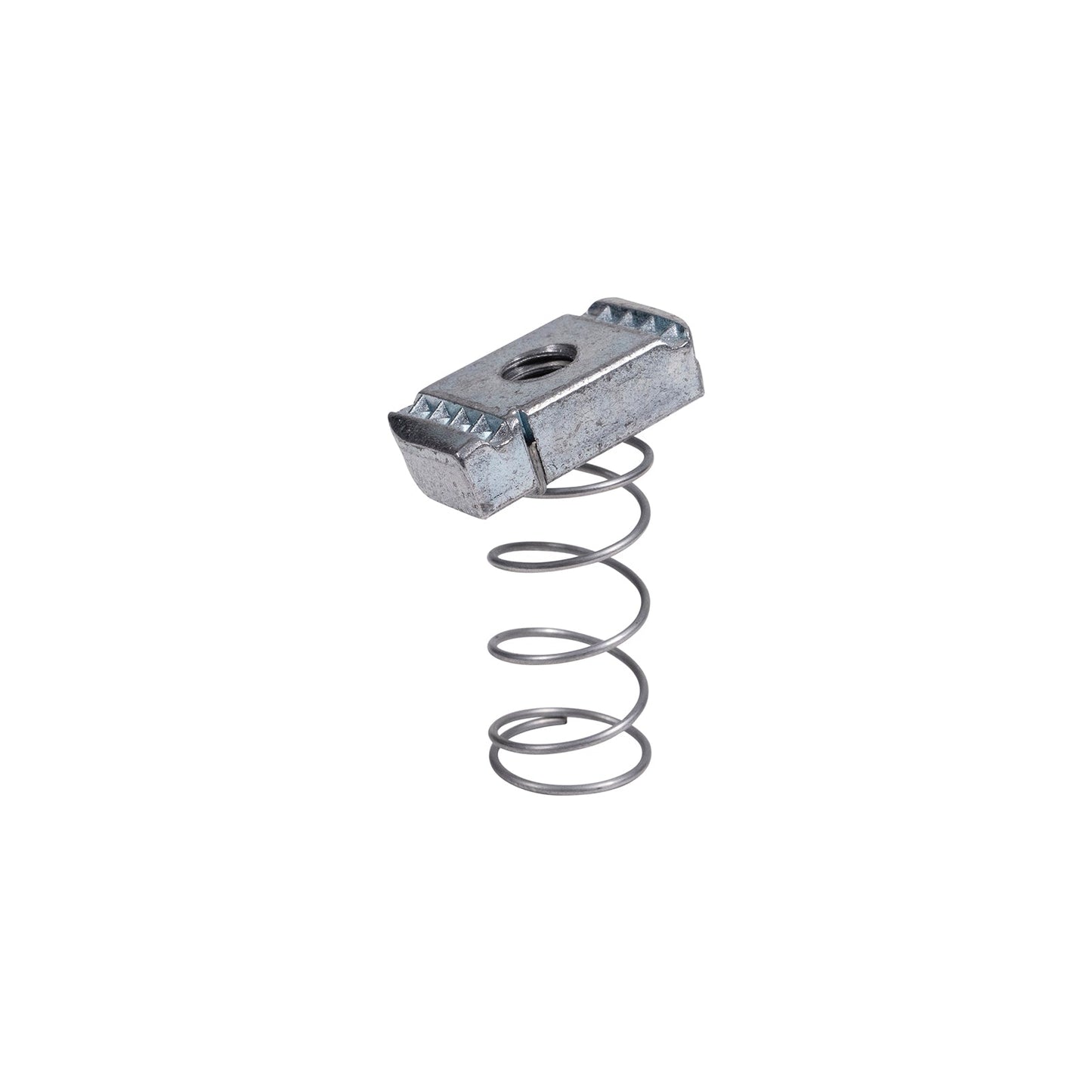

1/2" Channel Nut w/Regular Spring - Electro-Galvanized

This 1/2" channel nut with a regular spring is made to create a strong threaded connection inside 1-5/8" x 1-5/8" strut channel. The spring helps hold the nut in place while you position brackets and start hardware, and the ridged body helps lock into the channel lips. Electro-galvanized carbon steel is designed for dry, interior installations.

1/2" Electro-Galvanized Spring Channel Nut for 1-5/8" Strut Channel

Use this spring nut to speed up strut channel assembly by keeping the nut from drifting while you line up parts. It’s a dependable component for interior strut builds where moisture exposure is minimal.

Key Features

• Made for 1-5/8" Channel: Designed for use with 1-5/8" x 1-5/8" strut channel.
• Regular Spring Tension: Helps keep the nut from sliding during installation and adjustment.
• Ridge Engagement: Indented ridges fit into the channel lips to reduce movement once positioned.
• Electro-Galvanized Steel: Intended for interior environments that stay dry and low-humidity.

Common Applications

• Bracket and Plate Mounting: Creates a fastening point for strut brackets and connection plates.
• Electrical and Mechanical Supports: Used in strut-based racks and support frames.
• HVAC Mounting Systems: Secures hardware for equipment and accessory supports.
• Plumbing Support Frames: Works with hangers and clamps mounted to strut channel.
• Interior Buildouts: A solid choice for indoor strut assemblies in controlled conditions.

Installation Tips

• Confirm Proper Seating: Make sure the ridges are engaged with the channel lips before tightening.
• Use Like-Metal Hardware: Pair with matching bolts and washers for best compatibility.
• Position First, Tighten Last: Set the nut location, align your fitting, then tighten to secure.

Related Items:

• Strut Channel
• Strut Channel Fittings
