SKU: FS-5460-24-PG

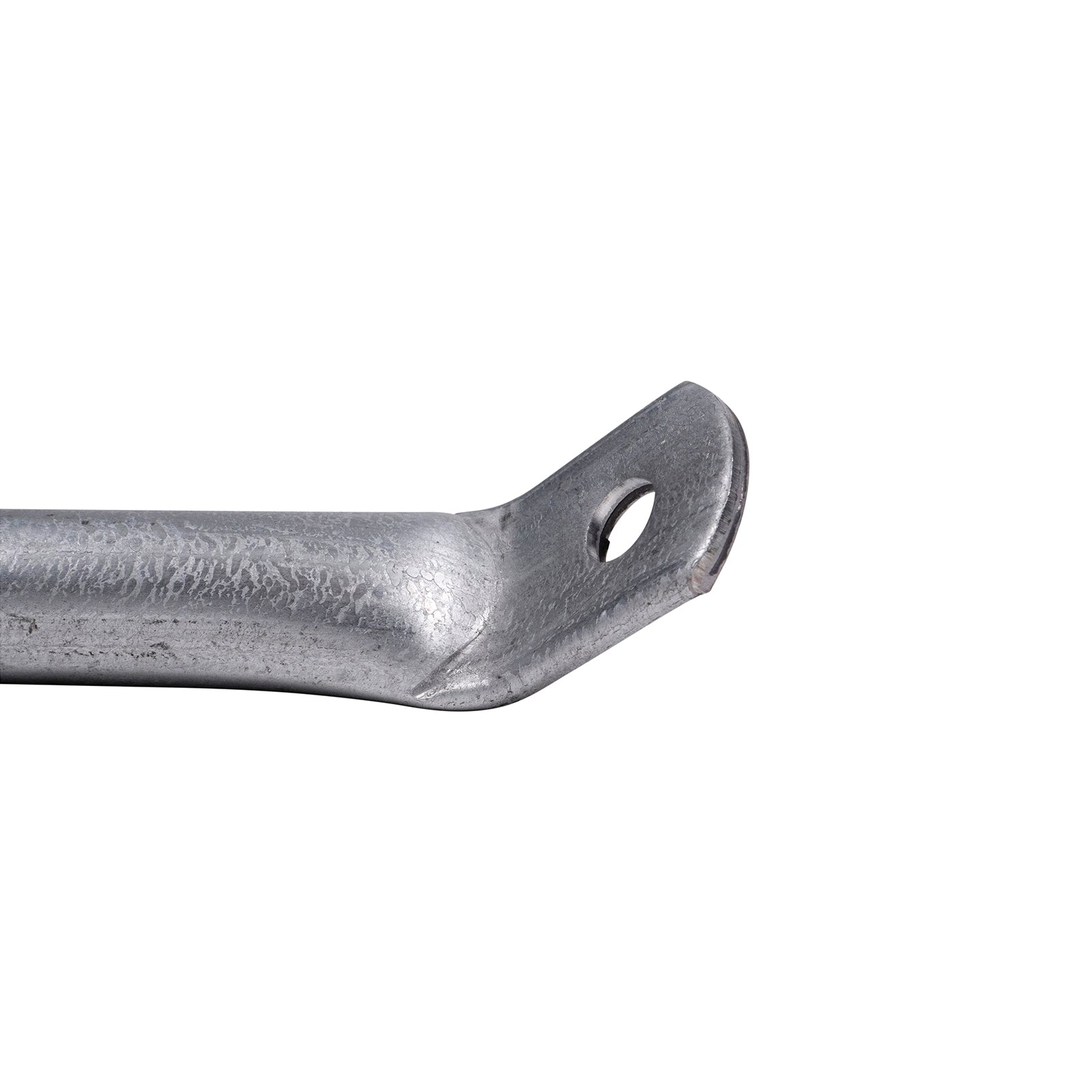

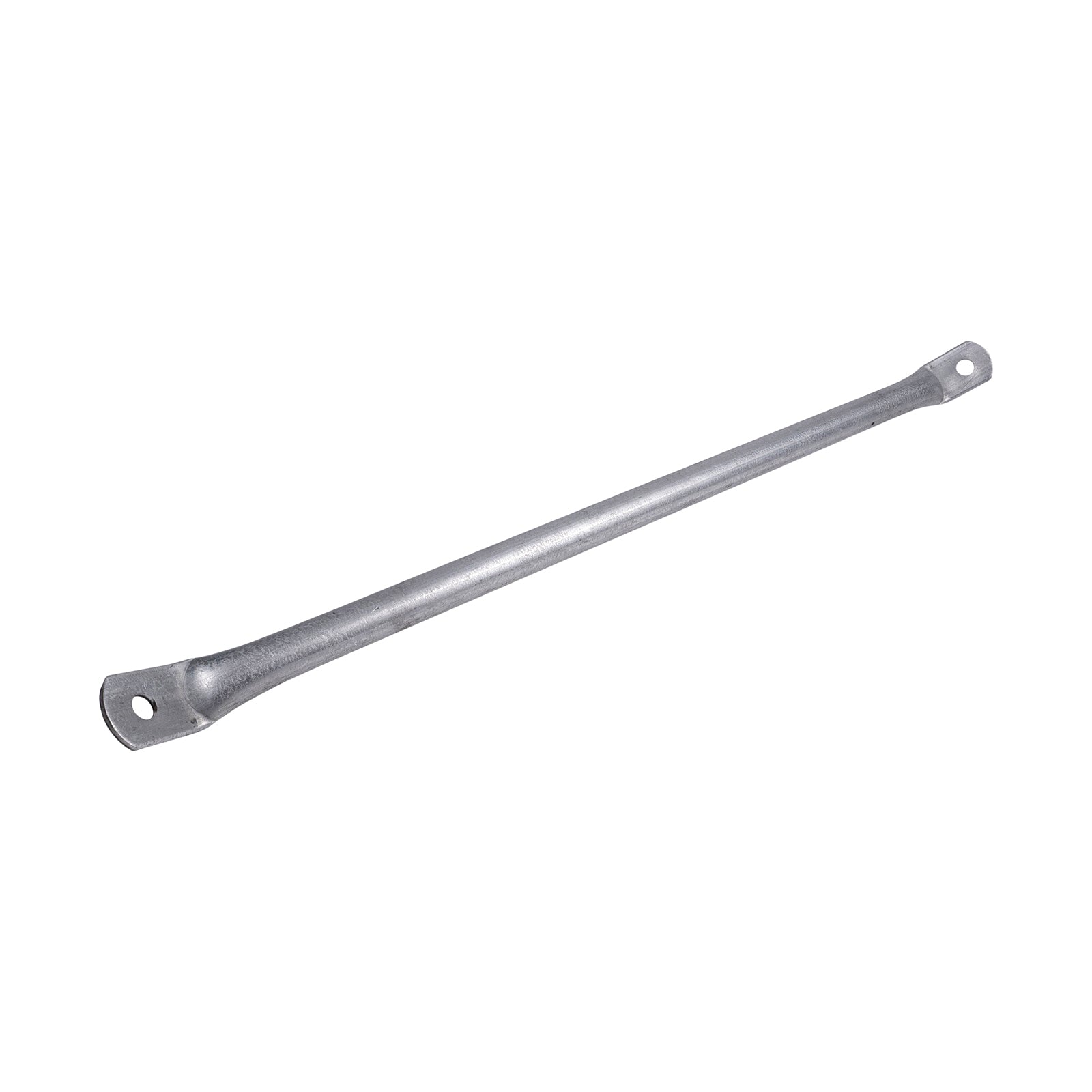

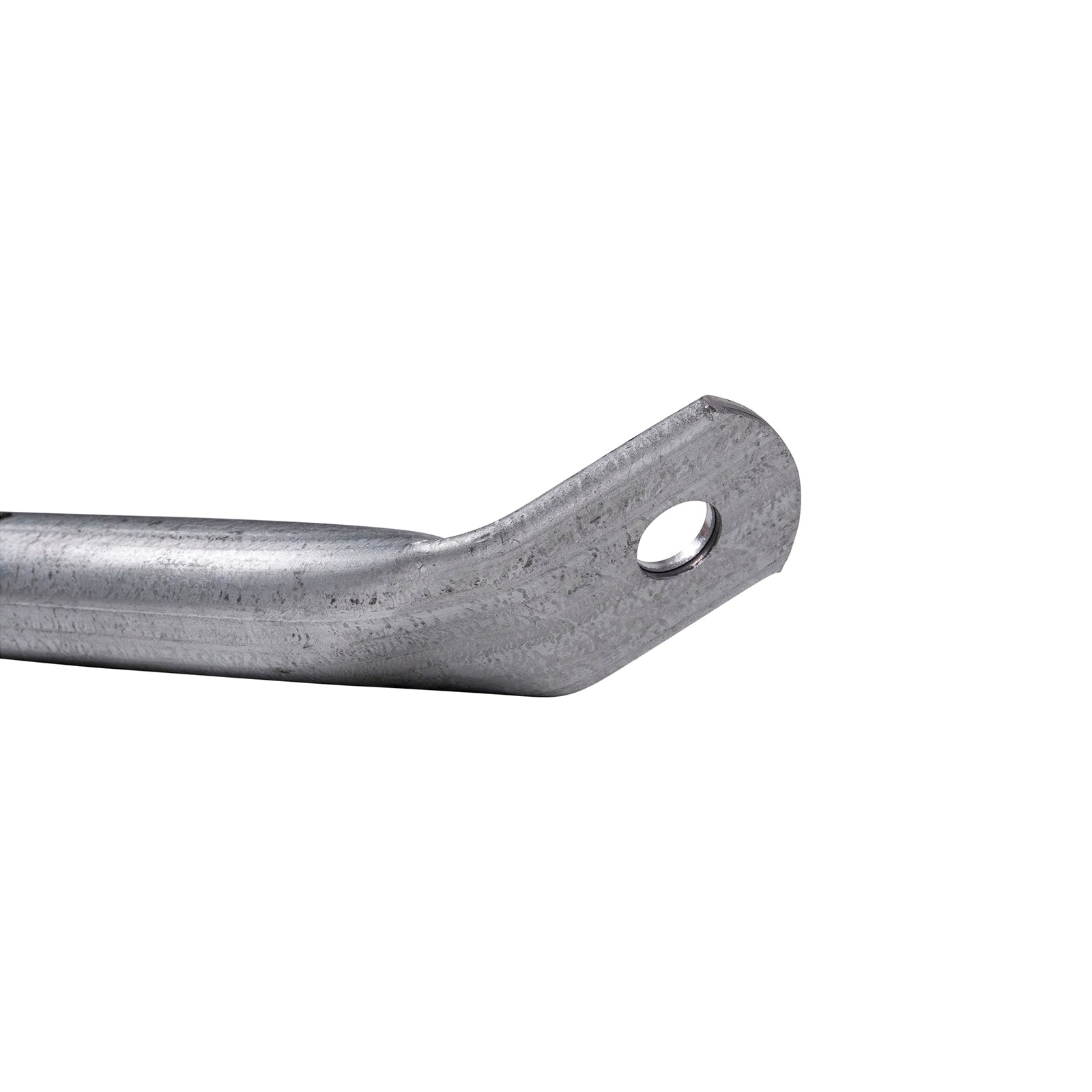

24" 45 Degree Tube Knee Brace - Pre-Galvanized

24" 45 Degree Tube Knee Brace - Pre-Galvanized!

Skip to product information
1 of 7
SKU: FS-5460-24-PG

24" 45 Degree Tube Knee Brace - Pre-Galvanized

$29.99
Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 9 hours 7 minutes

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions?

We can help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Width: 1-5/8"
Length: 24"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Pre-Galvanized
Type: Pre-Galvanized Carbon Steel
Standards: Finish = ASTM A1011 (Meets the physical requirements of Grade 33) & Material =
Manufacturer Name: Flex-Strut
Description

24" 45 Degree Tube Knee Brace - Pre-Galvanized

The 24" 45 Degree Tube Knee Brace - Pre-Galvanized is built to add strength and rigidity at critical corner connections in strut channel framing systems. Its angled design helps reduce sway and movement while supporting stable, well-aligned assemblies. A solid solution for projects that demand added reinforcement at corner joints.

Pre-Galvanized 24" 45 Degree Knee Brace for Strut Channel Framing

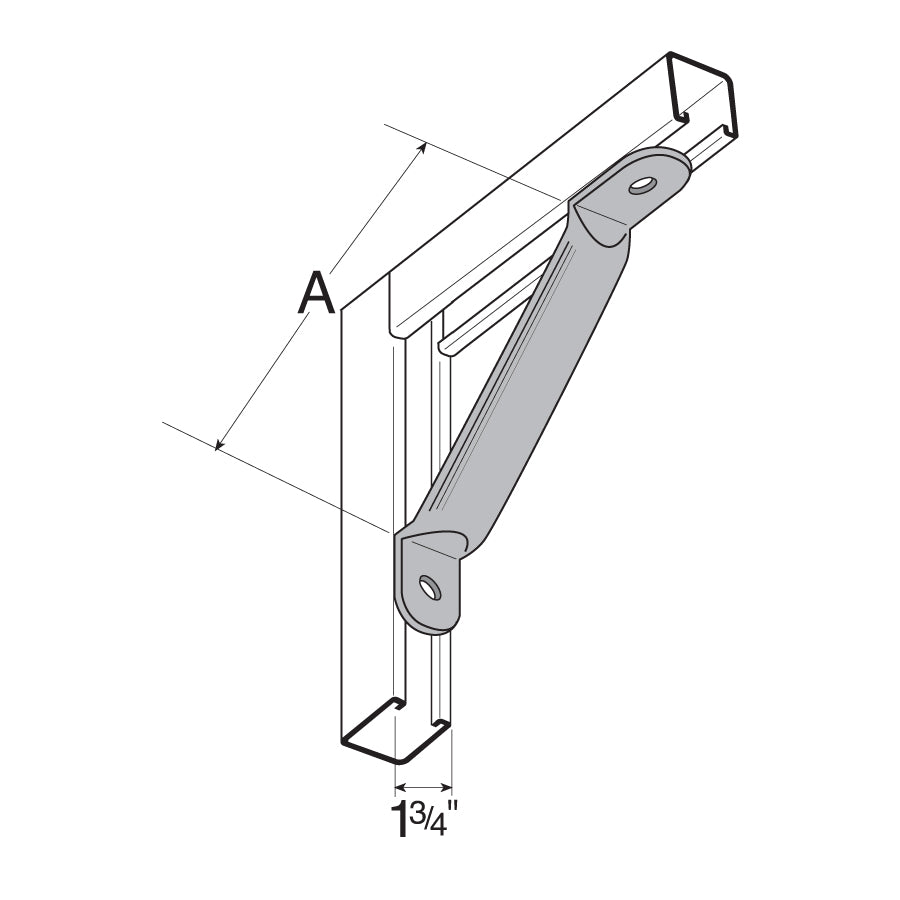

This tube-style knee brace connects two strut channels together at the top corner, forming a fixed 45-degree support. The pre-galvanized steel finish offers enhanced corrosion resistance, making it suitable for interior installations and light exposure environments.

Key Features

  • 45 Degree Support Angle: Reinforces corner joints to reduce flex and movement.
  • Two-Hole Connection: Designed for secure fastening at intersecting channels.
  • Pre-Galvanized Steel: Provides improved corrosion resistance over plain steel.
  • 24" Length: Delivers extended support for larger strut channel frames.

Common Applications

  • Strut channel corner reinforcement
  • Mechanical and equipment support frames
  • HVAC structural assemblies
  • Electrical and utility framing systems
  • Commercial and industrial build-outs

Installation Tips

  • Install at the top corner where channels intersect for maximum stability.
  • Use compatible channel nuts, bolts, and washers for secure attachment.
  • Verify channel alignment before tightening hardware.
