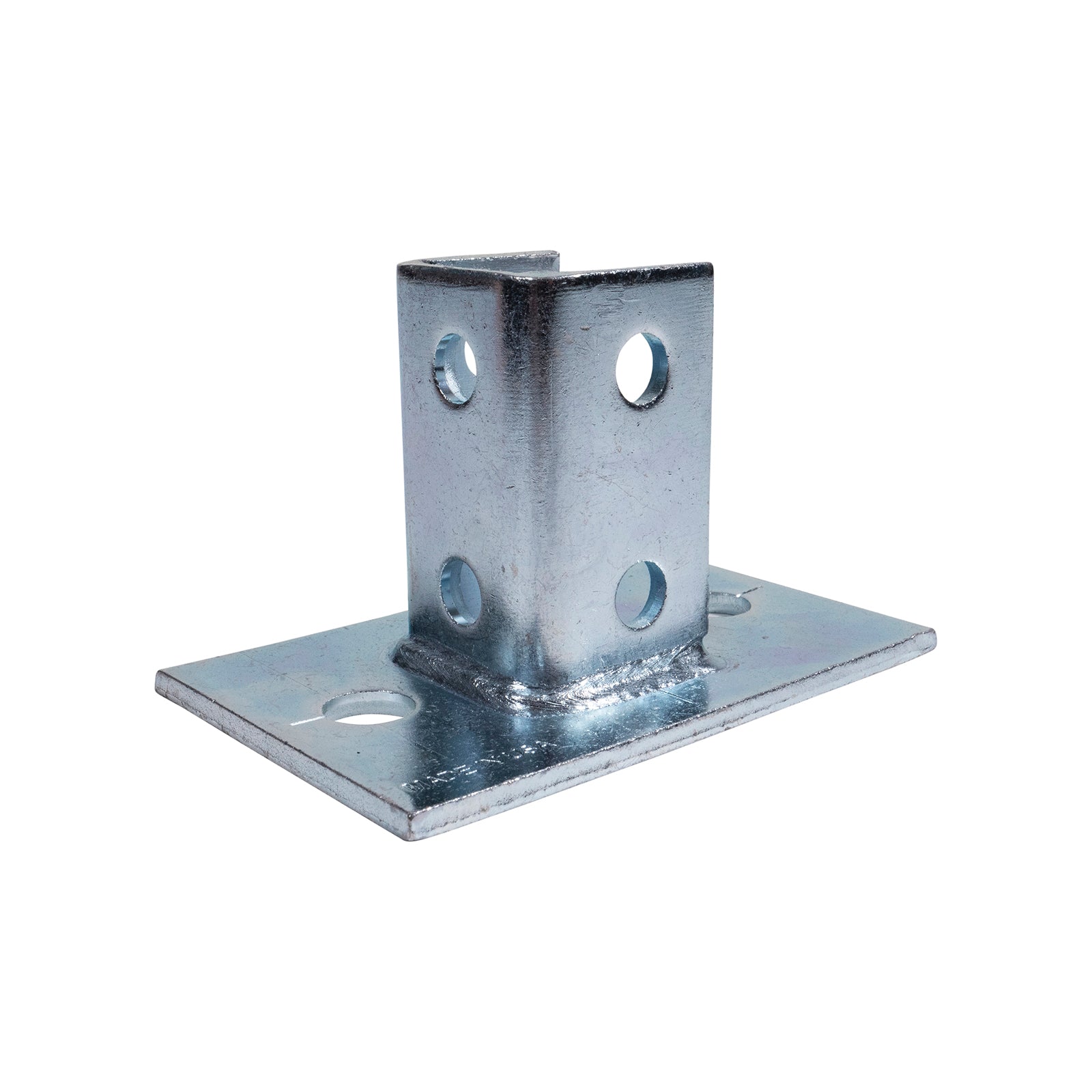

2-Hole Single Channel Post Base - Electro-Galvanized
The 2-Hole Single Channel Post Base - Electro-Galvanized is designed to anchor strut channel securely to concrete floors and flat surfaces. By creating a fixed base connection, it adds stability to vertical channel structures used in permanent installations. A reliable solution for interior builds where long-term structural support is required.
Electro-Galvanized 2-Hole Post Base for Strut Channel Floor Mounting
This single channel post base fastens strut channel directly to the ground using anchor bolts through the bottom plate. When installed with the proper anchors, it helps create a stable foundation for channel-supported systems in dry, indoor environments.
Key Features
- Floor-Mounted Channel Support: Anchors strut channel directly to concrete or solid surfaces.
- Two-Hole Base Plate: Designed for use with anchor bolts to improve stability.
- Structural-Grade Steel: Manufactured to ASTM A575 or ASTM A1011 Grade 33 specifications.
- Electro-Galvanized Finish: Intended for interior applications with low humidity.
Common Applications
- Vertical strut channel framing
- HVAC equipment supports
- Shelving and storage systems
- Mechanical and utility structures
- Commercial interior installations
Installation Tips
- Select anchor bolts appropriate for the floor material and load requirements.
- Ensure the post base is level before fully tightening anchors.
- Confirm channel alignment prior to final fastening.
