Conquest 1/4" x 1-3/4" A563 Grade A Coupling Nut - Zinc
Conquest 1/4" x 1-3/4" A563 Grade A Coupling Nut - Zinc!
Continue Browsing
Coupling Nuts
Conquest 1/4" x 1-3/4" A563 Grade A Coupling Nut - Zinc
Diameters:
Finish:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions?
We can help!Payment Options
Specifications

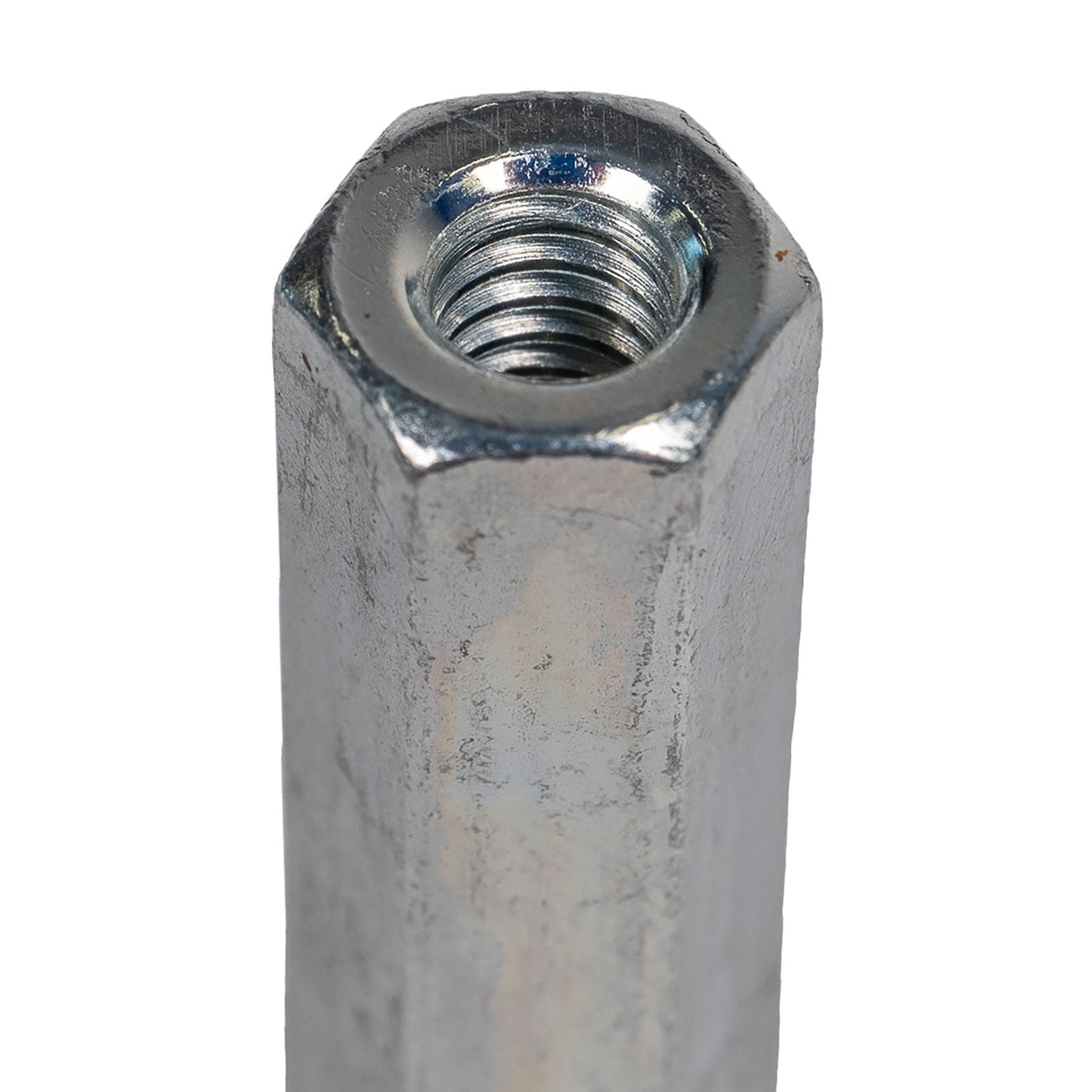

Conquest A563 Grade A Coupling Nut – 1/4" x 1-3/4" Zinc-Plated Steel
The Conquest A563 Grade A Coupling Nut is made to connect or extend 1/4"-20 threaded rods and bolts. It delivers strong, stable performance in applications that require alignment and load-bearing strength. This coupling nut is ideal for ceiling supports, HVAC systems, and general construction fastening.
Zinc-Plated 1/4"-20 Coupling Nut for Threaded Rod Extension
This nut is built from carbon steel and finished with a zinc coating. It is designed for indoor or dry environments where corrosion resistance is needed. The internal threads are cut for accuracy. The hex body allows for quick installation using standard hand tools.
Key Features
- Designed for Rod Joining and Extension: Used to connect two pieces of 1/4"-20 threaded rod in ceiling, mechanical, or framing applications.
- Carbon Steel Construction: Manufactured to ASTM A563 Grade A standards for reliable strength.
- Thread Type/TPI: Internal 1/4"-20 threads (20 threads per inch) provide secure engagement.
- Corrosion Resistance: Zinc plating protects against rust in indoor or low-moisture conditions.
- Hex Body: Supports fast and easy wrench tightening during installation.
Applications
- Ceiling grid and strut channel assemblies.
- HVAC and electrical supports.
- General rod extensions in light-duty framing or bracing.
- Anchor rod extensions in fabricated systems.
Installation
- Make sure the rod is 1/4"-20 threaded.
- Thread both rods fully into the coupling nut.
- Tighten using a wrench on the hex body.
- Avoid overtightening to protect the threads.
- Best used in low-vibration static load applications.
