description

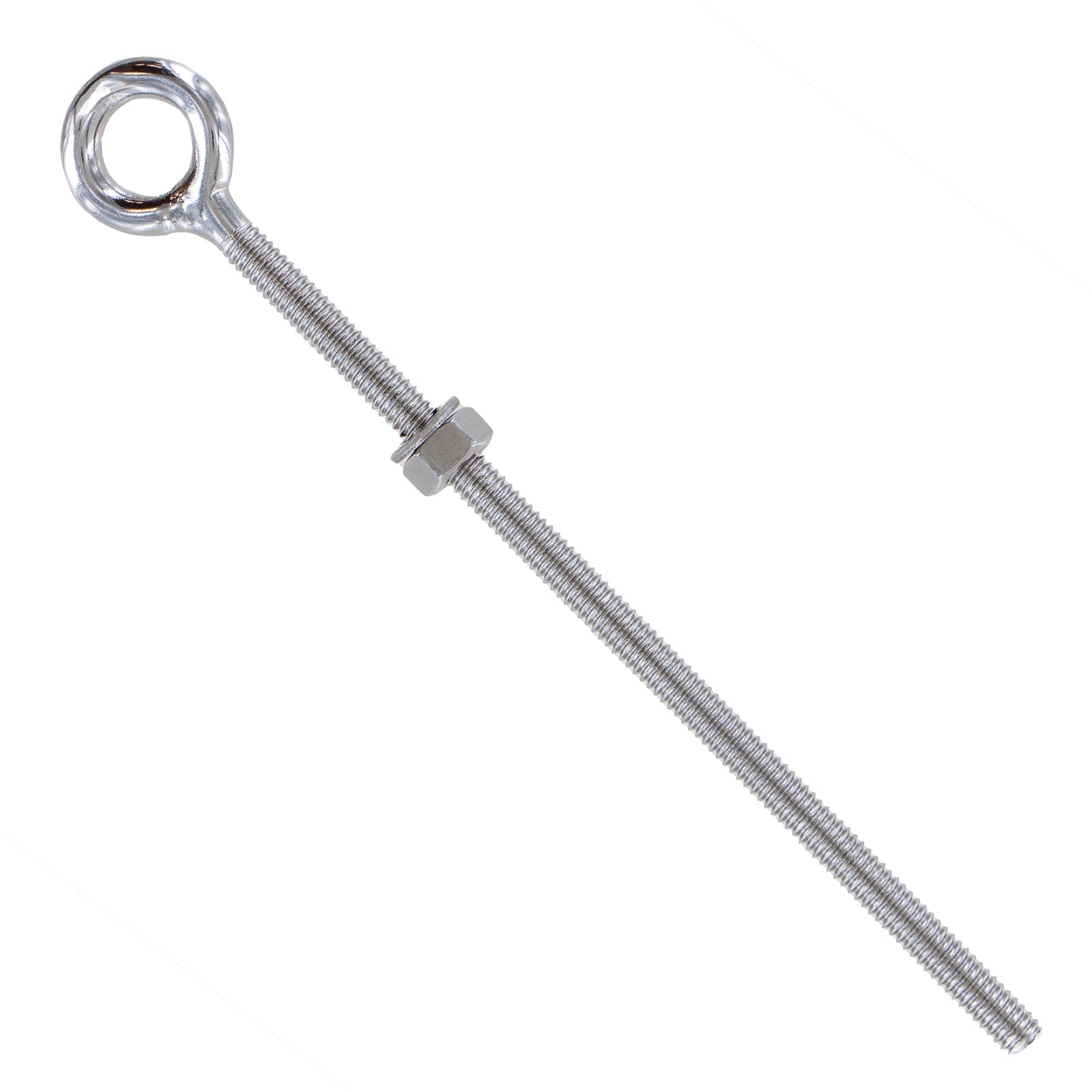

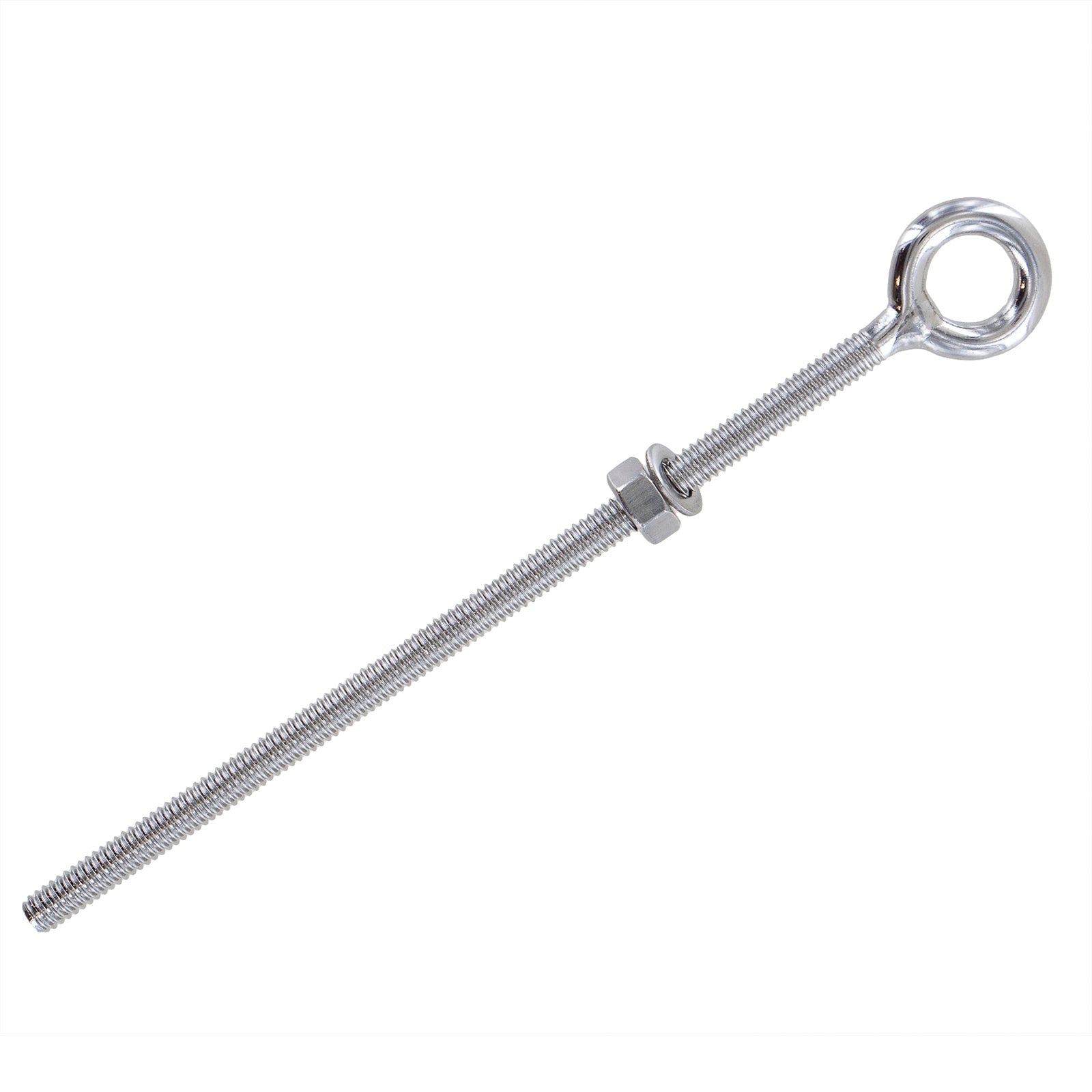

These eye bolts are formed and welded for a heavy duty anchor point, often used to attach wire rope or other rigging hardware to a surface or object. Constructed from marine grade type 316 stainless steel, these eyebolts are highly resistant to corrosion and staining, which makes them ideal for marine applications or other harsh environments. Since they do not have shoulders, they should not be used for angular lifts.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
These eye bolts are formed and welded for a heavy duty anchor point, often used to attach wire rope or oth...
These eye bolts are formed and welded for a heavy duty anchor point, often used to attach wire rope or other rigging hardware to a surface or object. Constructed from marine grade type 316 stainless steel, these eyebolts are highly resistant to corrosion and staining, which makes them ideal for marine applications or other harsh environments. Since they do not have shoulders, they should not be used for angular lifts.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
California Residents: WARNING
specifications
Overall Length:
7.8"
Overall Width:
1.82"
Working Load Limit:
1,800 lbs.
Assembly Break Strength:
7,200 lbs.
Product Weight (lbs.):
.5
Shank Length:
6"
Material:
Steel
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Diameter:
1/2"

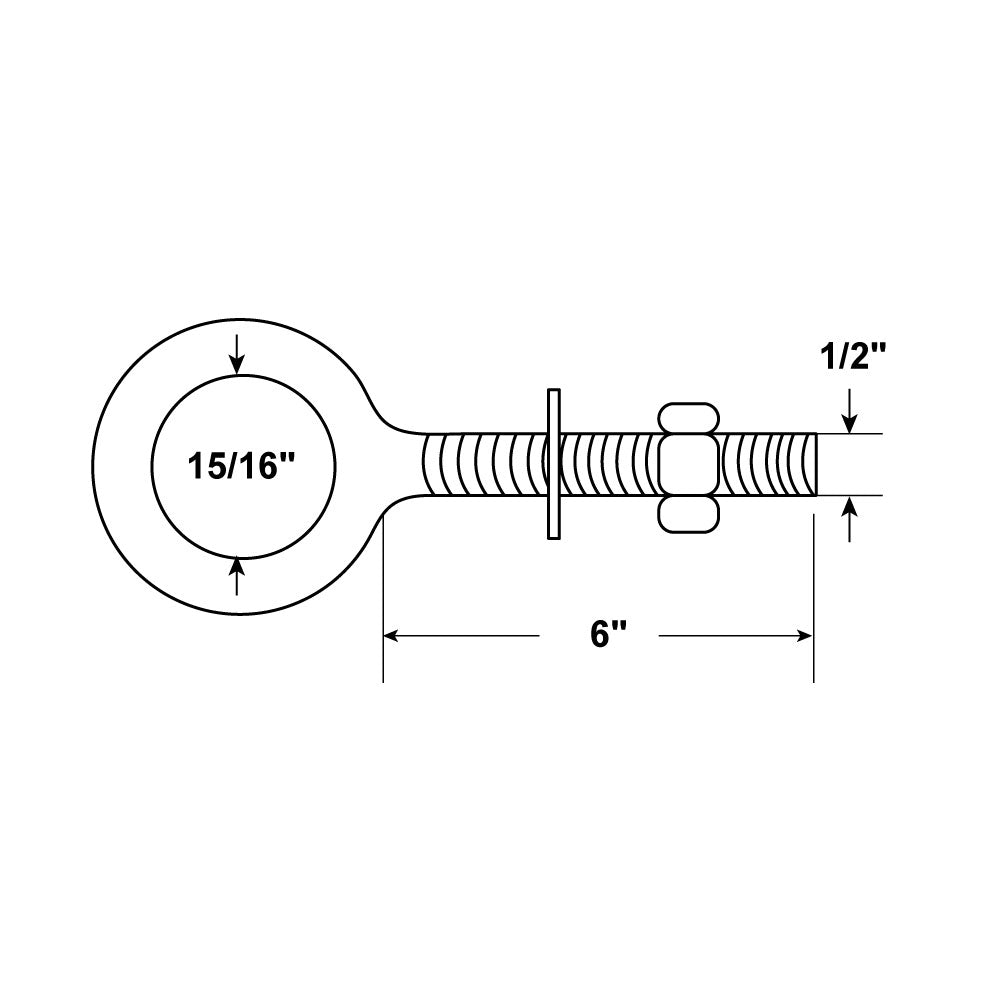

Eye Bolt Dimensions:
A:
1/2"
B:
6"
D:
15/16"
