The Anatomy of a Winch Bar
Winch bars are essential tools for flatbed haulers. But with so many types available, it’s not always clear which features set them apart.
This guide breaks down the anatomy of winch bars and clearly explains the different types available at US Cargo Control. From standard and combination bars to Ergo 360 designs, understanding how each one is built will help you choose the right tool with confidence.
Below, you’ll find an overview of winch bar components, as well as a clear breakdown of each style and how they compare.
What Is A Winch Bar?

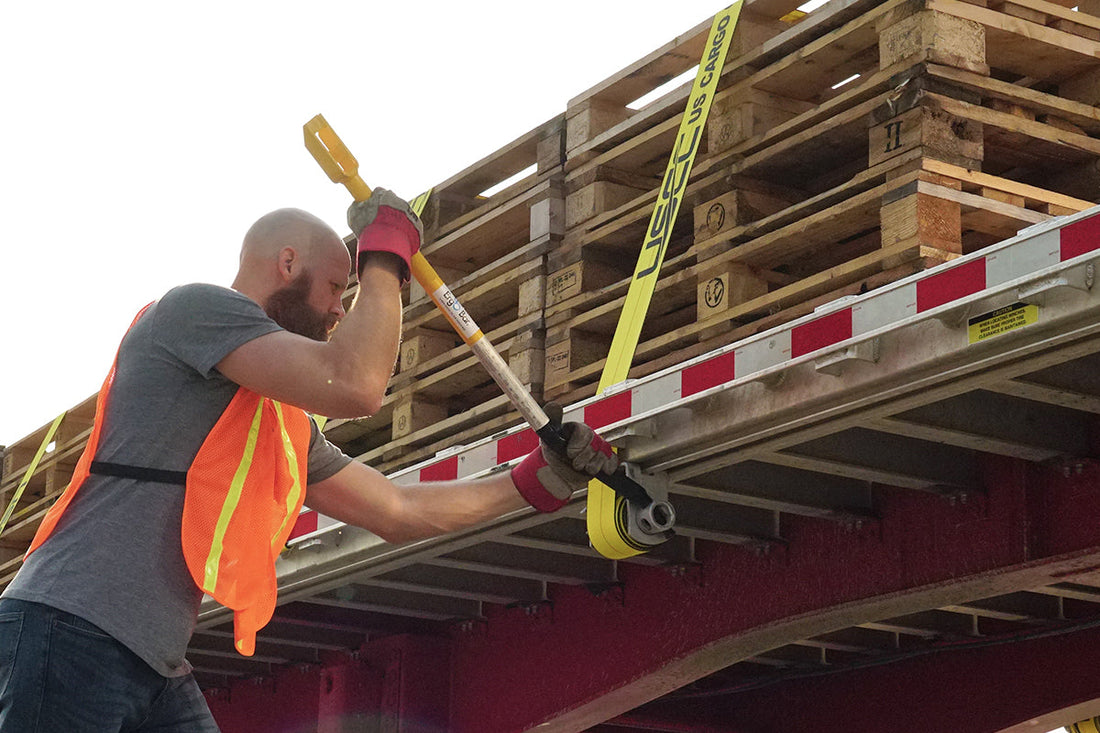

Winch bars are high-strength steel lever bars used to tighten or release winch straps on flatbed trailers. Generally, all winch bars are built around the same core structure with small differences in design and features to change how they perform in the field. They have a long handle or body, typically with knurling for better grip and a mushroom tip on one end that tightens winches.
Winch bars may have a solid, hollow, or square-head end opposite the winch tip, depending on the type.
Types of Winch Bars
While all winch bars serve the same core function, the design and added features determine how they’re used and what applications they are best suited for.
Standard Winch Bars
Standard winch bars are the most common bar used for basic winch securement. They are designed for one job – tightening and releasing flatbed winches. They feature a straight body with a mushroom tip winch end and have a solid handle with knurling for better grip.
Available in chrome and black painted finishes, these bars provide a simple, durable solution for everyday flatbed use.
Standard Winch Bar - Chrome Finish
Standard Winch Bar - Painted Finish
Combination Winch Bars
Combination winch bars add versatility to the traditional winch bar. The handle is hollow, allowing you to release tension on lever binders with the end opposite the winch tip.
This dual-purpose design makes them a practical choice for drivers who want to manage both winch straps and chain tie-downs with a single tool.
Combination Winch Bar - Chrome Finish
Square Head Combination Winch Bars
Square head combination bars are a variation of the combination design. Instead of the traditional hollow end, these bars feature a square socket opposite the winch end that makes releasing lever binders even safer. The slight pivot point reduces force in case of recoil to protect drivers.
This design provides just as much compatibility as the regular combination bar and is often preferred for its safety features.
Square Head Combination Winch Bar - Chrome
Square Head Combination Winch Bar - Painted
Ergo 360 Winch Bars
Ergo 360 bars are designed with operator comfort and ergonomics in mind. The unique bend in the bar allows the handle and winch tip to be parallel, providing better leverage and preventing injuries. It can also rotate 360 degrees without being removed from the winch, avoiding operator back and neck strain from getting into low, awkward positions to tighten.
Ergo 360 bars are available in standard, combination, and square head combination options.
Ergo 360 Winch Bar - Combination
Ergo 360 Winch Bar – Square Head Combination
Understanding Key Differences in Winch Bars
When choosing between winch bar types, the main differences come down to function and ergonomics:
Standard vs. Combination: Standard bars are used only with winches, while combination bars work with winches and lever binders. If you only use winches, choose a standard bar. If you use straps and chains, choose a combination bar.
Combination vs. Square Head: Both options will work with both winches and lever binders. If you are concerned about kickback after releasing tension on lever binders, choose the square head option.
Standard vs. Ergo 360: Both types of bars will get the job done. If you use winch bars often and are concerned about strain on your body, choose an Ergo 360 bar.
Safety Tips When Using Winch Bars
Using a winch bar properly is critical for both safety and efficiency. Here are a few tips to remember when using a winch bar to stay safe:
- Always ensure the bar is fully seated in the winch before applying force.
- Grip the handle firmly at all times while in use.
- Keep your body positioned to the side of the bar, not directly in line with it.
- Apply steady, controlled pressure. Avoid sudden jerks.
Proper handling reduces the risk of injury to the operator and improves control during use.
Winch Bars from US Cargo Control
Choosing the right winch bar starts with understanding how each type is built and what it is designed to do. Whether you need a standard bar for everyday use, a combination bar for more versatility, or an ergonomic option for improved handling, having the right tool makes securing your load safer and easier.
If you have questions about compatibility or selecting the right winch bar for your setup, our industry experts are here to help. Call them at 866-444-9990 or email them at customerservice@uscargocontrol.com.
