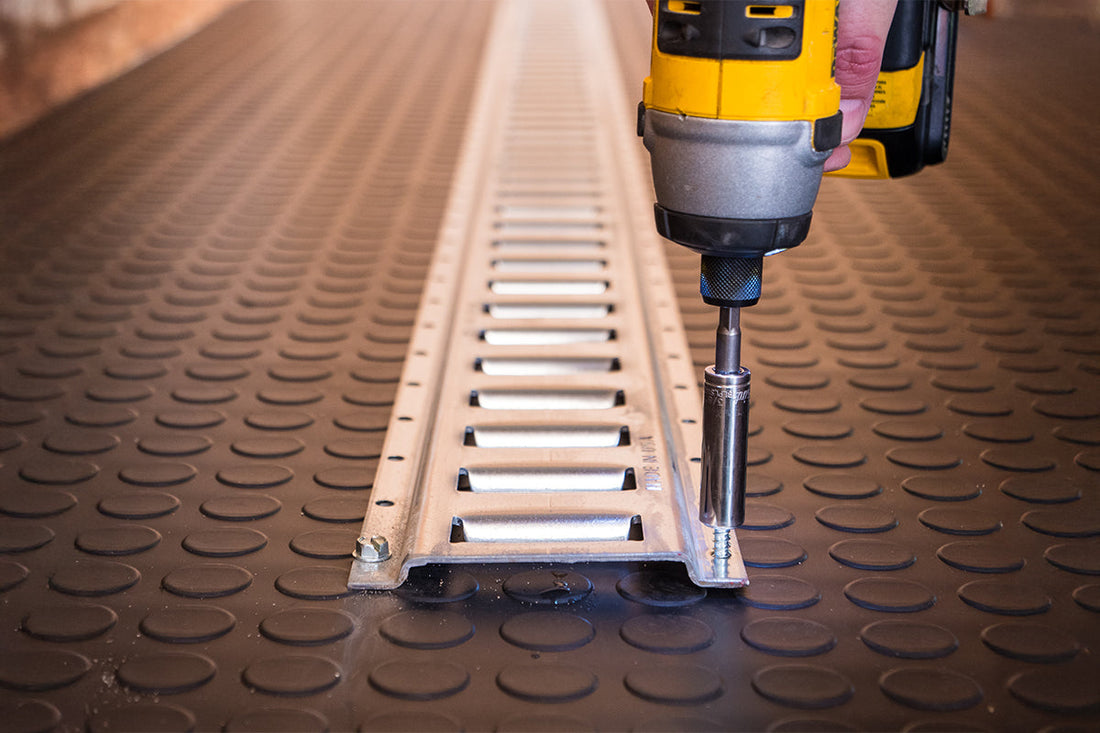

How To Install E-Track on a Flatbed Trailer
Installing E-track on a flatbed trailer creates a flexible tie-down system that allows you to secure a wide variety of cargo. From motorcycles and ATVs to snowmobiles and small vehicles, E-track provides multiple anchor points so you can quickly readjust your tie-down configuration.
Flatbed trailers are especially well-suited for E-track systems because the wooden deck allows the rails to be securely bolted through the trailer floor for maximum strength.
In this guide, we'll walk you through the tools, hardware, and step-by-step process for installing E-track on a flatbed trailer.
Why Use E-Track on a Flatbed Trailer?
E-track tie-down systems are ideal for flatbed trailers because they provide flexible anchor points across the trailer deck.
Common uses include securing:
- Motorcycles
- ATVs and side-by-sides
- Snowmobiles
- Utility vehicles
- Small cars
- Equipment and machinery
Instead of relying on a few fixed tie-down points, E-track rails allow you to attach E-track straps, wheel nets, and other fittings anywhere along the rail.
Choosing the Right E-Track for Flatbed Trailers
Before installing, choose the right E-track rails for your application. For flatbed trailers where E-track rails will likely be exposed to the elements, we recommend galvanized E-track in a horizontal configuration for exceptional corrosion resistance and most versatility.
Tools and Hardware Needed
You will need the following tools and fasteners to install e-track on a flatbed trailer:
- Cordless drill driver
- Measuring tape
- Drill bits
- Phillips head driver bits
- Adjustable wrench
- Pencil or marker
- 1/4" X 1.5" hex bolts
- 1/4" lock nuts
- 1/4" flat washers with an outside diameter of 3/4"
Remember, the type and size of fastener you'll need depend on the material you're mounting into.
Step-by-Step: Installing E-Track on a Flatbed Trailer
1. Position the E-Track rails
Lay out the E-track sections on the trailer deck in the approximate locations where they will be installed. Make sure the rails are positioned where they will provide the best tie-down angles for your cargo.
2. Measure and Mark the Rail Placement
Measure and mark the exact placement of your E-track rails, ensuring they are straight, level, and evenly-spaced.
3. Drill Holes Through the Trailer Deck
Once the rails are correctly positioned, drill holes through the E-track and into the wood deck of the trailer.
A good rule of thumb is to place bolts approximately every 8 inches - or typically, every fourth hole - in the E-track rail. This spacing provides ample support through the length of the rail.
4. Insert Hex Bolts and Hardware
Insert the 1/4" hex bolts through the E-track rail and the trailer deck. On the underside of the trailer, secure the bolts using flat washers and lock nuts. Tighten the hardware with an adjustable wrench.
This bolt-through installation provides excellent holding strength for even the most demanding cargo applications.
5. Install Additional Wood Screws
In addition to the bolts, you can install #12 x 3/4" wood screws in alternating holes along the rail. Placing screws in every other hold helps hold the rail tight to the trailer deck and reduces movement under load.
E-Track Accessories for Flatbed Trailers
Once installed, E-track allows you to quickly secure cargo using a variety of accessories, including:
These accessories lock right into the E-track slots.
