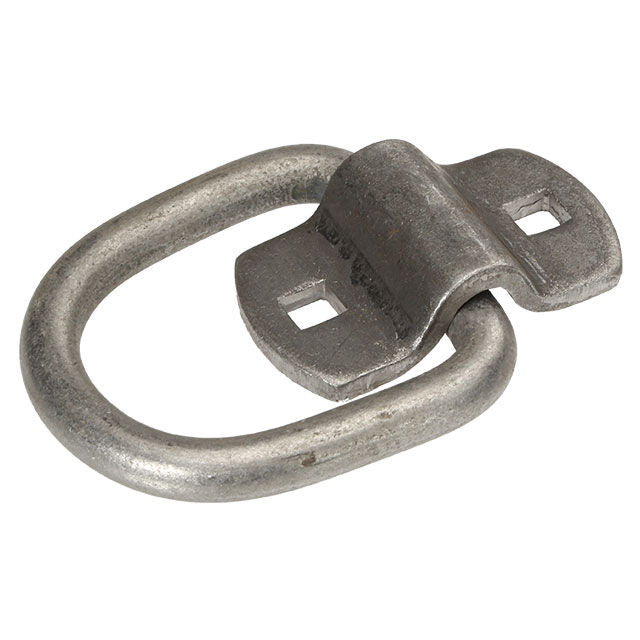

2-5/16" Bolt-On / Weld-On D-Ring with Mounting Bracket

D-rings are the perfect solution for adding more tie down anchors to your trailer or enclosed van. It comes with a mounting clip for easy installation, and gives you the flexibility of placing anchor points exactly where you need them. This specific D-ring is designed so it can be either bolted on or welded on for optimal flexibility.

Compatible with a variety of tie downs, including transport chain, they can be used in a wide range of applications, but are most frequently used for equipment transport, including farm equipment, motorcycle, snow mobile, and ATV / UTV hauling.

12,000 lbs. Break Strength D-Ring Construction

This D-ring has no coating or finish so it can be welded to your trailer surfaces by a qualified welder. Before use, it should be painted, powder coated, or plated to help prevent corrosion and extend its lifespan. The mounting clip also has holes to allow for a bolt-on installation.

How to Choose a D-Ring

The primary considerations when choosing a D-ring are mount type, cargo weight, and what tie downs are being used:

• Mounting type is fairly simple - do you want a weld-on or bolt-on installation? This will generally depend on where you are installing the D-ring.
• Cargo weight and tie down type go hand-in-hand - you will choose your tie downs based on what cargo you are hauling. According to the FMCSA CFR49 sections 393.102-104, anchor points must be at least as strong as the tie down they are attached to. In other words, you want the D-ring to have an equivalent or higher load rating than your tie down.

Note: Before purchase, double-check to make sure your tie down attachments are compatible with the D-ring dimensions.

Bolt-On / Weld-On Heavy-Duty D-Ring Features:

• D-ring folds conveniently away when not in use.
• Break Strength Dependent on Installation: D-rings are only as strong as the hardware they are mounted with - best practice is to either use a qualified welder or bolt all the way through the material they are mounted to.
• Mounting Clip Included: Comes with two pre-drilled holes for fast installation.
• Versatile Applications: Commonly used on trailers that haul equipment, but can also be used for tents, pool covers, and more.
• Not Rated for Overhead Lifting.

2-5/16" D-Ring Installation

This D-ring can be either bolted or welded on, and comes with pre-drilled holes for easy mounting. Because D-rings are only as strong as the hardware they are mounted with, best practice is to bolt all the way through the material they are mounted to to achieve the highest strength.

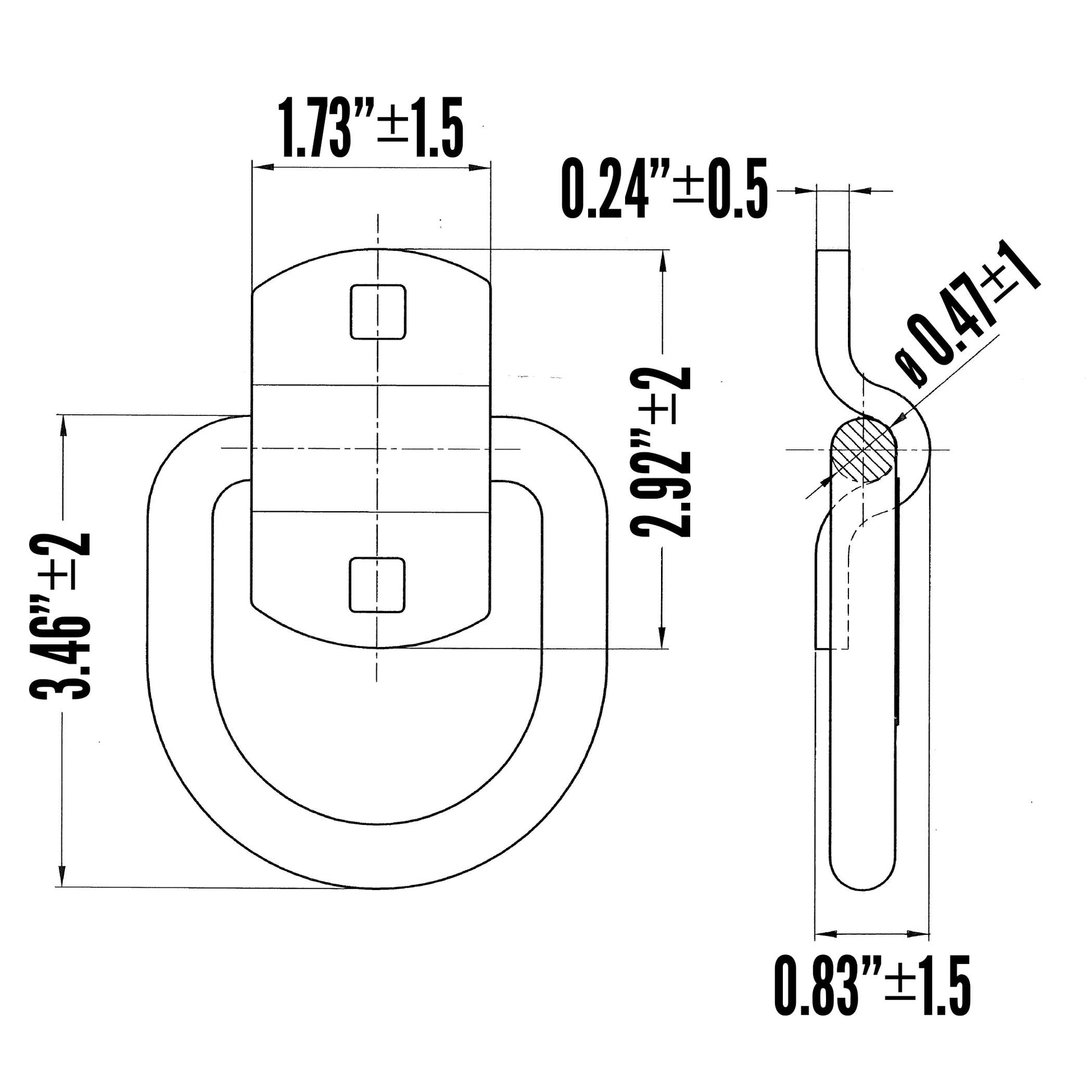

To find the hardware you need, look at the bolt hole size noted in our dimensions to make sure your bolt size is compatible. For length, if you are bolting through, the bolt should be long enough to get a fender washer and nuts on the back. Our team recommends either the use of Loctite on the threads or a locking nut.
