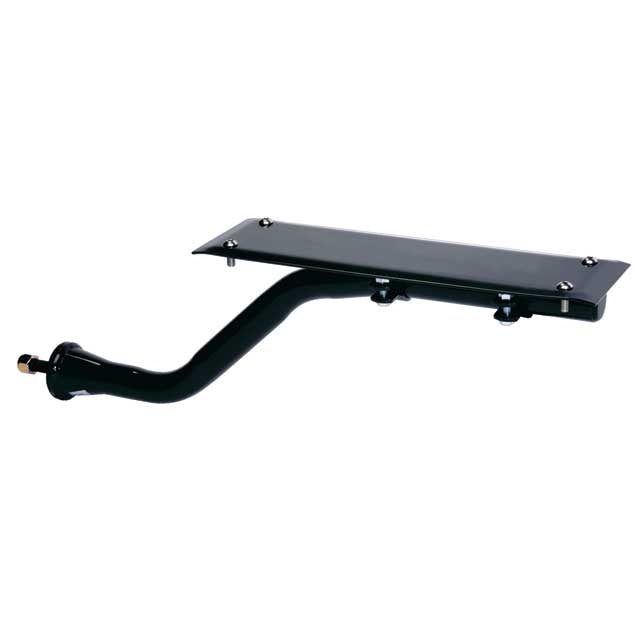

E-Z fender mount bracket from Merritt® is 4" high and adjusts from 27"L to 30"L. Single mounting bolt design makes installation easy; stainless steel cap screw mounting plate bolts are included. All hardware and mounting instructions included.
Installation Notes: Backing plate is designed to be used as a template to drill holes in fender. When installing the 3/8" x 2-1/4" bolts, it is recommended that the bolts are not over tightened, 10" lbs. torque. It is necessary to bend TAB lock-washers downward into the bolt to prevent unwinding. Torque 5/8 Nyloc nuts to 150 ft/lbs.
Also available in a 4"H size. A chrome universal-fit bracket is also available from Merritt®.
