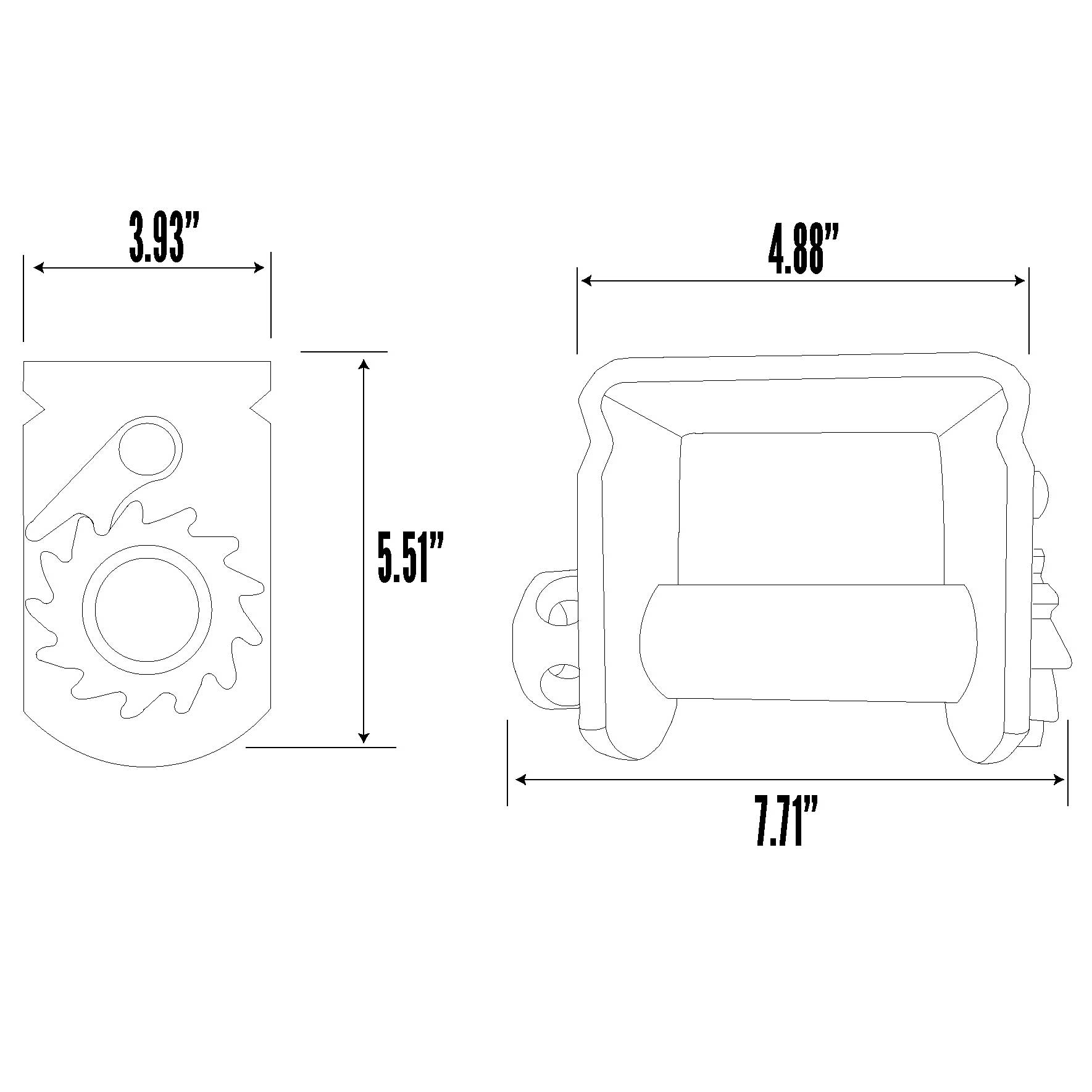

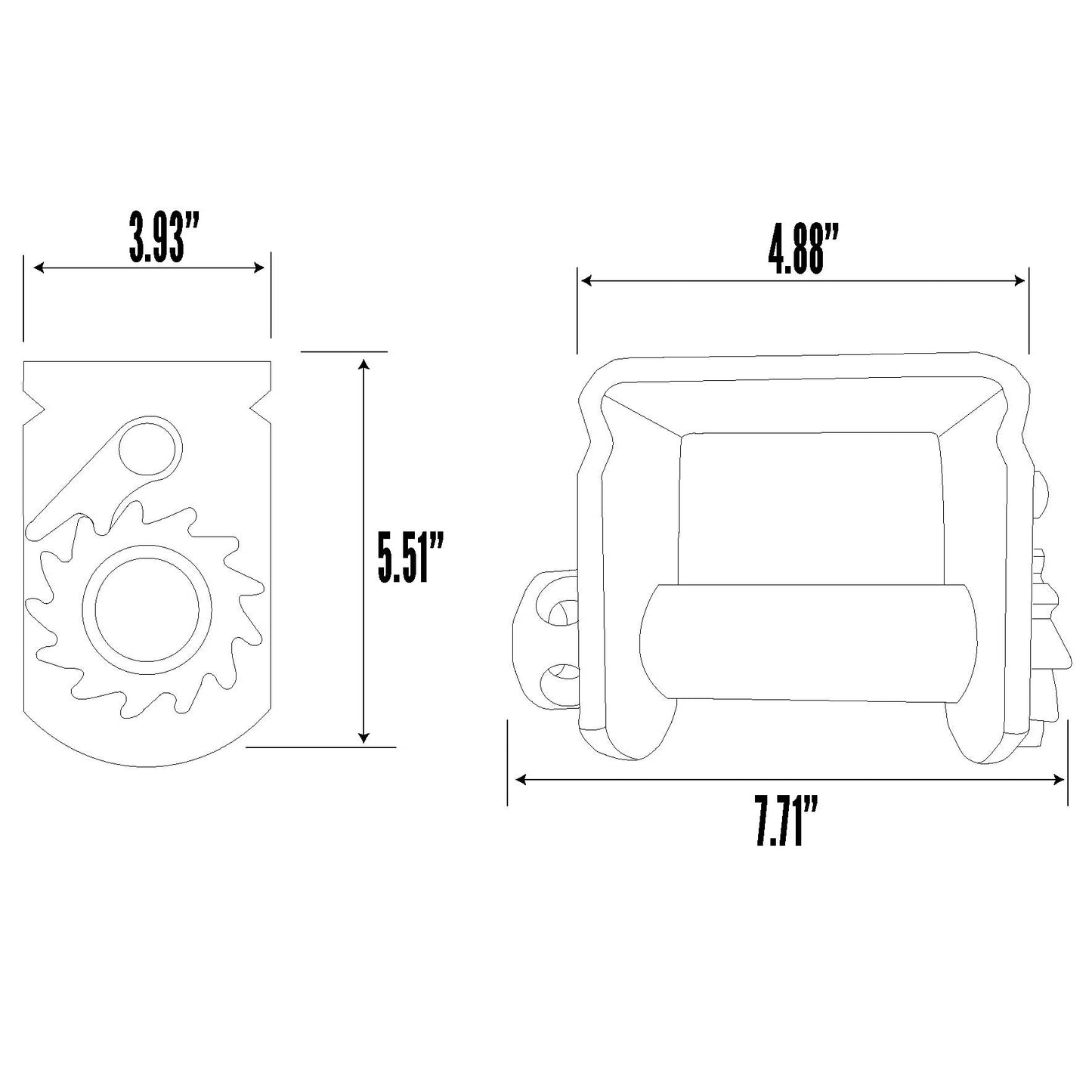

Notched to insert and slide on winch track for adjusting placement while locking under tension. Storable winches are assembled for bottom mount applications. Accommodate 4" wide webbing. Low profile. Ideal for flatbed hauling tie down systems.

Winch Strap Storage

This storable winch can store approximately 15' of webbing.

Tensioning

For tensioning, the WSTDA recommends in section 4.3.5 that "When using any winch, the winch mandrel shall have a minimum of two (2) and a maximum of four (4) wraps of webbing. Two to four wraps will appear like four to eight layers of webbing. Less than two wraps may result in strap slippage; more than four will place unnecessary strain on the winch. Excessive straps of webbing on the mandrel may reduce the working load limit (WLL) of the winch and may interfere with proper operation."
