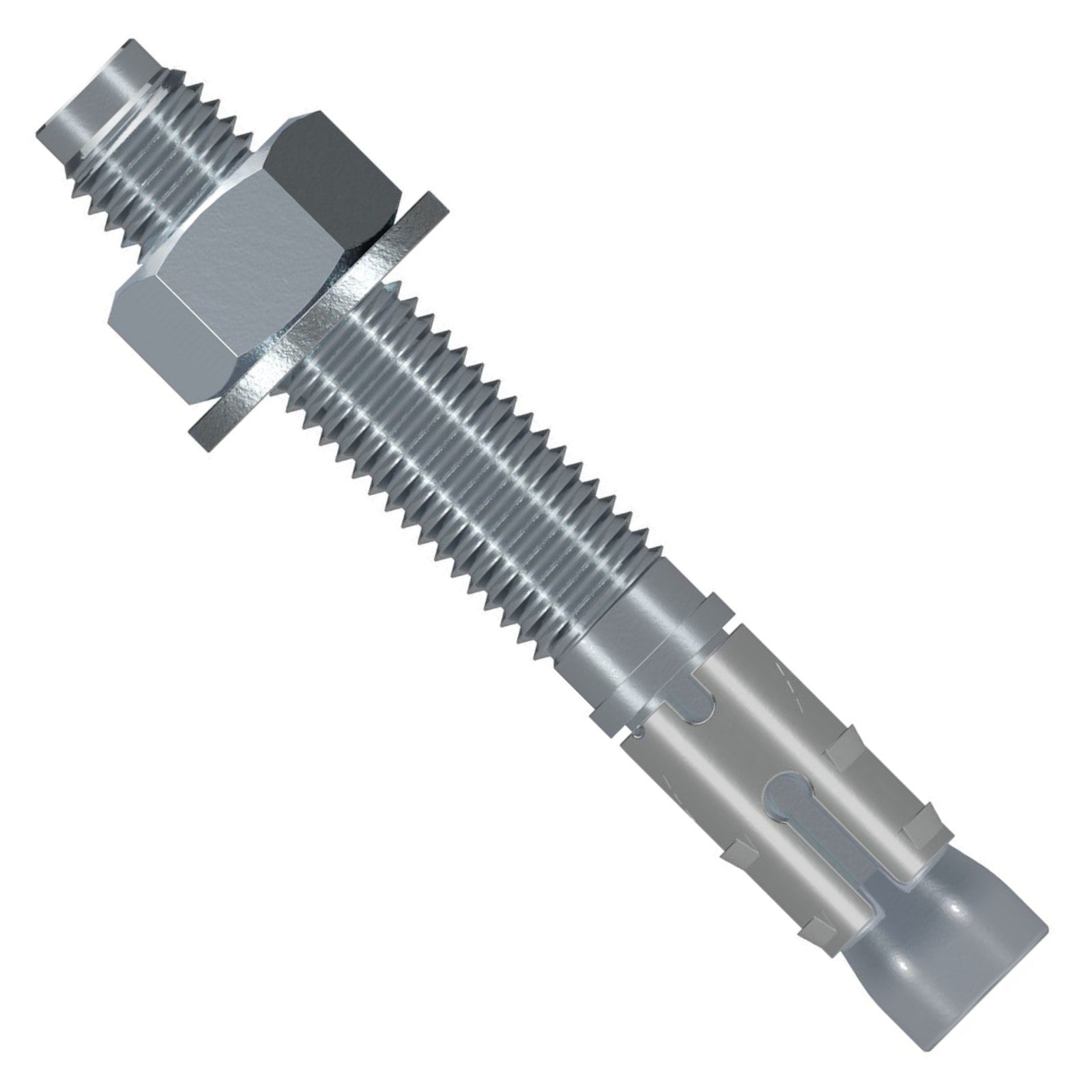

3/4" x 5-1/2" Strong-Tie Strong-Bolt 2 Wedge Anchor - Zinc Plated

This 3/4" x 5-1/2" Strong-Tie Strong-Bolt 2 wedge anchor is a high-performance mechanical anchor designed for secure installation in cracked and uncracked concrete. Engineered for consistent holding strength, it is ICC-ES code-compliant and qualified for both static and seismic loading, making it suitable for horizontal, vertical, and overhead applications. The zinc-plated finish provides corrosion resistance for dry, interior environments.

Caution: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will reduce load capacity and make proper setting difficult.

3/4" x 5-1/2" Strong-Bolt 2 Wedge Anchor - Code-Compliant Concrete Anchoring

Built for demanding structural and non-structural applications, this Simpson Strong-Tie Strong-Bolt 2 anchor delivers reliable performance where safety and compliance matter most. Its non-bottom-bearing design and proven expansion mechanism ensure dependable anchoring in concrete across a wide range of jobsite conditions.

Key Features

• ICC-ES Code Compliant: Approved for cracked and uncracked concrete, including seismic loading.
• Non-Bottom-Bearing Design: Allows proper expansion without relying on hole depth contact.
• Zinc-Plated Finish: Provides corrosion resistance for dry, interior applications.
• Seismic-Qualified Performance: Suitable for static, dynamic, and overhead installations.

Common Applications

• Structural steel base plates
• Racking and storage systems
• Mechanical, electrical, and plumbing supports
• Equipment and machinery anchoring
• Handrails, guardrails, and safety barriers

Installation Tips

• Drill a hole using a carbide-tipped bit matching the anchor diameter.
• Clean the hole thoroughly to remove dust and debris before installation.

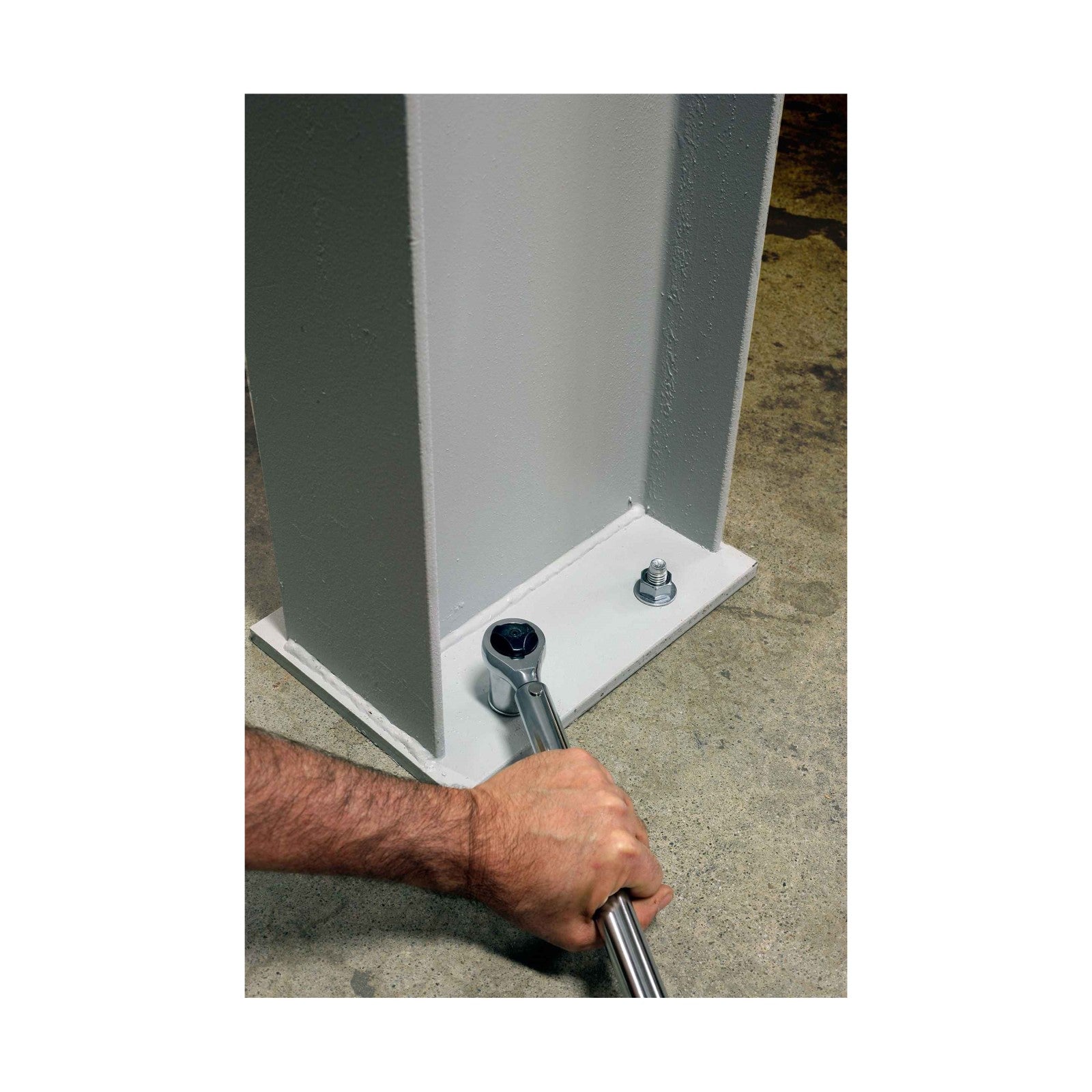

• Tighten the nut using a standard wrench and follow Simpson Strong-Tie torque specifications.
