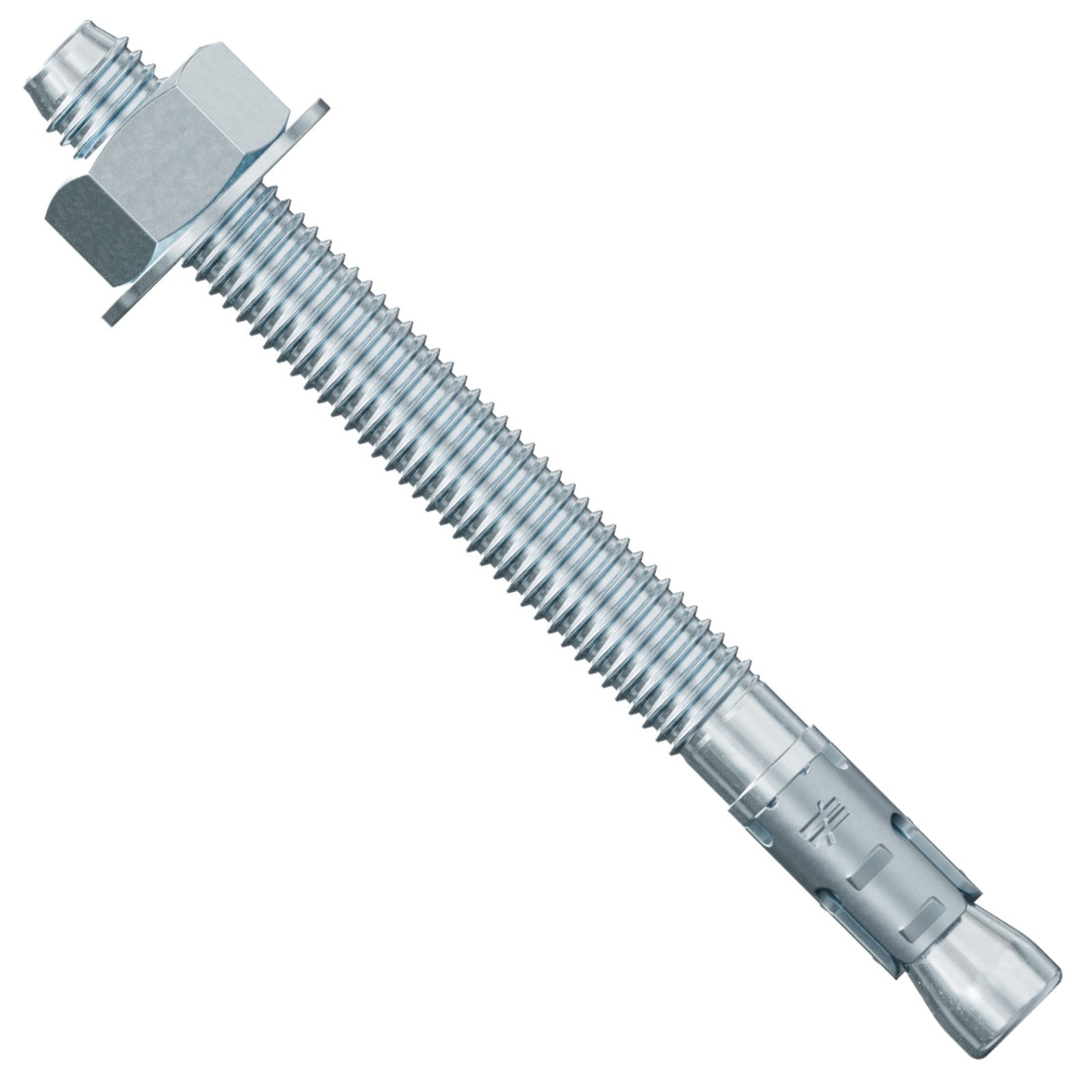

Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors

The Simpson Strong-Tie Strong-Bolt 2 wedge anchors are high-performance, fully assembled mechanical anchors engineered for reliable anchoring into cracked and uncracked concrete. Trusted for seismic and high-load applications, these anchors meet ICC-ES code requirements (ICC-ES ESR-3037) and are designed to deliver consistent holding strength with straightforward installation.

Strong-Bolt 2 Wedge Anchors - Code-Compliant Concrete Anchoring

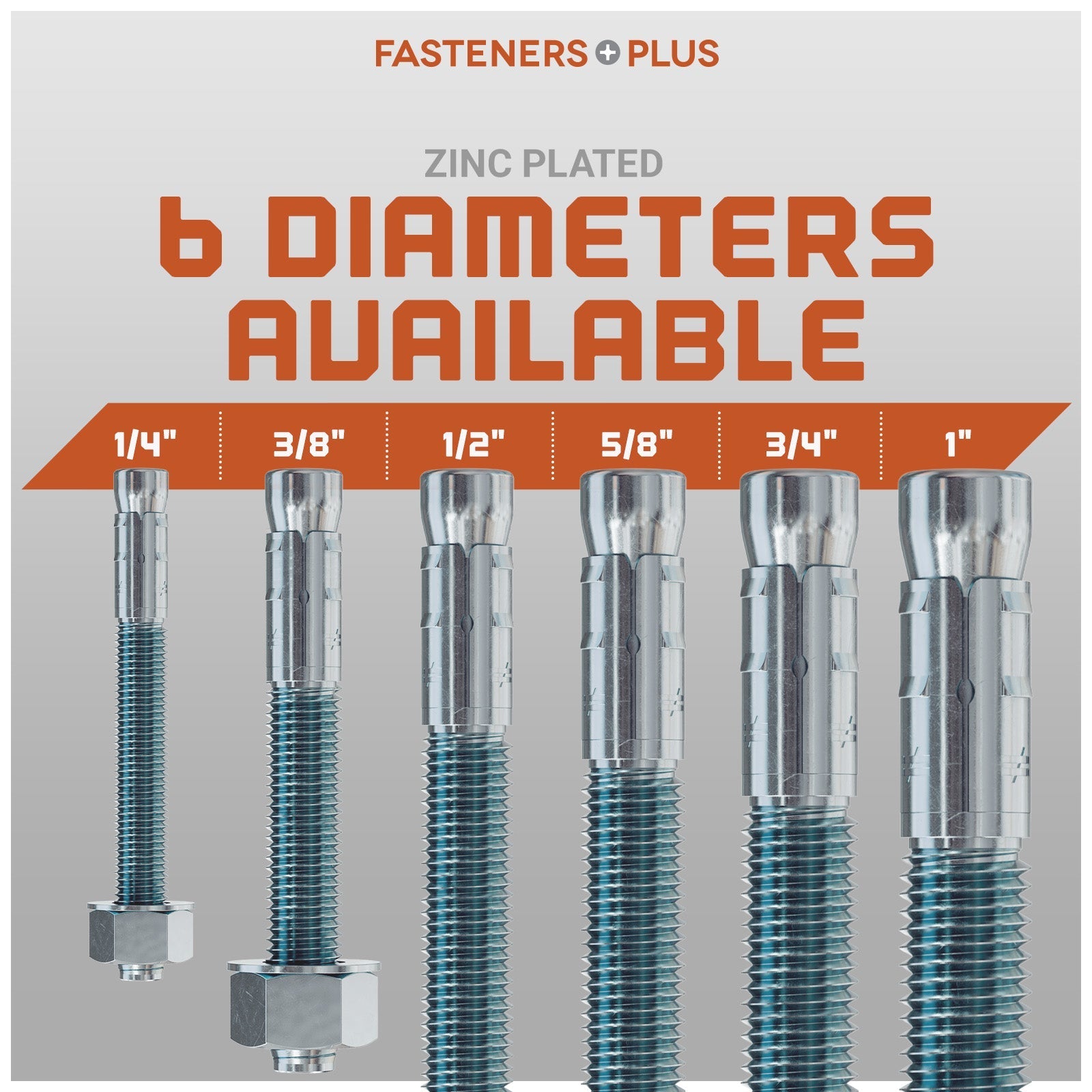

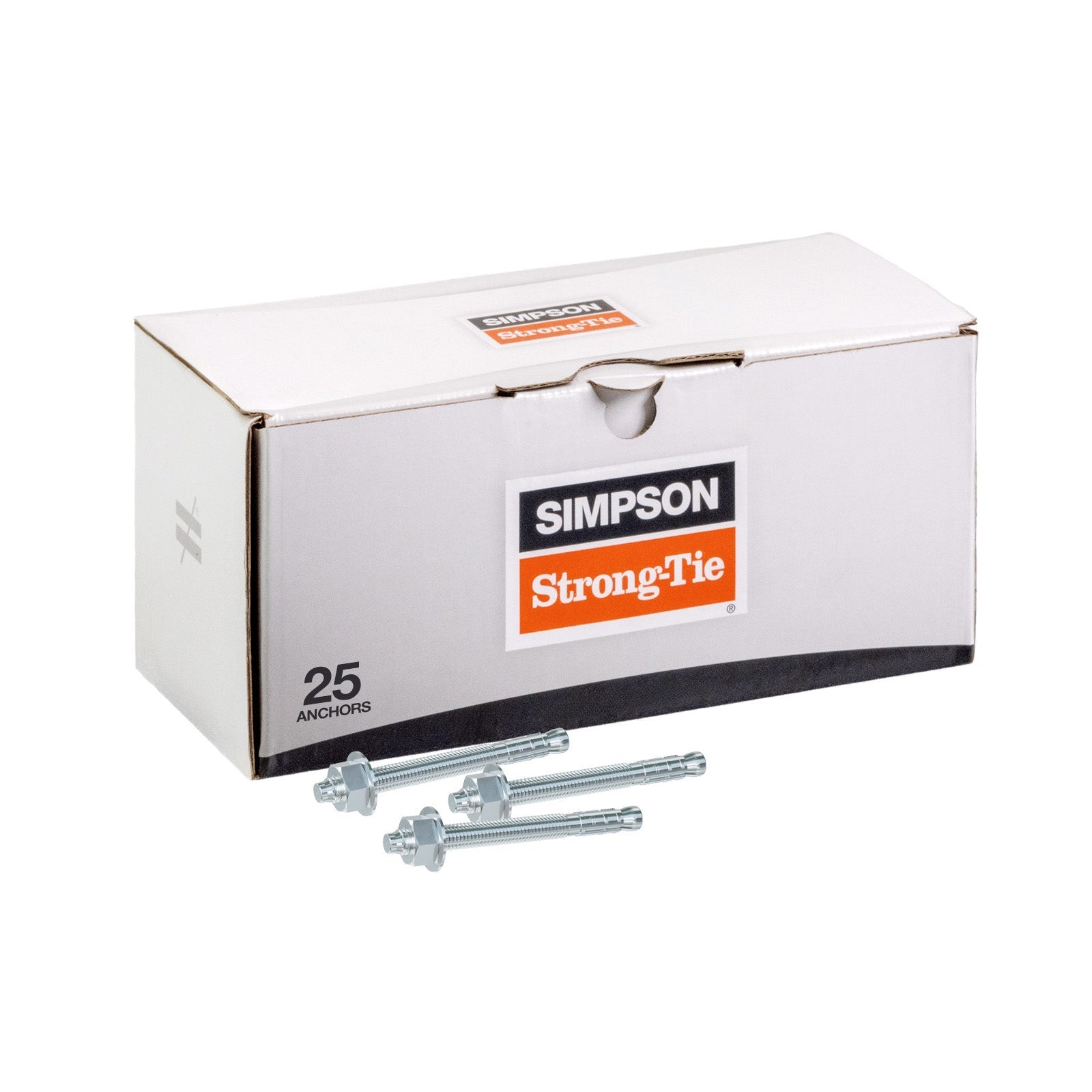

Designed for both structural and non-structural applications, Strong-Bolt 2 anchors come preassembled with the anchor body, nut, and washer for job-ready efficiency. Available in multiple diameters, lengths, and finishes, they provide versatile solutions for everything from base plates to safety-critical infrastructure.

Key Features

• ICC-ES ESR-3037 Approved: Rated for cracked and uncracked concrete, including seismic and wind loading.
• Fully Assembled Design: Includes nut and washer to reduce installation time and steps.
• Tapered Expansion Clip: Delivers consistent holding power under dynamic and seismic loads.

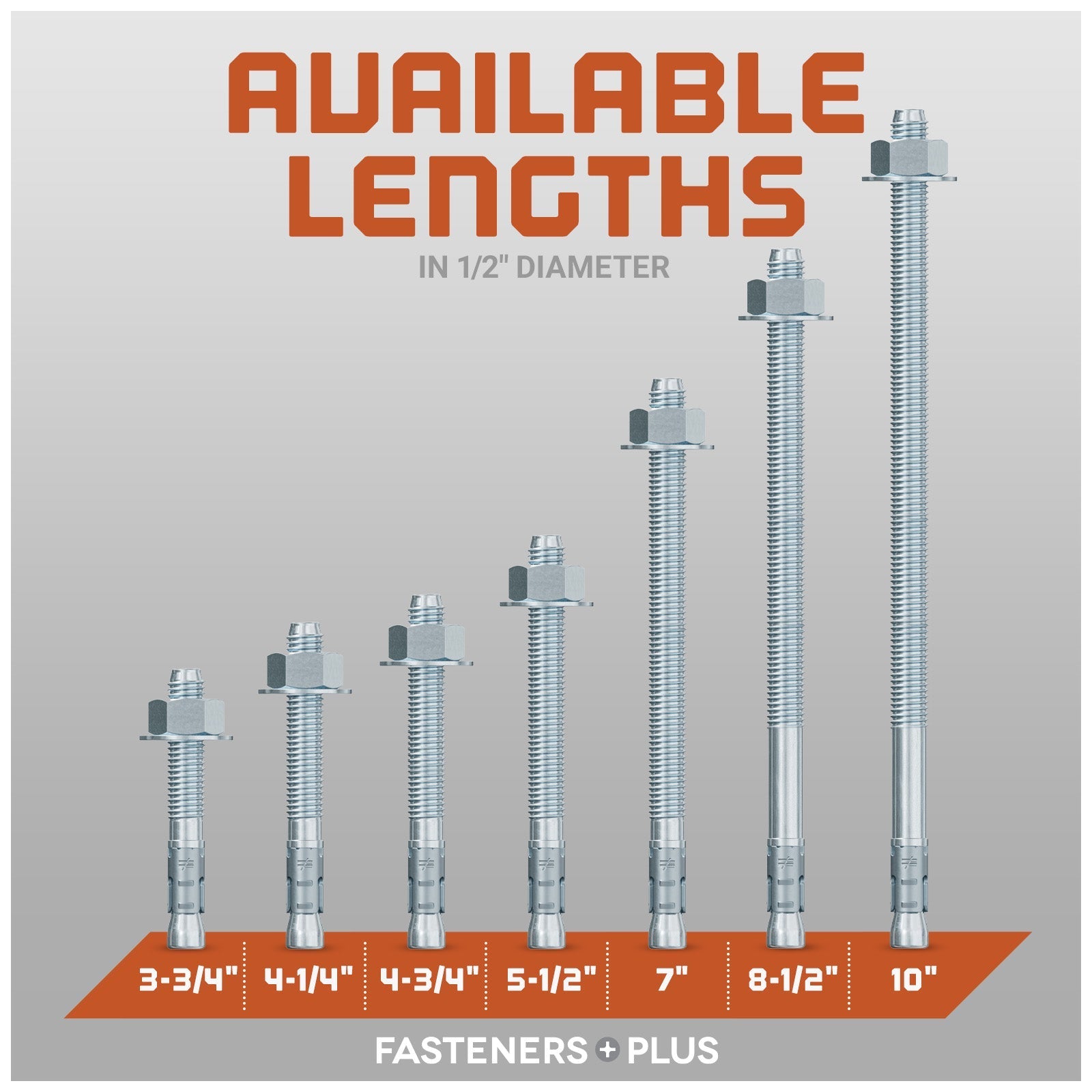

• Multiple Finish Options: Available in zinc-plated, hot-dip galvanized, and stainless steel for varying environments.

Common Applications

• Structural steel base plates
• Racking and shelving systems
• Concrete formwork and equipment anchoring
• Mechanical, electrical, and plumbing supports
• Light poles, handrails, and safety barriers

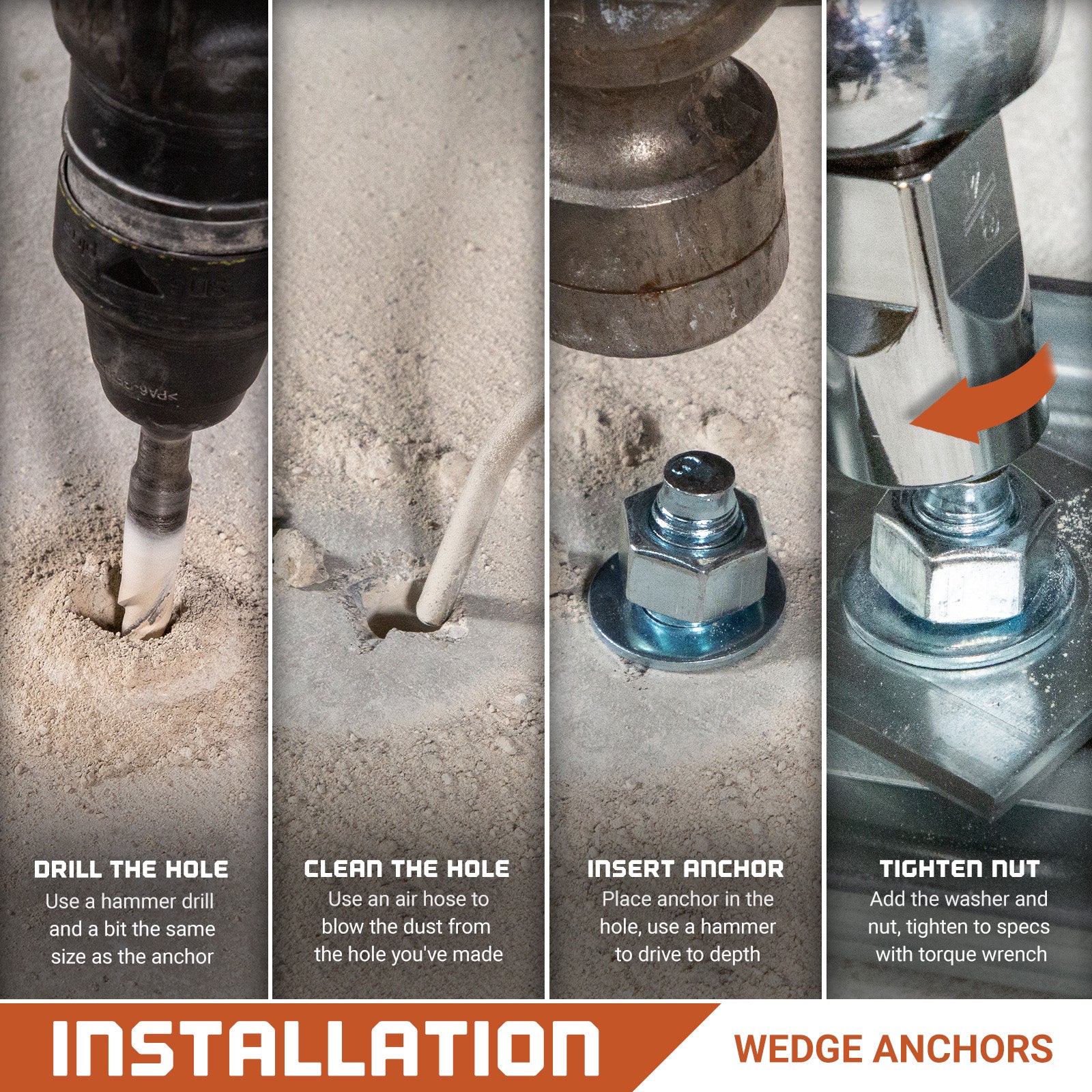

Installation Tips

• Drill a hole using a carbide-tipped bit matching the anchor diameter.
• Clean the hole thoroughly to remove dust and debris before installation.

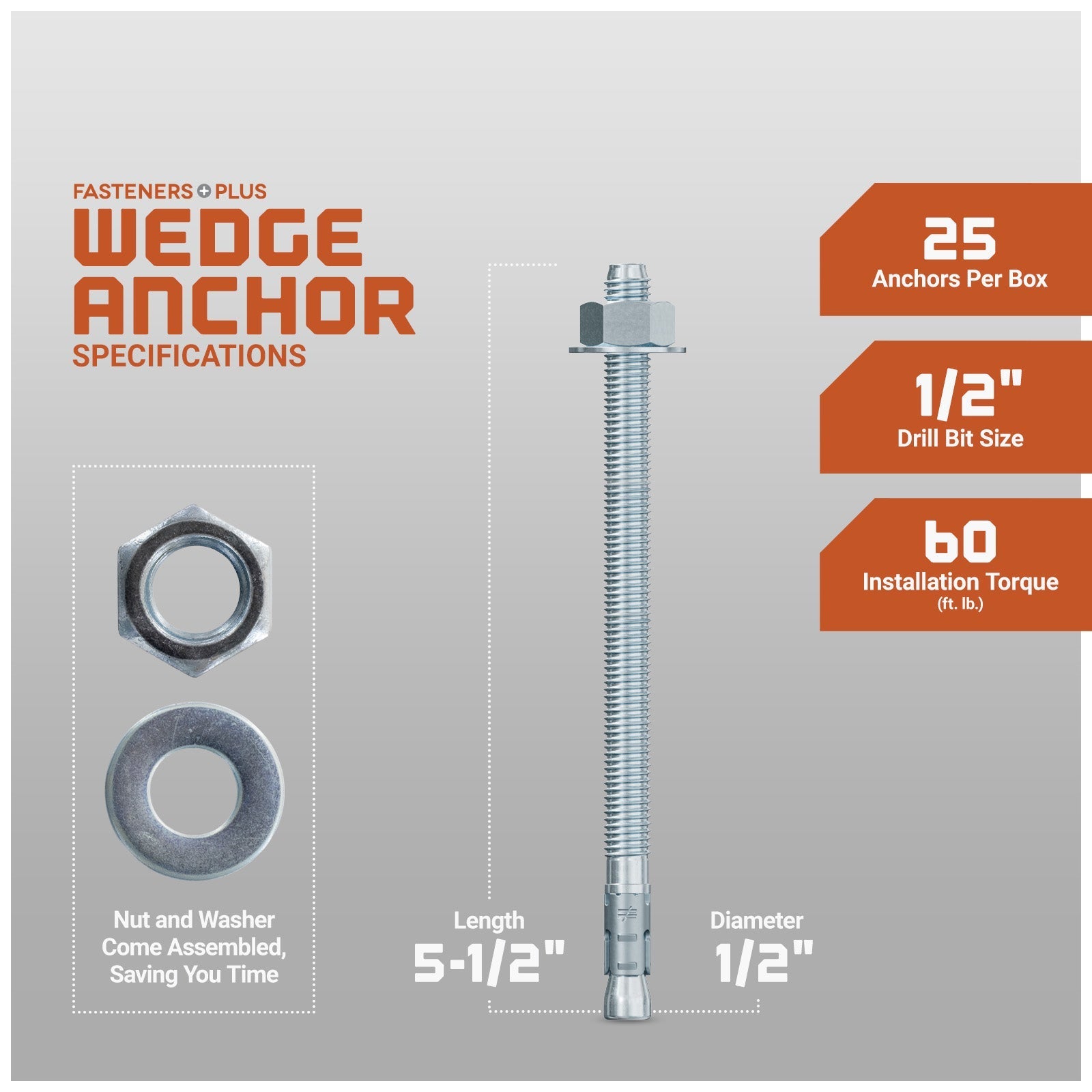

• Tighten the nut to set the anchor, refer to Simpson Strong-Tie torque specifications by size.
