SKU: SSSEB38X4

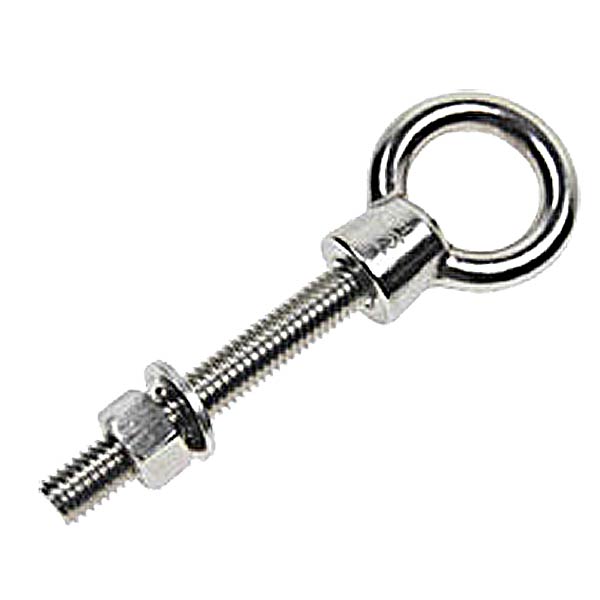

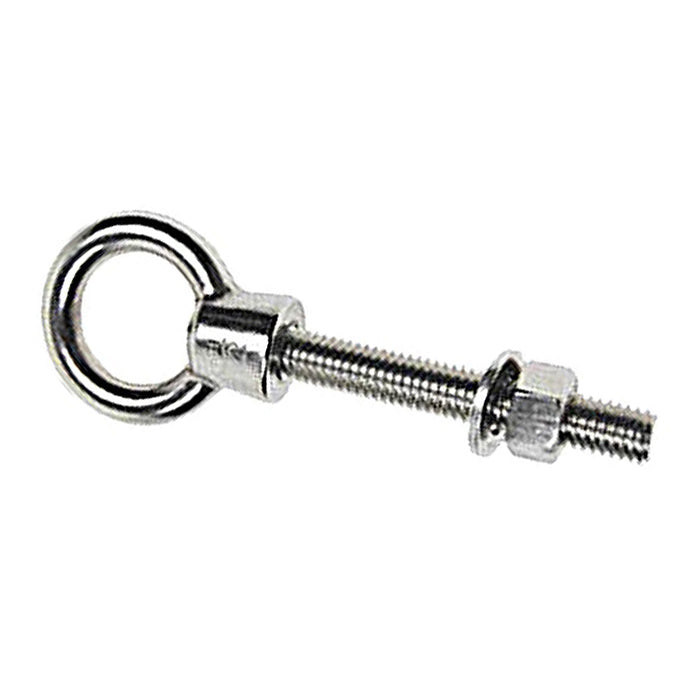

3/8" x 4" Stainless Steel Type 316 Shoulder Eye Bolt

3/8" x 4" Stainless Steel Type 316 Shoulder Eye Bolt!

Skip to product information
1 of 2

SKU: SSSEB38X4

3/8" x 4" Stainless Steel Type 316 Shoulder Eye Bolt

3/8" x 4" Stainless Steel Type 316 Shoulder Eye Bolt!

Regular price $10.59
Sale price $10.59 Regular price
0% off
Ships Mar 29 when you order now
Buy More, Save More
Qty
Price
Save
1 - 9
$10.59
-
10 - 49
$10.28
3%
50 - 99
$9.96
6%
100 +
$9.54
10%
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Overall length: 5.84"
  • Shank length: 4"
  • Working load limit: 1,000 lbs.
  • Assembly break strength: 4,000 lbs.
  • Safety factor: 4:1
  • Diameter: 3/8"
  • Material: Steel
  • Product weight: .2 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
  • Additional info: Overall width: 1.58"

Description

Made of type 316 stainless steel to offer superior resistance to corrosion and oxidation, particularly in extreme or marine environments. The low maintenance and high luster of stainless steel also makes it popular for architectural applications. The eye can accommodate wire rope, shackles and other rigging equipment. Shoulder eyebolts can be used for either straight line or angular pulls, since the shoulder helps support the load as it pulls at an angle. Includes eye bolt, nut and washer.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
