SKU: SLB-200-T
Straightpoint® 200 T Loadshackle - SLB200T
Straightpoint® 200 T Loadshackle - SLB200T!
No reviews
1
/
of
3
SKU: SLB-200-T
Straightpoint® 200 T Loadshackle - SLB200T
Straightpoint® 200 T Loadshackle - SLB200T!
No reviews
Regular price
$34,289.00
Sale price
$34,289.00
Regular price
Unit price
/
per
0% off
Ships FREE in 14-21 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
Fill out the form below or give our sales consultants a call at 866-444-9990.
Specifications
Specifications
- Load capacity: 440,000 lbs.
- Safety factor: 5:1 when used with bobbin
- Manufacturer name: Crosby Straightpoint
- Brand part number: SLB200T / 2789104
- Resolution: 200 lbs.
- Standards: IP67
- Operating temperature: -10° to +50°C | 14° to 122° F
- Accuracy: +/- 1% of Full Scale
- Product weight: 507 lbs.
Description
Description
This cabled loadshackle from Straightpoint offers reduced overall weight and headroom, making it ideal for low headroom applications. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. This 200-ton cabled load cell shackle (Straightpoint model #SLB200T & Crosby model #2789104) is designed for use with digital external displays including the Straightpoint HHP Handheld Plus, PLCs, data acquisition systems (DAQ), etc. and configured with a vast array of output formats. Whether used in heavy lifting, mooring anchor placement, or sub-sea applications, Straightpoint's cabled Loadshackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price. Straightpoint cabled Loadshackles are also environmentally sealed to IP67 and, as an option, sealed for permanent submersion for sub-sea use. All Straightpoint Loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless loadshackle today. We also offer a wireless load shackle that is designed for use with Straightpoint's SW-HHP handheld device readout device or INSIGHT computer software, as well as a Bluetooth-only wireless loadshackle option.
Reviews + Q&A
Reviews + Q&A
×

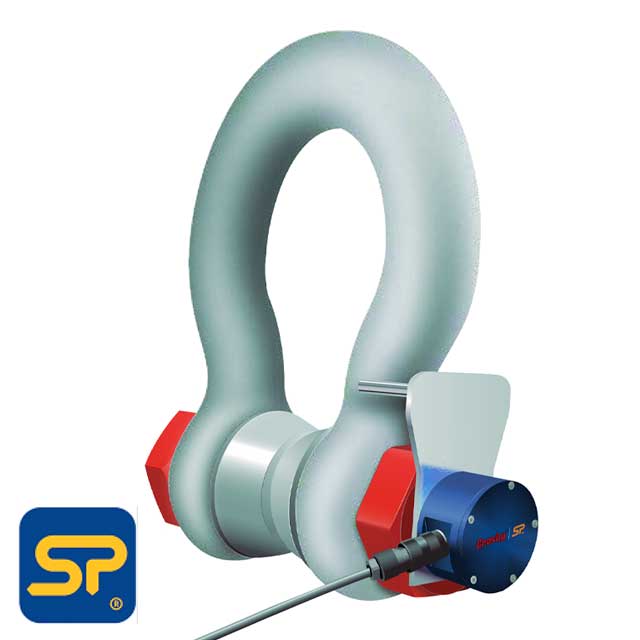

![Straightpoint Cabled Loadshackle with Bobbin](http://www.uscargocontrol.com/cdn/shop/products/cabled-loadshackle-with-bobbin.thumbnail_4b6ec628-4497-4fa7-8e6d-be8e914ab7e9.jpg?crop=center&height=50&v=1691009587&width=50)

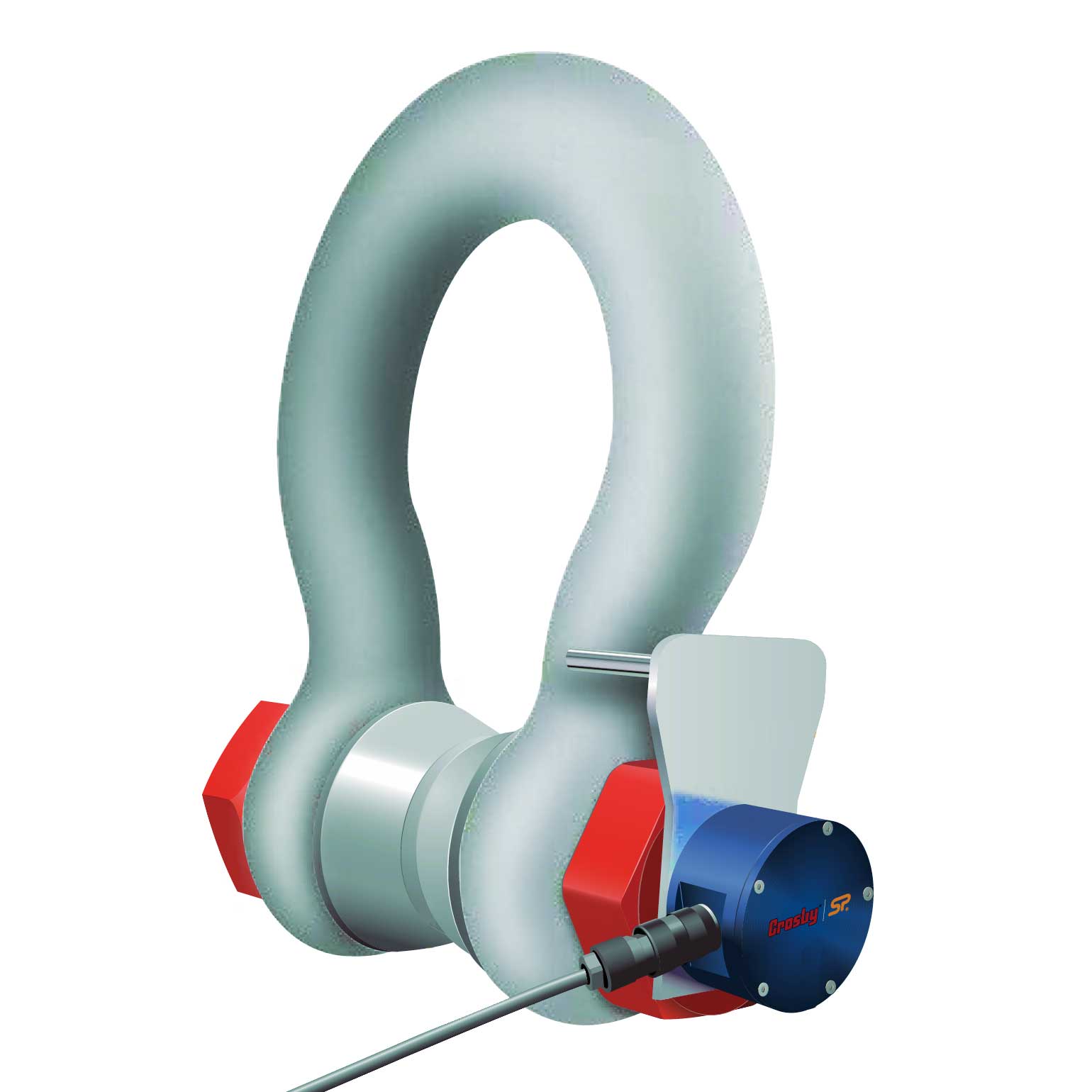

![Cabled Loadshackle with Bobbin](http://www.uscargocontrol.com/cdn/shop/products/cabled-loadshackle-with-bobbin.01_6806da3a-ee56-47f6-8ae2-555796597729.jpg?crop=center&height=50&v=1691009587&width=50)

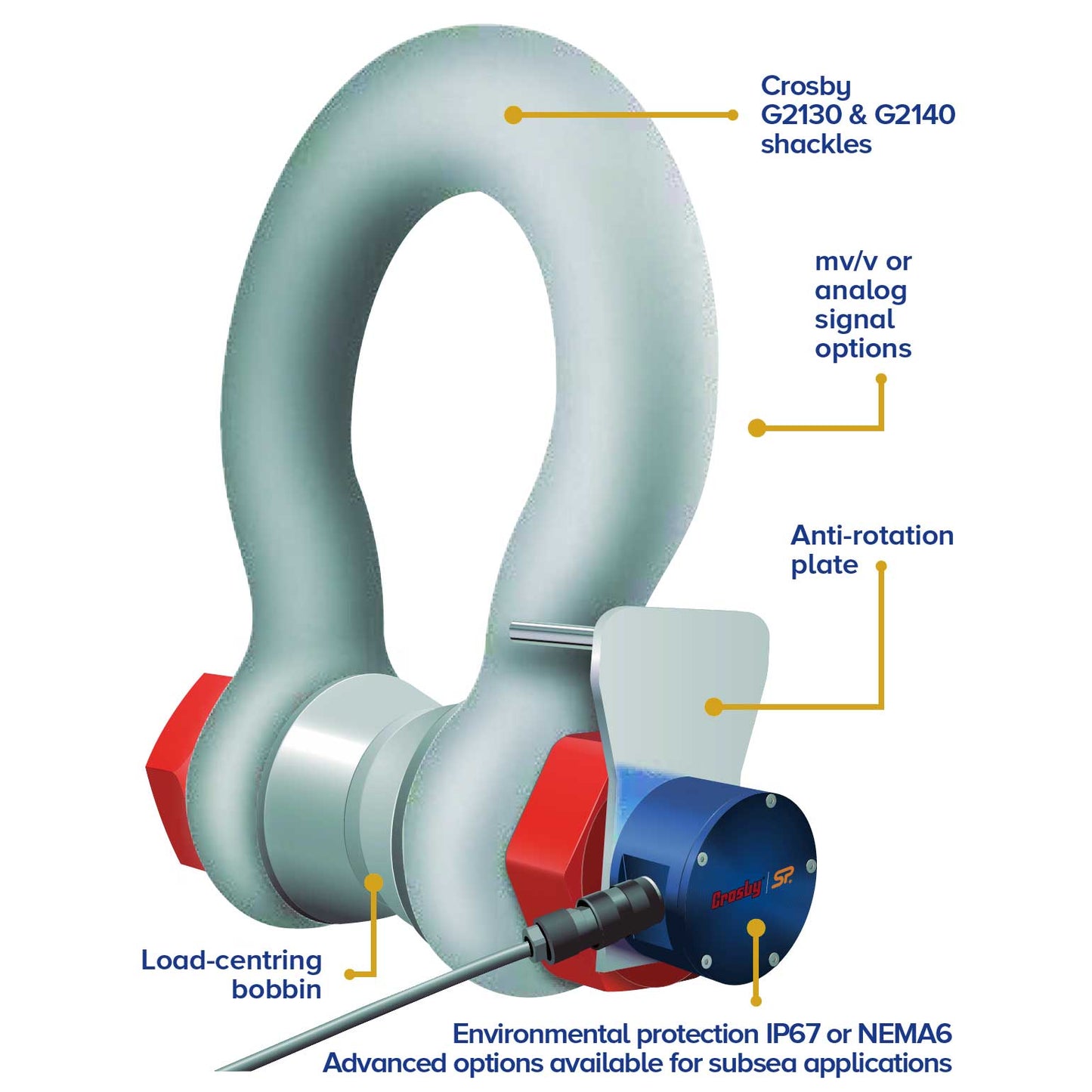

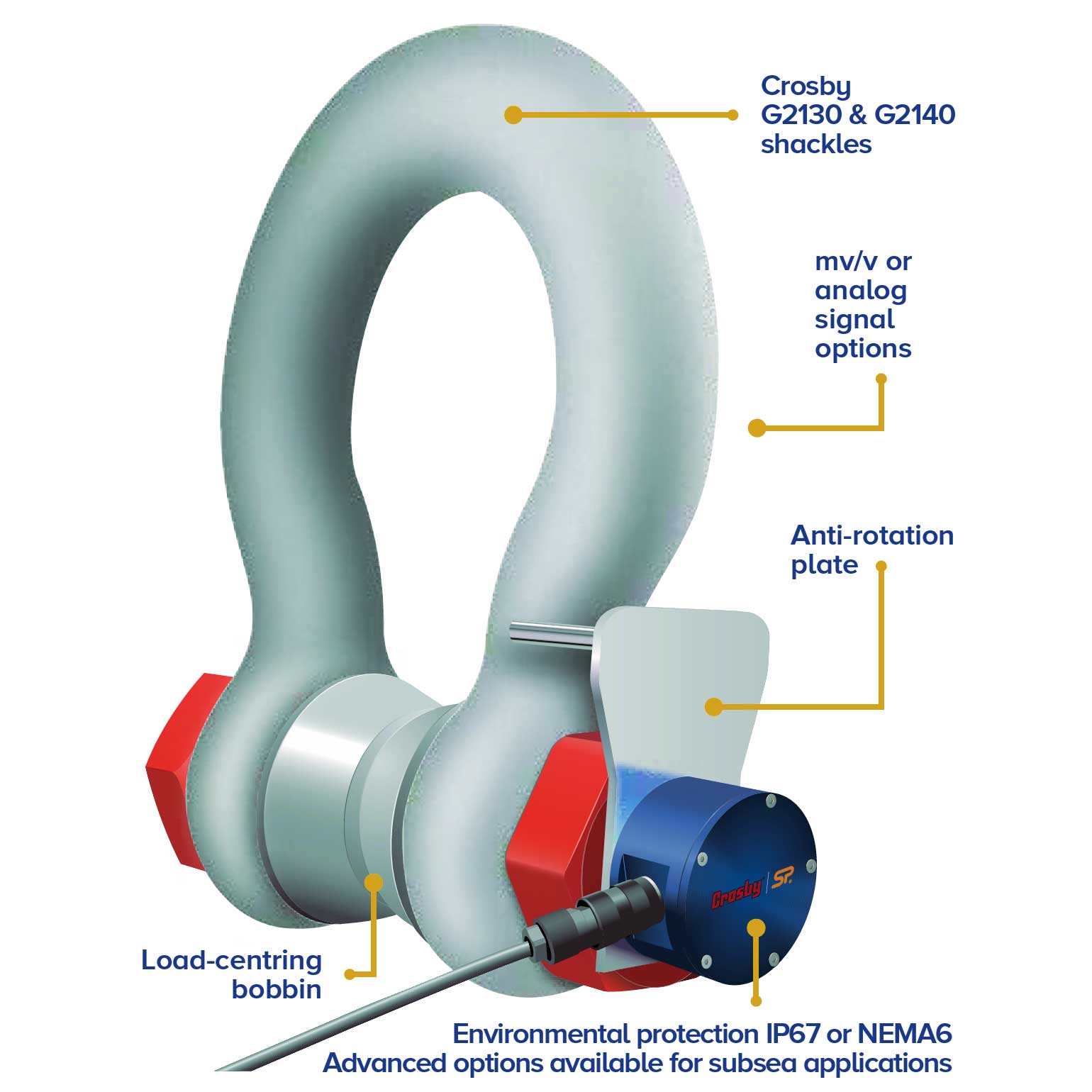

![Cabled Loadshackle with Bobbin Features](http://www.uscargocontrol.com/cdn/shop/products/cabled-loadshackle-with-bobbin.02_75b71873-bf01-4956-b13b-1f7a3991de4f.jpg?crop=center&height=50&v=1691009587&width=50)
