3/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 2 Ton
3/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 2 Ton!
Continue Browsing
Screw Pin Anchor Shackles - Galvanized
Anchor, Bow, Chain, and D Shackles
Rigging Supplies & Rigging Hardware
3/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 2 Ton
3/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 2 Ton!
Specifications
Specifications
- Working load limit: 2 tons (Metric) / 4,409 lbs.
- Inside width: 1.03"
- Mouth width: 0.66"
- Finish: Galvanized
- Safety factor: 5:1
- Manufacturer name: Crosby®
- Brand part number: 1017450
- Inside height: 1.44"
- Pin size: 7/16"
- Shackle size: 3/8"
- Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271.
- Type: Screw Pin Anchor
- Material: Alloy Steel
- Product weight: .3 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description
Crosby® 2 Ton Screw Pin Anchor Shackles
Anchor shackles have a rounded shape, which allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. The screw pin configuration works great in applications that are temporary, or require repeated and/or quick connections and disconnections.

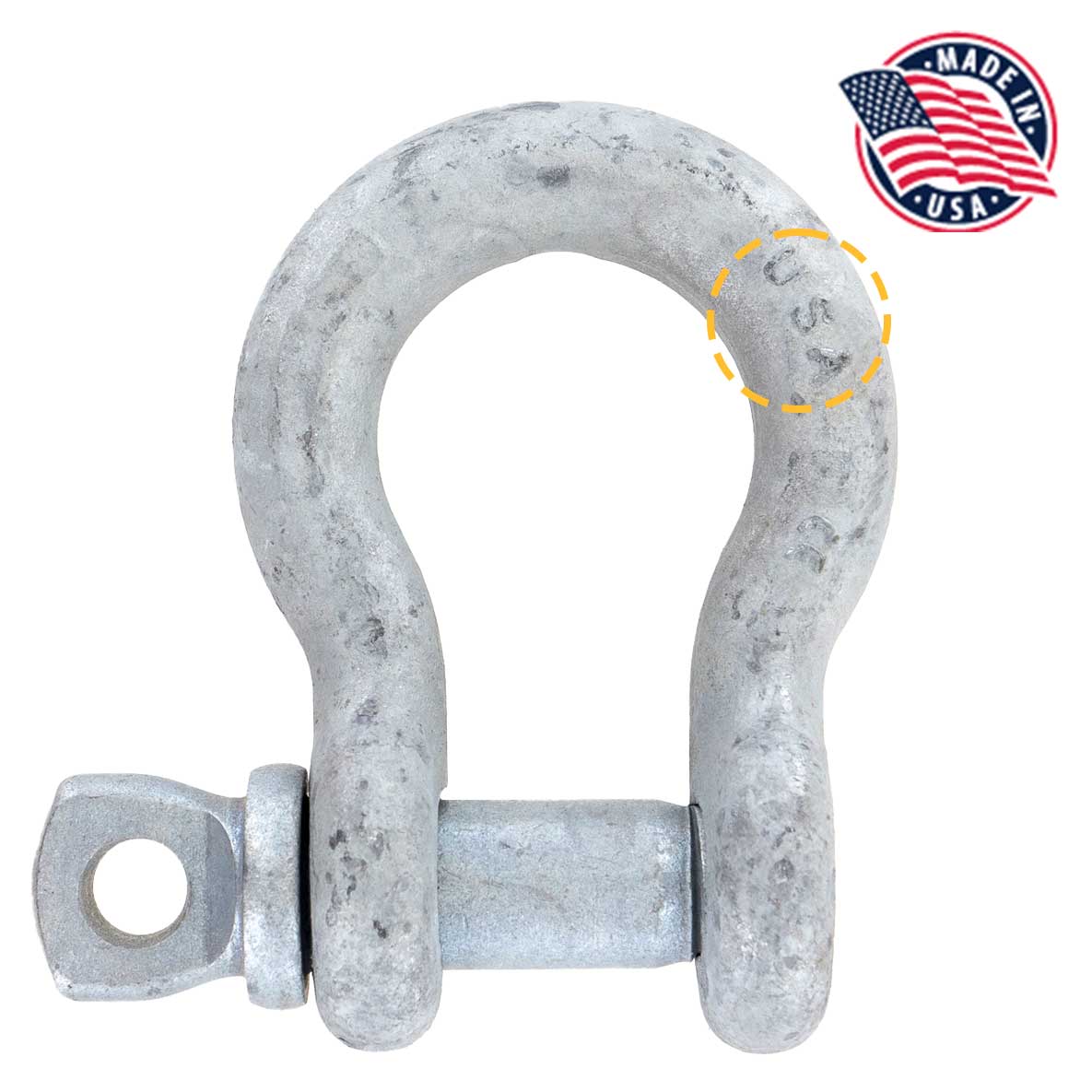

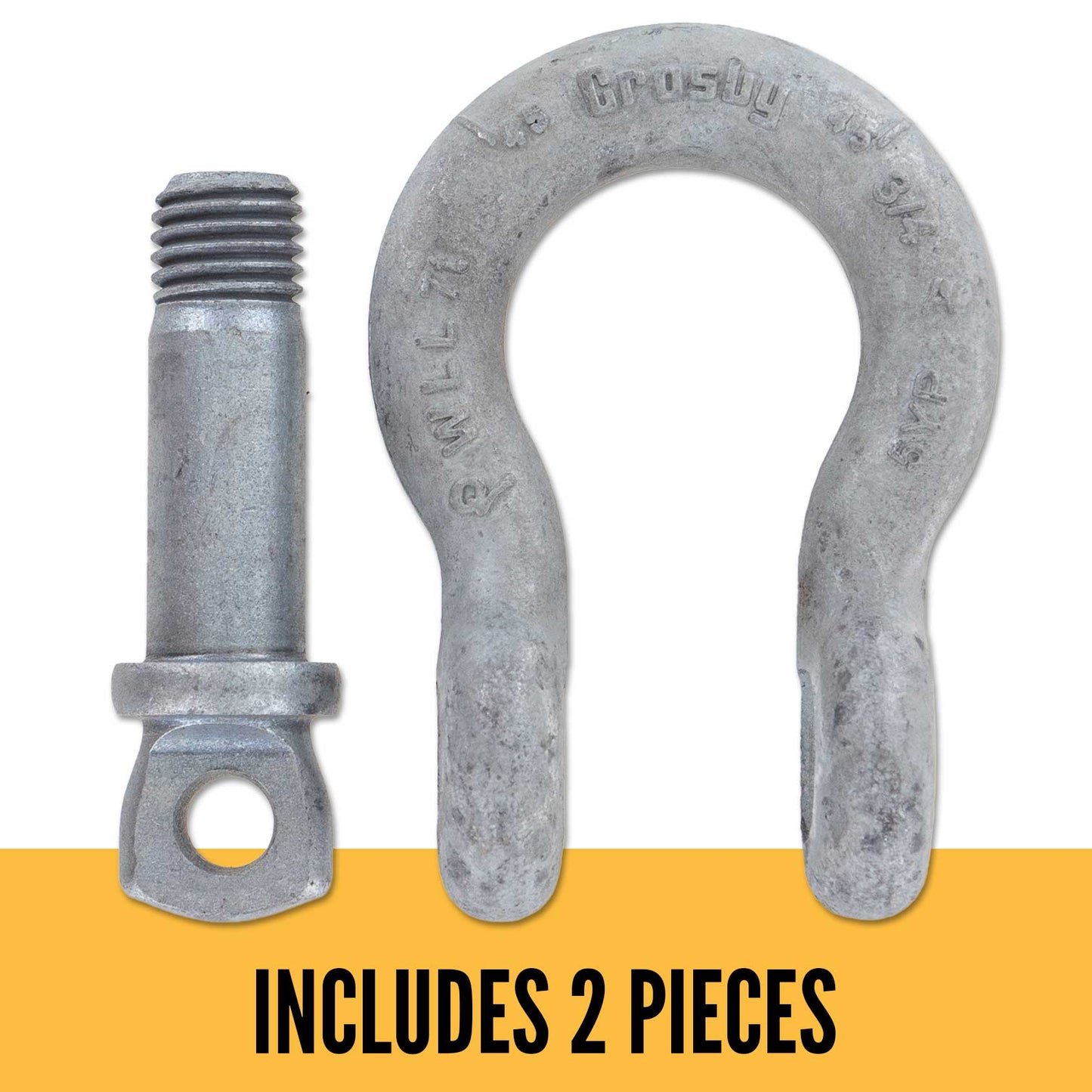

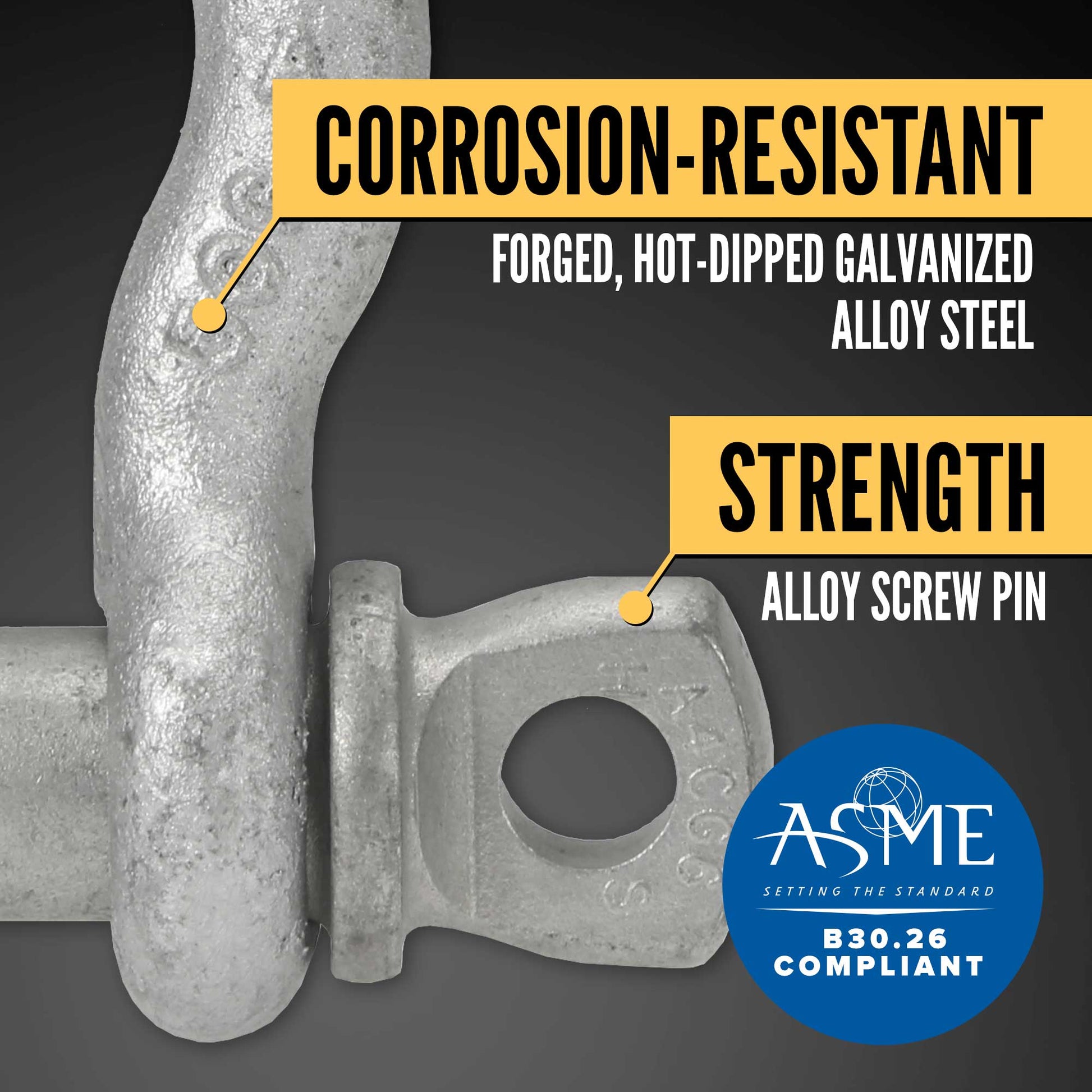

The USA-made Crosby alloy steel shackle is quenched and tempered for superior strength and comes with an alloy pin.
This screw pin anchor shackle is designed to perform. They can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
G-209A Shackle Features

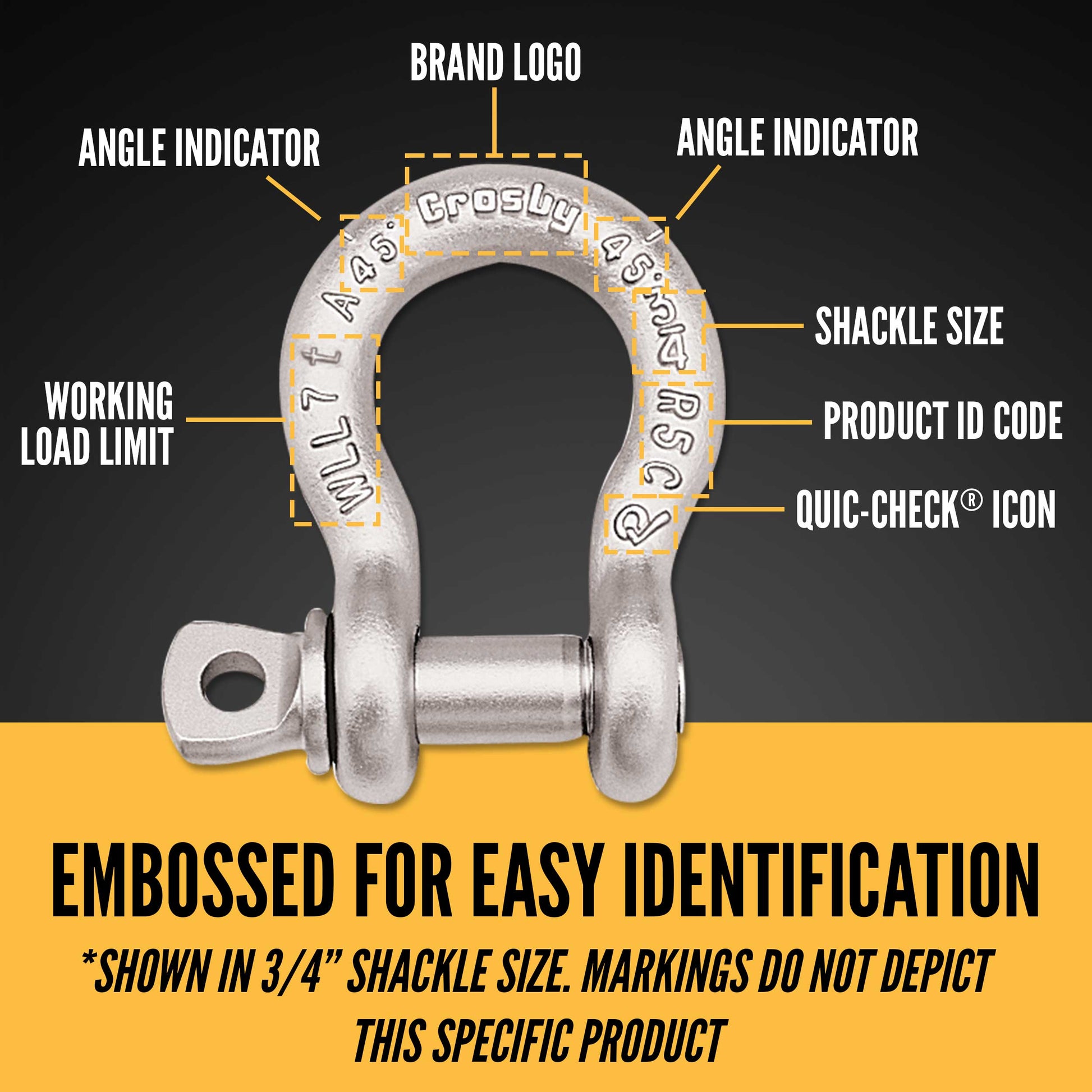

- Working load limit, PIC, and Crosby name on every shackle.
- Meets performance requirements of Grade 8 shackles.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
